QmitkDataStorageListInspector Class Reference

Inspector that offers a simple list view on a data storage. More...

#include <QmitkDataStorageListInspector.h>

Inheritance diagram for QmitkDataStorageListInspector:

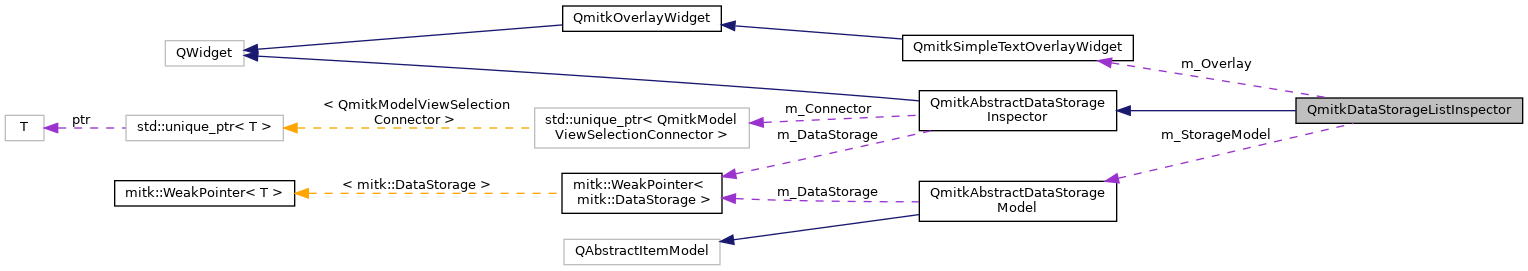

Collaboration diagram for QmitkDataStorageListInspector:

Public Member Functions
	QmitkDataStorageListInspector (QWidget *parent=nullptr)
	~QmitkDataStorageListInspector () override
QAbstractItemView *	GetView () override
	Returns a pointer to the view used to display the data storage content. More...
const QAbstractItemView *	GetView () const override
	Returns a pointer to the view used to display the data storage content. More...
void	SetSelectionMode (SelectionMode mode) override
	Sets the selection mode of the inspector's item view. More...
SelectionMode	GetSelectionMode () const override
	Returns the current selection mode of the inspector's item view. More...
Public Member Functions inherited from QmitkAbstractDataStorageInspector
	~QmitkAbstractDataStorageInspector () override
void	SetDataStorage (mitk::DataStorage *dataStorage)
	Sets the data storage that will be used and monitored by this widget. More...
virtual void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)
	Sets the node predicate and re-initializes the widget accordingly. More...
const mitk::NodePredicateBase *	GetNodePredicate () const
	Returns the currently set node predicate. More...
NodeList	GetSelectedNodes () const
	Returns the list of currently selected data nodes. More...
bool	GetSelectOnlyVisibleNodes () const
	Returns whether only visible nodes can be selected. More...

Protected Member Functions
void	Initialize () override
void	OnModelReset ()
Protected Member Functions inherited from QmitkAbstractDataStorageInspector
	QmitkAbstractDataStorageInspector (QWidget *parent=nullptr)

Protected Attributes
QmitkAbstractDataStorageModel *	m_StorageModel
std::unique_ptr< Ui::QmitkDataStorageListInspector >	m_Controls
QmitkSimpleTextOverlayWidget *	m_Overlay
Protected Attributes inherited from QmitkAbstractDataStorageInspector
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage
mitk::NodePredicateBase::ConstPointer	m_NodePredicate
std::unique_ptr< QmitkModelViewSelectionConnector >	m_Connector

Additional Inherited Members
Public Types inherited from QmitkAbstractDataStorageInspector
using	NodeList = QList< mitk::DataNode::Pointer >
	Convenience type alias for a list of data node pointers. More...
using	SelectionMode = QAbstractItemView::SelectionMode
	Convenience type alias for the Qt selection mode. More...
Public Slots inherited from QmitkAbstractDataStorageInspector
void	SetSelectOnlyVisibleNodes (bool selectOnlyVisibleNodes)
	Controls whether selections are restricted to visible nodes only. More...
void	SetCurrentSelection (NodeList selectedNodes)
	Sets the given list of data nodes as the new selection. More...
Signals inherited from QmitkAbstractDataStorageInspector
void	CurrentSelectionChanged (NodeList nodes)
	Emitted when the set of selected nodes has changed. More...
Protected Slots inherited from QmitkAbstractDataStorageInspector
void	OnSelectionChanged (NodeList selectedNodes)

Detailed Description

Inspector that offers a simple list view on a data storage.

Definition at line 30 of file QmitkDataStorageListInspector.h.

Constructor & Destructor Documentation

QmitkDataStorageListInspector()

QmitkDataStorageListInspector::QmitkDataStorageListInspector

(

QWidget *

parent = nullptr

)

~QmitkDataStorageListInspector()

QmitkDataStorageListInspector::~QmitkDataStorageListInspector ( )

override

Member Function Documentation

GetSelectionMode()

SelectionMode QmitkDataStorageListInspector::GetSelectionMode ( ) const

overridevirtual

Returns the current selection mode of the inspector's item view.

Returns

The active QAbstractItemView::SelectionMode.

Implements QmitkAbstractDataStorageInspector.

GetView() [1/2]

const QAbstractItemView* QmitkDataStorageListInspector::GetView ( ) const

overridevirtual

Returns a pointer to the view used to display the data storage content.

Returns

Pointer to the internal QAbstractItemView.

Implements QmitkAbstractDataStorageInspector.

GetView() [2/2]

QAbstractItemView* QmitkDataStorageListInspector::GetView ( )

overridevirtual

Returns a pointer to the view used to display the data storage content.

Returns

Pointer to the internal QAbstractItemView.

Implements QmitkAbstractDataStorageInspector.

Initialize()

void QmitkDataStorageListInspector::Initialize ( )

overrideprotectedvirtual

Helper function is called if data storage or predicate is changed to (re) initialize the widget correctly. Implement the function in derived classes.

Implements QmitkAbstractDataStorageInspector.

OnModelReset()

void QmitkDataStorageListInspector::OnModelReset ( )

protected

SetSelectionMode()

void QmitkDataStorageListInspector::SetSelectionMode ( SelectionMode  mode )

overridevirtual

Sets the selection mode of the inspector's item view.

Parameters

[in]

mode

The desired QAbstractItemView::SelectionMode.

Implements QmitkAbstractDataStorageInspector.

Member Data Documentation

m_Controls

std::unique_ptr<Ui::QmitkDataStorageListInspector> QmitkDataStorageListInspector::m_Controls

protected

Definition at line 49 of file QmitkDataStorageListInspector.h.

m_Overlay

QmitkSimpleTextOverlayWidget* QmitkDataStorageListInspector::m_Overlay

protected

Definition at line 50 of file QmitkDataStorageListInspector.h.

m_StorageModel

QmitkAbstractDataStorageModel* QmitkDataStorageListInspector::m_StorageModel

protected

Definition at line 48 of file QmitkDataStorageListInspector.h.

---

The documentation for this class was generated from the following file:

• QmitkDataStorageListInspector.h
