QRunnable-based background job for executing a parameter fit image generation. More...

#include <QmitkParameterFitBackgroundJob.h>

Inheritance diagram for ParameterFitBackgroundJob:

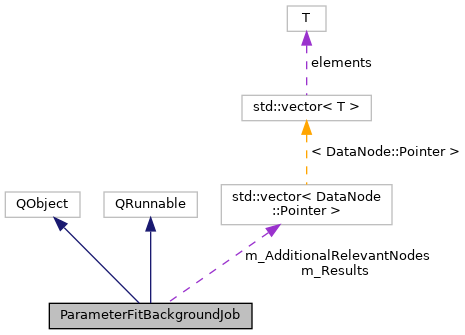

Collaboration diagram for ParameterFitBackgroundJob:

[legend]

Signals
void	Finished ()
	Emitted when the job has completed (regardless of success or failure). More...

void	Error (QString err)
	Emitted when an error occurs during fitting. More...

void	ResultsAreAvailable (mitk::modelFit::ModelFitResultNodeVectorType resultMap, const ParameterFitBackgroundJob *pJob)
	Emitted when the fit results are available. More...

void	JobProgress (double progress)
	Emitted to report the progress of the fitting process. More...

void	JobStatusChanged (QString info)
	Emitted to report status changes during the fitting process. More...

Public Member Functions
	ParameterFitBackgroundJob (mitk::ParameterFitImageGeneratorBase generator, const mitk::modelFit::ModelFitInfo fitInfo, mitk::DataNode *parentNode=nullptr)
	Constructs a ParameterFitBackgroundJob. More...

	ParameterFitBackgroundJob (mitk::ParameterFitImageGeneratorBase generator, const mitk::modelFit::ModelFitInfo fitInfo, mitk::DataNode *parentNode, mitk::modelFit::ModelFitResultNodeVectorType additionalRelevantNodes)
	Constructs a ParameterFitBackgroundJob with additional relevant nodes. More...

	~ParameterFitBackgroundJob () override
	Destructor. Removes the ITK observer from the generator. More...

void	run () override
	Executes the fitting process. More...

mitk::DataNode *	GetParentNode () const
	Returns the parent data node for result storage. More...

mitk::modelFit::ModelFitResultNodeVectorType	GetAdditionalRelevantNodes () const
	Returns the additional relevant data nodes. More...

Protected Member Functions
void	OnFitEvent (::itk::Object *, const itk::EventObject &event)

Protected Attributes
mitk::ParameterFitImageGeneratorBase::Pointer	m_Generator

mitk::modelFit::ModelFitInfo::ConstPointer	m_ModelFitInfo

mitk::DataNode::Pointer	m_ParentNode

mitk::modelFit::ModelFitResultNodeVectorType	m_AdditionalRelevantNodes

mitk::modelFit::ModelFitResultNodeVectorType	m_Results

::itk::MemberCommand< ParameterFitBackgroundJob >::Pointer	m_spCommand

unsigned long	m_ObserverID

Detailed Description

QRunnable-based background job for executing a parameter fit image generation.

This class wraps a mitk::ParameterFitImageGeneratorBase and runs the fitting process asynchronously in a thread pool. It observes ITK progress, start, and end events from the generator and relays them as Qt signals. Upon completion, the generated result nodes (parameter images, derived parameter images, criterion images, and evaluation parameter images) are made available via the ResultsAreAvailable signal.

See also: mitk::ParameterFitImageGeneratorBase; mitk::modelFit::ModelFitInfo; mitk::modelFit::CreateResultNodeMap

Definition at line 47 of file QmitkParameterFitBackgroundJob.h.

Constructor & Destructor Documentation

◆ ParameterFitBackgroundJob() [1/2]

ParameterFitBackgroundJob::ParameterFitBackgroundJob	(	mitk::ParameterFitImageGeneratorBase *	generator,
		const mitk::modelFit::ModelFitInfo *	fitInfo,
		mitk::DataNode *	parentNode = `nullptr`
	)

Constructs a ParameterFitBackgroundJob.

Parameters

[in]	generator	Pointer to the fit image generator to execute. Must not be nullptr.
[in]	fitInfo	Pointer to the model fit information. Must not be nullptr.
[in]	parentNode	Optional parent data node for the result nodes. May be nullptr.

Exceptions

mitk::Exception if generator or fitInfo is nullptr.

◆ ParameterFitBackgroundJob() [2/2]

ParameterFitBackgroundJob::ParameterFitBackgroundJob	(	mitk::ParameterFitImageGeneratorBase *	generator,
		const mitk::modelFit::ModelFitInfo *	fitInfo,
		mitk::DataNode *	parentNode,
		mitk::modelFit::ModelFitResultNodeVectorType	additionalRelevantNodes
	)

Constructs a ParameterFitBackgroundJob with additional relevant nodes.

Parameters

[in]	generator	Pointer to the fit image generator to execute. Must not be nullptr.
[in]	fitInfo	Pointer to the model fit information. Must not be nullptr.
[in]	parentNode	Optional parent data node for the result nodes. May be nullptr.
[in]	additionalRelevantNodes	Additional data nodes that are relevant for the fit session (e.g., input data nodes).

Exceptions

mitk::Exception if generator or fitInfo is nullptr.

◆ ~ParameterFitBackgroundJob()

ParameterFitBackgroundJob::~ParameterFitBackgroundJob ( )

override

Destructor. Removes the ITK observer from the generator.

Member Function Documentation

◆ Error

void ParameterFitBackgroundJob::Error ( QString err )

signal

Emitted when an error occurs during fitting.

Parameters

[in] err Description of the error.

◆ Finished

void ParameterFitBackgroundJob::Finished ( )

signal

Emitted when the job has completed (regardless of success or failure).

◆ GetAdditionalRelevantNodes()

mitk::modelFit::ModelFitResultNodeVectorType ParameterFitBackgroundJob::GetAdditionalRelevantNodes ( ) const

Returns the additional relevant data nodes.

Returns: Vector of additional data nodes associated with this job.

◆ GetParentNode()

mitk::DataNode* ParameterFitBackgroundJob::GetParentNode ( ) const

Returns the parent data node for result storage.

Returns: Pointer to the parent node, or nullptr if none was specified.

◆ JobProgress

void ParameterFitBackgroundJob::JobProgress ( double progress )

signal

Emitted to report the progress of the fitting process.

Parameters

[in] progress The current progress value (0.0 to 1.0).

◆ JobStatusChanged

void ParameterFitBackgroundJob::JobStatusChanged ( QString info )

signal

Emitted to report status changes during the fitting process.

Parameters

[in] info A human-readable status message.

◆ OnFitEvent()

void ParameterFitBackgroundJob::OnFitEvent	(	::itk::Object *	,
		const itk::EventObject &	event
	)

protected

◆ ResultsAreAvailable

void ParameterFitBackgroundJob::ResultsAreAvailable	(	mitk::modelFit::ModelFitResultNodeVectorType	resultMap,
		const ParameterFitBackgroundJob *	pJob
	)

signal

Emitted when the fit results are available.

Parameters

[in]	resultMap	Vector of data nodes containing the generated result images.
[in]	pJob	Pointer to this job instance for identification.

◆ run()

void ParameterFitBackgroundJob::run ( )

override

Executes the fitting process.

Calls Generate() on the fit image generator, then creates result nodes from the generated images. Emits ResultsAreAvailable on success, or Error on failure. Always emits Finished at the end.
