DescriptionParameterBackgroundJob Class Reference

Background job for computing description parameter images asynchronously. More...

#include <QmitkDescriptionParameterBackgroundJob.h>

Inheritance diagram for DescriptionParameterBackgroundJob:

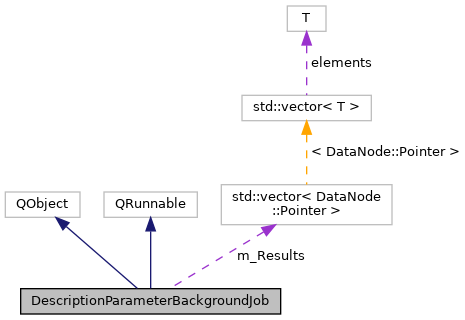

Collaboration diagram for DescriptionParameterBackgroundJob:

Signals
void	Finished ()
	Emitted when the job has finished (successfully or not). More...
void	Error (QString err)
	Emitted when an error occurs during computation. More...
void	ResultsAreAvailable (mitk::modelFit::ModelFitResultNodeVectorType resultMap, const DescriptionParameterBackgroundJob *pJob)
	Emitted when result data nodes are available. More...
void	JobProgress (double progress)
	Emitted to report computation progress. More...
void	JobStatusChanged (QString info)
	Emitted when the job status changes. More...

Public Member Functions
	DescriptionParameterBackgroundJob (mitk::DescriptionParameterImageGeneratorBase *generator, mitk::DataNode *parentNode=nullptr)
	Construct a background job for the given generator. More...
	~DescriptionParameterBackgroundJob () override
void	run () override
	Execute the parameter image generation in the background thread. More...
mitk::DataNode *	GetParentNode () const
	Get the parent node for the results of this job. More...

Protected Member Functions
void	OnComputeEvent (::itk::Object *, const itk::EventObject &event)

Static Protected Member Functions
static mitk::modelFit::ModelFitResultNodeVectorType	CreateResultNodes (const mitk::DescriptionParameterImageGeneratorBase::ParameterImageMapType &paramimages)

Protected Attributes
mitk::DescriptionParameterImageGeneratorBase::Pointer	m_Generator
mitk::DataNode::Pointer	m_ParentNode
mitk::modelFit::ModelFitResultNodeVectorType	m_Results
::itk::MemberCommand< DescriptionParameterBackgroundJob >::Pointer	m_spCommand
unsigned long	m_ObserverID

Detailed Description

Background job for computing description parameter images asynchronously.

Runs a DescriptionParameterImageGeneratorBase in a background thread (via QRunnable) and emits Qt signals for progress updates, completion, errors, and result availability. Results are packaged as DataNode objects suitable for insertion into a DataStorage.

See also

mitk::DescriptionParameterImageGeneratorBase, mitk::modelFit::ModelFitResultHelper

Definition at line 41 of file QmitkDescriptionParameterBackgroundJob.h.

Constructor & Destructor Documentation

DescriptionParameterBackgroundJob()

DescriptionParameterBackgroundJob::DescriptionParameterBackgroundJob	(	mitk::DescriptionParameterImageGeneratorBase *	generator,
		mitk::DataNode *	parentNode = nullptr
	)

Construct a background job for the given generator.

Parameters

[in]	generator	The description parameter image generator to execute.
[in]	parentNode	Optional parent data node for organizing result nodes in the data storage. May be nullptr.

~DescriptionParameterBackgroundJob()

DescriptionParameterBackgroundJob::~DescriptionParameterBackgroundJob ( )

override

Member Function Documentation

CreateResultNodes()

static mitk::modelFit::ModelFitResultNodeVectorType DescriptionParameterBackgroundJob::CreateResultNodes ( const mitk::DescriptionParameterImageGeneratorBase::ParameterImageMapType &  paramimages )

staticprotected

Error

void DescriptionParameterBackgroundJob::Error ( QString  err )

signal

Emitted when an error occurs during computation.

Parameters

[in]

err

The error message.

Finished

void DescriptionParameterBackgroundJob::Finished ( )

signal

Emitted when the job has finished (successfully or not).

GetParentNode()

mitk::DataNode* DescriptionParameterBackgroundJob::GetParentNode

(

)

const

Get the parent node for the results of this job.

Returns

The parent data node, or nullptr if none was specified.

JobProgress

void DescriptionParameterBackgroundJob::JobProgress ( double  progress )

signal

Emitted to report computation progress.

Parameters

[in]

progress

Progress value in the range [0.0, 1.0].

JobStatusChanged

void DescriptionParameterBackgroundJob::JobStatusChanged ( QString  info )

signal

Emitted when the job status changes.

Parameters

[in]

info

A human-readable status message.

OnComputeEvent()

void DescriptionParameterBackgroundJob::OnComputeEvent ( ::itk::Object *  , const itk::EventObject &  event  )

protected

ResultsAreAvailable

void DescriptionParameterBackgroundJob::ResultsAreAvailable ( mitk::modelFit::ModelFitResultNodeVectorType  resultMap, const DescriptionParameterBackgroundJob *  pJob  )

signal

Emitted when result data nodes are available.

Parameters

[in]	resultMap	The vector of result data nodes.
[in]	pJob	Pointer to this job instance.

run()

void DescriptionParameterBackgroundJob::run ( )

override

Execute the parameter image generation in the background thread.

Member Data Documentation

m_Generator

mitk::DescriptionParameterImageGeneratorBase::Pointer DescriptionParameterBackgroundJob::m_Generator

protected

Definition at line 93 of file QmitkDescriptionParameterBackgroundJob.h.

m_ObserverID

unsigned long DescriptionParameterBackgroundJob::m_ObserverID

protected

Definition at line 100 of file QmitkDescriptionParameterBackgroundJob.h.

m_ParentNode

mitk::DataNode::Pointer DescriptionParameterBackgroundJob::m_ParentNode

protected

Definition at line 94 of file QmitkDescriptionParameterBackgroundJob.h.

m_Results

mitk::modelFit::ModelFitResultNodeVectorType DescriptionParameterBackgroundJob::m_Results

protected

Definition at line 97 of file QmitkDescriptionParameterBackgroundJob.h.

m_spCommand

::itk::MemberCommand<DescriptionParameterBackgroundJob>::Pointer DescriptionParameterBackgroundJob::m_spCommand

protected

Definition at line 99 of file QmitkDescriptionParameterBackgroundJob.h.

---

The documentation for this class was generated from the following file:

• QmitkDescriptionParameterBackgroundJob.h
