mitk::modelFit::ModelFitInfo Class Reference

Data class that stores all information about a modelfit that is relevant to the visualization and stored as properties in the result nodes. More...

#include <mitkModelFitInfo.h>

Inheritance diagram for mitk::modelFit::ModelFitInfo:

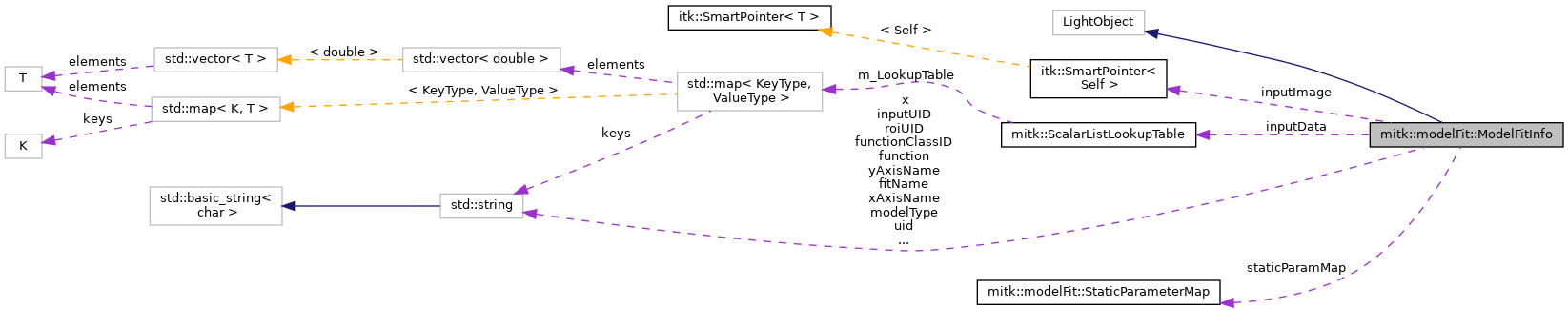

Collaboration diagram for mitk::modelFit::ModelFitInfo:

Public Types
typedef mitk::NodeUIDType	UIDType
typedef std::vector< Parameter::Pointer >	ParamListType
typedef ParamListType::const_iterator	ConstIterType

Public Member Functions
	mitkClassMacroItkParent (ModelFitInfo, itk::LightObject)
	itkSimpleNewMacro (ModelFitInfo)
	ModelFitInfo ()
void	AddParameter (Parameter::Pointer p)
	Adds the given parameter to this fit's parameter list if it doesn't exist already. More...
Parameter::ConstPointer	GetParameter (const std::string &name, const Parameter::Type &type) const
	Searches for the parameter with the given name and type in the fit's parameter list and returns it. More...
void	DeleteParameter (const std::string &name, const Parameter::Type &type)
	Searches for the parameter with the given name and type in the fit's parameter list and deletes it if it exists. More...
const ParamListType &	GetParameters () const

Public Attributes
std::string	modelName
std::string	modelType
std::string	function
std::string	functionClassID
std::string	x
std::string	xAxisName
std::string	xAxisUnit
std::string	yAxisName
std::string	yAxisUnit
UIDType	uid
std::string	fitName
std::string	fitType
StaticParameterMap	staticParamMap
UIDType	roiUID
UIDType	inputUID
ScalarListLookupTable	inputData
mitk::Image::Pointer	inputImage

Detailed Description

Data class that stores all information about a modelfit that is relevant to the visualization and stored as properties in the result nodes.

Definition at line 40 of file mitkModelFitInfo.h.

Member Typedef Documentation

ConstIterType

typedef ParamListType::const_iterator mitk::modelFit::ModelFitInfo::ConstIterType

Definition at line 45 of file mitkModelFitInfo.h.

ParamListType

typedef std::vector<Parameter::Pointer> mitk::modelFit::ModelFitInfo::ParamListType

Definition at line 44 of file mitkModelFitInfo.h.

UIDType

typedef mitk::NodeUIDType mitk::modelFit::ModelFitInfo::UIDType

Definition at line 43 of file mitkModelFitInfo.h.

Constructor & Destructor Documentation

ModelFitInfo()

mitk::modelFit::ModelFitInfo::ModelFitInfo ( )

inline

Definition at line 50 of file mitkModelFitInfo.h.

Member Function Documentation

AddParameter()

void mitk::modelFit::ModelFitInfo::AddParameter

(

Parameter::Pointer

p

)

Adds the given parameter to this fit's parameter list if it doesn't exist already.

Parameters

p	The param that should be added to this fit's parameter list.

Definition at line 21 of file mitkModelFitInfo.cpp.

References GetParameter(), MITK_DEBUG, mitkThrow, and uid.

DeleteParameter()

void mitk::modelFit::ModelFitInfo::DeleteParameter	(	const std::string &	name,
		const Parameter::Type &	type
	)

Searches for the parameter with the given name and type in the fit's parameter list and deletes it if it exists.

Parameters

name	The name of the desired parameter.
type	The type of the desired parameter.

Definition at line 67 of file mitkModelFitInfo.cpp.

References MITK_DEBUG, and uid.

GetParameter()

mitk::modelFit::Parameter::ConstPointer mitk::modelFit::ModelFitInfo::GetParameter	(	const std::string &	name,
		const Parameter::Type &	type
	)		const

Searches for the parameter with the given name and type in the fit's parameter list and returns it.

Parameters

name	The name of the desired parameter.
type	The type of the desired parameter.

Returns

The parameter with the given name on success or NULL otherwise.

Definition at line 44 of file mitkModelFitInfo.cpp.

Referenced by mitk::modelFit::AdaptDataPropertyToParameter(), and AddParameter().

GetParameters()

const mitk::modelFit::ModelFitInfo::ParamListType & mitk::modelFit::ModelFitInfo::GetParameters

(

)

const

Return const reference to the parameter list.

Definition at line 61 of file mitkModelFitInfo.cpp.

Referenced by QmitkFitParameterModel::data(), mitk::ExtractParameterValueMapFromModelFit(), and GetStaticParameterName().

itkSimpleNewMacro()

mitk::modelFit::ModelFitInfo::itkSimpleNewMacro

(

ModelFitInfo

)

mitkClassMacroItkParent()

mitk::modelFit::ModelFitInfo::mitkClassMacroItkParent	(	ModelFitInfo	,
		itk::LightObject
	)

Member Data Documentation

fitName

std::string mitk::modelFit::ModelFitInfo::fitName

ModelFitConstants::FIT_NAME_PROPERTY_NAME

Definition at line 109 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit(), mitk::modelFit::CreateFitInfoFromModelParameterizer(), and mitk::modelFit::CreateNode().

fitType

std::string mitk::modelFit::ModelFitInfo::fitType

ModelFitConstants::FIT_TYPE_PROPERTY_NAME

Definition at line 111 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit(), mitk::modelFit::CreateFitInfoFromModelParameterizer(), and mitk::DescriptivePharmacokineticBrixModelFactory::DoCreateParameterizer().

function

std::string mitk::modelFit::ModelFitInfo::function

ModelFitConstants::MODEL_FUNCTION_PROPERTY_NAME

Definition at line 90 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit(), and CalcSignalFromFunction().

functionClassID

std::string mitk::modelFit::ModelFitInfo::functionClassID

ModelFitConstants::MODEL_FUNCTION_CLASS_PROPERTY_NAME

Definition at line 92 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit(), and mitk::ModelGenerator::GenerateModelParameterizer().

inputData

ScalarListLookupTable mitk::modelFit::ModelFitInfo::inputData

ModelFitConstants::FIT_INPUT_DATA_PROPERTY_NAME

Definition at line 119 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit(), mitk::modelFit::CreateFitInfoFromModelParameterizer(), mitk::DescriptivePharmacokineticBrixModelFactory::DoCreateParameterizer(), and mitk::GenerateAdditionalModelFitPlotData().

inputImage

mitk::Image::Pointer mitk::modelFit::ModelFitInfo::inputImage

Definition at line 120 of file mitkModelFitInfo.h.

Referenced by CalcSignalFromFunction(), CalcSignalFromModel(), mitk::modelFit::CreateFitInfoFromModelParameterizer(), mitk::modelFit::CreateFitInfoFromNode(), and mitk::DescriptivePharmacokineticBrixModelFactory::DoCreateParameterizer().

inputUID

UIDType mitk::modelFit::ModelFitInfo::inputUID

ModelFitConstants::FIT_INPUT_IMAGEUID_PROPERTY_NAME

Definition at line 117 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit().

modelName

std::string mitk::modelFit::ModelFitInfo::modelName

ModelFitConstants::MODEL_NAME_PROPERTY_NAME

Definition at line 86 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit().

modelType

std::string mitk::modelFit::ModelFitInfo::modelType

ModelFitConstants::MODEL_TYPE_PROPERTY_NAME

Definition at line 88 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit().

roiUID

UIDType mitk::modelFit::ModelFitInfo::roiUID

ModelFitConstants::FIT_INPUT_ROIUID_PROPERTY_NAME

Definition at line 115 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit(), and mitk::modelFit::CreateFitInfoFromModelParameterizer().

staticParamMap

StaticParameterMap mitk::modelFit::ModelFitInfo::staticParamMap

ModelFitConstants::FIT_STATIC_PARAMETERS_PROPERTY_NAME

Definition at line 113 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit(), CalcSignalFromFunction(), mitk::modelFit::CreateFitInfoFromModelParameterizer(), QmitkFitParameterModel::data(), mitk::NumericTwoCompartmentExchangeModelFactory::DoCreateParameterizer(), mitk::ConcreteAIFBasedModelFactory< NumericTwoTissueCompartmentModelParameterizer >::DoCreateParameterizer(), mitk::DescriptivePharmacokineticBrixModelFactory::DoCreateParameterizer(), mitk::GenericParamModelFactory::DoCreateParameterizer(), and GetStaticParameterName().

uid

UIDType mitk::modelFit::ModelFitInfo::uid

ModelFitConstants::FIT_UID_PROPERTY_NAME

Definition at line 107 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit(), AddParameter(), mitk::modelFit::CreateFitInfoFromModelParameterizer(), mitk::modelFit::CreateFitInfoFromNode(), DeleteParameter(), and mitk::modelFit::GetFitUIDsOfNode().

x

std::string mitk::modelFit::ModelFitInfo::x

ModelFitConstants::MODEL_X_PROPERTY_NAME

Definition at line 94 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit(), and CalcSignalFromFunction().

xAxisName

std::string mitk::modelFit::ModelFitInfo::xAxisName

ModelFitConstants::XAXIS_NAME_PROPERTY_NAME

Definition at line 97 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit().

xAxisUnit

std::string mitk::modelFit::ModelFitInfo::xAxisUnit

ModelFitConstants::XAXIS_UNIT_PROPERTY_NAME

Definition at line 99 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit().

yAxisName

std::string mitk::modelFit::ModelFitInfo::yAxisName

ModelFitConstants::YAXIS_NAME_PROPERTY_NAME

Definition at line 102 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit().

yAxisUnit

std::string mitk::modelFit::ModelFitInfo::yAxisUnit

ModelFitConstants::YAXIS_UNIT_PROPERTY_NAME

Definition at line 104 of file mitkModelFitInfo.h.

Referenced by mitk::modelFit::AdaptDataPropertyToModelFit().

---

The documentation for this class was generated from the following files:

• mitkModelFitInfo.h
• mitkModelFitInfo.cpp
