This class offers a factory method for objects of the class TrackingDeviceSource. It initializes this TrackingDeviceSource with the given navigation tools and the given tracking device. The factory method also checks if all tools are valid and of the same type like the TrackingDevice. You can do this check before trying to create the TrackingDeviceSource by calling the method IsCreateTrackingDeviceSourcePossible(), if it returns false you might want to get the error message by calling the method GetErrorMessage(). More...

#include <mitkTrackingDeviceSourceConfigurator.h>

Inheritance diagram for mitk::TrackingDeviceSourceConfigurator:

[legend]

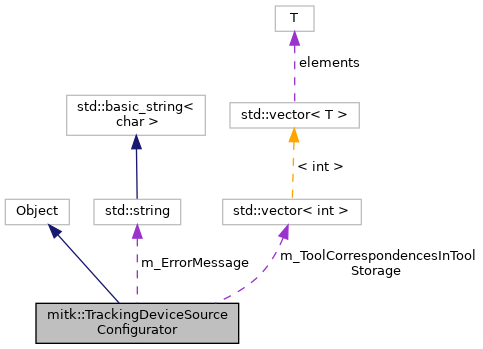

Collaboration diagram for mitk::TrackingDeviceSourceConfigurator:

[legend]

Public Member Functions
	mitkClassMacroItkParent (TrackingDeviceSourceConfigurator, itk::Object)

	mitkNewMacro2Param (Self, mitk::NavigationToolStorage::Pointer, mitk::TrackingDevice::Pointer)

bool	IsCreateTrackingDeviceSourcePossible ()

mitk::TrackingDeviceSource::Pointer	CreateTrackingDeviceSource ()

mitk::TrackingDeviceSource::Pointer	CreateTrackingDeviceSource (mitk::NavigationDataObjectVisualizationFilter::Pointer &visualizationFilter)

int	GetToolNumberInToolStorage (unsigned int outputID)

std::string	GetToolIdentifierInToolStorage (unsigned int outputID)

std::vector< int >	GetToolNumbersInToolStorage ()

std::vector< std::string >	GetToolIdentifiersInToolStorage ()

mitk::NavigationToolStorage::Pointer	GetUpdatedNavigationToolStorage ()

std::string	GetErrorMessage ()

Protected Member Functions
	TrackingDeviceSourceConfigurator (mitk::NavigationToolStorage::Pointer NavigationTools, mitk::TrackingDevice::Pointer TrackingDevice)

	~TrackingDeviceSourceConfigurator () override

mitk::NavigationDataObjectVisualizationFilter::Pointer	CreateNavigationDataObjectVisualizationFilter (mitk::TrackingDeviceSource::Pointer trackingDeviceSource, mitk::NavigationToolStorage::Pointer navigationTools)

Protected Attributes
mitk::NavigationToolStorage::Pointer	m_NavigationTools

mitk::TrackingDevice::Pointer	m_TrackingDevice

std::string	m_ErrorMessage

std::vector< int >	m_ToolCorrespondencesInToolStorage

Detailed Description

This class offers a factory method for objects of the class TrackingDeviceSource. It initializes this TrackingDeviceSource with the given navigation tools and the given tracking device. The factory method also checks if all tools are valid and of the same type like the TrackingDevice. You can do this check before trying to create the TrackingDeviceSource by calling the method IsCreateTrackingDeviceSourcePossible(), if it returns false you might want to get the error message by calling the method GetErrorMessage().

Documentation

Definition at line 36 of file mitkTrackingDeviceSourceConfigurator.h.

Constructor & Destructor Documentation

◆ TrackingDeviceSourceConfigurator()

mitk::TrackingDeviceSourceConfigurator::TrackingDeviceSourceConfigurator	(	mitk::NavigationToolStorage::Pointer	NavigationTools,
		mitk::TrackingDevice::Pointer	TrackingDevice
	)

protected

Definition at line 31 of file mitkTrackingDeviceSourceConfigurator.cpp.

References m_ErrorMessage, m_NavigationTools, m_ToolCorrespondencesInToolStorage, m_TrackingDevice, and mitk::NavigationToolStorage::New().

◆ ~TrackingDeviceSourceConfigurator()

mitk::TrackingDeviceSourceConfigurator::~TrackingDeviceSourceConfigurator ( )

overrideprotected

Definition at line 54 of file mitkTrackingDeviceSourceConfigurator.cpp.

Member Function Documentation

◆ CreateNavigationDataObjectVisualizationFilter()

mitk::NavigationDataObjectVisualizationFilter::Pointer mitk::TrackingDeviceSourceConfigurator::CreateNavigationDataObjectVisualizationFilter	(	mitk::TrackingDeviceSource::Pointer	trackingDeviceSource,
		mitk::NavigationToolStorage::Pointer	navigationTools
	)

protected

Definition at line 129 of file mitkTrackingDeviceSourceConfigurator.cpp.

References m_ErrorMessage, and mitk::NavigationDataObjectVisualizationFilter::New().

Referenced by CreateTrackingDeviceSource().

◆ CreateTrackingDeviceSource() [1/2]

mitk::TrackingDeviceSource::Pointer mitk::TrackingDeviceSourceConfigurator::CreateTrackingDeviceSource ( )

Returns: Returns a new TrackingDeviceSource. Returns nullptr if there was an error on creating the TrackingDeviceSource. If there was an error it's availiable as error message.

Definition at line 85 of file mitkTrackingDeviceSourceConfigurator.cpp.

Referenced by CreateTrackingDeviceSource().

◆ CreateTrackingDeviceSource() [2/2]

mitk::TrackingDeviceSource::Pointer mitk::TrackingDeviceSourceConfigurator::CreateTrackingDeviceSource ( mitk::NavigationDataObjectVisualizationFilter::Pointer & visualizationFilter )

Returns: Returns a new TrackingDeviceSource. Returns nullptr if there was an error on creating the TrackingDeviceSource. If there was an error it's availiable as error message.

Parameters

visualizationFilter (return value) returns a visualization filter which is already connected to the tracking device source. This filter visualises the surfaces which are availiable by the navigation tool storage.

Definition at line 91 of file mitkTrackingDeviceSourceConfigurator.cpp.

References CreateNavigationDataObjectVisualizationFilter(), CreateTrackingDeviceSource(), us::GetModuleContext(), mitk::TrackingDeviceTypeCollection::GetTrackingDeviceTypeInformation(), IsCreateTrackingDeviceSourcePossible(), m_ErrorMessage, m_NavigationTools, m_ToolCorrespondencesInToolStorage, m_TrackingDevice, MITK_ERROR, and MITK_WARN.

◆ GetErrorMessage()

std::string mitk::TrackingDeviceSourceConfigurator::GetErrorMessage ( )

Returns: Returns the current error message. Returns an empty string if there was no error.

Definition at line 122 of file mitkTrackingDeviceSourceConfigurator.cpp.

References m_ErrorMessage.

◆ GetToolIdentifierInToolStorage()

std::string mitk::TrackingDeviceSourceConfigurator::GetToolIdentifierInToolStorage ( unsigned int outputID )

Returns: Returns the identifier of the corresponding tool in the tool storage of a output navigation data. Returns an empty string if there was an error.

Definition at line 154 of file mitkTrackingDeviceSourceConfigurator.cpp.

References m_NavigationTools, and m_ToolCorrespondencesInToolStorage.

◆ GetToolIdentifiersInToolStorage()

std::vector< std::string > mitk::TrackingDeviceSourceConfigurator::GetToolIdentifiersInToolStorage ( )

Returns: Returns a vector with all identifier of the corresponding tools in the tool storage of all outputs. The order is the same like the order of the outputs. Returns an empty vector if there was an error.

Definition at line 165 of file mitkTrackingDeviceSourceConfigurator.cpp.

References m_NavigationTools, and m_ToolCorrespondencesInToolStorage.

◆ GetToolNumberInToolStorage()

int mitk::TrackingDeviceSourceConfigurator::GetToolNumberInToolStorage ( unsigned int outputID )

Returns: Returns the internal number of the corresponding tool in the tool storage of a output navigation data. Returns -1 if there was an error.

Definition at line 148 of file mitkTrackingDeviceSourceConfigurator.cpp.

References m_ToolCorrespondencesInToolStorage.

◆ GetToolNumbersInToolStorage()

std::vector< int > mitk::TrackingDeviceSourceConfigurator::GetToolNumbersInToolStorage ( )

Returns: Returns a vector with all internal numbers of the corresponding tools in the tool storage of all outputs. The order is the same like the order of the outputs. Returns an empty vector if there was an error.

Definition at line 160 of file mitkTrackingDeviceSourceConfigurator.cpp.

References m_ToolCorrespondencesInToolStorage.

◆ GetUpdatedNavigationToolStorage()

mitk::NavigationToolStorage::Pointer mitk::TrackingDeviceSourceConfigurator::GetUpdatedNavigationToolStorage ( )

Returns: Returns a modified navigation tool storage which holds the tools currently in use in the same order like the output ids of the pipline.

Definition at line 48 of file mitkTrackingDeviceSourceConfigurator.cpp.

References m_NavigationTools.

◆ IsCreateTrackingDeviceSourcePossible()

bool mitk::TrackingDeviceSourceConfigurator::IsCreateTrackingDeviceSourcePossible ( )

Returns: Returns if it's possible to create a tracking device source, which means the tools are checked if they are of the same type like the tracking device, etc. If it returns false you can get the reason for this by getting the error message.

Definition at line 58 of file mitkTrackingDeviceSourceConfigurator.cpp.

References m_ErrorMessage, m_NavigationTools, and m_TrackingDevice.

Referenced by CreateTrackingDeviceSource().
