An object of this class represents a collection of navigation tools. You may add/delete navigation tools or store/load the whole collection to/from the harddisc by using the class NavigationToolStorageSerializer and NavigationToolStorageDeserializer. More...

#include <mitkNavigationToolStorage.h>

Inheritance diagram for mitk::NavigationToolStorage:

[legend]

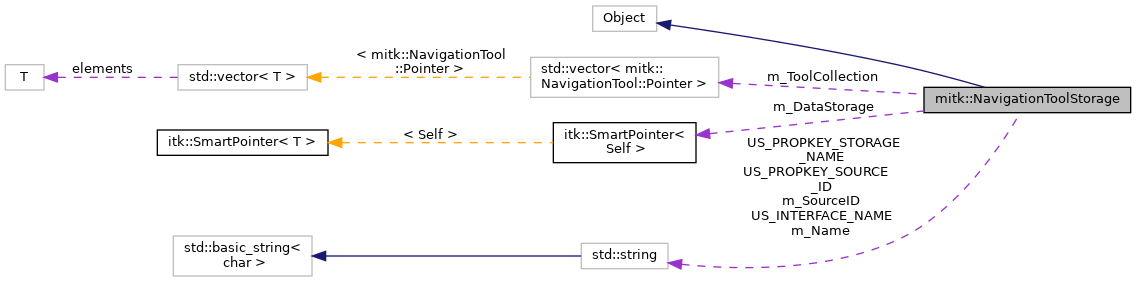

Collaboration diagram for mitk::NavigationToolStorage:

[legend]

Public Member Functions
	mitkClassMacroItkParent (NavigationToolStorage, itk::Object)

Pointer	Clone () const

	mitkNewMacro1Param (Self, mitk::DataStorage::Pointer)
	Constructs a NavigationToolStorage with reference to a DataStorage. The Data Nodes of tools are added and removed automatically to this data storage. More...

virtual void	RegisterAsMicroservice ()
	Registers this object as a Microservice, making it available to every module and/or plugin. To unregister, call UnregisterMicroservice(). Make sure to pass the id of the Device that this tool is connected to. More...

virtual void	UnRegisterMicroservice ()
	Registers this object as a Microservice, making it available to every module and/or plugin. More...

std::string	GetMicroserviceID ()
	Returns the id that this device is registered with. The id will only be valid, if the NavigationDataSource has been registered using RegisterAsMicroservice(). More...

bool	AddTool (mitk::NavigationTool::Pointer tool)
	Adds a tool to the storage. Be sure that the tool has a unique identifier which is not already part of this storage. More...

mitk::NavigationTool::Pointer	GetTool (int number)

mitk::NavigationTool::Pointer	GetTool (std::string identifier)

mitk::NavigationTool::Pointer	GetToolByName (std::string name)

bool	AssignToolNumber (std::string identifier1, int number2)

bool	DeleteTool (int number)
	Deletes a tool from the collection. Warning, this method operates on the data storage and is not thread save. Calling it from outside the main thread may cause crashes. More...

bool	DeleteAllTools ()
	Deletes all tools from the collection. Warning, this method operates on the data storage and is not thread save. Calling it from outside the main thread may cause crashes. More...

unsigned int	GetToolCount ()

bool	isEmpty ()

virtual mitk::DataStorage::Pointer	GetDataStorage ()

void	SetName (std::string)

std::string	GetName () const

void	SetSourceID (std::string)

std::string	GetSourceID () const

void	LockStorage ()

void	UnLockStorage ()

bool	isLocked ()

void	UpdateMicroservice ()

Static Public Member Functions
static Pointer	New ()
	Constructs a NavigationToolStorage without reference to a DataStorage. The Data Nodes of tools have to be added and removed to a data storage outside this class. Normaly the other constructor should be used. More...

Static Public Attributes
static const std::string	US_INTERFACE_NAME
	These constants are used in conjunction with Microservices. More...

static const std::string	US_PROPKEY_SOURCE_ID

static const std::string	US_PROPKEY_STORAGE_NAME

Protected Member Functions
	NavigationToolStorage ()

	NavigationToolStorage (mitk::DataStorage::Pointer)

	~NavigationToolStorage () override

Protected Attributes
std::vector< mitk::NavigationTool::Pointer >	m_ToolCollection

mitk::DataStorage::Pointer	m_DataStorage

std::string	m_Name

std::string	m_SourceID

bool	m_storageLocked

Detailed Description

An object of this class represents a collection of navigation tools. You may add/delete navigation tools or store/load the whole collection to/from the harddisc by using the class NavigationToolStorageSerializer and NavigationToolStorageDeserializer.

Documentation

Definition at line 39 of file mitkNavigationToolStorage.h.

Constructor & Destructor Documentation

◆ NavigationToolStorage() [1/2]

mitk::NavigationToolStorage::NavigationToolStorage ( )

protected

Definition at line 24 of file mitkNavigationToolStorage.cpp.

References SetName().

◆ NavigationToolStorage() [2/2]

mitk::NavigationToolStorage::NavigationToolStorage ( mitk::DataStorage::Pointer ds )

protected

Definition at line 32 of file mitkNavigationToolStorage.cpp.

References m_DataStorage, m_ToolCollection, and SetName().

◆ ~NavigationToolStorage()

mitk::NavigationToolStorage::~NavigationToolStorage ( )

overrideprotected

Definition at line 56 of file mitkNavigationToolStorage.cpp.

References m_DataStorage, and m_ToolCollection.

Member Function Documentation

◆ AddTool()

bool mitk::NavigationToolStorage::AddTool ( mitk::NavigationTool::Pointer tool )

Adds a tool to the storage. Be sure that the tool has a unique identifier which is not already part of this storage.

Returns: Returns true if the tool was added to the storage, false if not (false can be returned if the identifier already exists in this storage for example).

Definition at line 122 of file mitkNavigationToolStorage.cpp.

References GetTool(), m_DataStorage, m_storageLocked, m_ToolCollection, MITK_WARN, and UpdateMicroservice().

◆ AssignToolNumber()

bool mitk::NavigationToolStorage::AssignToolNumber	(	std::string	identifier1,
		int	number2
	)

Assigns the given number to the tool with the given identifier. This means the tool is swapped with another tool in the internal tool vector.

Returns: Returns true if the assignment was successfull. Returns false if assignment is not possible, e.g. because the identifier does not exist or if the given number is not available.

Definition at line 190 of file mitkNavigationToolStorage.cpp.

References GetTool(), m_ToolCollection, MITK_DEBUG, MITK_WARN, and UpdateMicroservice().

◆ Clone()

Pointer mitk::NavigationToolStorage::Clone ( ) const

◆ DeleteAllTools()

bool mitk::NavigationToolStorage::DeleteAllTools ( )

Deletes all tools from the collection. Warning, this method operates on the data storage and is not thread save. Calling it from outside the main thread may cause crashes.

Definition at line 110 of file mitkNavigationToolStorage.cpp.

References DeleteTool(), m_storageLocked, m_ToolCollection, and MITK_WARN.

◆ DeleteTool()

bool mitk::NavigationToolStorage::DeleteTool ( int number )

Deletes a tool from the collection. Warning, this method operates on the data storage and is not thread save. Calling it from outside the main thread may cause crashes.

Definition at line 87 of file mitkNavigationToolStorage.cpp.

References m_DataStorage, m_storageLocked, m_ToolCollection, MITK_WARN, and UpdateMicroservice().

Referenced by DeleteAllTools().

◆ GetDataStorage()

virtual mitk::DataStorage::Pointer mitk::NavigationToolStorage::GetDataStorage ( )

virtual

Returns: Returns the corresponding data storage if one is set to this NavigationToolStorage. Returns nullptr if none is set.

◆ GetMicroserviceID()

std::string mitk::NavigationToolStorage::GetMicroserviceID ( )

Returns the id that this device is registered with. The id will only be valid, if the NavigationDataSource has been registered using RegisterAsMicroservice().

◆ GetName()

std::string mitk::NavigationToolStorage::GetName ( ) const

Returns: Returns the name of this storage.

Definition at line 46 of file mitkNavigationToolStorage.cpp.

References m_Name.

◆ GetSourceID()

std::string mitk::NavigationToolStorage::GetSourceID ( ) const

Returns: Returns the name of this storage.

Definition at line 232 of file mitkNavigationToolStorage.cpp.

References m_SourceID.

◆ GetTool() [1/2]

mitk::NavigationTool::Pointer mitk::NavigationToolStorage::GetTool ( int number )

Returns: Returns the tracking tool at the position "number" in the storage. Returns nullptr if there is no tracking tool at this position.

Definition at line 148 of file mitkNavigationToolStorage.cpp.

References m_ToolCollection.

Referenced by AddTool(), AssignToolNumber(), GetTool(), and GetToolByName().

◆ GetTool() [2/2]

mitk::NavigationTool::Pointer mitk::NavigationToolStorage::GetTool ( std::string identifier )

Returns: Returns the tracking tool with the given identifier. Returns nullptr if there is no tracking tool with this identifier in the storage.

Definition at line 153 of file mitkNavigationToolStorage.cpp.

References GetTool(), and GetToolCount().

◆ GetToolByName()

mitk::NavigationTool::Pointer mitk::NavigationToolStorage::GetToolByName ( std::string name )

Returns: Returns the tracking tool with the given name. Returns nullptr if there is no tracking tool with this name in the storage.

Definition at line 159 of file mitkNavigationToolStorage.cpp.

References GetTool(), and GetToolCount().

◆ GetToolCount()

unsigned int mitk::NavigationToolStorage::GetToolCount ( )

Returns: Returns the number of tools stored in the storage.

Definition at line 165 of file mitkNavigationToolStorage.cpp.

References m_ToolCollection.

Referenced by GetTool(), and GetToolByName().

◆ isEmpty()

bool mitk::NavigationToolStorage::isEmpty ( )

Returns: Returns true if the storage is empty, false if not.

Definition at line 170 of file mitkNavigationToolStorage.cpp.

References m_ToolCollection.

◆ isLocked()

bool mitk::NavigationToolStorage::isLocked ( )

Returns: Returns true if the storage is locked at the moment, false if not.

Definition at line 185 of file mitkNavigationToolStorage.cpp.

References m_storageLocked.

◆ LockStorage()

void mitk::NavigationToolStorage::LockStorage ( )

Locks the storage. A logged storage may not be modified. If a method tries to modify the storage anyway a waring message is given. The storage is unlocked by default. A Storage might be locked when a tracking device is active and needs the storage to stay consistent.

Definition at line 175 of file mitkNavigationToolStorage.cpp.

References m_storageLocked.

◆ mitkClassMacroItkParent()

mitk::NavigationToolStorage::mitkClassMacroItkParent	(	NavigationToolStorage	,
		itk::Object
	)

◆ mitkNewMacro1Param()

mitk::NavigationToolStorage::mitkNewMacro1Param	(	Self	,
		mitk::DataStorage::Pointer
	)

Constructs a NavigationToolStorage with reference to a DataStorage. The Data Nodes of tools are added and removed automatically to this data storage.

◆ New()

static Pointer mitk::NavigationToolStorage::New ( )

static

Constructs a NavigationToolStorage without reference to a DataStorage. The Data Nodes of tools have to be added and removed to a data storage outside this class. Normaly the other constructor should be used.

Referenced by mitk::PolhemusTrackingDevice::AutoDetectTools(), mitk::OpenIGTLinkTrackingDevice::AutoDetectTools(), mitk::TrackingDevice::AutoDetectTools(), mitk::NDITrackingDevice::AutoDetectTools(), mitk::NavigationToolStorageTestHelper::CreateTestData_ComplexStorage(), mitk::NavigationToolStorageTestHelper::CreateTestData_SimpleStorage(), mitk::NavigationToolStorageTestHelper::CreateTestData_StorageWithOneTool(), mitk::NDIAuroraTypeInformation::CreateTrackingDeviceSource(), mitk::NavigationToolStorageDeserializer::Deserialize(), QmitkNavigationToolManagementWidget::OnCreateStorage(), and mitk::TrackingDeviceSourceConfigurator::TrackingDeviceSourceConfigurator().

◆ RegisterAsMicroservice()

void mitk::NavigationToolStorage::RegisterAsMicroservice ( )

virtual

Registers this object as a Microservice, making it available to every module and/or plugin. To unregister, call UnregisterMicroservice(). Make sure to pass the id of the Device that this tool is connected to.

Definition at line 65 of file mitkNavigationToolStorage.cpp.

References us::GetModuleContext(), and UpdateMicroservice().

◆ SetName()

void mitk::NavigationToolStorage::SetName ( std::string n )

Sets the name of this storage. The name should be understandable for the user. Something like "NDI Aurora Tool Storage". If a storage is loaded from the harddisk the name might be the filename.

Definition at line 40 of file mitkNavigationToolStorage.cpp.

References m_Name, and US_PROPKEY_STORAGE_NAME.

Referenced by NavigationToolStorage().

◆ SetSourceID()

void mitk::NavigationToolStorage::SetSourceID ( std::string _id )

Sets the name of this storage. The name should be understandable for the user. Something like "NDI Aurora Tool Storage". If a storage is loaded from the harddisk the name might be the filename.

Warning: : if your microservice is already registered, you need to call UpdateMicroservice after changing the ID. This can't be done inside this functions, as we might use different threads.

Definition at line 225 of file mitkNavigationToolStorage.cpp.

References m_SourceID, and US_PROPKEY_SOURCE_ID.
