mitk::NavigationToolStorageDeserializer Class Reference

This class offers methods to load an object of the class NavigationToolStorage from the harddisc. More...

#include <mitkNavigationToolStorageDeserializer.h>

Inheritance diagram for mitk::NavigationToolStorageDeserializer:

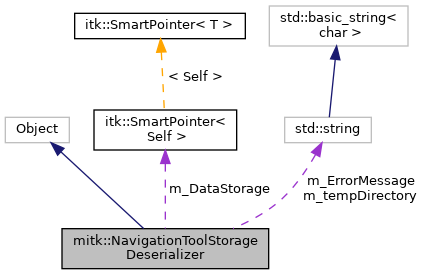

Collaboration diagram for mitk::NavigationToolStorageDeserializer:

Public Member Functions
	mitkClassMacroItkParent (NavigationToolStorageDeserializer, itk::Object)
	mitkNewMacro1Param (Self, mitk::DataStorage::Pointer)
mitk::NavigationToolStorage::Pointer	Deserialize (std::string filename)
	Loads a collection of navigation tools represented by a mitk::NavigationToolStorage from a file. More...
virtual std::string	GetErrorMessage ()

Protected Member Functions
	NavigationToolStorageDeserializer (mitk::DataStorage::Pointer dataStorage)
	~NavigationToolStorageDeserializer () override
std::string	convertIntToString (int i)
void	decompressFiles (std::string file, std::string path)

Protected Attributes
std::string	m_ErrorMessage
mitk::DataStorage::Pointer	m_DataStorage
std::string	m_tempDirectory

Detailed Description

This class offers methods to load an object of the class NavigationToolStorage from the harddisc.

Documentation

Definition at line 32 of file mitkNavigationToolStorageDeserializer.h.

Constructor & Destructor Documentation

NavigationToolStorageDeserializer()

mitk::NavigationToolStorageDeserializer::NavigationToolStorageDeserializer ( mitk::DataStorage::Pointer  dataStorage )

protected

Definition at line 31 of file mitkNavigationToolStorageDeserializer.cpp.

References mitk::IOUtil::CreateTemporaryDirectory(), mitk::IOUtil::GetTempPath(), m_DataStorage, and m_tempDirectory.

~NavigationToolStorageDeserializer()

mitk::NavigationToolStorageDeserializer::~NavigationToolStorageDeserializer ( )

overrideprotected

Definition at line 38 of file mitkNavigationToolStorageDeserializer.cpp.

References File, m_tempDirectory, and MITK_ERROR.

Member Function Documentation

convertIntToString()

std::string mitk::NavigationToolStorageDeserializer::convertIntToString ( int  i )

protected

Definition at line 80 of file mitkNavigationToolStorageDeserializer.cpp.

Referenced by Deserialize().

decompressFiles()

void mitk::NavigationToolStorageDeserializer::decompressFiles ( std::string  file, std::string  path  )

protected

Exceptions

Throws

an Exception if particular file cannot be opened for reading

Definition at line 89 of file mitkNavigationToolStorageDeserializer.cpp.

References m_ErrorMessage, and mitkThrowException.

Referenced by Deserialize().

Deserialize()

mitk::NavigationToolStorage::Pointer mitk::NavigationToolStorageDeserializer::Deserialize

(

std::string

filename

)

Loads a collection of navigation tools represented by a mitk::NavigationToolStorage from a file.

Returns

Returns the storage which was loaded or an empty storage if there was an error in the loading process.

Exceptions

mitk::IGTException	Throws an Exception if the file cannot be decompressed.
mitk::IGTException	Throws an Exception if no tool was found inside the storage.

Definition at line 52 of file mitkNavigationToolStorageDeserializer.cpp.

References convertIntToString(), decompressFiles(), m_DataStorage, m_ErrorMessage, m_tempDirectory, mitkThrowException, mitk::NavigationToolReader::New(), and mitk::NavigationToolStorage::New().

GetErrorMessage()

virtual std::string mitk::NavigationToolStorageDeserializer::GetErrorMessage ( )

virtual

mitkClassMacroItkParent()

mitk::NavigationToolStorageDeserializer::mitkClassMacroItkParent	(	NavigationToolStorageDeserializer	,
		itk::Object
	)

mitkNewMacro1Param()

mitk::NavigationToolStorageDeserializer::mitkNewMacro1Param	(	Self	,
		mitk::DataStorage::Pointer
	)

Member Data Documentation

m_DataStorage

mitk::DataStorage::Pointer mitk::NavigationToolStorageDeserializer::m_DataStorage

protected

Definition at line 55 of file mitkNavigationToolStorageDeserializer.h.

Referenced by Deserialize(), and NavigationToolStorageDeserializer().

m_ErrorMessage

std::string mitk::NavigationToolStorageDeserializer::m_ErrorMessage

protected

Definition at line 53 of file mitkNavigationToolStorageDeserializer.h.

Referenced by decompressFiles(), and Deserialize().

m_tempDirectory

std::string mitk::NavigationToolStorageDeserializer::m_tempDirectory

protected

Definition at line 57 of file mitkNavigationToolStorageDeserializer.h.

Referenced by Deserialize(), NavigationToolStorageDeserializer(), and ~NavigationToolStorageDeserializer().

---

The documentation for this class was generated from the following files:

• mitkNavigationToolStorageDeserializer.h
• mitkNavigationToolStorageDeserializer.cpp
