Sending a message to the applications StatusBar. More...

#include <mitkStatusBar.h>

Inheritance diagram for mitk::StatusBar:

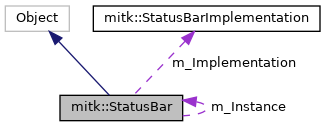

Collaboration diagram for mitk::StatusBar:

Public Member Functions
virtual const char *	GetClassName () const

void	DisplayText (const char *t)
	Send a string to the applications StatusBar. More...

void	DisplayText (const char *t, int ms)
	Send a string with a time delay to the applications StatusBar. More...

void	DisplayErrorText (const char *t)

void	DisplayWarningText (const char *t)

void	DisplayWarningText (const char *t, int ms)

void	DisplayGenericOutputText (const char *t)

void	DisplayDebugText (const char *t)

void	DisplayGreyValueText (const char *t)

void	DisplayImageInfo (mitk::Point3D point, itk::Index< 3 > index, mitk::ScalarType time, mitk::ScalarType pixelValue)
	Display position, index, time and pixel value. More...

void	DisplayImageInfo (mitk::Point3D point, itk::Index< 3 > index, mitk::ScalarType time, const char *pixelValue)

void	DisplayImageInfoInvalid ()
	Display placeholder text for invalid information. More...

void	Clear ()
	removes any temporary message being shown. More...

void	SetSizeGripEnabled (bool enable)
	Set the SizeGrip of the window (the triangle in the lower right Windowcorner for changing the size) to enabled or disabled. More...

Static Public Member Functions
static StatusBar *	GetInstance ()
	static method to get the GUI dependent StatusBar-instance so the methods DisplayText, etc. can be called No reference counting, cause of decentral static use! More...

static void	SetImplementation (StatusBarImplementation *instance)
	Supply a GUI- dependent StatusBar. Has to be set by the application to connect the application dependent subclass of mitkStatusBar if you create an instance, then call ->Delete() on the supplied instance after setting it. More...

Protected Member Functions
	StatusBar ()

	~StatusBar () override

Static Protected Attributes
static StatusBarImplementation *	m_Implementation

static StatusBar *	m_Instance

Detailed Description

Sending a message to the applications StatusBar.

Holds a GUI dependent StatusBarImplementation and sends the text further. nearly equal to itk::OutputWindow, no Window, but one line of text and a delay for clear. all mitk-classes use this class to display text on GUI-StatusBar. The mainapplication has to set the internal held StatusBarImplementation with SetInstance(..).

Definition at line 32 of file mitkStatusBar.h.

Constructor & Destructor Documentation

◆ StatusBar()

mitk::StatusBar::StatusBar ( )

protected

Definition at line 162 of file mitkStatusBar.cpp.

Referenced by GetInstance().

◆ ~StatusBar()

mitk::StatusBar::~StatusBar ( )

overrideprotected

Definition at line 163 of file mitkStatusBar.cpp.

Member Function Documentation

◆ Clear()

void mitk::StatusBar::Clear ( )

removes any temporary message being shown.

Definition at line 125 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::Clear(), and m_Implementation.

Referenced by QmitkLabelSetWidget::UpdateControls().

◆ DisplayDebugText()

void mitk::StatusBar::DisplayDebugText ( const char * t )

Definition at line 60 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayDebugText(), and m_Implementation.

◆ DisplayErrorText()

void mitk::StatusBar::DisplayErrorText ( const char * t )

Definition at line 40 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayErrorText(), and m_Implementation.

Referenced by mitk::BoundingShapeCropper::CutImage(), and mitk::AutoCropImageFilter::ITKCrop3DImage().

◆ DisplayGenericOutputText()

void mitk::StatusBar::DisplayGenericOutputText ( const char * t )

Definition at line 55 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayGenericOutputText(), and m_Implementation.

◆ DisplayGreyValueText()

void mitk::StatusBar::DisplayGreyValueText ( const char * t )

Definition at line 65 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayGreyValueText(), and m_Implementation.

Referenced by QmitkStdMultiWidget::HandleCrosshairPositionEventDelayed().

◆ DisplayImageInfo() [1/2]

void mitk::StatusBar::DisplayImageInfo	(	mitk::Point3D	point,
		itk::Index< 3 >	index,
		mitk::ScalarType	time,
		mitk::ScalarType	pixelValue
	)

Display position, index, time and pixel value.

Definition at line 85 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayGreyValueText(), m_Implementation, and mitk::WriteCommonImageInfo().

◆ DisplayImageInfo() [2/2]

void mitk::StatusBar::DisplayImageInfo	(	mitk::Point3D	point,
		itk::Index< 3 >	index,
		mitk::ScalarType	time,
		const char *	pixelValue
	)

Definition at line 105 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayGreyValueText(), m_Implementation, and mitk::WriteCommonImageInfo().

◆ DisplayImageInfoInvalid()

void mitk::StatusBar::DisplayImageInfoInvalid ( )

Display placeholder text for invalid information.

Definition at line 120 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayGreyValueText(), and m_Implementation.

◆ DisplayText() [1/2]

void mitk::StatusBar::DisplayText ( const char * t )

Send a string to the applications StatusBar.

Display the text in the statusbar of the applikation

Definition at line 25 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayText(), and m_Implementation.

Referenced by mitk::TubeGraphDataInteractor::DeselectTube(), mitk::Mesh::ExecuteOperation(), QmitkIGTLoggerWidget::OnStartRecording(), mitk::CreateSurfaceTool::ProcessOneWorkingData(), mitk::CalculateGrayValueStatisticsTool::ProcessOneWorkingData(), mitk::TubeGraphDataInteractor::SelectTube(), QmitkIGTLoggerWidget::StopRecording(), and QmitkLabelSetWidget::UpdateControls().

◆ DisplayText() [2/2]

void mitk::StatusBar::DisplayText	(	const char *	t,
		int	ms
	)

Send a string with a time delay to the applications StatusBar.

Display the text in the statusbar of the applikation for ms seconds

Definition at line 34 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayText(), and m_Implementation.

◆ DisplayWarningText() [1/2]

void mitk::StatusBar::DisplayWarningText ( const char * t )

Definition at line 45 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayWarningText(), and m_Implementation.

◆ DisplayWarningText() [2/2]

void mitk::StatusBar::DisplayWarningText	(	const char *	t,
		int	ms
	)

Definition at line 50 of file mitkStatusBar.cpp.

References mitk::StatusBarImplementation::DisplayWarningText(), and m_Implementation.

◆ GetClassName()

virtual const char* mitk::StatusBar::GetClassName ( ) const

virtual

◆ GetInstance()

StatusBar * mitk::StatusBar::GetInstance ( )

static

static method to get the GUI dependent StatusBar-instance so the methods DisplayText, etc. can be called No reference counting, cause of decentral static use!

Get the instance of this StatusBar

Definition at line 140 of file mitkStatusBar.cpp.

References m_Instance, and StatusBar().

Referenced by mitk::BoundingShapeCropper::CutImage(), mitk::DisplayActionEventBroadcast::DecreaseTimeStep(), mitk::TubeGraphDataInteractor::DeselectTube(), mitk::Mesh::ExecuteOperation(), QmitkStdMultiWidget::HandleCrosshairPositionEventDelayed(), mitk::AutoCropImageFilter::ITKCrop3DImage(), QmitkIGTLoggerWidget::OnStartRecording(), mitk::CreateSurfaceTool::ProcessOneWorkingData(), mitk::CalculateGrayValueStatisticsTool::ProcessOneWorkingData(), mitk::TubeGraphDataInteractor::SelectTube(), QmitkIGTLoggerWidget::StopRecording(), QmitkLabelSetWidget::UpdateControls(), and mitk::DisplayInteractor::UpdateStatusbar().

◆ SetImplementation()

void mitk::StatusBar::SetImplementation ( StatusBarImplementation * implementation )

static

Supply a GUI- dependent StatusBar. Has to be set by the application to connect the application dependent subclass of mitkStatusBar if you create an instance, then call ->Delete() on the supplied instance after setting it.

Set an instance of this; application must do this!See Header!

Definition at line 153 of file mitkStatusBar.cpp.

References m_Implementation.

Referenced by QmitkStatusBar::QmitkStatusBar().

◆ SetSizeGripEnabled()

void mitk::StatusBar::SetSizeGripEnabled ( bool enable )

Set the SizeGrip of the window (the triangle in the lower right Windowcorner for changing the size) to enabled or disabled.

Definition at line 130 of file mitkStatusBar.cpp.

References m_Implementation, and mitk::StatusBarImplementation::SetSizeGripEnabled().

Member Data Documentation

◆ m_Implementation

StatusBarImplementation * mitk::StatusBar::m_Implementation

staticprotected

Definition at line 86 of file mitkStatusBar.h.

Referenced by Clear(), DisplayDebugText(), DisplayErrorText(), DisplayGenericOutputText(), DisplayGreyValueText(), DisplayImageInfo(), DisplayImageInfoInvalid(), DisplayText(), DisplayWarningText(), SetImplementation(), and SetSizeGripEnabled().

◆ m_Instance

StatusBar * mitk::StatusBar::m_Instance
