mitk::PointSetSource Class Reference

Superclass of all classes generating point sets (instances of class mitk::PointSet) as output. More...

#include <mitkPointSetSource.h>

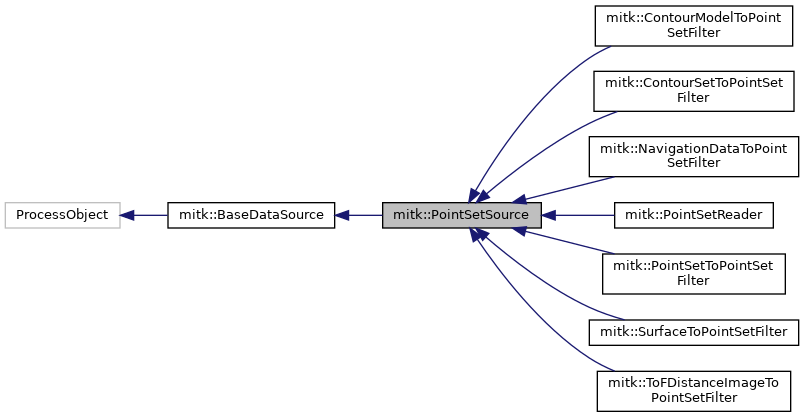

Inheritance diagram for mitk::PointSetSource:

Collaboration diagram for mitk::PointSetSource:

Public Types
typedef PointSetSource	Self
typedef BaseDataSource	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef PointSet	OutputType
typedef OutputType::Pointer	OutputTypePointer
Public Types inherited from mitk::BaseDataSource
typedef BaseDataSource	Self
typedef itk::ProcessObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef BaseData	OutputType
typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override
virtual const char *	GetClassName () const
Pointer	Clone () const
OutputType *	GetOutput ()
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
Public Member Functions inherited from mitk::BaseDataSource
OutputType *	GetOutput ()
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...
virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...
bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
Static Public Member Functions inherited from mitk::BaseDataSource
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	PointSetSource ()
	~PointSetSource () override
Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	~BaseDataSource () override

Additional Inherited Members
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Superclass of all classes generating point sets (instances of class mitk::PointSet) as output.

In itk and vtk the generated result of a ProcessObject is only guaranteed to be up-to-date, when Update() of the ProcessObject or the generated DataObject is called immediately before access of the data stored in the DataObject.

Definition at line 31 of file mitkPointSetSource.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> mitk::PointSetSource::ConstPointer

Definition at line 34 of file mitkPointSetSource.h.

OutputType

typedef PointSet mitk::PointSetSource::OutputType

Definition at line 36 of file mitkPointSetSource.h.

OutputTypePointer

typedef OutputType::Pointer mitk::PointSetSource::OutputTypePointer

Definition at line 40 of file mitkPointSetSource.h.

Pointer

typedef itk::SmartPointer<Self> mitk::PointSetSource::Pointer

Definition at line 34 of file mitkPointSetSource.h.

Self

typedef PointSetSource mitk::PointSetSource::Self

Definition at line 34 of file mitkPointSetSource.h.

Superclass

typedef BaseDataSource mitk::PointSetSource::Superclass

Definition at line 34 of file mitkPointSetSource.h.

Constructor & Destructor Documentation

PointSetSource()

mitk::PointSetSource::PointSetSource ( )

protected

Definition at line 15 of file mitkPointSetSource.cpp.

References MakeOutput().

~PointSetSource()

mitk::PointSetSource::~PointSetSource ( )

overrideprotected

Definition at line 24 of file mitkPointSetSource.cpp.

Member Function Documentation

Clone()

Pointer mitk::PointSetSource::Clone

(

)

const

GetClassHierarchy()

virtual std::vector<std::string> mitk::PointSetSource::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::BaseDataSource.

Reimplemented in mitk::PointSetToPointSetFilter.

Definition at line 34 of file mitkPointSetSource.h.

GetClassName()

virtual const char* mitk::PointSetSource::GetClassName ( ) const

virtual

Reimplemented from mitk::BaseDataSource.

Reimplemented in mitk::PointSetToPointSetFilter.

GetOutput() [1/4]

OutputType* mitk::PointSetSource::GetOutput

(

DataObjectPointerArraySizeType

idx

)

GetOutput() [2/4]

const OutputType* mitk::PointSetSource::GetOutput

(

DataObjectPointerArraySizeType

idx

)

const

GetOutput() [3/4]

const OutputType* mitk::PointSetSource::GetOutput

(

)

const

GetOutput() [4/4]

OutputType* mitk::PointSetSource::GetOutput

(

)

Referenced by mitk::ToFDistanceImageToPointSetFilter::CreateOutputsForAllInputs(), mitk::NavigationDataToPointSetFilter::CreateOutputsForAllInputs(), mitk::ContourSetToPointSetFilter::GenerateData(), mitk::ContourModelToPointSetFilter::GenerateData(), mitk::ToFDistanceImageToPointSetFilter::GenerateData(), mitk::NavigationDataToPointSetFilter::GenerateDataMode3D(), mitk::NavigationDataToPointSetFilter::GenerateDataMode3DMean(), mitk::NavigationDataToPointSetFilter::GenerateDataMode4D(), and mitk::ToFDistanceImageToPointSetFilter::GenerateOutputInformation().

GetStaticNameOfClass()

static const char* mitk::PointSetSource::GetStaticNameOfClass ( )

inlinestatic

Definition at line 34 of file mitkPointSetSource.h.

MakeOutput() [1/2]

itk::DataObject::Pointer mitk::PointSetSource::MakeOutput ( DataObjectPointerArraySizeType  idx )

overridevirtual

Allocates a new output object and returns it. Currently the index idx is not evaluated.

Parameters

idx	the index of the output for which an object should be created

Returns

the new object

Implements mitk::BaseDataSource.

Definition at line 28 of file mitkPointSetSource.cpp.

References mitk::PointSet::New().

Referenced by mitk::ContourModelToPointSetFilter::ContourModelToPointSetFilter(), mitk::ContourSetToPointSetFilter::ContourSetToPointSetFilter(), mitk::ToFDistanceImageToPointSetFilter::CreateOutputsForAllInputs(), mitk::NavigationDataToPointSetFilter::CreateOutputsForAllInputs(), MakeOutput(), PointSetSource(), and mitk::PointSetReader::ResizeOutputs().

MakeOutput() [2/2]

itk::DataObject::Pointer mitk::PointSetSource::MakeOutput ( const DataObjectIdentifierType &  name )

overridevirtual

This is a default implementation to make sure we have something. Once all the subclasses of ProcessObject provide an appopriate MakeOutput(), then ProcessObject::MakeOutput() can be made pure virtual.

Implements mitk::BaseDataSource.

Definition at line 33 of file mitkPointSetSource.cpp.

References MakeOutput(), mitkBaseDataSourceGetOutputDefinitions, and mitk::PointSet::New().

New()

static Pointer mitk::PointSetSource::New ( )

static

---

The documentation for this class was generated from the following files:

• mitkPointSetSource.h
• mitkPointSetSource.cpp
