mitk::PointLocator Class Reference

#include <mitkPointLocator.h>

Inheritance diagram for mitk::PointLocator:

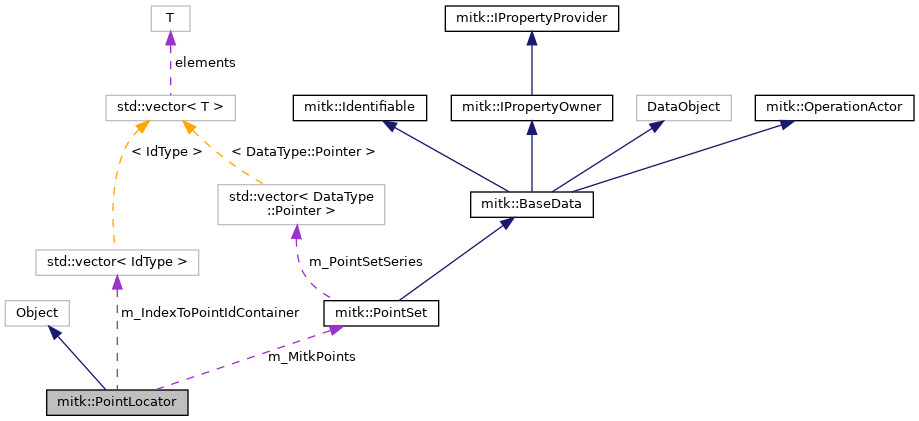

Collaboration diagram for mitk::PointLocator:

Public Types
typedef int	IdType
typedef ScalarType	DistanceType
typedef float	PixelType
typedef double	CoordRepType
typedef itk::DefaultStaticMeshTraits< PixelType, 3, 2, CoordRepType, CoordRepType, PixelType >	MeshTraits
typedef itk::PointSet< PixelType, 3, MeshTraits >	ITKPointSet

Public Member Functions
	mitkClassMacroItkParent (PointLocator, itk::Object)
Pointer	Clone () const
void	SetPoints (vtkPointSet *points)
void	SetPoints (mitk::PointSet *points)
void	SetPoints (ITKPointSet *pointSet)
IdType	FindClosestPoint (const double point[3])
IdType	FindClosestPoint (double x, double y, double z)
IdType	FindClosestPoint (mitk::PointSet::PointType point)
DistanceType	GetMinimalDistance (mitk::PointSet::PointType point)
bool	FindClosestPointAndDistance (mitk::PointSet::PointType point, IdType *id, DistanceType *dist)

Static Public Member Functions
static Pointer	New ()

Protected Types
typedef std::vector< IdType >	IdVectorType
typedef double *	MyANNpoint
typedef int	MyANNidx
typedef double	MyANNdist
typedef MyANNpoint *	MyANNpointArray
typedef MyANNidx *	MyANNidxArray
typedef MyANNdist *	MyANNdistArray

Protected Member Functions
	PointLocator ()
	~PointLocator () override
void	InitANN ()
void	DestroyANN ()
IdType	FindClosestANNPoint (const MyANNpoint &point)
DistanceType	GetMinimalDistance (const MyANNpoint &point)

Protected Attributes
bool	m_SearchTreeInitialized
IdVectorType	m_IndexToPointIdContainer
vtkPoints *	m_VtkPoints
mitk::PointSet *	m_MitkPoints
ITKPointSet *	m_ItkPoints
unsigned int	m_ANNK
unsigned int	m_ANNDimension
double	m_ANNEpsilon
MyANNpointArray	m_ANNDataPoints
MyANNpoint	m_ANNQueryPoint
MyANNidxArray	m_ANNPointIndexes
MyANNdistArray	m_ANNDistances
ANNkd_tree *	m_ANNTree

Detailed Description

Convenience wrapper around ANN to provide fast nearest neighbour searches. Usage: set your points via SetPoints( vtkPointSet* Points ) or SetPoints(mitk::PointSet*). Then, you may query the closest point to an arbitrary coordinate by FindClosestPoint(). There is no further call to update etc. needed. Currently only calls for 1 nearest neighbour are supported. Feel free to add functions for K nearest neighbours. NOTE: At least 1 point must be contained in the point set.

Definition at line 39 of file mitkPointLocator.h.

Member Typedef Documentation

CoordRepType

typedef double mitk::PointLocator::CoordRepType

Definition at line 52 of file mitkPointLocator.h.

DistanceType

typedef ScalarType mitk::PointLocator::DistanceType

Definition at line 49 of file mitkPointLocator.h.

IdType

typedef int mitk::PointLocator::IdType

Definition at line 46 of file mitkPointLocator.h.

IdVectorType

typedef std::vector<IdType> mitk::PointLocator::IdVectorType

protected

Definition at line 139 of file mitkPointLocator.h.

ITKPointSet

typedef itk::PointSet<PixelType, 3, MeshTraits> mitk::PointLocator::ITKPointSet

Definition at line 54 of file mitkPointLocator.h.

MeshTraits

typedef itk::DefaultStaticMeshTraits<PixelType, 3, 2, CoordRepType, CoordRepType, PixelType> mitk::PointLocator::MeshTraits

Definition at line 53 of file mitkPointLocator.h.

MyANNdist

typedef double mitk::PointLocator::MyANNdist

protected

Definition at line 149 of file mitkPointLocator.h.

MyANNdistArray

typedef MyANNdist* mitk::PointLocator::MyANNdistArray

protected

Definition at line 152 of file mitkPointLocator.h.

MyANNidx

typedef int mitk::PointLocator::MyANNidx

protected

Definition at line 148 of file mitkPointLocator.h.

MyANNidxArray

typedef MyANNidx* mitk::PointLocator::MyANNidxArray

protected

Definition at line 151 of file mitkPointLocator.h.

MyANNpoint

typedef double* mitk::PointLocator::MyANNpoint

protected

Definition at line 147 of file mitkPointLocator.h.

MyANNpointArray

typedef MyANNpoint* mitk::PointLocator::MyANNpointArray

protected

Definition at line 150 of file mitkPointLocator.h.

PixelType

typedef float mitk::PointLocator::PixelType

Definition at line 51 of file mitkPointLocator.h.

Constructor & Destructor Documentation

PointLocator()

mitk::PointLocator::PointLocator ( )

protected

constructor

Definition at line 17 of file mitkPointLocator.cpp.

~PointLocator()

mitk::PointLocator::~PointLocator ( )

overrideprotected

destructor

Definition at line 33 of file mitkPointLocator.cpp.

References DestroyANN(), and m_SearchTreeInitialized.

Member Function Documentation

Clone()

Pointer mitk::PointLocator::Clone

(

)

const

DestroyANN()

void mitk::PointLocator::DestroyANN ( )

protected

releases all memory occupied by the ann search tree and internal point set arrays

Definition at line 215 of file mitkPointLocator.cpp.

References m_ANNDataPoints, m_ANNDistances, m_ANNPointIndexes, m_ANNQueryPoint, m_ANNTree, and m_SearchTreeInitialized.

Referenced by InitANN(), and ~PointLocator().

FindClosestANNPoint()

mitk::PointLocator::IdType mitk::PointLocator::FindClosestANNPoint ( const MyANNpoint &  point )

protected

Finds the nearest neighbour in the point set previously defined by SetPoints(). The Id of the point is returned. Please note, that there is no case, in which no point is found, since as a precondition at least one point has to be contained in the point set.

Parameters

point

the query point, for whom the nearest neighbour will be determined

Returns

the id of the nearest neighbour of the given point. The id corresponds to the id which is given in the original point set.

Definition at line 178 of file mitkPointLocator.cpp.

References m_ANNDistances, m_ANNK, m_ANNPointIndexes, m_ANNTree, m_IndexToPointIdContainer, and m_SearchTreeInitialized.

Referenced by FindClosestPoint().

FindClosestPoint() [1/3]

mitk::PointLocator::IdType mitk::PointLocator::FindClosestPoint

(

const double

point[3]

)

Finds the nearest neighbour in the point set previously defined by SetPoints(). The Id of the point is returned. Please note, that there is no case, in which no point is found, since as a precondition at least one point has to be contained in the point set.

Parameters

point

the query point, for whom the nearest neighbour will be determined

Returns

the id of the nearest neighbour of the given point. The id corresponds to the id which is given in the original point set.

Definition at line 154 of file mitkPointLocator.cpp.

References FindClosestANNPoint(), and m_ANNQueryPoint.

FindClosestPoint() [2/3]

mitk::PointLocator::IdType mitk::PointLocator::FindClosestPoint	(	double	x,
		double	y,
		double	z
	)

Finds the nearest neighbour in the point set previously defined by SetPoints(). The Id of the point is returned. Please note, that there is no case, in which no point is found, since as a precondition at least one point has to be contained in the point set.

Parameters

x	the x coordinated of the query point, for whom the nearest neighbour will be determined
y	the x coordinated of the query point, for whom the nearest neighbour will be determined
z	the x coordinated of the query point, for whom the nearest neighbour will be determined

Returns

the id of the nearest neighbour of the given point. The id corresponds to the id which is given in the original point set.

Definition at line 162 of file mitkPointLocator.cpp.

References FindClosestANNPoint(), and m_ANNQueryPoint.

FindClosestPoint() [3/3]

mitk::PointLocator::IdType mitk::PointLocator::FindClosestPoint

(

mitk::PointSet::PointType

point

)

Finds the nearest neighbour in the point set previously defined by SetPoints(). The Id of the point is returned. Please note, that there is no case, in which no point is found, since as a precondition at least one point has to be contained in the point set.

Parameters

point

the query point, for whom the nearest neighbour will be determined

Returns

the id of the nearest neighbour of the given point. The id corresponds to the id which is given in the original point set.

Definition at line 170 of file mitkPointLocator.cpp.

References FindClosestANNPoint(), and m_ANNQueryPoint.

FindClosestPointAndDistance()

bool mitk::PointLocator::FindClosestPointAndDistance	(	mitk::PointSet::PointType	point,
		IdType *	id,
		DistanceType *	dist
	)

Finds the nearest neighbour in the point set previously defined by SetPoints(). The Index and minimal distance between this point and the closest point of the point set is returned. Please note, that there is no case, in which no point is found, since as a precondition at least one point has to be contained in the point set.

Parameters

point

the query point, for whom the minimal distance will be determined

Returns

the index of and distance (in world coordinates) between the nearest point in point set and the given point

Definition at line 230 of file mitkPointLocator.cpp.

References m_ANNDistances, m_ANNK, m_ANNPointIndexes, m_ANNQueryPoint, m_ANNTree, and m_IndexToPointIdContainer.

GetMinimalDistance() [1/2]

mitk::PointLocator::DistanceType mitk::PointLocator::GetMinimalDistance

(

mitk::PointSet::PointType

point

)

Finds the nearest neighbour in the point set previously defined by SetPoints(). The minimal distance between this point and the closest point of the point set is returned. Please note, that there is no case, in which no point is found, since as a precondition at least one point has to be contained in the point set.

Parameters

point

the query point, for whom the minimal distance will be determined

Returns

the distance in world coordinates between the nearest point in point set and the given point

Definition at line 186 of file mitkPointLocator.cpp.

References m_ANNQueryPoint.

GetMinimalDistance() [2/2]

mitk::PointLocator::DistanceType mitk::PointLocator::GetMinimalDistance ( const MyANNpoint &  point )

protected

Finds the minimal distance between the given point and a point in the previously defined point set. The distance is returned. Please note, that there is no case, in which no distance is found, since as a precondition at least one point has to be contained in the point set.

Parameters

point

the query point, for whom the minimal distance to a point in the previously defined point set will be determined

Returns

the squared distance in world coordinates between the given point and the nearest neighbour.

Definition at line 194 of file mitkPointLocator.cpp.

References m_ANNDistances, m_ANNK, m_ANNPointIndexes, m_ANNTree, and m_SearchTreeInitialized.

InitANN()

void mitk::PointLocator::InitANN ( )

protected

Initializes the ann search tree using previously defined points

Definition at line 202 of file mitkPointLocator.cpp.

References DestroyANN(), m_ANNDataPoints, m_ANNDimension, m_ANNDistances, m_ANNK, m_ANNPointIndexes, m_ANNQueryPoint, m_ANNTree, m_IndexToPointIdContainer, and m_SearchTreeInitialized.

Referenced by SetPoints().

mitkClassMacroItkParent()

mitk::PointLocator::mitkClassMacroItkParent	(	PointLocator	,
		itk::Object
	)

New()

static Pointer mitk::PointLocator::New ( )

static

SetPoints() [1/3]

void mitk::PointLocator::SetPoints

(

vtkPointSet *

points

)

Sets the point which will be used for nearest-neighbour searches. Note there must be at least one point in the point set.

Parameters

points

the point set containing points for nearest neighbours searches.

Definition at line 39 of file mitkPointLocator.cpp.

References InitANN(), m_ANNDataPoints, m_ANNDimension, m_IndexToPointIdContainer, and m_VtkPoints.

SetPoints() [2/3]

void mitk::PointLocator::SetPoints

(

mitk::PointSet *

points

)

Sets the point which will be used for nearest-neighbour searches. Note there must be at least one point in the point set.

Parameters

points

the point set containing points for nearest neighbours searches.

Definition at line 74 of file mitkPointLocator.cpp.

References mitk::BaseData::GetMTime(), mitk::PointSet::GetPointSet(), mitk::PointSet::GetSize(), InitANN(), m_ANNDataPoints, m_ANNDimension, m_IndexToPointIdContainer, and m_MitkPoints.

SetPoints() [3/3]

void mitk::PointLocator::SetPoints

(

ITKPointSet *

pointSet

)

Sets the point which will be used for nearest-neighbour searches. Note there must be at least one point in the point set.

Parameters

pointSet

the point set containing points for nearest neighbours searches.

Definition at line 114 of file mitkPointLocator.cpp.

References InitANN(), m_ANNDataPoints, m_ANNDimension, m_IndexToPointIdContainer, and m_ItkPoints.

Member Data Documentation

m_ANNDataPoints

MyANNpointArray mitk::PointLocator::m_ANNDataPoints

protected

Definition at line 210 of file mitkPointLocator.h.

Referenced by DestroyANN(), InitANN(), and SetPoints().

m_ANNDimension

unsigned int mitk::PointLocator::m_ANNDimension

protected

Definition at line 208 of file mitkPointLocator.h.

Referenced by InitANN(), and SetPoints().

m_ANNDistances

MyANNdistArray mitk::PointLocator::m_ANNDistances

protected

Definition at line 213 of file mitkPointLocator.h.

Referenced by DestroyANN(), FindClosestANNPoint(), FindClosestPointAndDistance(), GetMinimalDistance(), and InitANN().

m_ANNEpsilon

double mitk::PointLocator::m_ANNEpsilon

protected

Definition at line 209 of file mitkPointLocator.h.

m_ANNK

unsigned int mitk::PointLocator::m_ANNK

protected

Definition at line 207 of file mitkPointLocator.h.

Referenced by FindClosestANNPoint(), FindClosestPointAndDistance(), GetMinimalDistance(), and InitANN().

m_ANNPointIndexes

MyANNidxArray mitk::PointLocator::m_ANNPointIndexes

protected

Definition at line 212 of file mitkPointLocator.h.

Referenced by DestroyANN(), FindClosestANNPoint(), FindClosestPointAndDistance(), GetMinimalDistance(), and InitANN().

m_ANNQueryPoint

MyANNpoint mitk::PointLocator::m_ANNQueryPoint

protected

Definition at line 211 of file mitkPointLocator.h.

Referenced by DestroyANN(), FindClosestPoint(), FindClosestPointAndDistance(), GetMinimalDistance(), and InitANN().

m_ANNTree

ANNkd_tree* mitk::PointLocator::m_ANNTree

protected

Definition at line 214 of file mitkPointLocator.h.

Referenced by DestroyANN(), FindClosestANNPoint(), FindClosestPointAndDistance(), GetMinimalDistance(), and InitANN().

m_IndexToPointIdContainer

IdVectorType mitk::PointLocator::m_IndexToPointIdContainer

protected

Definition at line 198 of file mitkPointLocator.h.

Referenced by FindClosestANNPoint(), FindClosestPointAndDistance(), InitANN(), and SetPoints().

m_ItkPoints

ITKPointSet* mitk::PointLocator::m_ItkPoints

protected

Definition at line 202 of file mitkPointLocator.h.

Referenced by SetPoints().

m_MitkPoints

mitk::PointSet* mitk::PointLocator::m_MitkPoints

protected

Definition at line 201 of file mitkPointLocator.h.

Referenced by SetPoints().

m_SearchTreeInitialized

bool mitk::PointLocator::m_SearchTreeInitialized

protected

Definition at line 196 of file mitkPointLocator.h.

Referenced by DestroyANN(), FindClosestANNPoint(), GetMinimalDistance(), InitANN(), and ~PointLocator().

m_VtkPoints

vtkPoints* mitk::PointLocator::m_VtkPoints

protected

Definition at line 200 of file mitkPointLocator.h.

Referenced by SetPoints().

---

The documentation for this class was generated from the following files:

• mitkPointLocator.h
• mitkPointLocator.cpp
