mitk::LandmarkProjector Class Reference

Base-class of landmark-projectors, which project the target landmarks to create source landmarks. More...

#include <mitkLandmarkProjector.h>

Inheritance diagram for mitk::LandmarkProjector:

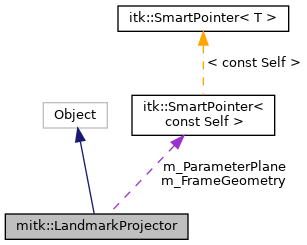

Collaboration diagram for mitk::LandmarkProjector:

Public Types
typedef LandmarkProjector	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const
virtual const char *	GetClassName () const
virtual void	SetInterpolatingAbstractTransform (vtkAbstractTransform *anInterpolatingAbstractTransform)
	Set the interpolating (world-space-to-world-space) transform, which uses the landmarks. More...
virtual vtkAbstractTransform *	GetInterpolatingAbstractTransform () const
	Get the interpolating (world-space-to-world-space) transform, which uses the landmarks. More...
virtual void	SetFrameGeometry (const mitk::BaseGeometry *_arg)
	Set frame geometry within which the interpolation shall occur. More...
virtual const mitk::BaseGeometry *	GetFrameGeometry ()
	Get frame geometry within which the interpolation shall occur. More...
virtual const mitk::PlaneGeometry *	GetParameterPlane ()
	Get the parameter plane for use in AbstractTransformGeometry::SetPlane. More...
virtual const mitk::PointSet::DataType::PointsContainer *	GetProjectedLandmarks ()
	Get the projected landmarks. More...
virtual const mitk::PointSet::DataType::PointsContainer *	GetFinalTargetLandmarks ()
	Get the final target landmarks to use for the interpolating transform. More...
virtual vtkAbstractTransform *	GetCompleteAbstractTransform () const
	Get the transform from parameter space to world space incorporating the given interpolating transform, which uses the landmarks. More...
virtual void	ProjectLandmarks (const mitk::PointSet::DataType::PointsContainer *targetLandmarks)=0

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	LandmarkProjector ()
	~LandmarkProjector () override
virtual void	ComputeCompleteAbstractTransform ()=0
	Compute the transform from parameter space to world space incorporating the given interpolating transform, which uses the landmarks. More...

Protected Attributes
vtkAbstractTransform *	m_InterpolatingAbstractTransform
vtkAbstractTransform *	m_CompleteAbstractTransform
mitk::BaseGeometry::ConstPointer	m_FrameGeometry
mitk::PlaneGeometry::ConstPointer	m_ParameterPlane
mitk::PointSet::DataType::PointsContainer::Pointer	m_WritableFinalTargetLandmarks
mitk::PointSet::DataType::PointsContainer::ConstPointer	m_FinalTargetLandmarks
mitk::PointSet::DataType::PointsContainer::Pointer	m_ProjectedLandmarks

Detailed Description

Base-class of landmark-projectors, which project the target landmarks to create source landmarks.

Definition at line 31 of file mitkLandmarkProjector.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> mitk::LandmarkProjector::ConstPointer

Definition at line 34 of file mitkLandmarkProjector.h.

Pointer

typedef itk::SmartPointer<Self> mitk::LandmarkProjector::Pointer

Definition at line 34 of file mitkLandmarkProjector.h.

Self

typedef LandmarkProjector mitk::LandmarkProjector::Self

Definition at line 34 of file mitkLandmarkProjector.h.

Superclass

typedef itk::Object mitk::LandmarkProjector::Superclass

Definition at line 34 of file mitkLandmarkProjector.h.

Constructor & Destructor Documentation

LandmarkProjector()

mitk::LandmarkProjector::LandmarkProjector ( )

protected

Definition at line 16 of file mitkLandmarkProjector.cpp.

References m_FinalTargetLandmarks, m_ProjectedLandmarks, and m_WritableFinalTargetLandmarks.

~LandmarkProjector()

mitk::LandmarkProjector::~LandmarkProjector ( )

overrideprotected

Definition at line 26 of file mitkLandmarkProjector.cpp.

References m_InterpolatingAbstractTransform.

Member Function Documentation

ComputeCompleteAbstractTransform()

virtual void mitk::LandmarkProjector::ComputeCompleteAbstractTransform ( )

protectedpure virtual

Compute the transform from parameter space to world space incorporating the given interpolating transform, which uses the landmarks.

Called after a new interpolating transform is set via SetInterpolatingAbstractTransform().

See also

SetInterpolatingAbstractTransform

GetCompleteAbstractTransform

Implemented in mitk::PlaneLandmarkProjector.

Referenced by SetInterpolatingAbstractTransform().

GetClassHierarchy()

virtual std::vector<std::string> mitk::LandmarkProjector::GetClassHierarchy ( ) const

inlinevirtual

Definition at line 34 of file mitkLandmarkProjector.h.

GetClassName()

virtual const char* mitk::LandmarkProjector::GetClassName ( ) const

virtual

GetCompleteAbstractTransform()

vtkAbstractTransform * mitk::LandmarkProjector::GetCompleteAbstractTransform ( ) const

virtual

Get the transform from parameter space to world space incorporating the given interpolating transform, which uses the landmarks.

See also

ComputeCompleteAbstractTransform

SetInterpolatingAbstractTransform

Definition at line 43 of file mitkLandmarkProjector.cpp.

References m_CompleteAbstractTransform.

GetFinalTargetLandmarks()

virtual const mitk::PointSet::DataType::PointsContainer* mitk::LandmarkProjector::GetFinalTargetLandmarks ( )

virtual

Get the final target landmarks to use for the interpolating transform.

Note

Valid only after calling ProjectLandmarks.

GetFrameGeometry()

virtual const mitk::BaseGeometry* mitk::LandmarkProjector::GetFrameGeometry ( )

virtual

Get frame geometry within which the interpolation shall occur.

Used as a hint, may be ignored depending on the concrete sub-classes.

GetInterpolatingAbstractTransform()

virtual vtkAbstractTransform* mitk::LandmarkProjector::GetInterpolatingAbstractTransform ( ) const

virtual

Get the interpolating (world-space-to-world-space) transform, which uses the landmarks.

See also

GetCompleteAbstractTransform

ComputeCompleteAbstractTransform

Referenced by mitk::PlaneLandmarkProjector::ComputeCompleteAbstractTransform().

GetParameterPlane()

virtual const mitk::PlaneGeometry* mitk::LandmarkProjector::GetParameterPlane ( )

virtual

Get the parameter plane for use in AbstractTransformGeometry::SetPlane.

GetProjectedLandmarks()

virtual const mitk::PointSet::DataType::PointsContainer* mitk::LandmarkProjector::GetProjectedLandmarks ( )

virtual

Get the projected landmarks.

Note

Valid only after calling ProjectLandmarks.

GetStaticNameOfClass()

static const char* mitk::LandmarkProjector::GetStaticNameOfClass ( )

inlinestatic

Definition at line 34 of file mitkLandmarkProjector.h.

ProjectLandmarks()

virtual void mitk::LandmarkProjector::ProjectLandmarks ( const mitk::PointSet::DataType::PointsContainer *  targetLandmarks )

pure virtual

Implemented in mitk::PlaneLandmarkProjector.

SetFrameGeometry()

virtual void mitk::LandmarkProjector::SetFrameGeometry ( const mitk::BaseGeometry *  _arg )

virtual

Set frame geometry within which the interpolation shall occur.

Used as a hint, may be ignored depending on the concrete sub-classes.

SetInterpolatingAbstractTransform()

void mitk::LandmarkProjector::SetInterpolatingAbstractTransform ( vtkAbstractTransform *  anInterpolatingAbstractTransform )

virtual

Set the interpolating (world-space-to-world-space) transform, which uses the landmarks.

See also

GetCompleteAbstractTransform

Definition at line 32 of file mitkLandmarkProjector.cpp.

References ComputeCompleteAbstractTransform(), and m_InterpolatingAbstractTransform.

Member Data Documentation

m_CompleteAbstractTransform

vtkAbstractTransform* mitk::LandmarkProjector::m_CompleteAbstractTransform

protected

Definition at line 102 of file mitkLandmarkProjector.h.

Referenced by mitk::PlaneLandmarkProjector::ComputeCompleteAbstractTransform(), and GetCompleteAbstractTransform().

m_FinalTargetLandmarks

mitk::PointSet::DataType::PointsContainer::ConstPointer mitk::LandmarkProjector::m_FinalTargetLandmarks

protected

Definition at line 106 of file mitkLandmarkProjector.h.

Referenced by LandmarkProjector(), and mitk::PlaneLandmarkProjector::ProjectLandmarks().

m_FrameGeometry

mitk::BaseGeometry::ConstPointer mitk::LandmarkProjector::m_FrameGeometry

protected

Definition at line 103 of file mitkLandmarkProjector.h.

m_InterpolatingAbstractTransform

vtkAbstractTransform* mitk::LandmarkProjector::m_InterpolatingAbstractTransform

protected

Definition at line 101 of file mitkLandmarkProjector.h.

Referenced by SetInterpolatingAbstractTransform(), and ~LandmarkProjector().

m_ParameterPlane

mitk::PlaneGeometry::ConstPointer mitk::LandmarkProjector::m_ParameterPlane

mutableprotected

Definition at line 104 of file mitkLandmarkProjector.h.

Referenced by mitk::PlaneLandmarkProjector::ProjectLandmarks().

m_ProjectedLandmarks

mitk::PointSet::DataType::PointsContainer::Pointer mitk::LandmarkProjector::m_ProjectedLandmarks

protected

Definition at line 107 of file mitkLandmarkProjector.h.

Referenced by LandmarkProjector(), and mitk::PlaneLandmarkProjector::ProjectLandmarks().

m_WritableFinalTargetLandmarks

mitk::PointSet::DataType::PointsContainer::Pointer mitk::LandmarkProjector::m_WritableFinalTargetLandmarks

protected

Definition at line 105 of file mitkLandmarkProjector.h.

Referenced by LandmarkProjector().

---

The documentation for this class was generated from the following files:

• mitkLandmarkProjector.h
• mitkLandmarkProjector.cpp
