Connects a mitk::IGTLDevice to a MITK-OpenIGTLink-Message-Filter-Pipeline. More...

#include <mitkIGTLDeviceSource.h>

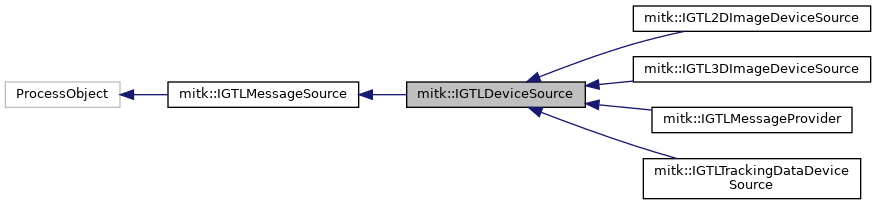

Inheritance diagram for mitk::IGTLDeviceSource:

[legend]

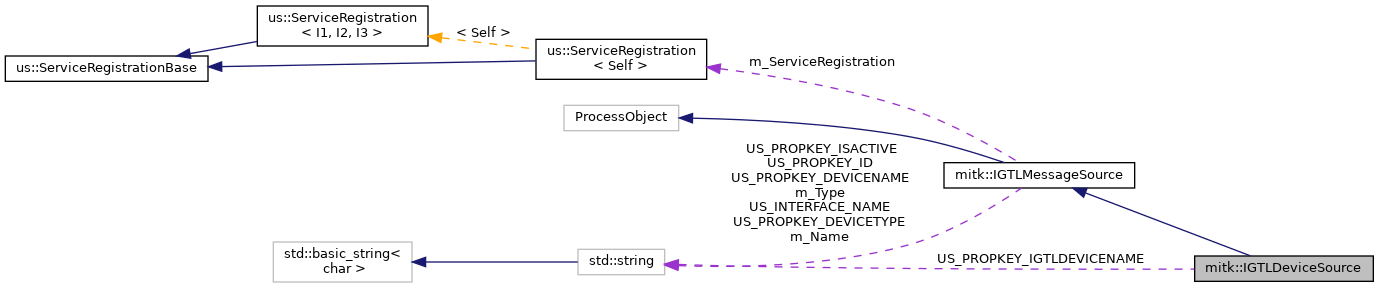

Collaboration diagram for mitk::IGTLDeviceSource:

[legend]

Public Member Functions
	mitkClassMacro (IGTLDeviceSource, IGTLMessageSource)

Pointer	Clone () const

virtual void	SetIGTLDevice (mitk::IGTLDevice *td)
	sets the OpenIGTLink device that will be used as a data source More...

virtual mitk::IGTLDevice *	GetIGTLDevice ()
	returns the OpenIGTLink device that is used by this filter More...

void	RegisterAsMicroservice () override
	Registers this object as a Microservice, making it available to every module and/or plugin. To unregister, call UnregisterMicroservice(). More...

void	Connect ()
	Establishes a connection to the OpenIGTLink device. If there is already a connection the method does nothing. More...

void	Disconnect ()
	Closes the connection to the OpenIGTLink device. More...

void	StartCommunication ()
	starts the communication of the device. This needs to be called before Update() or GetOutput()->Update(). If the device is already communicating the method does nothing. More...

void	StopCommunication ()
	stops the communication of the device. More...

virtual bool	IsConnected ()
	returns true if a connection to the OpenIGTLink device is established More...

virtual bool	IsCommunicating ()
	returns true if communication is in progress More...

void	UpdateOutputInformation () override
	Used for pipeline update. More...

Public Member Functions inherited from mitk::IGTLMessageSource
	mitkClassMacroItkParent (IGTLMessageSource, itk::ProcessObject)

virtual std::string	GetName ()

virtual void	SetName (std::string _arg)
	Sets the human readable name of this source. There is also a default name, but you can use this method if you need to define it on your own. More...

virtual std::string	GetType ()

virtual void	SetType (std::string _arg)

IGTLMessage *	GetOutput (void)
	return the output (output with id 0) of the filter More...

IGTLMessage *	GetOutput (DataObjectPointerArraySizeType idx)
	return the output with id idx of the filter More...

IGTLMessage *	GetOutput (const std::string &messageName)
	return the output with name messageName of the filter More...

DataObjectPointerArraySizeType	GetOutputIndex (std::string messageName)
	return the index of the output with name messageName, -1 if no output with that name was found More...

virtual void	UnRegisterMicroservice ()
	Registers this object as a Microservice, making it available to every module and/or plugin. More...

std::string	GetMicroserviceID ()
	Returns the id that this device is registered with. The id will only be valid, if the IGTLMessageSource has been registered using RegisterAsMicroservice(). More...

virtual void	GraftNthOutput (unsigned int idx, itk::DataObject *graft)
	Graft the specified DataObject onto this ProcessObject's output. More...

virtual void	GraftOutput (itk::DataObject *graft)
	Graft the specified DataObject onto this ProcessObject's output. More...

itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual void	SetParameters (const mitk::PropertyList *)
	Set all filter parameters as the PropertyList p. More...

virtual mitk::PropertyList::ConstPointer	GetParameters () const
	Get all filter parameters as a PropertyList. More...

void	SetFPS (unsigned int fps)
	Sets the fps used for streaming this source. More...

unsigned int	GetFPS ()
	Gets the fps used for streaming this source. More...

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const std::string	US_PROPKEY_IGTLDEVICENAME
	These Constants are used in conjunction with Microservices. More...

Static Public Attributes inherited from mitk::IGTLMessageSource
static const std::string	US_INTERFACE_NAME
	These Constants are used in conjunction with Microservices. More...

static const std::string	US_PROPKEY_DEVICENAME

static const std::string	US_PROPKEY_DEVICETYPE

static const std::string	US_PROPKEY_ID

static const std::string	US_PROPKEY_ISACTIVE

Protected Member Functions
	IGTLDeviceSource ()

	~IGTLDeviceSource () override

void	GenerateData () override
	filter execute method More...

void	CreateOutputs ()
	Create the necessary outputs for the m_IGTLDevice. More...

virtual void	OnIncomingMessage ()
	This method is called when the IGTL device hold by this class receives a new message. More...

virtual void	OnIncomingCommand ()
	This method is called when the IGTL device hold by this class receives a new command. More...

virtual void	OnLostConnection ()
	This method is called when the IGTL device lost the connection to the other side. More...

virtual void	RemoveObservers ()
	Removes all observers that listen to the igtl device. More...

virtual void	SetInput (unsigned int idx, const IGTLMessage *msg)
	Set input with id idx of this filter. More...

const IGTLMessage *	GetInput (void) const
	Get the input of this filter. More...

const IGTLMessage *	GetInput (unsigned int idx) const
	Get the input with id idx of this filter. More...

const IGTLMessage *	GetInput (std::string msgName) const
	Get the input with name messageName of this filter. More...

DataObjectPointerArraySizeType	GetInputIndex (std::string msgName)
	return the index of the input with name msgName, throw std::invalid_argument exception if that name was not found More...

DataObjectPointerArraySizeType	GetOutputIndex (std::string msgName)
	return the index of the output with name msgName, -1 if no output with that name was found More...

Protected Member Functions inherited from mitk::IGTLMessageSource
	IGTLMessageSource ()

	~IGTLMessageSource () override

Protected Attributes
mitk::IGTLDevice::Pointer	m_IGTLDevice

unsigned int	m_LostConnectionObserverTag

unsigned int	m_IncomingCommandObserverTag

unsigned int	m_IncomingMessageObserverTag

Protected Attributes inherited from mitk::IGTLMessageSource
std::string	m_Name

std::string	m_Type

itk::FastMutexLock::Pointer	m_StreamingFPSMutex

unsigned int	m_StreamingFPS

us::ServiceRegistration< Self >	m_ServiceRegistration

Detailed Description

Connects a mitk::IGTLDevice to a MITK-OpenIGTLink-Message-Filter-Pipeline.

This class is the source of most OpenIGTLink pipelines. It encapsulates a mitk::IGTLDevice and provides the information/messages of the connected OpenIGTLink devices as igtl::MessageBase objects. Note, that there is just one single output.

Definition at line 30 of file mitkIGTLDeviceSource.h.

Constructor & Destructor Documentation

◆ IGTLDeviceSource()

mitk::IGTLDeviceSource::IGTLDeviceSource ( )

protected

Definition at line 33 of file mitkIGTLDeviceSource.cpp.

References mitk::IGTLMessageSource::SetName().

◆ ~IGTLDeviceSource()

mitk::IGTLDeviceSource::~IGTLDeviceSource ( )

overrideprotected

Definition at line 39 of file mitkIGTLDeviceSource.cpp.

References Disconnect(), m_IGTLDevice, mitk::IGTLDevice::Ready, RemoveObservers(), mitk::IGTLDevice::Running, and StopCommunication().

Member Function Documentation

◆ Clone()

Pointer mitk::IGTLDeviceSource::Clone ( ) const

◆ Connect()

void mitk::IGTLDeviceSource::Connect ( )

Establishes a connection to the OpenIGTLink device. If there is already a connection the method does nothing.

Warning: . Will throw a std::invalid_argument exception if no OpenIGTLink device was set with SetIGTLDevice(). Will throw a std::runtime_error if the OpenIGTLink device returns an error.

Definition at line 149 of file mitkIGTLDeviceSource.cpp.

References IsConnected(), and m_IGTLDevice.

◆ CreateOutputs()

void mitk::IGTLDeviceSource::CreateOutputs ( )

protected

Create the necessary outputs for the m_IGTLDevice.

This Method is called internally whenever outputs need to be reset. Old Outputs are deleted when called.

Definition at line 126 of file mitkIGTLDeviceSource.cpp.

References mitk::IGTLMessageSource::GetOutput(), m_IGTLDevice, and mitk::IGTLMessageSource::MakeOutput().

Referenced by SetIGTLDevice().

◆ Disconnect()

void mitk::IGTLDeviceSource::Disconnect ( )

Closes the connection to the OpenIGTLink device.

Warning: . Will throw a std::invalid_argument exception if no OpenIGTLink device was set with SetIGTLDevice(). Will throw a std::runtime_error if the OpenIGTLink device returns an error.

Definition at line 183 of file mitkIGTLDeviceSource.cpp.

References m_IGTLDevice.

Referenced by ~IGTLDeviceSource().

◆ GenerateData()

void mitk::IGTLDeviceSource::GenerateData ( )

overrideprotected

filter execute method

queries the OpenIGTLink device for new messages and updates its output igtl::MessageBase objects with it.

Warning: Will raise a std::out_of_range exception, if tools were added to the OpenIGTLink device after it was set as input for this filter

Definition at line 56 of file mitkIGTLDeviceSource.cpp.

References mitk::IGTLMessageSource::GetOutput(), m_IGTLDevice, mitk::IGTLMessage::SetMessage(), and mitk::IGTLMessage::SetName().

◆ GetIGTLDevice()

virtual mitk::IGTLDevice* mitk::IGTLDeviceSource::GetIGTLDevice ( )

virtual

returns the OpenIGTLink device that is used by this filter

Referenced by mitk::IGTLMessageProvider::OnIncomingCommand().

◆ GetInput() [1/3]

const mitk::IGTLMessage * mitk::IGTLDeviceSource::GetInput ( void ) const

protected

Get the input of this filter.

Definition at line 270 of file mitkIGTLDeviceSource.cpp.

Referenced by mitk::IGTLMessageProvider::DisconnectFrom(), mitk::IGTLMessageProvider::GenerateData(), and mitk::IGTLMessageProvider::Update().

◆ GetInput() [2/3]

const mitk::IGTLMessage * mitk::IGTLDeviceSource::GetInput ( unsigned int idx ) const

protected

Get the input with id idx of this filter.

Definition at line 279 of file mitkIGTLDeviceSource.cpp.

◆ GetInput() [3/3]

const mitk::IGTLMessage * mitk::IGTLDeviceSource::GetInput ( std::string msgName ) const

protected

Get the input with name messageName of this filter.

Definition at line 288 of file mitkIGTLDeviceSource.cpp.

◆ GetInputIndex()

itk::ProcessObject::DataObjectPointerArraySizeType mitk::IGTLDeviceSource::GetInputIndex ( std::string msgName )

protected

return the index of the input with name msgName, throw std::invalid_argument exception if that name was not found

Warning: if a subclass has inputs that have different data type than mitk::IGTLMessage, they have to overwrite this method

Definition at line 300 of file mitkIGTLDeviceSource.cpp.

◆ GetOutputIndex()

DataObjectPointerArraySizeType mitk::IGTLDeviceSource::GetOutputIndex ( std::string msgName )

protected

return the index of the output with name msgName, -1 if no output with that name was found

Warning: if a subclass has outputs that have different data type than mitk::IGTLMessage, they have to overwrite this method

◆ IsCommunicating()

bool mitk::IGTLDeviceSource::IsCommunicating ( )

virtual

returns true if communication is in progress

Definition at line 232 of file mitkIGTLDeviceSource.cpp.

References m_IGTLDevice, and mitk::IGTLDevice::Running.

◆ IsConnected()

bool mitk::IGTLDeviceSource::IsConnected ( )

virtual

returns true if a connection to the OpenIGTLink device is established

Definition at line 223 of file mitkIGTLDeviceSource.cpp.

References m_IGTLDevice, mitk::IGTLDevice::Ready, and mitk::IGTLDevice::Running.

Referenced by Connect().

◆ mitkClassMacro()

mitk::IGTLDeviceSource::mitkClassMacro	(	IGTLDeviceSource	,
		IGTLMessageSource
	)

◆ New()

static Pointer mitk::IGTLDeviceSource::New ( )

static

◆ OnIncomingCommand()

void mitk::IGTLDeviceSource::OnIncomingCommand ( )

protectedvirtual

This method is called when the IGTL device hold by this class receives a new command.

Reimplemented in mitk::IGTLMessageProvider.

Definition at line 262 of file mitkIGTLDeviceSource.cpp.

Referenced by SetIGTLDevice().

◆ OnIncomingMessage()

void mitk::IGTLDeviceSource::OnIncomingMessage ( )

protectedvirtual

This method is called when the IGTL device hold by this class receives a new message.

Reimplemented in mitk::IGTLMessageProvider.

Definition at line 258 of file mitkIGTLDeviceSource.cpp.

Referenced by SetIGTLDevice().

◆ OnLostConnection()

void mitk::IGTLDeviceSource::OnLostConnection ( )

protectedvirtual

This method is called when the IGTL device lost the connection to the other side.

Reimplemented in mitk::IGTLMessageProvider.

Definition at line 266 of file mitkIGTLDeviceSource.cpp.

Referenced by SetIGTLDevice().

◆ RegisterAsMicroservice()

void mitk::IGTLDeviceSource::RegisterAsMicroservice ( )

overridevirtual

Registers this object as a Microservice, making it available to every module and/or plugin. To unregister, call UnregisterMicroservice().

Reimplemented from mitk::IGTLMessageSource.

Definition at line 240 of file mitkIGTLDeviceSource.cpp.

References us::GetModuleContext(), mitk::IGTLMessageSource::GetName(), mitk::UIDGenerator::GetUID(), mitk::IGTLMessageSource::m_Name, mitk::IGTLMessageSource::m_ServiceRegistration, mitk::IGTLMessageSource::m_Type, MITK_INFO, mitk::IGTLMessageSource::US_PROPKEY_DEVICENAME, mitk::IGTLMessageSource::US_PROPKEY_DEVICETYPE, mitk::IGTLMessageSource::US_PROPKEY_ID, and US_PROPKEY_IGTLDEVICENAME.

◆ RemoveObservers()

void mitk::IGTLDeviceSource::RemoveObservers ( )

protectedvirtual

Removes all observers that listen to the igtl device.

Definition at line 78 of file mitkIGTLDeviceSource.cpp.

References m_IGTLDevice, m_IncomingCommandObserverTag, m_IncomingMessageObserverTag, and m_LostConnectionObserverTag.

Referenced by SetIGTLDevice(), and ~IGTLDeviceSource().

◆ SetIGTLDevice()

void mitk::IGTLDeviceSource::SetIGTLDevice ( mitk::IGTLDevice * td )

virtual

sets the OpenIGTLink device that will be used as a data source

Definition at line 88 of file mitkIGTLDeviceSource.cpp.

References CreateOutputs(), m_IGTLDevice, m_IncomingCommandObserverTag, m_IncomingMessageObserverTag, m_LostConnectionObserverTag, MITK_DEBUG, OnIncomingCommand(), OnIncomingMessage(), OnLostConnection(), RemoveObservers(), and mitk::IGTLMessageSource::SetName().

◆ SetInput()

void mitk::IGTLDeviceSource::SetInput	(	unsigned int	idx,
		const IGTLMessage *	msg
	)

protectedvirtual

Set input with id idx of this filter.

Definition at line 209 of file mitkIGTLDeviceSource.cpp.

Referenced by mitk::IGTLMessageProvider::ConnectTo().

◆ StartCommunication()

void mitk::IGTLDeviceSource::StartCommunication ( )

starts the communication of the device. This needs to be called before Update() or GetOutput()->Update(). If the device is already communicating the method does nothing.

Warning: . Will throw a std::invalid_argument exception if no OpenIGTLink device was set with SetIGTLDevice(). Will throw a std::runtime_error if the OpenIGTLink device returns an error.

Definition at line 171 of file mitkIGTLDeviceSource.cpp.

References m_IGTLDevice, and mitk::IGTLDevice::Running.

◆ StopCommunication()

void mitk::IGTLDeviceSource::StopCommunication ( )

stops the communication of the device.

Warning: . Will throw a std::invalid_argument exception if no OpenIGTLink device was set with SetIGTLDevice(). Will throw a std::runtime_error if the OpenIGTLink device returns an error.

Definition at line 193 of file mitkIGTLDeviceSource.cpp.

References m_IGTLDevice.

Referenced by ~IGTLDeviceSource().

◆ UpdateOutputInformation()

void mitk::IGTLDeviceSource::UpdateOutputInformation ( )

override

Used for pipeline update.

Definition at line 203 of file mitkIGTLDeviceSource.cpp.

Member Data Documentation

◆ m_IGTLDevice

mitk::IGTLDevice::Pointer mitk::IGTLDeviceSource::m_IGTLDevice

protected

the OpenIGTLink device that is used as a source for this filter object

Definition at line 197 of file mitkIGTLDeviceSource.h.

Referenced by Connect(), mitk::IGTLMessageProvider::CreateOutputs(), CreateOutputs(), Disconnect(), mitk::IGTL3DImageDeviceSource::GenerateData(), mitk::IGTL2DImageDeviceSource::GenerateData(), mitk::IGTLTrackingDataDeviceSource::GenerateData(), mitk::IGTLMessageProvider::GenerateData(), GenerateData(), IsCommunicating(), IsConnected(), mitk::IGTLMessageProvider::OnIncomingCommand(), RemoveObservers(), mitk::IGTLMessageProvider::Send(), SetIGTLDevice(), StartCommunication(), StopCommunication(), and ~IGTLDeviceSource().

◆ m_IncomingCommandObserverTag

unsigned int mitk::IGTLDeviceSource::m_IncomingCommandObserverTag

protected

Definition at line 201 of file mitkIGTLDeviceSource.h.

Referenced by RemoveObservers(), and SetIGTLDevice().

◆ m_IncomingMessageObserverTag

unsigned int mitk::IGTLDeviceSource::m_IncomingMessageObserverTag

protected

Definition at line 202 of file mitkIGTLDeviceSource.h.

Referenced by RemoveObservers(), and SetIGTLDevice().

◆ m_LostConnectionObserverTag

unsigned int mitk::IGTLDeviceSource::m_LostConnectionObserverTag

protected

observer tags

Definition at line 200 of file mitkIGTLDeviceSource.h.

Referenced by RemoveObservers(), and SetIGTLDevice().

◆ US_PROPKEY_IGTLDEVICENAME

const std::string mitk::IGTLDeviceSource::US_PROPKEY_IGTLDEVICENAME

static

These Constants are used in conjunction with Microservices.

Definition at line 35 of file mitkIGTLDeviceSource.h.

Referenced by QmitkIGTLDeviceSourceSelectionWidget::CreateConnections(), and RegisterAsMicroservice().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ IGTLDeviceSource()

◆ ~IGTLDeviceSource()

Member Function Documentation

◆ Clone()

◆ Connect()

◆ CreateOutputs()

◆ Disconnect()

◆ GenerateData()

◆ GetIGTLDevice()

◆ GetInput() [1/3]

◆ GetInput() [2/3]

◆ GetInput() [3/3]

◆ GetInputIndex()

◆ GetOutputIndex()

◆ IsCommunicating()

◆ IsConnected()

◆ mitkClassMacro()

◆ New()

◆ OnIncomingCommand()

◆ OnIncomingMessage()

◆ OnLostConnection()

◆ RegisterAsMicroservice()

◆ RemoveObservers()

◆ SetIGTLDevice()

◆ SetInput()

◆ StartCommunication()

◆ StopCommunication()

◆ UpdateOutputInformation()

Member Data Documentation

◆ m_IGTLDevice

◆ m_IncomingCommandObserverTag

◆ m_IncomingMessageObserverTag

◆ m_LostConnectionObserverTag

◆ US_PROPKEY_IGTLDEVICENAME
