The HotspotMaskGenerator class is used when a hotspot has to be found in an image. A hotspot is the region of the image where the mean intensity is maximal (=brightest spot). It is usually used in PET scans. The identification of the hotspot is done as follows: First a cubic (or circular, if image is 2d) mask of predefined size is generated. This mask is then convolved with the input image (in fourier domain). The maximum value of the convolved image then corresponds to the hotspot. If a maskGenerator is set, only the pixels of the convolved image where the corresponding mask is == label are searched for the maximum value. More...

#include <mitkHotspotMaskGenerator.h>

Inheritance diagram for mitk::HotspotMaskGenerator:

[legend]

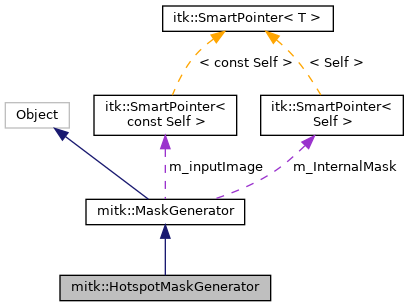

Collaboration diagram for mitk::HotspotMaskGenerator:

[legend]

Classes
class	ImageExtrema

Public Types
typedef HotspotMaskGenerator	Self

typedef MaskGenerator	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::MaskGenerator
typedef MaskGenerator	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual const char *	GetClassName () const

void	SetInputImage (mitk::Image::Pointer inputImage)
	Set the input image. Required for this class. More...

void	SetMask (MaskGenerator::Pointer mask)
	Set a mask (can be nullptr if no mask is desired) More...

void	SetHotspotRadiusInMM (double radiusInMillimeter)
	Set the radius of the hotspot (in MM) More...

const double &	GetHotspotRadiusinMM () const

void	SetHotspotMustBeCompletelyInsideImage (bool hotspotCompletelyInsideImage)
	Define whether the hotspot must be completely inside the image. Default is true. More...

bool	GetHotspotMustBeCompletelyInsideImage () const

void	SetLabel (unsigned short label)
	If a maskGenerator is set, this detemines which mask value is used. More...

mitk::Image::Pointer	GetMask () override
	Computes and returns the hotspot mask. The hotspot mask has the same size as the input image. The hopspot has value 1, the remaining pixels are set to 0. More...

vnl_vector< int >	GetHotspotIndex ()
	Returns the image index where the hotspot is located. More...

vnl_vector< int >	GetConvolutionImageMinIndex ()
	Returns the index where the convolution image is minimal (darkest spot in image) More...

void	SetTimeStep (unsigned int timeStep) override
	SetTimeStep is used to set the time step for which the mask is to be generated. More...

Public Member Functions inherited from mitk::MaskGenerator
virtual mitk::Image::ConstPointer	GetReferenceImage ()
	GetReferenceImage per default returns the inputImage (as set by SetInputImage). If no input image is set it will return a nullptr. More...

void	SetInputImage (mitk::Image::ConstPointer inputImg)
	SetInputImage is used to set the input image to the mask generator. Some subclasses require an input image, others don't. See the documentation of the specific Mask Generator for more information. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::MaskGenerator
static Pointer	New ()

Protected Member Functions
	HotspotMaskGenerator ()

	~HotspotMaskGenerator () override

Protected Member Functions inherited from mitk::MaskGenerator
	MaskGenerator ()

Additional Inherited Members
Protected Attributes inherited from mitk::MaskGenerator
unsigned int	m_TimeStep

mitk::Image::Pointer	m_InternalMask

mitk::Image::ConstPointer	m_inputImage

Detailed Description

The HotspotMaskGenerator class is used when a hotspot has to be found in an image. A hotspot is the region of the image where the mean intensity is maximal (=brightest spot). It is usually used in PET scans. The identification of the hotspot is done as follows: First a cubic (or circular, if image is 2d) mask of predefined size is generated. This mask is then convolved with the input image (in fourier domain). The maximum value of the convolved image then corresponds to the hotspot. If a maskGenerator is set, only the pixels of the convolved image where the corresponding mask is == label are searched for the maximum value.

Definition at line 37 of file mitkHotspotMaskGenerator.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer< const Self > mitk::HotspotMaskGenerator::ConstPointer

Definition at line 44 of file mitkHotspotMaskGenerator.h.

◆ Pointer

typedef itk::SmartPointer< Self > mitk::HotspotMaskGenerator::Pointer

Definition at line 43 of file mitkHotspotMaskGenerator.h.

◆ Self

typedef HotspotMaskGenerator mitk::HotspotMaskGenerator::Self

Standard Self typedef

Definition at line 41 of file mitkHotspotMaskGenerator.h.

◆ Superclass

typedef MaskGenerator mitk::HotspotMaskGenerator::Superclass

Definition at line 42 of file mitkHotspotMaskGenerator.h.

Constructor & Destructor Documentation

◆ HotspotMaskGenerator()

mitk::HotspotMaskGenerator::HotspotMaskGenerator ( )

protected

Definition at line 25 of file mitkHotspotMaskGenerator.cpp.

References mitk::MaskGenerator::m_InternalMask, mitk::MaskGenerator::m_TimeStep, and mitk::Image::New().

◆ ~HotspotMaskGenerator()

mitk::HotspotMaskGenerator::~HotspotMaskGenerator ( )

overrideprotected

Definition at line 55 of file mitkHotspotMaskGenerator.cpp.

Member Function Documentation

◆ GetClassName()

virtual const char* mitk::HotspotMaskGenerator::GetClassName ( ) const

virtual

Runtime information support.

Reimplemented from mitk::MaskGenerator.

◆ GetConvolutionImageMinIndex()

vnl_vector< int > mitk::HotspotMaskGenerator::GetConvolutionImageMinIndex ( )

Returns the index where the convolution image is minimal (darkest spot in image)

Definition at line 172 of file mitkHotspotMaskGenerator.cpp.

References GetMask().

◆ GetHotspotIndex()

vnl_vector< int > mitk::HotspotMaskGenerator::GetHotspotIndex ( )

Returns the image index where the hotspot is located.

Definition at line 178 of file mitkHotspotMaskGenerator.cpp.

References mitk::HotspotMaskGenerator::ImageExtrema::Defined, GetMask(), mitk::GrabItkImageMemory(), mitk::MaskGenerator::m_inputImage, mitk::MaskGenerator::m_InternalMask, max(), mitk::HotspotMaskGenerator::ImageExtrema::Max, mitk::HotspotMaskGenerator::ImageExtrema::MaxIndex, min(), mitk::HotspotMaskGenerator::ImageExtrema::Min, mitk::HotspotMaskGenerator::ImageExtrema::MinIndex, MITK_DEBUG, and MITK_ERROR.

◆ GetHotspotMustBeCompletelyInsideImage()

bool mitk::HotspotMaskGenerator::GetHotspotMustBeCompletelyInsideImage ( ) const

Definition at line 73 of file mitkHotspotMaskGenerator.cpp.

◆ GetHotspotRadiusinMM()

const double & mitk::HotspotMaskGenerator::GetHotspotRadiusinMM ( ) const

Definition at line 68 of file mitkHotspotMaskGenerator.cpp.

◆ GetMask()

mitk::Image::Pointer mitk::HotspotMaskGenerator::GetMask ( )

overridevirtual

Computes and returns the hotspot mask. The hotspot mask has the same size as the input image. The hopspot has value 1, the remaining pixels are set to 0.

Reimplemented from mitk::MaskGenerator.

Definition at line 88 of file mitkHotspotMaskGenerator.cpp.

References AccessFixedDimensionByItk_2, mitk::CastToItkImage(), mitk::MaskGenerator::m_inputImage, mitk::MaskGenerator::m_InternalMask, mitk::MaskGenerator::m_TimeStep, and mitk::ImageTimeSelector::New().

Referenced by GetConvolutionImageMinIndex(), and GetHotspotIndex().
