Encapsulates the tag scanning process for a set of DICOM files. More...

#include <mitkDICOMGDCMTagScanner.h>

Inheritance diagram for mitk::DICOMGDCMTagScanner:

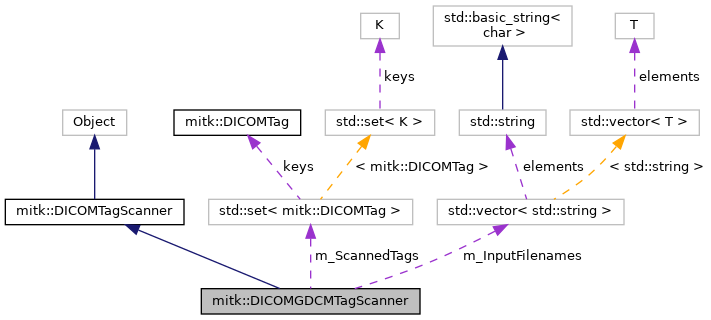

Collaboration diagram for mitk::DICOMGDCMTagScanner:

[legend]

Public Member Functions
	mitkClassMacro (DICOMGDCMTagScanner, DICOMTagScanner)

Pointer	Clone () const

void	AddTag (const DICOMTag &tag) override
	Add this tag to the scanning process. More...

void	AddTags (const DICOMTagList &tags) override
	Add a list of tags to the scanning process. More...

void	AddTagPath (const DICOMTagPath &tag) override
	Add this tag path to the scanning process. More...

void	AddTagPaths (const DICOMTagPathList &tags) override
	Add a list of tag pathes to the scanning process. More...

void	SetInputFiles (const StringList &filenames) override
	Define the list of files to scan. This does not ADD to an internal list, but it replaces the whole list of files. More...

void	Scan () override
	Start the scanning process. Calling Scan() will invalidate previous scans, forgetting all about files and tags from files that have been scanned previously. More...

DICOMDatasetAccessingImageFrameList	GetFrameInfoList () const override
	Retrieve a result list for file-by-file tag access. More...

DICOMTagCache::Pointer	GetScanCache () const override
	Retrieve Pointer to the complete cache of the scan. More...

virtual DICOMDatasetFinding	GetTagValue (DICOMImageFrameInfo *frame, const DICOMTag &tag) const
	Directly retrieve the tag value for a given frame and tag. More...

Public Member Functions inherited from mitk::DICOMTagScanner
	mitkClassMacroItkParent (DICOMTagScanner, itk::Object)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	DICOMGDCMTagScanner ()

	~DICOMGDCMTagScanner () override

Protected Member Functions inherited from mitk::DICOMTagScanner
void	PushLocale () const
	Remember current locale on stack, activate "C" locale. "C" locale is required for correct parsing of numbers by itk::ImageSeriesReader. More...

void	PopLocale () const
	Activate last remembered locale from locale stack "C" locale is required for correct parsing of numbers by itk::ImageSeriesReader. More...

	DICOMTagScanner ()

	~DICOMTagScanner () override

Protected Attributes
std::set< DICOMTag >	m_ScannedTags

StringList	m_InputFilenames

DICOMGDCMTagCache::Pointer	m_Cache

std::shared_ptr< gdcm::Scanner >	m_GDCMScanner

Additional Inherited Members
Static Protected Member Functions inherited from mitk::DICOMTagScanner
static std::string	GetActiveLocale ()
	Return active C locale. More...

Detailed Description

Encapsulates the tag scanning process for a set of DICOM files.

Formerly integrated as a part of DICOMITKSeriesGDCMReader, the tag scanning part has been factored out into this DICOMGDCMTagScanner class in order to allow a single scan for multiple reader alternatives. This helps much in the selection process of e.g. DICOMFileReaderSelector.

The class works similar to gdcm::Scanner, just with the MITK set of classes:

add a number of DICOM tags that should be read
set a list of files that should be scanned for named tags
call Scan()
retrieve the scan results
- via GetFrameInfoList() or
- via GetTagValue()

When used in a process where multiple classes will access the scan results, care should be taken that all the tags and files of interest are communicated to DICOMGDCMTagScanner before requesting the results!

Remarks: This scanner does only support the scanning for simple value tag. If you need to scann for sequence items or non-top-level elements, this scanner will not be sufficient. See i.a. DICOMDCMTKTagScanner for these cases.

Definition at line 48 of file mitkDICOMGDCMTagScanner.h.

Constructor & Destructor Documentation

◆ DICOMGDCMTagScanner()

mitk::DICOMGDCMTagScanner::DICOMGDCMTagScanner ( )

protected

Definition at line 19 of file mitkDICOMGDCMTagScanner.cpp.

References m_GDCMScanner.

◆ ~DICOMGDCMTagScanner()

mitk::DICOMGDCMTagScanner::~DICOMGDCMTagScanner ( )

overrideprotected

Definition at line 24 of file mitkDICOMGDCMTagScanner.cpp.

Member Function Documentation

◆ AddTag()

void mitk::DICOMGDCMTagScanner::AddTag ( const DICOMTag & tag )

overridevirtual

Add this tag to the scanning process.

Implements mitk::DICOMTagScanner.

Definition at line 41 of file mitkDICOMGDCMTagScanner.cpp.

References mitk::DICOMTag::GetElement(), mitk::DICOMTag::GetGroup(), m_GDCMScanner, and m_ScannedTags.

Referenced by AddTagPath(), AddTagPaths(), and AddTags().

◆ AddTagPath()

void mitk::DICOMGDCMTagScanner::AddTagPath ( const DICOMTagPath & tag )

overridevirtual

Add this tag path to the scanning process.

Implements mitk::DICOMTagScanner.

Definition at line 56 of file mitkDICOMGDCMTagScanner.cpp.

References AddTag(), mitk::DICOMTagPath::GetFirstNode(), mitk::DICOMTagPath::IsExplicit(), MITK_ERROR, mitk::DICOMTagPath::Size(), mitk::DICOMTagPath::NodeInfo::tag, and mitk::DICOMTagPath::ToStr().

◆ AddTagPaths()

void mitk::DICOMGDCMTagScanner::AddTagPaths ( const DICOMTagPathList & tags )

overridevirtual

Add a list of tag pathes to the scanning process.

Implements mitk::DICOMTagScanner.

Definition at line 70 of file mitkDICOMGDCMTagScanner.cpp.

References AddTag(), and MITK_ERROR.

◆ AddTags()

void mitk::DICOMGDCMTagScanner::AddTags ( const DICOMTagList & tags )

overridevirtual

Add a list of tags to the scanning process.

Implements mitk::DICOMTagScanner.

Definition at line 48 of file mitkDICOMGDCMTagScanner.cpp.

References AddTag().

◆ Clone()

Pointer mitk::DICOMGDCMTagScanner::Clone ( ) const

◆ GetFrameInfoList()

mitk::DICOMDatasetAccessingImageFrameList mitk::DICOMGDCMTagScanner::GetFrameInfoList ( ) const

overridevirtual

Retrieve a result list for file-by-file tag access.

Implements mitk::DICOMTagScanner.

Definition at line 110 of file mitkDICOMGDCMTagScanner.cpp.

References m_Cache.

◆ GetScanCache()

mitk::DICOMTagCache::Pointer mitk::DICOMGDCMTagScanner::GetScanCache ( ) const

overridevirtual

Retrieve Pointer to the complete cache of the scan.

Implements mitk::DICOMTagScanner.

Definition at line 105 of file mitkDICOMGDCMTagScanner.cpp.

References m_Cache.

◆ GetTagValue()

mitk::DICOMDatasetFinding mitk::DICOMGDCMTagScanner::GetTagValue	(	DICOMImageFrameInfo *	frame,
		const DICOMTag &	tag
	)		const

virtual

Directly retrieve the tag value for a given frame and tag.

Precondition: Scan() must have been called before calling this function.

Definition at line 28 of file mitkDICOMGDCMTagScanner.cpp.

References m_Cache, and mitkThrow.

◆ mitkClassMacro()

mitk::DICOMGDCMTagScanner::mitkClassMacro	(	DICOMGDCMTagScanner	,
		DICOMTagScanner
	)

◆ New()

static Pointer mitk::DICOMGDCMTagScanner::New ( )

static

Referenced by mitk::DICOMITKSeriesGDCMReader::AnalyzeInputFiles(), and ComputeMiliSecDuration().

◆ Scan()

void mitk::DICOMGDCMTagScanner::Scan ( )

overridevirtual

Start the scanning process. Calling Scan() will invalidate previous scans, forgetting all about files and tags from files that have been scanned previously.

Implements mitk::DICOMTagScanner.

Definition at line 93 of file mitkDICOMGDCMTagScanner.cpp.

References m_Cache, m_GDCMScanner, m_InputFilenames, m_ScannedTags, and mitk::DICOMGDCMTagCache::New().
