Encapsulates the tag scanning process for a set of DICOM files. More...

#include <mitkDICOMDCMTKTagScanner.h>

Inheritance diagram for mitk::DICOMDCMTKTagScanner:

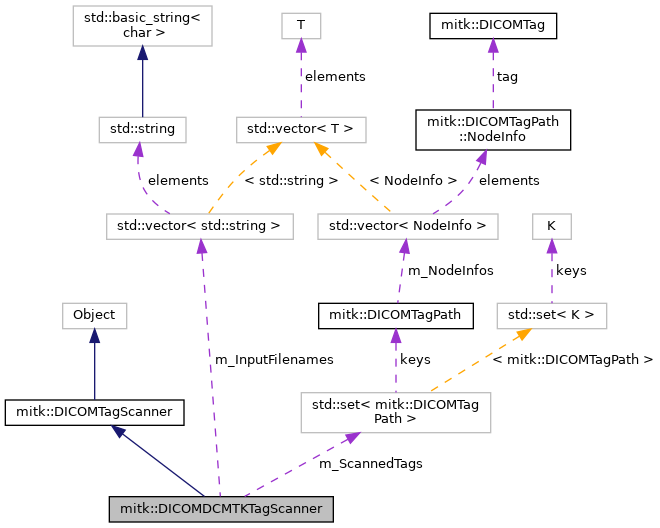

Collaboration diagram for mitk::DICOMDCMTKTagScanner:

[legend]

Public Member Functions
	mitkClassMacro (DICOMDCMTKTagScanner, DICOMTagScanner)

Pointer	Clone () const

void	AddTag (const DICOMTag &tag) override
	Add this tag to the scanning process. More...

void	AddTags (const DICOMTagList &tags) override
	Add a list of tags to the scanning process. More...

void	AddTagPath (const DICOMTagPath &tag) override
	Add this tag path to the scanning process. More...

void	AddTagPaths (const DICOMTagPathList &tags) override
	Add a list of tag pathes to the scanning process. More...

void	SetInputFiles (const StringList &filenames) override
	Define the list of files to scan. This does not ADD to an internal list, but it replaces the whole list of files. More...

void	Scan () override
	Start the scanning process. Calling Scan() will invalidate previous scans, forgetting all about files and tags from files that have been scanned previously. More...

DICOMDatasetAccessingImageFrameList	GetFrameInfoList () const override
	Retrieve a result list for file-by-file tag access. More...

DICOMTagCache::Pointer	GetScanCache () const override
	Retrieve Pointer to the complete cache of the scan. More...

Public Member Functions inherited from mitk::DICOMTagScanner
	mitkClassMacroItkParent (DICOMTagScanner, itk::Object)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	DICOMDCMTKTagScanner ()

	~DICOMDCMTKTagScanner () override

Protected Member Functions inherited from mitk::DICOMTagScanner
void	PushLocale () const
	Remember current locale on stack, activate "C" locale. "C" locale is required for correct parsing of numbers by itk::ImageSeriesReader. More...

void	PopLocale () const
	Activate last remembered locale from locale stack "C" locale is required for correct parsing of numbers by itk::ImageSeriesReader. More...

	DICOMTagScanner ()

	~DICOMTagScanner () override

Protected Attributes
std::set< DICOMTagPath >	m_ScannedTags

StringList	m_InputFilenames

DICOMGenericTagCache::Pointer	m_Cache

Additional Inherited Members
Static Protected Member Functions inherited from mitk::DICOMTagScanner
static std::string	GetActiveLocale ()
	Return active C locale. More...

Detailed Description

Encapsulates the tag scanning process for a set of DICOM files.

For the scanning process it uses DCMTK functionality.

Definition at line 31 of file mitkDICOMDCMTKTagScanner.h.

Constructor & Destructor Documentation

◆ DICOMDCMTKTagScanner()

mitk::DICOMDCMTKTagScanner::DICOMDCMTKTagScanner ( )

protected

Definition at line 19 of file mitkDICOMDCMTKTagScanner.cpp.

◆ ~DICOMDCMTKTagScanner()

mitk::DICOMDCMTKTagScanner::~DICOMDCMTKTagScanner ( )

overrideprotected

Definition at line 23 of file mitkDICOMDCMTKTagScanner.cpp.

Member Function Documentation

◆ AddTag()

void mitk::DICOMDCMTKTagScanner::AddTag ( const DICOMTag & tag )

overridevirtual

Add this tag to the scanning process.

Implements mitk::DICOMTagScanner.

Definition at line 27 of file mitkDICOMDCMTKTagScanner.cpp.

References m_ScannedTags.

Referenced by AddTags().

◆ AddTagPath()

void mitk::DICOMDCMTKTagScanner::AddTagPath ( const DICOMTagPath & tag )

overridevirtual

Add this tag path to the scanning process.

Implements mitk::DICOMTagScanner.

Definition at line 40 of file mitkDICOMDCMTKTagScanner.cpp.

References m_ScannedTags.

Referenced by AddTagPaths().

◆ AddTagPaths()

void mitk::DICOMDCMTKTagScanner::AddTagPaths ( const DICOMTagPathList & tags )

overridevirtual

Add a list of tag pathes to the scanning process.

Implements mitk::DICOMTagScanner.

Definition at line 45 of file mitkDICOMDCMTKTagScanner.cpp.

References AddTagPath().

◆ AddTags()

void mitk::DICOMDCMTKTagScanner::AddTags ( const DICOMTagList & tags )

overridevirtual

Add a list of tags to the scanning process.

Implements mitk::DICOMTagScanner.

Definition at line 32 of file mitkDICOMDCMTKTagScanner.cpp.

References AddTag().

◆ Clone()

Pointer mitk::DICOMDCMTKTagScanner::Clone ( ) const

◆ GetFrameInfoList()

mitk::DICOMDatasetAccessingImageFrameList mitk::DICOMDCMTKTagScanner::GetFrameInfoList ( ) const

overridevirtual

Retrieve a result list for file-by-file tag access.

Implements mitk::DICOMTagScanner.

Definition at line 177 of file mitkDICOMDCMTKTagScanner.cpp.

References m_Cache.

◆ GetScanCache()

mitk::DICOMTagCache::Pointer mitk::DICOMDCMTKTagScanner::GetScanCache ( ) const

overridevirtual

Retrieve Pointer to the complete cache of the scan.

Implements mitk::DICOMTagScanner.

Definition at line 172 of file mitkDICOMDCMTKTagScanner.cpp.

References m_Cache.

◆ mitkClassMacro()

mitk::DICOMDCMTKTagScanner::mitkClassMacro	(	DICOMDCMTKTagScanner	,
		DICOMTagScanner
	)

◆ New()

static Pointer mitk::DICOMDCMTKTagScanner::New ( )

static

Referenced by mitk::MitkCESTIOMimeTypes::MitkCESTDicomMimeType::AppliesTo(), mitk::DicomRTIOMimeTypes::GetModality(), mitk::CESTDICOMReaderService::Read(), mitk::BaseDICOMReaderService::Read(), mitk::DICOMSegmentationIO::Read(), mitk::RTDoseReaderService::Read(), mitk::RTPlanReaderService::Read(), and mitk::RTStructureSetReaderService::Read().

◆ Scan()

void mitk::DICOMDCMTKTagScanner::Scan ( )

overridevirtual

Start the scanning process. Calling Scan() will invalidate previous scans, forgetting all about files and tags from files that have been scanned previously.

Implements mitk::DICOMTagScanner.

Definition at line 101 of file mitkDICOMDCMTKTagScanner.cpp.

References DcmPathToTagPath(), mitk::DICOMTagPathToDCMTKSearchPath(), info(), m_Cache, m_InputFilenames, m_ScannedTags, MITK_ERROR, mitk::DICOMGenericImageFrameInfo::New(), mitk::DICOMGenericTagCache::New(), mitk::DICOMTagScanner::PopLocale(), and mitk::DICOMTagScanner::PushLocale().
