A generic storage class for image frame info with data access. More...
#include <mitkDICOMGenericImageFrameInfo.h>
Public Member Functions | |
| mitkClassMacro (DICOMGenericImageFrameInfo, DICOMDatasetAccessingImageFrameInfo) | |
| mitkNewMacro1Param (DICOMGenericImageFrameInfo, const std::string &) | |
| mitkNewMacro2Param (DICOMGenericImageFrameInfo, const std::string &, unsigned int) | |
| mitkNewMacro1Param (DICOMGenericImageFrameInfo, const DICOMImageFrameInfo::Pointer &) | |
| ~DICOMGenericImageFrameInfo () override | |
| DICOMDatasetFinding | GetTagValueAsString (const DICOMTag &) const override |
| Return a DICOMDatasetFinding instance of the tag. The return containes (if valid) the raw value of the tag as a string. More... | |
| FindingsListType | GetTagValueAsString (const DICOMTagPath &path) const override |
| Return a list of DICOMDatasetFindings of the passed tag path. The return containes (if valid) the raw value of the tag as a string. More... | |
| std::string | GetFilenameIfAvailable () const override |
| Return a filename if possible. If DICOM is not read from file but from somewhere else (network, database), we might not have files. More... | |
| void | SetTagValue (const DICOMTagPath &path, const std::string &value) |

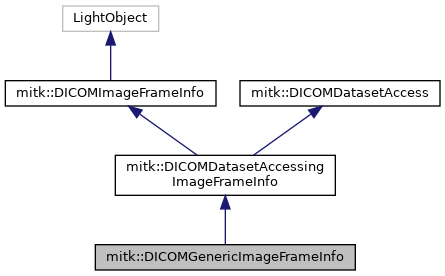

 Public Member Functions inherited from mitk::DICOMDatasetAccessingImageFrameInfo | |
| mitkClassMacro (DICOMDatasetAccessingImageFrameInfo, DICOMImageFrameInfo) | |
| Public Member Functions inherited from mitk::DICOMImageFrameInfo | |
| mitkClassMacroItkParent (DICOMImageFrameInfo, itk::LightObject) | |
| mitkNewMacro1Param (DICOMImageFrameInfo, const std::string &) | |
| mitkNewMacro2Param (DICOMImageFrameInfo, const std::string &, unsigned int) | |
| bool | operator== (const DICOMImageFrameInfo &other) const |
| Public Member Functions inherited from mitk::DICOMDatasetAccess | |
| virtual | ~DICOMDatasetAccess () |
Static Public Member Functions | |
| static Pointer | New () |
| Static Public Member Functions inherited from mitk::DICOMImageFrameInfo | |
| static Pointer | New () |
Protected Types | |
| typedef std::map< DICOMTagPath, std::string > | ValueMapType |
Protected Member Functions | |
| DICOMGenericImageFrameInfo (const DICOMImageFrameInfo::Pointer &frameinfo) | |
| DICOMGenericImageFrameInfo (const std::string &filename="", unsigned int frameNo=0) | |
| Protected Member Functions inherited from mitk::DICOMDatasetAccessingImageFrameInfo | |
| DICOMDatasetAccessingImageFrameInfo (const std::string &filename="", unsigned int frameNo=0) | |
| ~DICOMDatasetAccessingImageFrameInfo () override | |
| Protected Member Functions inherited from mitk::DICOMImageFrameInfo | |
| DICOMImageFrameInfo (const std::string &filename="", unsigned int frameNo=0) | |
Protected Attributes | |
| ValueMapType | m_Values |
Additional Inherited Members | |
| Public Types inherited from mitk::DICOMDatasetAccess | |
| typedef std::list< DICOMDatasetFinding > | FindingsListType |
| Public Attributes inherited from mitk::DICOMImageFrameInfo | |
| const std::string | Filename |
| absolute filename More... | |
| const unsigned int | FrameNo |
| frame number, starting with 0 More... | |
Detailed Description
A generic storage class for image frame info with data access.
Definition at line 26 of file mitkDICOMGenericImageFrameInfo.h.
Member Typedef Documentation
◆ ValueMapType
|
protected |
Definition at line 52 of file mitkDICOMGenericImageFrameInfo.h.
Constructor & Destructor Documentation
◆ ~DICOMGenericImageFrameInfo()
|
override |
Definition at line 29 of file mitkDICOMGenericImageFrameInfo.cpp.
References GetTagValueAsString().
Referenced by DICOMGenericImageFrameInfo().
◆ DICOMGenericImageFrameInfo() [1/2]
|
explicitprotected |
Definition at line 23 of file mitkDICOMGenericImageFrameInfo.cpp.
References ~DICOMGenericImageFrameInfo().
Referenced by DICOMGenericImageFrameInfo().
◆ DICOMGenericImageFrameInfo() [2/2]
|
protected |
Definition at line 17 of file mitkDICOMGenericImageFrameInfo.cpp.
References DICOMGenericImageFrameInfo().
Member Function Documentation
◆ GetFilenameIfAvailable()
|
overridevirtual |
Return a filename if possible. If DICOM is not read from file but from somewhere else (network, database), we might not have files.
Implements mitk::DICOMDatasetAccess.
Definition at line 80 of file mitkDICOMGenericImageFrameInfo.cpp.
References mitk::DICOMImageFrameInfo::Filename.
Referenced by SetTagValue().
◆ GetTagValueAsString() [1/2]
|
overridevirtual |
Return a DICOMDatasetFinding instance of the tag. The return containes (if valid) the raw value of the tag as a string.
- Parameters
-
tag Tag which value should be retreived.
Implements mitk::DICOMDatasetAccess.
Definition at line 35 of file mitkDICOMGenericImageFrameInfo.cpp.
References mitk::DICOMDatasetFinding::isValid, m_Values, mitk::DICOMDatasetFinding::path, and mitk::DICOMDatasetFinding::value.
Referenced by ~DICOMGenericImageFrameInfo().
◆ GetTagValueAsString() [2/2]
|
overridevirtual |
Return a list of DICOMDatasetFindings of the passed tag path. The return containes (if valid) the raw value of the tag as a string.
- Parameters
-
path Tag path which value should be retreived.
Implements mitk::DICOMDatasetAccess.
Definition at line 52 of file mitkDICOMGenericImageFrameInfo.cpp.
References mitk::DICOMTagPath::Equals(), and m_Values.
◆ mitkClassMacro()
| mitk::DICOMGenericImageFrameInfo::mitkClassMacro | ( | DICOMGenericImageFrameInfo | , |
| DICOMDatasetAccessingImageFrameInfo | |||
| ) |
◆ mitkNewMacro1Param() [1/2]
| mitk::DICOMGenericImageFrameInfo::mitkNewMacro1Param | ( | DICOMGenericImageFrameInfo | , |
| const std::string & | |||
| ) |
◆ mitkNewMacro1Param() [2/2]
| mitk::DICOMGenericImageFrameInfo::mitkNewMacro1Param | ( | DICOMGenericImageFrameInfo | , |
| const DICOMImageFrameInfo::Pointer & | |||
| ) |
◆ mitkNewMacro2Param()
| mitk::DICOMGenericImageFrameInfo::mitkNewMacro2Param | ( | DICOMGenericImageFrameInfo | , |
| const std::string & | , | ||
| unsigned | int | ||
| ) |
◆ New()
|
static |
Referenced by mitk::DICOMDCMTKTagScanner::Scan().
◆ SetTagValue()
| void mitk::DICOMGenericImageFrameInfo::SetTagValue | ( | const DICOMTagPath & | path, |
| const std::string & | value | ||
| ) |
Sets the value for a passed tag path. If the tag path is already set, it will be overwritten with the new value.
- Precondition
- Path must be explicit. No wildcards are allowed.
- Postcondition
- The passed value is set for the passed path.
Definition at line 68 of file mitkDICOMGenericImageFrameInfo.cpp.
References GetFilenameIfAvailable(), mitk::DICOMTagPath::IsExplicit(), m_Values, mitkThrow, and mitk::DICOMTagPath::ToStr().
Member Data Documentation
◆ m_Values
|
protected |
Definition at line 53 of file mitkDICOMGenericImageFrameInfo.h.
Referenced by GetTagValueAsString(), and SetTagValue().
The documentation for this class was generated from the following files:
