QmitkTransferFunctionGeneratorWidget Class Reference

#include <QmitkTransferFunctionGeneratorWidget.h>

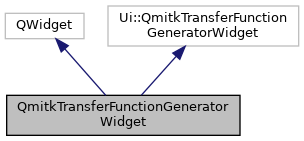

Inheritance diagram for QmitkTransferFunctionGeneratorWidget:

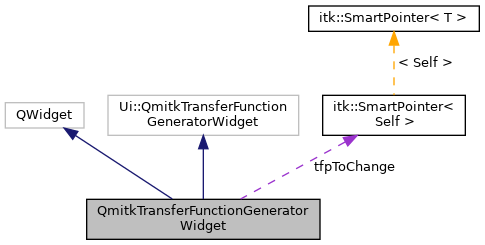

Collaboration diagram for QmitkTransferFunctionGeneratorWidget:

Public Slots
void	OnSavePreset ()
void	OnLoadPreset ()
void	OnDeltaLevelWindow (int dx, int dy)
void	OnDeltaThreshold (int dx, int dy)

Signals
void	SignalTransferFunctionModeChanged (int)
void	SignalUpdateCanvas ()

Public Member Functions
	QmitkTransferFunctionGeneratorWidget (QWidget *parent=nullptr, Qt::WindowFlags f=nullptr)
	~QmitkTransferFunctionGeneratorWidget () override
void	SetDataNode (mitk::DataNode *node)
int	AddPreset (const QString &presetName)
void	SetPresetsTabEnabled (bool enable)
void	SetThresholdTabEnabled (bool enable)
void	SetBellTabEnabled (bool enable)

Protected Slots
void	OnPreset (int mode)

Protected Member Functions
double	ScaleDelta (int d) const

Protected Attributes
mitk::TransferFunctionProperty::Pointer	tfpToChange
double	histoMinimum
double	histoMaximum
double	thPos
double	thDelta
double	deltaScale
double	deltaMax
double	deltaMin
const mitk::Image::HistogramType *	histoGramm
QString	presetFileName

Detailed Description

Definition at line 26 of file QmitkTransferFunctionGeneratorWidget.h.

Constructor & Destructor Documentation

QmitkTransferFunctionGeneratorWidget()

QmitkTransferFunctionGeneratorWidget::QmitkTransferFunctionGeneratorWidget	(	QWidget *	parent = nullptr,
		Qt::WindowFlags	f = nullptr
	)

Definition at line 27 of file QmitkTransferFunctionGeneratorWidget.cpp.

References histoGramm, OnDeltaLevelWindow(), OnDeltaThreshold(), OnLoadPreset(), OnPreset(), OnSavePreset(), presetFileName, SignalTransferFunctionModeChanged(), and thDelta.

~QmitkTransferFunctionGeneratorWidget()

QmitkTransferFunctionGeneratorWidget::~QmitkTransferFunctionGeneratorWidget ( )

override

Definition at line 307 of file QmitkTransferFunctionGeneratorWidget.cpp.

Member Function Documentation

AddPreset()

int QmitkTransferFunctionGeneratorWidget::AddPreset

(

const QString &

presetName

)

Definition at line 60 of file QmitkTransferFunctionGeneratorWidget.cpp.

OnDeltaLevelWindow

void QmitkTransferFunctionGeneratorWidget::OnDeltaLevelWindow ( int  dx, int  dy  )

slot

Definition at line 176 of file QmitkTransferFunctionGeneratorWidget.cpp.

References deltaMax, deltaMin, mitk::RenderingManager::GetInstance(), histoMaximum, histoMinimum, mitk::RenderingManager::RequestUpdateAll(), ScaleDelta(), SignalUpdateCanvas(), stepFunctionGlocke(), tfpToChange, thDelta, thPos, and transformationGlocke().

Referenced by QmitkTransferFunctionGeneratorWidget().

OnDeltaThreshold

void QmitkTransferFunctionGeneratorWidget::OnDeltaThreshold ( int  dx, int  dy  )

slot

Definition at line 248 of file QmitkTransferFunctionGeneratorWidget.cpp.

References deltaMax, deltaMin, mitk::RenderingManager::GetInstance(), histoMaximum, histoMinimum, mitk::RenderingManager::RequestUpdateAll(), ScaleDelta(), SignalUpdateCanvas(), stepFunctionThreshold(), tfpToChange, thDelta, and thPos.

Referenced by QmitkTransferFunctionGeneratorWidget().

OnLoadPreset

void QmitkTransferFunctionGeneratorWidget::OnLoadPreset ( )

slot

Definition at line 110 of file QmitkTransferFunctionGeneratorWidget.cpp.

References mitk::TransferFunctionPropertySerializer::DeserializeTransferFunction(), mitk::RenderingManager::GetInstance(), MITK_INFO, presetFileName, mitk::RenderingManager::RequestUpdateAll(), SignalUpdateCanvas(), and tfpToChange.

Referenced by QmitkTransferFunctionGeneratorWidget().

OnPreset

void QmitkTransferFunctionGeneratorWidget::OnPreset ( int  mode )

protectedslot

Definition at line 136 of file QmitkTransferFunctionGeneratorWidget.cpp.

Referenced by QmitkTransferFunctionGeneratorWidget().

OnSavePreset

void QmitkTransferFunctionGeneratorWidget::OnSavePreset ( )

slot

Definition at line 83 of file QmitkTransferFunctionGeneratorWidget.cpp.

References MITK_INFO, presetFileName, mitk::TransferFunctionPropertySerializer::SerializeTransferFunction(), and tfpToChange.

Referenced by QmitkTransferFunctionGeneratorWidget().

ScaleDelta()

double QmitkTransferFunctionGeneratorWidget::ScaleDelta ( int  d ) const

protected

Definition at line 171 of file QmitkTransferFunctionGeneratorWidget.cpp.

References deltaScale.

Referenced by OnDeltaLevelWindow(), and OnDeltaThreshold().

SetBellTabEnabled()

void QmitkTransferFunctionGeneratorWidget::SetBellTabEnabled

(

bool

enable

)

Definition at line 78 of file QmitkTransferFunctionGeneratorWidget.cpp.

SetDataNode()

void QmitkTransferFunctionGeneratorWidget::SetDataNode

(

mitk::DataNode *

node

)

Definition at line 311 of file QmitkTransferFunctionGeneratorWidget.cpp.

References deltaMax, deltaMin, deltaScale, mitk::DataNode::GetData(), mitk::DataNode::GetProperty(), mitk::ImageStatisticsHolder::GetScalarValueMax(), mitk::ImageStatisticsHolder::GetScalarValueMin(), histoGramm, histoMaximum, histoMinimum, image, MITK_WARN, mitk::TransferFunctionProperty::New(), mitk::DataNode::SetProperty(), tfpToChange, and thPos.

SetPresetsTabEnabled()

void QmitkTransferFunctionGeneratorWidget::SetPresetsTabEnabled

(

bool

enable

)

Definition at line 68 of file QmitkTransferFunctionGeneratorWidget.cpp.

SetThresholdTabEnabled()

void QmitkTransferFunctionGeneratorWidget::SetThresholdTabEnabled

(

bool

enable

)

Definition at line 73 of file QmitkTransferFunctionGeneratorWidget.cpp.

SignalTransferFunctionModeChanged

void QmitkTransferFunctionGeneratorWidget::SignalTransferFunctionModeChanged ( int  )

signal

Referenced by QmitkTransferFunctionGeneratorWidget().

SignalUpdateCanvas

void QmitkTransferFunctionGeneratorWidget::SignalUpdateCanvas ( )

signal

Referenced by OnDeltaLevelWindow(), OnDeltaThreshold(), and OnLoadPreset().

Member Data Documentation

deltaMax

double QmitkTransferFunctionGeneratorWidget::deltaMax

protected

Definition at line 70 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by OnDeltaLevelWindow(), OnDeltaThreshold(), and SetDataNode().

deltaMin

double QmitkTransferFunctionGeneratorWidget::deltaMin

protected

Definition at line 71 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by OnDeltaLevelWindow(), OnDeltaThreshold(), and SetDataNode().

deltaScale

double QmitkTransferFunctionGeneratorWidget::deltaScale

protected

Definition at line 69 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by ScaleDelta(), and SetDataNode().

histoGramm

const mitk::Image::HistogramType* QmitkTransferFunctionGeneratorWidget::histoGramm

protected

Definition at line 73 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by QmitkTransferFunctionGeneratorWidget(), and SetDataNode().

histoMaximum

double QmitkTransferFunctionGeneratorWidget::histoMaximum

protected

Definition at line 64 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by OnDeltaLevelWindow(), OnDeltaThreshold(), and SetDataNode().

histoMinimum

double QmitkTransferFunctionGeneratorWidget::histoMinimum

protected

Definition at line 63 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by OnDeltaLevelWindow(), OnDeltaThreshold(), and SetDataNode().

presetFileName

QString QmitkTransferFunctionGeneratorWidget::presetFileName

protected

Definition at line 75 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by OnLoadPreset(), OnSavePreset(), and QmitkTransferFunctionGeneratorWidget().

tfpToChange

mitk::TransferFunctionProperty::Pointer QmitkTransferFunctionGeneratorWidget::tfpToChange

protected

Definition at line 61 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by OnDeltaLevelWindow(), OnDeltaThreshold(), OnLoadPreset(), OnSavePreset(), and SetDataNode().

thDelta

double QmitkTransferFunctionGeneratorWidget::thDelta

protected

Definition at line 67 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by OnDeltaLevelWindow(), OnDeltaThreshold(), and QmitkTransferFunctionGeneratorWidget().

thPos

double QmitkTransferFunctionGeneratorWidget::thPos

protected

Definition at line 66 of file QmitkTransferFunctionGeneratorWidget.h.

Referenced by OnDeltaLevelWindow(), OnDeltaThreshold(), and SetDataNode().

---

The documentation for this class was generated from the following files:

• QmitkTransferFunctionGeneratorWidget.h
• QmitkTransferFunctionGeneratorWidget.cpp
