QmitkToolRoiDataSelectionBox Class Reference

Widget for defining a ROI inside the Interactive Segmentation Framwork. More...

#include <QmitkToolRoiDataSelectionBox.h>

Inheritance diagram for QmitkToolRoiDataSelectionBox:

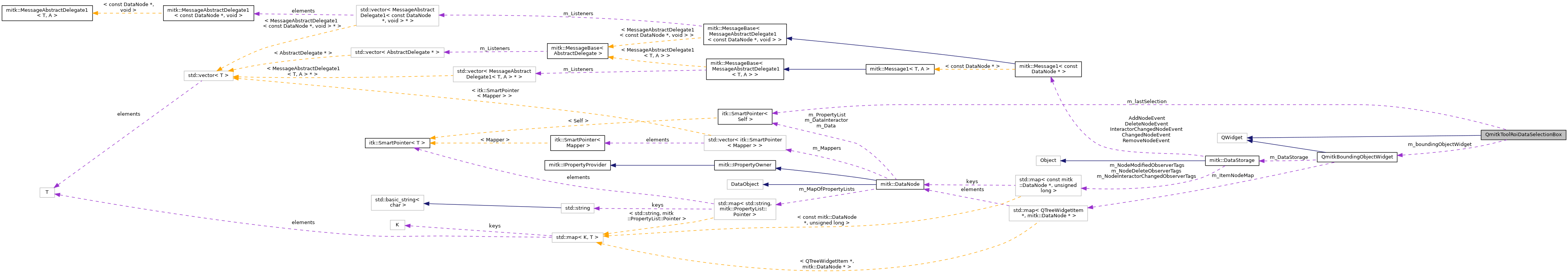

Collaboration diagram for QmitkToolRoiDataSelectionBox:

Signals
void	RoiDataSelected (const mitk::DataNode *node)

Public Member Functions
	QmitkToolRoiDataSelectionBox (QWidget *parent=nullptr, mitk::DataStorage *storage=nullptr)
	~QmitkToolRoiDataSelectionBox () override
mitk::DataStorage *	GetDataStorage ()
void	SetDataStorage (mitk::DataStorage &storage)
mitk::ToolManager *	GetToolManager ()
void	SetToolManager (mitk::ToolManager &manager)
void	OnToolManagerRoiDataModified ()
void	DataStorageChanged (const mitk::DataNode *node)
mitk::ToolManager::DataVectorType	GetSelection ()
void	UpdateComboBoxData ()
void	setEnabled (bool)

Protected Slots
void	OnRoiDataSelectionChanged (const QString &name)
void	OnRoiDataSelectionChanged ()

Protected Attributes
QmitkBoundingObjectWidget *	m_boundingObjectWidget
QComboBox *	m_segmentationComboBox
mitk::ToolManager::Pointer	m_ToolManager
bool	m_SelfCall
mitk::DataNode::Pointer	m_lastSelection
QString	m_lastSelectedName

Detailed Description

Widget for defining a ROI inside the Interactive Segmentation Framwork.

Allows to define a Region of interest (ROI) either by existing segmentations or by bounding objects. Selection is possible via a combobox, listing all available segmentations. Item "bounding objects" activates the QmitkBoundingObjectWidget.

Definition at line 31 of file QmitkToolRoiDataSelectionBox.h.

Constructor & Destructor Documentation

QmitkToolRoiDataSelectionBox()

QmitkToolRoiDataSelectionBox::QmitkToolRoiDataSelectionBox	(	QWidget *	parent = nullptr,
		mitk::DataStorage *	storage = nullptr
	)

Definition at line 18 of file QmitkToolRoiDataSelectionBox.cpp.

References mitk::ToolManagerProvider::GetInstance(), mitk::ToolManagerProvider::GetToolManager(), m_boundingObjectWidget, m_segmentationComboBox, m_ToolManager, OnRoiDataSelectionChanged(), and OnToolManagerRoiDataModified().

~QmitkToolRoiDataSelectionBox()

QmitkToolRoiDataSelectionBox::~QmitkToolRoiDataSelectionBox ( )

override

Definition at line 46 of file QmitkToolRoiDataSelectionBox.cpp.

References DataStorageChanged(), m_boundingObjectWidget, m_segmentationComboBox, and m_ToolManager.

Member Function Documentation

DataStorageChanged()

void QmitkToolRoiDataSelectionBox::DataStorageChanged

(

const mitk::DataNode *

node

)

Definition at line 95 of file QmitkToolRoiDataSelectionBox.cpp.

References GetDataStorage(), m_boundingObjectWidget, m_SelfCall, and QmitkBoundingObjectWidget::RemoveAllItems().

Referenced by SetDataStorage(), and ~QmitkToolRoiDataSelectionBox().

GetDataStorage()

mitk::DataStorage * QmitkToolRoiDataSelectionBox::GetDataStorage

(

)

Definition at line 66 of file QmitkToolRoiDataSelectionBox.cpp.

References m_ToolManager.

Referenced by DataStorageChanged().

GetSelection()

mitk::ToolManager::DataVectorType QmitkToolRoiDataSelectionBox::GetSelection

(

)

GetToolManager()

mitk::ToolManager * QmitkToolRoiDataSelectionBox::GetToolManager

(

)

Definition at line 83 of file QmitkToolRoiDataSelectionBox.cpp.

References m_ToolManager.

OnRoiDataSelectionChanged [1/2]

void QmitkToolRoiDataSelectionBox::OnRoiDataSelectionChanged ( const QString &  name )

protectedslot

Definition at line 111 of file QmitkToolRoiDataSelectionBox.cpp.

References QmitkBoundingObjectWidget::GetAllBoundingObjects(), m_boundingObjectWidget, m_lastSelectedName, m_lastSelection, m_segmentationComboBox, m_SelfCall, m_ToolManager, mitk::BoolProperty::New(), mitk::FloatProperty::New(), and QmitkBoundingObjectWidget::setEnabled().

OnRoiDataSelectionChanged [2/2]

void QmitkToolRoiDataSelectionBox::OnRoiDataSelectionChanged ( )

protectedslot

Definition at line 106 of file QmitkToolRoiDataSelectionBox.cpp.

Referenced by QmitkToolRoiDataSelectionBox(), setEnabled(), and UpdateComboBoxData().

OnToolManagerRoiDataModified()

void QmitkToolRoiDataSelectionBox::OnToolManagerRoiDataModified

(

)

Definition at line 88 of file QmitkToolRoiDataSelectionBox.cpp.

References m_SelfCall, and UpdateComboBoxData().

Referenced by QmitkToolRoiDataSelectionBox(), and SetToolManager().

RoiDataSelected

void QmitkToolRoiDataSelectionBox::RoiDataSelected ( const mitk::DataNode *  node )

signal

SetDataStorage()

void QmitkToolRoiDataSelectionBox::SetDataStorage

(

mitk::DataStorage &

storage

)

Definition at line 56 of file QmitkToolRoiDataSelectionBox.cpp.

References mitk::MessageBase< AbstractDelegate >::AddListener(), DataStorageChanged(), m_boundingObjectWidget, m_ToolManager, mitk::DataStorage::RemoveNodeEvent, QmitkBoundingObjectWidget::SetDataStorage(), and UpdateComboBoxData().

setEnabled()

void QmitkToolRoiDataSelectionBox::setEnabled

(

bool

flag

)

Definition at line 194 of file QmitkToolRoiDataSelectionBox.cpp.

References m_segmentationComboBox, and OnRoiDataSelectionChanged().

SetToolManager()

void QmitkToolRoiDataSelectionBox::SetToolManager

(

mitk::ToolManager &

manager

)

Definition at line 71 of file QmitkToolRoiDataSelectionBox.cpp.

References m_ToolManager, and OnToolManagerRoiDataModified().

UpdateComboBoxData()

void QmitkToolRoiDataSelectionBox::UpdateComboBoxData

(

)

Definition at line 151 of file QmitkToolRoiDataSelectionBox.cpp.

References m_lastSelectedName, m_segmentationComboBox, m_ToolManager, mitk::BoolProperty::New(), mitk::NodePredicateNot::New(), mitk::NodePredicateAnd::New(), mitk::NodePredicateDataType::New(), mitk::NodePredicateProperty::New(), and OnRoiDataSelectionChanged().

Referenced by OnToolManagerRoiDataModified(), and SetDataStorage().

Member Data Documentation

m_boundingObjectWidget

QmitkBoundingObjectWidget* QmitkToolRoiDataSelectionBox::m_boundingObjectWidget

protected

Definition at line 65 of file QmitkToolRoiDataSelectionBox.h.

Referenced by DataStorageChanged(), OnRoiDataSelectionChanged(), QmitkToolRoiDataSelectionBox(), SetDataStorage(), and ~QmitkToolRoiDataSelectionBox().

m_lastSelectedName

QString QmitkToolRoiDataSelectionBox::m_lastSelectedName

protected

Definition at line 72 of file QmitkToolRoiDataSelectionBox.h.

Referenced by OnRoiDataSelectionChanged(), and UpdateComboBoxData().

m_lastSelection

mitk::DataNode::Pointer QmitkToolRoiDataSelectionBox::m_lastSelection

protected

Definition at line 71 of file QmitkToolRoiDataSelectionBox.h.

Referenced by OnRoiDataSelectionChanged().

m_segmentationComboBox

QComboBox* QmitkToolRoiDataSelectionBox::m_segmentationComboBox

protected

Definition at line 66 of file QmitkToolRoiDataSelectionBox.h.

Referenced by OnRoiDataSelectionChanged(), QmitkToolRoiDataSelectionBox(), setEnabled(), UpdateComboBoxData(), and ~QmitkToolRoiDataSelectionBox().

m_SelfCall

bool QmitkToolRoiDataSelectionBox::m_SelfCall

protected

Definition at line 69 of file QmitkToolRoiDataSelectionBox.h.

Referenced by DataStorageChanged(), OnRoiDataSelectionChanged(), and OnToolManagerRoiDataModified().

m_ToolManager

mitk::ToolManager::Pointer QmitkToolRoiDataSelectionBox::m_ToolManager

protected

Definition at line 68 of file QmitkToolRoiDataSelectionBox.h.

Referenced by GetDataStorage(), GetToolManager(), OnRoiDataSelectionChanged(), QmitkToolRoiDataSelectionBox(), SetDataStorage(), SetToolManager(), UpdateComboBoxData(), and ~QmitkToolRoiDataSelectionBox().

---

The documentation for this class was generated from the following files:

• QmitkToolRoiDataSelectionBox.h
• QmitkToolRoiDataSelectionBox.cpp
