QmitkSliceNavigationListener Class Reference

Helper class to allow QmitkAbstractView and derived classes to react on changes of the slice/time navigation. Purpose of the class to be used in view and to give the respective view class (by composition) the posibility to react on changes of the currently selected timepoint or position in the world geometry.
In order to setup this class properly the following things must be regarded: More...

#include <QmitkSliceNavigationListener.h>

Inheritance diagram for QmitkSliceNavigationListener:

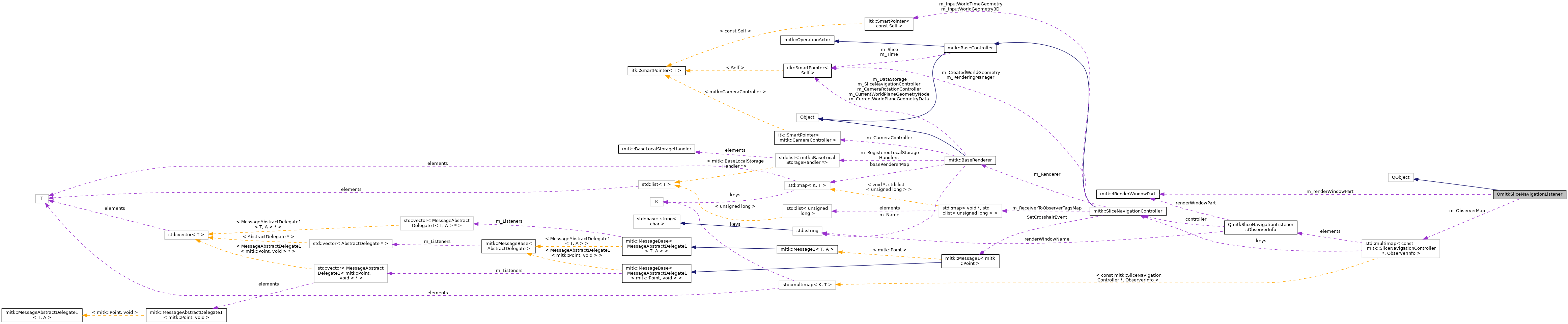

Collaboration diagram for QmitkSliceNavigationListener:

Classes
struct	ObserverInfo

Public Slots
void	RenderWindowPartActivated (mitk::IRenderWindowPart *renderWindowPart)
void	RenderWindowPartDeactivated (mitk::IRenderWindowPart *renderWindowPart)

Signals
void	SliceChanged ()

Public Member Functions
	QmitkSliceNavigationListener ()
	More...
	~QmitkSliceNavigationListener () override

Protected Types
typedef std::multimap< const mitk::SliceNavigationController *, ObserverInfo >	ObserverMapType

Protected Slots
void	OnSliceChangedDelayed ()

Protected Member Functions
void	OnSliceChangedInternal (const itk::EventObject &e)
	Calls OnSliceChangedDelayed so the event isn't triggered multiple times. More...
void	OnSliceNavigationControllerDeleted (const itk::Object *sender, const itk::EventObject &)
bool	InitObservers ()
void	RemoveObservers (const mitk::SliceNavigationController *deletedSlicer)
void	RemoveAllObservers (mitk::IRenderWindowPart *deletedPart=nullptr)

Protected Attributes
mitk::IRenderWindowPart *	m_renderWindowPart
bool	m_PendingSliceChangedEvent
ObserverMapType	m_ObserverMap
bool	m_internalUpdateFlag
	Is a visualization currently running? More...

Detailed Description

Helper class to allow QmitkAbstractView and derived classes to react on changes of the slice/time navigation. Purpose of the class to be used in view and to give the respective view class (by composition) the posibility to react on changes of the currently selected timepoint or position in the world geometry.
In order to setup this class properly the following things must be regarded:

• View class must also derive public from mitk::IRenderWindowPartListener

• View class must implement void RenderWindowPartActivated(mitk::IRenderWindowPart* renderWindowPart) and pass the renderWindowPart to the listener.

  void QmitkMyView::RenderWindowPartActivated(mitk::IRenderWindowPart* renderWindowPart) { this->m_SliceNavigationListener.RenderWindowPartActivated(renderWindowPart); }

• View class must implement void RenderWindowPartDeactivated(mitk::IRenderWindowPart* renderWindowPart) and pass the renderWindowPart to the listener.

  void QmitkMyView::RenderWindowPartDeactivated(mitk::IRenderWindowPart* renderWindowPart) { this->m_SliceNavigationListener.RenderWindowPartDeactivated(renderWindowPart); }

• View class must pass its on render window part in its CreateQtPartControl(QWidget* parent)

  this->m_SliceNavigationListener.RenderWindowPartActivated(this->GetRenderWindowPart());

• View class must connect the SliceChanged signal of the listener as see fit.

Definition at line 60 of file QmitkSliceNavigationListener.h.

Member Typedef Documentation

ObserverMapType

typedef std::multimap<const mitk::SliceNavigationController*, ObserverInfo> QmitkSliceNavigationListener::ObserverMapType

protected

Definition at line 110 of file QmitkSliceNavigationListener.h.

Constructor & Destructor Documentation

QmitkSliceNavigationListener()

QmitkSliceNavigationListener::QmitkSliceNavigationListener

(

)

---

Definition at line 25 of file QmitkSliceNavigationListener.cpp.

~QmitkSliceNavigationListener()

QmitkSliceNavigationListener::~QmitkSliceNavigationListener ( )

override

Definition at line 31 of file QmitkSliceNavigationListener.cpp.

References RemoveAllObservers().

Member Function Documentation

InitObservers()

bool QmitkSliceNavigationListener::InitObservers ( )

protected

Initializes and sets the observers that are used to monitor changes in the selected position or time point in order to actualize the view.h

Definition at line 86 of file QmitkSliceNavigationListener.cpp.

References mitk::IRenderWindowPart::GetQmitkRenderWindows(), m_ObserverMap, m_renderWindowPart, OnSliceChangedInternal(), and OnSliceNavigationControllerDeleted().

Referenced by RenderWindowPartActivated().

OnSliceChangedDelayed

void QmitkSliceNavigationListener::OnSliceChangedDelayed ( )

protectedslot

Overwrite function to implement the behavior on slice/time changes.

Definition at line 36 of file QmitkSliceNavigationListener.cpp.

References m_PendingSliceChangedEvent, and SliceChanged().

Referenced by OnSliceChangedInternal().

OnSliceChangedInternal()

void QmitkSliceNavigationListener::OnSliceChangedInternal ( const itk::EventObject &  e )

protected

Calls OnSliceChangedDelayed so the event isn't triggered multiple times.

Definition at line 43 of file QmitkSliceNavigationListener.cpp.

References m_PendingSliceChangedEvent, and OnSliceChangedDelayed().

Referenced by InitObservers().

OnSliceNavigationControllerDeleted()

void QmitkSliceNavigationListener::OnSliceNavigationControllerDeleted ( const itk::Object *  sender, const itk::EventObject &    )

protected

Definition at line 57 of file QmitkSliceNavigationListener.cpp.

References RemoveObservers().

Referenced by InitObservers().

RemoveAllObservers()

void QmitkSliceNavigationListener::RemoveAllObservers ( mitk::IRenderWindowPart *  deletedPart = nullptr )

protected

Removes all observers of the deletedPart. If null pointer is passed all observers will be removed.

Definition at line 154 of file QmitkSliceNavigationListener.cpp.

References m_ObserverMap.

Referenced by RenderWindowPartDeactivated(), and ~QmitkSliceNavigationListener().

RemoveObservers()

void QmitkSliceNavigationListener::RemoveObservers ( const mitk::SliceNavigationController *  deletedSlicer )

protected

Definition at line 141 of file QmitkSliceNavigationListener.cpp.

References m_ObserverMap.

Referenced by OnSliceNavigationControllerDeleted().

RenderWindowPartActivated

void QmitkSliceNavigationListener::RenderWindowPartActivated ( mitk::IRenderWindowPart *  renderWindowPart )

slot

Definition at line 65 of file QmitkSliceNavigationListener.cpp.

References InitObservers(), and m_renderWindowPart.

RenderWindowPartDeactivated

void QmitkSliceNavigationListener::RenderWindowPartDeactivated ( mitk::IRenderWindowPart *  renderWindowPart )

slot

Definition at line 80 of file QmitkSliceNavigationListener.cpp.

References m_renderWindowPart, and RemoveAllObservers().

SliceChanged

void QmitkSliceNavigationListener::SliceChanged ( )

signal

Referenced by OnSliceChangedDelayed().

Member Data Documentation

m_internalUpdateFlag

bool QmitkSliceNavigationListener::m_internalUpdateFlag

protected

Is a visualization currently running?

Definition at line 114 of file QmitkSliceNavigationListener.h.

m_ObserverMap

ObserverMapType QmitkSliceNavigationListener::m_ObserverMap

protected

Definition at line 111 of file QmitkSliceNavigationListener.h.

Referenced by InitObservers(), RemoveAllObservers(), and RemoveObservers().

m_PendingSliceChangedEvent

bool QmitkSliceNavigationListener::m_PendingSliceChangedEvent

protected

Definition at line 96 of file QmitkSliceNavigationListener.h.

Referenced by OnSliceChangedDelayed(), and OnSliceChangedInternal().

m_renderWindowPart

mitk::IRenderWindowPart* QmitkSliceNavigationListener::m_renderWindowPart

protected

Definition at line 93 of file QmitkSliceNavigationListener.h.

Referenced by InitObservers(), RenderWindowPartActivated(), and RenderWindowPartDeactivated().

---

The documentation for this class was generated from the following files:

• QmitkSliceNavigationListener.h
• QmitkSliceNavigationListener.cpp
