QmitkPropertiesTableEditor Class Reference

Combines a QTableView along with a QmitkPropertiesTableModel to a reusable Property Editor component. More...

#include <QmitkPropertiesTableEditor.h>

Inheritance diagram for QmitkPropertiesTableEditor:

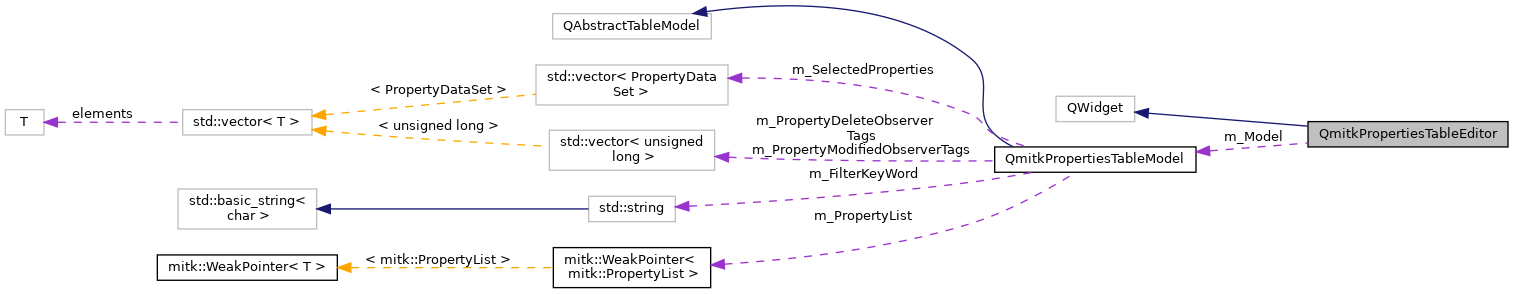

Collaboration diagram for QmitkPropertiesTableEditor:

Public Member Functions
	QmitkPropertiesTableEditor (QWidget *parent=nullptr, Qt::WindowFlags f=nullptr, mitk::DataNode::Pointer _Node=nullptr)
	~QmitkPropertiesTableEditor () override
	Standard dtor. Nothing to do here. More...
void	SetPropertyList (mitk::PropertyList::Pointer _List)
QmitkPropertiesTableModel *	getModel () const
QTableView *	getTable () const

Protected Slots
void	PropertyFilterKeyWordTextChanged (const QString &text)

Protected Member Functions
virtual void	init ()

Protected Attributes
QTableView *	m_NodePropertiesTableView
QLineEdit *	m_TxtPropertyFilterKeyWord
QmitkPropertiesTableModel *	m_Model

Detailed Description

Combines a QTableView along with a QmitkPropertiesTableModel to a reusable Property Editor component.

See also

QmitkPropertyDelegate

Definition at line 36 of file QmitkPropertiesTableEditor.h.

Constructor & Destructor Documentation

QmitkPropertiesTableEditor()

QmitkPropertiesTableEditor::QmitkPropertiesTableEditor	(	QWidget *	parent = nullptr,
		Qt::WindowFlags	f = nullptr,
		mitk::DataNode::Pointer	_Node = nullptr
	)

Constructs a new QmitkDataStorageTableModel and sets the DataNode for this TableModel.

Definition at line 29 of file QmitkPropertiesTableEditor.cpp.

References init(), m_Model, and m_NodePropertiesTableView.

~QmitkPropertiesTableEditor()

QmitkPropertiesTableEditor::~QmitkPropertiesTableEditor ( )

override

Standard dtor. Nothing to do here.

Definition at line 42 of file QmitkPropertiesTableEditor.cpp.

Member Function Documentation

getModel()

QmitkPropertiesTableModel * QmitkPropertiesTableEditor::getModel

(

)

const

Get the model.

Definition at line 62 of file QmitkPropertiesTableEditor.cpp.

References m_Model.

getTable()

QTableView * QmitkPropertiesTableEditor::getTable

(

)

const

Definition at line 109 of file QmitkPropertiesTableEditor.cpp.

References m_NodePropertiesTableView.

init()

void QmitkPropertiesTableEditor::init ( )

protectedvirtual

Initialise empty GUI.

Definition at line 67 of file QmitkPropertiesTableEditor.cpp.

References m_NodePropertiesTableView, m_TxtPropertyFilterKeyWord, and PropertyFilterKeyWordTextChanged().

Referenced by QmitkPropertiesTableEditor().

PropertyFilterKeyWordTextChanged

void QmitkPropertiesTableEditor::PropertyFilterKeyWordTextChanged ( const QString &  text )

protectedslot

Definition at line 104 of file QmitkPropertiesTableEditor.cpp.

References m_Model, m_TxtPropertyFilterKeyWord, and QmitkPropertiesTableModel::SetFilterPropertiesKeyWord().

Referenced by init().

SetPropertyList()

void QmitkPropertiesTableEditor::SetPropertyList

(

mitk::PropertyList::Pointer

_List

)

Convenience method. Sets the property list in the model.

Definition at line 46 of file QmitkPropertiesTableEditor.cpp.

References m_Model, m_NodePropertiesTableView, and QmitkPropertiesTableModel::SetPropertyList().

Member Data Documentation

m_Model

QmitkPropertiesTableModel* QmitkPropertiesTableEditor::m_Model

protected

The property list table model.

Definition at line 83 of file QmitkPropertiesTableEditor.h.

Referenced by getModel(), PropertyFilterKeyWordTextChanged(), QmitkPropertiesTableEditor(), and SetPropertyList().

m_NodePropertiesTableView

QTableView* QmitkPropertiesTableEditor::m_NodePropertiesTableView

protected

The table view that renders the property list.

Definition at line 73 of file QmitkPropertiesTableEditor.h.

Referenced by getTable(), init(), QmitkPropertiesTableEditor(), and SetPropertyList().

m_TxtPropertyFilterKeyWord

QLineEdit* QmitkPropertiesTableEditor::m_TxtPropertyFilterKeyWord

protected

A text field in which the user can enter a filter keyword for the properties. Only properties containing with this keyword will be selected.

Definition at line 79 of file QmitkPropertiesTableEditor.h.

Referenced by init(), and PropertyFilterKeyWordTextChanged().

---

The documentation for this class was generated from the following files:

• QmitkPropertiesTableEditor.h
• QmitkPropertiesTableEditor.cpp
