An object of this class offers an UI to manage NavigationTools and NavigationToolStorages. This means a user may create, save and load single NavigationTools and/or NavigationToolStorages with this widget. More...

#include <QmitkNavigationToolManagementWidget.h>

Inheritance diagram for QmitkNavigationToolManagementWidget:

[legend]

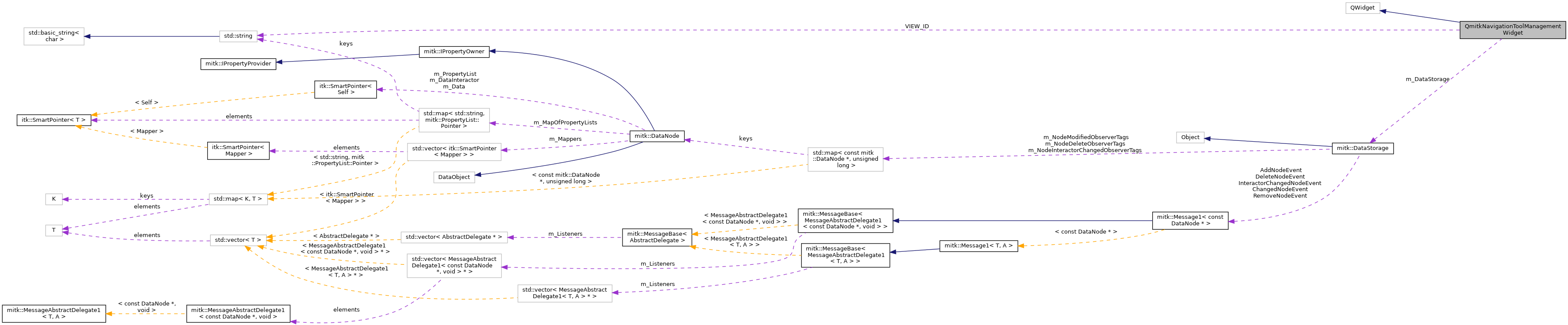

Collaboration diagram for QmitkNavigationToolManagementWidget:

[legend]

Signals
void	NewStorageAdded (mitk::NavigationToolStorage::Pointer newStorage, std::string storageName)

Public Member Functions
void	Initialize (mitk::DataStorage *dataStorage)

void	LoadStorage (mitk::NavigationToolStorage::Pointer storageToLoad)

	QmitkNavigationToolManagementWidget (QWidget *parent=nullptr, Qt::WindowFlags f=nullptr)

	~QmitkNavigationToolManagementWidget () override

Static Public Attributes
static const std::string	VIEW_ID

Protected Slots
void	OnAddTool ()

void	OnDeleteTool ()

void	OnEditTool ()

void	OnLoadTool ()

void	OnSaveTool ()

void	OnMoveToolUp ()

void	OnMoveToolDown ()

void	OnLoadStorage ()

void	OnSaveStorage ()

void	OnCreateStorage ()

void	OnToolSelected ()

void	OnAddToolCancel ()

void	OnAddToolSave ()

Protected Member Functions
virtual void	CreateConnections ()
	Creation of the connections. More...

virtual void	CreateQtPartControl (QWidget *parent)

void	MessageBox (const std::string &s)

void	UpdateToolTable ()

void	DisableStorageControls ()

void	EnableStorageControls ()

Protected Attributes
Ui::QmitkNavigationToolManagementWidgetControls *	m_Controls

mitk::DataStorage *	m_DataStorage
	holds the DataStorage More...

mitk::NavigationToolStorage::Pointer	m_NavigationToolStorage
	holds the NavigationToolStorage we are working with. More...

bool	m_edit
	shows if we are in edit mode, if not we create new navigation tool objects. More...

Detailed Description

An object of this class offers an UI to manage NavigationTools and NavigationToolStorages. This means a user may create, save and load single NavigationTools and/or NavigationToolStorages with this widget.

Documentation: Be sure to call the Initialize-methode before you start the widget otherwise some errors might occure.

Definition at line 37 of file QmitkNavigationToolManagementWidget.h.

Constructor & Destructor Documentation

◆ QmitkNavigationToolManagementWidget()

QmitkNavigationToolManagementWidget::QmitkNavigationToolManagementWidget	(	QWidget *	parent = `nullptr`,
		Qt::WindowFlags	f = `nullptr`
	)

Definition at line 37 of file QmitkNavigationToolManagementWidget.cpp.

References CreateConnections(), CreateQtPartControl(), and m_Controls.

◆ ~QmitkNavigationToolManagementWidget()

QmitkNavigationToolManagementWidget::~QmitkNavigationToolManagementWidget ( )

override

Definition at line 45 of file QmitkNavigationToolManagementWidget.cpp.

Member Function Documentation

◆ CreateConnections()

void QmitkNavigationToolManagementWidget::CreateConnections ( )

protectedvirtual

Creation of the connections.

Definition at line 102 of file QmitkNavigationToolManagementWidget.cpp.

References m_Controls, OnAddTool(), OnAddToolCancel(), OnAddToolSave(), OnCreateStorage(), OnDeleteTool(), OnEditTool(), OnLoadStorage(), OnLoadTool(), OnMoveToolDown(), OnMoveToolUp(), OnSaveStorage(), OnSaveTool(), and OnToolSelected().

Referenced by QmitkNavigationToolManagementWidget().

◆ CreateQtPartControl()

void QmitkNavigationToolManagementWidget::CreateQtPartControl ( QWidget * parent )

protectedvirtual

Definition at line 49 of file QmitkNavigationToolManagementWidget.cpp.

References DisableStorageControls(), and m_Controls.

Referenced by QmitkNavigationToolManagementWidget().

◆ DisableStorageControls()

void QmitkNavigationToolManagementWidget::DisableStorageControls ( )

protected

Definition at line 423 of file QmitkNavigationToolManagementWidget.cpp.

References m_Controls.

Referenced by CreateQtPartControl(), and LoadStorage().

◆ EnableStorageControls()

void QmitkNavigationToolManagementWidget::EnableStorageControls ( )

protected

Definition at line 439 of file QmitkNavigationToolManagementWidget.cpp.

References m_Controls.

Referenced by LoadStorage(), and OnCreateStorage().

◆ Initialize()

void QmitkNavigationToolManagementWidget::Initialize ( mitk::DataStorage * dataStorage )

Initializes the widget. Has to be called before any action, otherwise errors might occur.

Definition at line 126 of file QmitkNavigationToolManagementWidget.cpp.

References m_Controls, and m_DataStorage.

◆ LoadStorage()

void QmitkNavigationToolManagementWidget::LoadStorage ( mitk::NavigationToolStorage::Pointer storageToLoad )

Loads a storage to the widget. The old storage storage is dropped, so be careful, if the storage is not saved somewhere else it might be lost. You might want to ask the user if he wants to save the storage to the harddisk before calling this method.

Parameters

storageToLoad This storage will be loaded and might be modified by the user.

Definition at line 132 of file QmitkNavigationToolManagementWidget.cpp.

References DisableStorageControls(), EnableStorageControls(), m_Controls, m_NavigationToolStorage, and UpdateToolTable().

Referenced by OnLoadStorage().
