QmitkInspectionPositionWidget Class Reference

Widget that allows manage the positions that should be used to inspect fits. More...

#include <QmitkInspectionPositionWidget.h>

Inheritance diagram for QmitkInspectionPositionWidget:

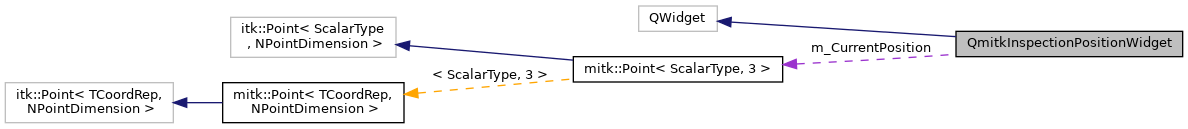

Collaboration diagram for QmitkInspectionPositionWidget:

Public Types
using	FitVectorType = std::vector< mitk::modelFit::ModelFitInfo::ConstPointer >

Public Slots
void	SetCurrentPosition (const mitk::Point3D &currentPos)
void	OnPointListChanged ()
void	OnAddCurrentPositionClicked ()

Signals
void	PositionBookmarksChanged ()

Public Member Functions
	QmitkInspectionPositionWidget (QWidget *parent=nullptr)
	~QmitkInspectionPositionWidget () override
mitk::Point3D	GetCurrentPosition () const
const mitk::PointSet *	GetPositionBookmarks () const
void	SetPositionBookmarkNode (mitk::DataNode *newNode)
	assign a point set (contained in a node of DataStorage) for observation More...
mitk::DataNode *	GetPositionBookmarkNode ()

Protected Attributes
mitk::Point3D	m_CurrentPosition
Ui::QmitkInspectionPositionWidget	m_Controls

Detailed Description

Widget that allows manage the positions that should be used to inspect fits.

Definition at line 32 of file QmitkInspectionPositionWidget.h.

Member Typedef Documentation

FitVectorType

using QmitkInspectionPositionWidget::FitVectorType = std::vector<mitk::modelFit::ModelFitInfo::ConstPointer>

Definition at line 37 of file QmitkInspectionPositionWidget.h.

Constructor & Destructor Documentation

QmitkInspectionPositionWidget()

QmitkInspectionPositionWidget::QmitkInspectionPositionWidget

(

QWidget *

parent = nullptr

)

Definition at line 15 of file QmitkInspectionPositionWidget.cpp.

References m_Controls, m_CurrentPosition, OnAddCurrentPositionClicked(), and OnPointListChanged().

~QmitkInspectionPositionWidget()

QmitkInspectionPositionWidget::~QmitkInspectionPositionWidget ( )

override

Definition at line 29 of file QmitkInspectionPositionWidget.cpp.

References GetCurrentPosition().

Member Function Documentation

GetCurrentPosition()

mitk::Point3D QmitkInspectionPositionWidget::GetCurrentPosition

(

)

const

Definition at line 35 of file QmitkInspectionPositionWidget.cpp.

References GetPositionBookmarks(), and m_CurrentPosition.

Referenced by ~QmitkInspectionPositionWidget().

GetPositionBookmarkNode()

mitk::DataNode * QmitkInspectionPositionWidget::GetPositionBookmarkNode

(

)

Definition at line 68 of file QmitkInspectionPositionWidget.cpp.

References m_Controls, and OnPointListChanged().

GetPositionBookmarks()

const mitk::PointSet * QmitkInspectionPositionWidget::GetPositionBookmarks

(

)

const

Definition at line 42 of file QmitkInspectionPositionWidget.cpp.

References m_Controls, and SetCurrentPosition().

Referenced by GetCurrentPosition().

OnAddCurrentPositionClicked

void QmitkInspectionPositionWidget::OnAddCurrentPositionClicked ( )

slot

Definition at line 81 of file QmitkInspectionPositionWidget.cpp.

References m_Controls, m_CurrentPosition, and PositionBookmarksChanged().

Referenced by OnPointListChanged(), and QmitkInspectionPositionWidget().

OnPointListChanged

void QmitkInspectionPositionWidget::OnPointListChanged ( )

slot

Definition at line 75 of file QmitkInspectionPositionWidget.cpp.

References OnAddCurrentPositionClicked(), and PositionBookmarksChanged().

Referenced by GetPositionBookmarkNode(), and QmitkInspectionPositionWidget().

PositionBookmarksChanged

void QmitkInspectionPositionWidget::PositionBookmarksChanged ( )

signal

Is emitted as soon as the position bookmarks changed.

Referenced by OnAddCurrentPositionClicked(), and OnPointListChanged().

SetCurrentPosition

void QmitkInspectionPositionWidget::SetCurrentPosition ( const mitk::Point3D &  currentPos )

slot

Definition at line 49 of file QmitkInspectionPositionWidget.cpp.

References m_Controls, m_CurrentPosition, and SetPositionBookmarkNode().

Referenced by GetPositionBookmarks().

SetPositionBookmarkNode()

void QmitkInspectionPositionWidget::SetPositionBookmarkNode

(

mitk::DataNode *

newNode

)

assign a point set (contained in a node of DataStorage) for observation

Definition at line 61 of file QmitkInspectionPositionWidget.cpp.

References m_Controls.

Referenced by SetCurrentPosition().

Member Data Documentation

m_Controls

Ui::QmitkInspectionPositionWidget QmitkInspectionPositionWidget::m_Controls

protected

Definition at line 64 of file QmitkInspectionPositionWidget.h.

Referenced by GetPositionBookmarkNode(), GetPositionBookmarks(), OnAddCurrentPositionClicked(), QmitkInspectionPositionWidget(), SetCurrentPosition(), and SetPositionBookmarkNode().

m_CurrentPosition

mitk::Point3D QmitkInspectionPositionWidget::m_CurrentPosition

protected

Definition at line 62 of file QmitkInspectionPositionWidget.h.

Referenced by GetCurrentPosition(), OnAddCurrentPositionClicked(), QmitkInspectionPositionWidget(), and SetCurrentPosition().

---

The documentation for this class was generated from the following files:

• QmitkInspectionPositionWidget.h
• QmitkInspectionPositionWidget.cpp
