QmitkFitParameterWidget Class Reference

#include <QmitkFitParameterWidget.h>

Inheritance diagram for QmitkFitParameterWidget:

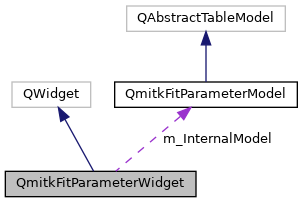

Collaboration diagram for QmitkFitParameterWidget:

Public Types
using	FitVectorType = std::vector< mitk::modelFit::ModelFitInfo::ConstPointer >

Public Slots
void	setFits (const FitVectorType &fits)
void	setCurrentPosition (const mitk::Point3D &currentPos)
void	setPositionBookmarks (const mitk::PointSet *bookmarks)

Public Member Functions
	QmitkFitParameterWidget (QWidget *parent=nullptr)
	~QmitkFitParameterWidget () override
const FitVectorType &	getFits () const
mitk::Point3D	getCurrentPosition () const
const mitk::PointSet *	getPositionBookmarks () const

Protected Slots
void	OnExportClicked () const
void	OnClipboardResultsButtonClicked () const
	Saves the results table to clipboard. More...

Protected Member Functions
std::string	streamModelToString () const

Protected Attributes
QmitkFitParameterModel *	m_InternalModel
Ui::QmitkFitParameterWidget	m_Controls

Detailed Description

Widget that displays the parameters of all set ModelFitInfo instances for all given world coordinate points. In addition it allows to transfer this information as CSV into the clipboard or a file.

Definition at line 34 of file QmitkFitParameterWidget.h.

Member Typedef Documentation

FitVectorType

using QmitkFitParameterWidget::FitVectorType = std::vector<mitk::modelFit::ModelFitInfo::ConstPointer>

Definition at line 39 of file QmitkFitParameterWidget.h.

Constructor & Destructor Documentation

QmitkFitParameterWidget()

QmitkFitParameterWidget::QmitkFitParameterWidget

(

QWidget *

parent = nullptr

)

Definition at line 20 of file QmitkFitParameterWidget.cpp.

References getFits(), m_Controls, m_InternalModel, OnClipboardResultsButtonClicked(), and OnExportClicked().

~QmitkFitParameterWidget()

QmitkFitParameterWidget::~QmitkFitParameterWidget ( )

override

Definition at line 73 of file QmitkFitParameterWidget.cpp.

Member Function Documentation

getCurrentPosition()

mitk::Point3D QmitkFitParameterWidget::getCurrentPosition

(

)

const

Definition at line 40 of file QmitkFitParameterWidget.cpp.

References QmitkFitParameterModel::getCurrentPosition(), getPositionBookmarks(), and m_InternalModel.

Referenced by getFits().

getFits()

const QmitkFitParameterWidget::FitVectorType & QmitkFitParameterWidget::getFits

(

)

const

Definition at line 33 of file QmitkFitParameterWidget.cpp.

References getCurrentPosition(), QmitkFitParameterModel::getFits(), and m_InternalModel.

Referenced by QmitkFitParameterWidget().

getPositionBookmarks()

const mitk::PointSet * QmitkFitParameterWidget::getPositionBookmarks

(

)

const

Definition at line 47 of file QmitkFitParameterWidget.cpp.

References QmitkFitParameterModel::getPositionBookmarks(), m_InternalModel, and setFits().

Referenced by getCurrentPosition().

OnClipboardResultsButtonClicked

void QmitkFitParameterWidget::OnClipboardResultsButtonClicked ( ) const

protectedslot

Saves the results table to clipboard.

Definition at line 132 of file QmitkFitParameterWidget.cpp.

References streamModelToString().

Referenced by QmitkFitParameterWidget().

OnExportClicked

void QmitkFitParameterWidget::OnExportClicked ( ) const

protectedslot

Definition at line 138 of file QmitkFitParameterWidget.cpp.

References streamModelToString().

Referenced by QmitkFitParameterWidget().

setCurrentPosition

void QmitkFitParameterWidget::setCurrentPosition ( const mitk::Point3D &  currentPos )

slot

Definition at line 61 of file QmitkFitParameterWidget.cpp.

References m_InternalModel, QmitkFitParameterModel::setCurrentPosition(), and setPositionBookmarks().

Referenced by setFits().

setFits

void QmitkFitParameterWidget::setFits ( const FitVectorType &  fits )

slot

Definition at line 54 of file QmitkFitParameterWidget.cpp.

References m_InternalModel, setCurrentPosition(), and QmitkFitParameterModel::setFits().

Referenced by getPositionBookmarks().

setPositionBookmarks

void QmitkFitParameterWidget::setPositionBookmarks ( const mitk::PointSet *  bookmarks )

slot

Definition at line 68 of file QmitkFitParameterWidget.cpp.

References m_InternalModel, and QmitkFitParameterModel::setPositionBookmarks().

Referenced by setCurrentPosition().

streamModelToString()

std::string QmitkFitParameterWidget::streamModelToString ( ) const

protected

Definition at line 85 of file QmitkFitParameterWidget.cpp.

References QmitkFitParameterModel::columnCount(), QmitkFitParameterModel::data(), QmitkFitParameterModel::headerData(), m_InternalModel, mitkThrow, QmitkFitParameterModel::rowCount(), and SanatizeString().

Referenced by OnClipboardResultsButtonClicked(), and OnExportClicked().

Member Data Documentation

m_Controls

Ui::QmitkFitParameterWidget QmitkFitParameterWidget::m_Controls

protected

Definition at line 69 of file QmitkFitParameterWidget.h.

Referenced by QmitkFitParameterWidget().

m_InternalModel

QmitkFitParameterModel* QmitkFitParameterWidget::m_InternalModel

protected

Definition at line 67 of file QmitkFitParameterWidget.h.

Referenced by getCurrentPosition(), getFits(), getPositionBookmarks(), QmitkFitParameterWidget(), setCurrentPosition(), setFits(), setPositionBookmarks(), and streamModelToString().

---

The documentation for this class was generated from the following files:

• QmitkFitParameterWidget.h
• QmitkFitParameterWidget.cpp
