QmitkFastMarchingToolGUI Class Reference

GUI for mitk::FastMarchingTool. More...

#include <QmitkFastMarchingToolGUI.h>

Inheritance diagram for QmitkFastMarchingToolGUI:

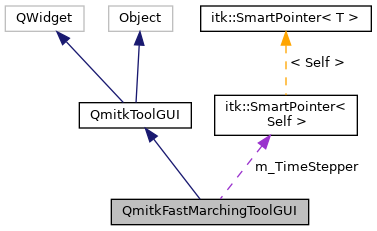

Collaboration diagram for QmitkFastMarchingToolGUI:

Public Member Functions
	mitkClassMacro (QmitkFastMarchingToolGUI, QmitkToolGUI)
Pointer	Clone () const
void	OnThresholdChanged (int current)
Public Member Functions inherited from QmitkToolGUI
	mitkClassMacroItkParent (QmitkToolGUI, itk::Object)
void	SetTool (mitk::Tool *tool)
void	Register () const override
void	UnRegister () const ITK_NOEXCEPT ITK_OVERRIDE
void	SetReferenceCount (int) override
	~QmitkToolGUI () override

Static Public Member Functions
static Pointer	New ()

Protected Slots
void	OnNewToolAssociated (mitk::Tool *)
void	OnThresholdChanged (double, double)
void	OnAlphaChanged (double)
void	OnBetaChanged (double)
void	OnSigmaChanged (double)
void	OnStoppingValueChanged (double)
void	OnConfirmSegmentation ()
void	Refetch ()
void	SetStepper (mitk::Stepper *)
void	OnClearSeeds ()

Protected Member Functions
	QmitkFastMarchingToolGUI ()
	~QmitkFastMarchingToolGUI () override
void	Update ()
void	BusyStateChanged (bool) override
void	OnFastMarchingToolReady ()

Protected Attributes
ctkRangeWidget *	m_slwThreshold
ctkSliderWidget *	m_slStoppingValue
ctkSliderWidget *	m_slSigma
ctkSliderWidget *	m_slAlpha
ctkSliderWidget *	m_slBeta
QPushButton *	m_btConfirm
QPushButton *	m_btClearSeeds
mitk::FastMarchingTool::Pointer	m_FastMarchingTool
bool	m_TimeIsConnected
mitk::Stepper::Pointer	m_TimeStepper
Protected Attributes inherited from QmitkToolGUI
mitk::Tool::Pointer	m_Tool

Additional Inherited Members
Signals inherited from QmitkToolGUI
void	NewToolAssociated (mitk::Tool *)

Detailed Description

GUI for mitk::FastMarchingTool.

See also

mitk::FastMarchingTool

Definition at line 31 of file QmitkFastMarchingToolGUI.h.

Constructor & Destructor Documentation

QmitkFastMarchingToolGUI()

QmitkFastMarchingToolGUI::QmitkFastMarchingToolGUI ( )

protected

Definition at line 30 of file QmitkFastMarchingToolGUI.cpp.

~QmitkFastMarchingToolGUI()

QmitkFastMarchingToolGUI::~QmitkFastMarchingToolGUI ( )

overrideprotected

Definition at line 199 of file QmitkFastMarchingToolGUI.cpp.

References BusyStateChanged(), m_FastMarchingTool, and OnFastMarchingToolReady().

Member Function Documentation

BusyStateChanged()

void QmitkFastMarchingToolGUI::BusyStateChanged ( bool  value )

overrideprotectedvirtual

Reimplemented from QmitkToolGUI.

Definition at line 328 of file QmitkFastMarchingToolGUI.cpp.

Referenced by OnNewToolAssociated(), and ~QmitkFastMarchingToolGUI().

Clone()

Pointer QmitkFastMarchingToolGUI::Clone

(

)

const

mitkClassMacro()

QmitkFastMarchingToolGUI::mitkClassMacro	(	QmitkFastMarchingToolGUI	,
		QmitkToolGUI
	)

New()

static Pointer QmitkFastMarchingToolGUI::New ( )

static

OnAlphaChanged

void QmitkFastMarchingToolGUI::OnAlphaChanged ( double  value )

protectedslot

Definition at line 280 of file QmitkFastMarchingToolGUI.cpp.

References m_FastMarchingTool, and Update().

OnBetaChanged

void QmitkFastMarchingToolGUI::OnBetaChanged ( double  value )

protectedslot

Definition at line 262 of file QmitkFastMarchingToolGUI.cpp.

References m_FastMarchingTool, and Update().

OnClearSeeds

void QmitkFastMarchingToolGUI::OnClearSeeds ( )

protectedslot

Definition at line 318 of file QmitkFastMarchingToolGUI.cpp.

References m_btClearSeeds, m_btConfirm, m_FastMarchingTool, and Update().

OnConfirmSegmentation

void QmitkFastMarchingToolGUI::OnConfirmSegmentation ( )

protectedslot

Definition at line 298 of file QmitkFastMarchingToolGUI.cpp.

References m_btConfirm, and m_FastMarchingTool.

OnFastMarchingToolReady()

void QmitkFastMarchingToolGUI::OnFastMarchingToolReady ( )

protected

Definition at line 336 of file QmitkFastMarchingToolGUI.cpp.

References m_btClearSeeds, m_btConfirm, m_slAlpha, m_slBeta, m_slSigma, m_slStoppingValue, and m_slwThreshold.

Referenced by OnNewToolAssociated(), and ~QmitkFastMarchingToolGUI().

OnNewToolAssociated

void QmitkFastMarchingToolGUI::OnNewToolAssociated ( mitk::Tool *  tool )

protectedslot

Definition at line 210 of file QmitkFastMarchingToolGUI.cpp.

References BusyStateChanged(), mitk::BaseRenderer::GetInstance(), mitk::BaseRenderer::GetRenderWindowByName(), m_FastMarchingTool, m_TimeIsConnected, and OnFastMarchingToolReady().

OnSigmaChanged

void QmitkFastMarchingToolGUI::OnSigmaChanged ( double  value )

protectedslot

Definition at line 271 of file QmitkFastMarchingToolGUI.cpp.

References m_FastMarchingTool, and Update().

OnStoppingValueChanged

void QmitkFastMarchingToolGUI::OnStoppingValueChanged ( double  value )

protectedslot

Definition at line 289 of file QmitkFastMarchingToolGUI.cpp.

References m_FastMarchingTool, and Update().

OnThresholdChanged() [1/2]

void QmitkFastMarchingToolGUI::OnThresholdChanged

(

int

current

)

OnThresholdChanged [2/2]

void QmitkFastMarchingToolGUI::OnThresholdChanged ( double  lower, double  upper  )

protectedslot

Definition at line 252 of file QmitkFastMarchingToolGUI.cpp.

References m_FastMarchingTool, and Update().

Refetch

void QmitkFastMarchingToolGUI::Refetch ( )

protectedslot

Definition at line 312 of file QmitkFastMarchingToolGUI.cpp.

References m_FastMarchingTool, and m_TimeStepper.

SetStepper

void QmitkFastMarchingToolGUI::SetStepper ( mitk::Stepper *  stepper )

protectedslot

Definition at line 307 of file QmitkFastMarchingToolGUI.cpp.

References m_TimeStepper.

Update()

void QmitkFastMarchingToolGUI::Update ( )

protected

Definition at line 241 of file QmitkFastMarchingToolGUI.cpp.

References m_FastMarchingTool, m_slAlpha, m_slBeta, m_slSigma, m_slStoppingValue, and m_slwThreshold.

Referenced by OnAlphaChanged(), OnBetaChanged(), OnClearSeeds(), OnSigmaChanged(), OnStoppingValueChanged(), and OnThresholdChanged().

Member Data Documentation

m_btClearSeeds

QPushButton* QmitkFastMarchingToolGUI::m_btClearSeeds

protected

Definition at line 71 of file QmitkFastMarchingToolGUI.h.

Referenced by OnClearSeeds(), and OnFastMarchingToolReady().

m_btConfirm

QPushButton* QmitkFastMarchingToolGUI::m_btConfirm

protected

Definition at line 70 of file QmitkFastMarchingToolGUI.h.

Referenced by OnClearSeeds(), OnConfirmSegmentation(), and OnFastMarchingToolReady().

m_FastMarchingTool

mitk::FastMarchingTool::Pointer QmitkFastMarchingToolGUI::m_FastMarchingTool

protected

Definition at line 73 of file QmitkFastMarchingToolGUI.h.

Referenced by OnAlphaChanged(), OnBetaChanged(), OnClearSeeds(), OnConfirmSegmentation(), OnNewToolAssociated(), OnSigmaChanged(), OnStoppingValueChanged(), OnThresholdChanged(), Refetch(), Update(), and ~QmitkFastMarchingToolGUI().

m_slAlpha

ctkSliderWidget* QmitkFastMarchingToolGUI::m_slAlpha

protected

Definition at line 67 of file QmitkFastMarchingToolGUI.h.

Referenced by OnFastMarchingToolReady(), and Update().

m_slBeta

ctkSliderWidget* QmitkFastMarchingToolGUI::m_slBeta

protected

Definition at line 68 of file QmitkFastMarchingToolGUI.h.

Referenced by OnFastMarchingToolReady(), and Update().

m_slSigma

ctkSliderWidget* QmitkFastMarchingToolGUI::m_slSigma

protected

Definition at line 66 of file QmitkFastMarchingToolGUI.h.

Referenced by OnFastMarchingToolReady(), and Update().

m_slStoppingValue

ctkSliderWidget* QmitkFastMarchingToolGUI::m_slStoppingValue

protected

Definition at line 65 of file QmitkFastMarchingToolGUI.h.

Referenced by OnFastMarchingToolReady(), and Update().

m_slwThreshold

ctkRangeWidget* QmitkFastMarchingToolGUI::m_slwThreshold

protected

Definition at line 64 of file QmitkFastMarchingToolGUI.h.

Referenced by OnFastMarchingToolReady(), and Update().

m_TimeIsConnected

bool QmitkFastMarchingToolGUI::m_TimeIsConnected

protected

Definition at line 75 of file QmitkFastMarchingToolGUI.h.

Referenced by OnNewToolAssociated().

m_TimeStepper

mitk::Stepper::Pointer QmitkFastMarchingToolGUI::m_TimeStepper

protected

Definition at line 76 of file QmitkFastMarchingToolGUI.h.

Referenced by Refetch(), and SetStepper().

---

The documentation for this class was generated from the following files:

• QmitkFastMarchingToolGUI.h
• QmitkFastMarchingToolGUI.cpp
