Displays all or a subset (defined by a predicate) of nodes of the Data Storage. More...

#include <QmitkDataStorageComboBox.h>

Inheritance diagram for QmitkDataStorageComboBox:

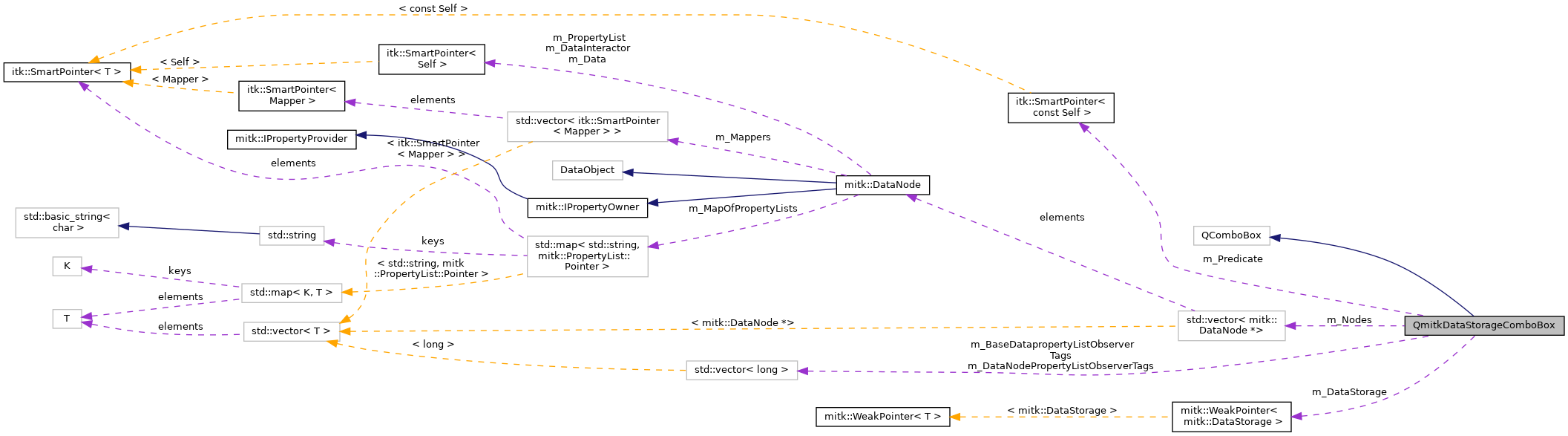

Collaboration diagram for QmitkDataStorageComboBox:

[legend]

Public Slots
void	SetSelectedNode (const mitk::DataNode::Pointer &node)
	Slot for signal when user wants to set a node as current selected node. More...

Signals
void	OnSelectionChanged (const mitk::DataNode *)
	Throw a signal when the data node selection changed. More...

Public Member Functions
	QmitkDataStorageComboBox (QWidget *parent=nullptr, bool autoSelectNewNodes=false)
	Ctor for an empty combobox. Use setDataStorage and setPredicate afterwards. More...

	QmitkDataStorageComboBox (mitk::DataStorage dataStorage, const mitk::NodePredicateBase predicate, QWidget *parent=nullptr, bool autoSelectNewNodes=false)
	Ctor for constructing QmitkDataStorageComboBox with given DataStorageComboBox and given predicate. More...

	~QmitkDataStorageComboBox () override
	Standard Dtor. Nothing to do here. More...

virtual int	Find (const mitk::DataNode *dataNode) const
	Searches for a given node and returns a valid index or -1 if the node was not found. More...

mitk::DataStorage::Pointer	GetDataStorage () const
	Get the DataStorage this ComboBox listens to. More...

const mitk::NodePredicateBase::ConstPointer	GetPredicate () const
	Return the predicate (may be nullptr) that is responsible for the dataNode selection of this ComboBox. More...

virtual mitk::DataNode::Pointer	GetNode (int index) const
	Returns the dataNode at Index index or 0 if the index is out of bounds. More...

virtual mitk::DataNode::Pointer	GetSelectedNode () const
	Returns the selected dataNode or 0 if there is none. More...

mitk::DataStorage::SetOfObjects::ConstPointer	GetNodes () const
	Returns all nodes that are stored in this combobox. More...

virtual bool	GetAutoSelectNewItems ()

void	SetDataStorage (mitk::DataStorage *dataStorage)
	Set the DataStorage this ComboBox should listen to. More...

void	SetPredicate (const mitk::NodePredicateBase *predicate)
	Set the predicate for this ComboBox. (QmitkDataStorageComboBox is now owner of the predicate) More...

virtual void	AddNode (const mitk::DataNode *dataNode)

virtual void	RemoveNode (int index)

virtual void	RemoveNode (const mitk::DataNode *dataNode)

virtual void	SetNode (int index, const mitk::DataNode *dataNode)

virtual void	SetNode (const mitk::DataNode dataNode, const mitk::DataNode otherDataNode)

virtual void	SetAutoSelectNewItems (bool autoSelectNewItems)

virtual void	OnPropertyListChanged (const itk::Object *caller, const itk::EventObject &event)
	Called when the name property of the node was modified. More...

Protected Slots
void	OnCurrentIndexChanged (int)
	Slot for signal when the user selects another item. More...

Protected Member Functions
bool	HasIndex (unsigned int index) const
	Checks if the given index is within the range of the m_Nodes vector. More...

virtual void	InsertNode (int index, const mitk::DataNode *dataNode)
	Inserts a new node at the given index. If the index does not exist, the data node is simply appended to the combobox. More...

void	Init ()
	Init-function this class with the given data storage and predicate. This function is called by all ctors. More...

virtual void	Reset ()
	Reset function whenever data storage or predicate changes. More...

void	RemoveNodeAndPropertyLists (int index)

virtual void	UpdateComboBoxText (const mitk::PropertyList *)

Protected Attributes
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage

mitk::NodePredicateBase::ConstPointer	m_Predicate
	Holds the predicate that is responsible for the dataNode selection of this ComboBox. If the predicate is 0, every dataNode will be selected. More...

std::vector< mitk::DataNode * >	m_Nodes

std::vector< long >	m_DataNodePropertyListObserverTags
	Holds the tags of the data node property observers. More...

std::vector< long >	m_BaseDatapropertyListObserverTags
	Holds the tags of the base data property observers. More...

bool	m_BlockEvents
	Event function guard. Each function which is called by an event mechanism first checks if this is true in order to avoid endless loops. More...

bool	m_AutoSelectNewNodes
	If set to "true" new Nodes will be automatically selected. More...

Detailed Description

Displays all or a subset (defined by a predicate) of nodes of the Data Storage.

Author: Michael Mueller

Version: 4.0

Date: 2009-02-09

Definition at line 38 of file QmitkDataStorageComboBox.h.

Constructor & Destructor Documentation

◆ QmitkDataStorageComboBox() [1/2]

QmitkDataStorageComboBox::QmitkDataStorageComboBox	(	QWidget *	parent = `nullptr`,
		bool	autoSelectNewNodes = `false`
	)

Ctor for an empty combobox. Use setDataStorage and setPredicate afterwards.

Definition at line 17 of file QmitkDataStorageComboBox.cpp.

References Init().

◆ QmitkDataStorageComboBox() [2/2]

QmitkDataStorageComboBox::QmitkDataStorageComboBox	(	mitk::DataStorage *	dataStorage,
		const mitk::NodePredicateBase *	predicate,
		QWidget *	parent = `nullptr`,
		bool	autoSelectNewNodes = `false`
	)

Ctor for constructing QmitkDataStorageComboBox with given DataStorageComboBox and given predicate.

Definition at line 27 of file QmitkDataStorageComboBox.cpp.

References Init(), and SetDataStorage().

◆ ~QmitkDataStorageComboBox()

QmitkDataStorageComboBox::~QmitkDataStorageComboBox ( )

override

Standard Dtor. Nothing to do here.

Definition at line 42 of file QmitkDataStorageComboBox.cpp.

References AddNode(), mitk::WeakPointer< T >::IsExpired(), mitk::WeakPointer< T >::Lock(), m_DataStorage, m_Nodes, and RemoveNode().

Member Function Documentation

◆ AddNode()

void QmitkDataStorageComboBox::AddNode ( const mitk::DataNode * dataNode )

virtual

Adds a node to the ComboBox. Gets called every time a DataStorage Add Event was thrown.

Definition at line 165 of file QmitkDataStorageComboBox.cpp.

References InsertNode(), and m_BlockEvents.

Referenced by Reset(), SetDataStorage(), and ~QmitkDataStorageComboBox().

◆ Find()

int QmitkDataStorageComboBox::Find ( const mitk::DataNode * dataNode ) const

virtual

Searches for a given node and returns a valid index or -1 if the node was not found.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

Definition at line 62 of file QmitkDataStorageComboBox.cpp.

References m_Nodes.

Referenced by QmitkDataStorageComboBoxWithSelectNone::Find(), InsertNode(), RemoveNode(), QmitkInitialValuesDelegate::setEditorData(), SetNode(), SetSelectedNode(), and UpdateComboBoxText().

◆ GetAutoSelectNewItems()

bool QmitkDataStorageComboBox::GetAutoSelectNewItems ( )

virtual

Returns the AutoSelectNewItems.

See also: SetAutoSelectNewItems

Definition at line 111 of file QmitkDataStorageComboBox.cpp.

References m_AutoSelectNewNodes.

◆ GetDataStorage()

mitk::DataStorage::Pointer QmitkDataStorageComboBox::GetDataStorage ( ) const

Get the DataStorage this ComboBox listens to.

Definition at line 74 of file QmitkDataStorageComboBox.cpp.

References mitk::WeakPointer< T >::Lock(), and m_DataStorage.

◆ GetNode()

mitk::DataNode::Pointer QmitkDataStorageComboBox::GetNode ( int index ) const

virtual

Returns the dataNode at Index index or 0 if the index is out of bounds.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

Definition at line 84 of file QmitkDataStorageComboBox.cpp.

References HasIndex(), and m_Nodes.

Referenced by GetSelectedNode().

◆ GetNodes()

mitk::DataStorage::SetOfObjects::ConstPointer QmitkDataStorageComboBox::GetNodes ( ) const

Returns all nodes that are stored in this combobox.

Definition at line 99 of file QmitkDataStorageComboBox.cpp.

References m_Nodes.

◆ GetPredicate()

const mitk::NodePredicateBase::ConstPointer QmitkDataStorageComboBox::GetPredicate ( ) const

Return the predicate (may be nullptr) that is responsible for the dataNode selection of this ComboBox.

Definition at line 79 of file QmitkDataStorageComboBox.cpp.

References m_Predicate.

◆ GetSelectedNode()

mitk::DataNode::Pointer QmitkDataStorageComboBox::GetSelectedNode ( ) const

virtual

Returns the selected dataNode or 0 if there is none.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

Definition at line 89 of file QmitkDataStorageComboBox.cpp.

References GetNode().

Referenced by OnCurrentIndexChanged(), QmitkInitialValuesDelegate::setModelData(), and QmitkNDIToolDelegate::setModelData().

◆ HasIndex()

bool QmitkDataStorageComboBox::HasIndex ( unsigned int index ) const

protected

Checks if the given index is within the range of the m_Nodes vector.

Definition at line 242 of file QmitkDataStorageComboBox.cpp.

References m_Nodes.

Referenced by GetNode(), InsertNode(), RemoveNode(), and SetNode().

◆ Init()

void QmitkDataStorageComboBox::Init ( )

protected

Init-function this class with the given data storage and predicate. This function is called by all ctors.

Definition at line 368 of file QmitkDataStorageComboBox.cpp.

References OnCurrentIndexChanged().

Referenced by QmitkDataStorageComboBox().

◆ InsertNode()

void QmitkDataStorageComboBox::InsertNode	(	int	index,
		const mitk::DataNode *	dataNode
	)

protectedvirtual

Inserts a new node at the given index. If the index does not exist, the data node is simply appended to the combobox.

This function is used by AddNode() and SetNode() because they just to the same:

If node is replaced (that is when index exists), the itk::Event observer will be removed
Check Node against Predicate
Register for itk::Events on the node
Insert Node and show in combobox

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

Definition at line 268 of file QmitkDataStorageComboBox.cpp.

References Find(), mitk::DataNode::GetData(), mitk::DataNode::GetName(), mitk::DataNode::GetPropertyList(), mitk::BaseData::GetPropertyList(), HasIndex(), m_AutoSelectNewNodes, m_BaseDatapropertyListObserverTags, m_DataNodePropertyListObserverTags, m_Nodes, m_Predicate, OnPropertyListChanged(), and RemoveNode().

Referenced by AddNode(), QmitkDataStorageComboBoxWithSelectNone::InsertNode(), QmitkDataStorageComboBoxWithSelectNone::SetNode(), and SetNode().

◆ OnCurrentIndexChanged

void QmitkDataStorageComboBox::OnCurrentIndexChanged ( int index )

protectedslot

Slot for signal when the user selects another item.

Definition at line 247 of file QmitkDataStorageComboBox.cpp.

References GetSelectedNode(), and OnSelectionChanged().

Referenced by Init().

◆ OnPropertyListChanged()

void QmitkDataStorageComboBox::OnPropertyListChanged	(	const itk::Object *	caller,
		const itk::EventObject &	event
	)

virtual

Called when the name property of the node was modified.

Definition at line 224 of file QmitkDataStorageComboBox.cpp.

References m_BlockEvents, and UpdateComboBoxText().

Referenced by InsertNode().

◆ OnSelectionChanged

void QmitkDataStorageComboBox::OnSelectionChanged ( const mitk::DataNode * )

signal

Throw a signal when the data node selection changed.

Referenced by OnCurrentIndexChanged(), and QmitkNodeDetailsDialog::QmitkNodeDetailsDialog().

◆ RemoveNode() [1/2]

void QmitkDataStorageComboBox::RemoveNode ( int index )

virtual

Removes a node from the ComboBox at a specified index (if the index exists). Gets called when a DataStorage Remove Event was thrown.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

Definition at line 177 of file QmitkDataStorageComboBox.cpp.

References HasIndex(), and RemoveNodeAndPropertyLists().

Referenced by InsertNode(), RemoveNode(), Reset(), SetDataStorage(), and ~QmitkDataStorageComboBox().

◆ RemoveNode() [2/2]

void QmitkDataStorageComboBox::RemoveNode ( const mitk::DataNode * dataNode )

virtual

Removes a node from the ComboBox. Gets called when a DataStorage Remove Event was thrown.

Definition at line 187 of file QmitkDataStorageComboBox.cpp.

References Find(), m_BlockEvents, and RemoveNode().

◆ RemoveNodeAndPropertyLists()

void QmitkDataStorageComboBox::RemoveNodeAndPropertyLists ( int index )

protected

Definition at line 409 of file QmitkDataStorageComboBox.cpp.

References mitk::DataNode::GetData(), mitk::DataNode::GetPropertyList(), mitk::BaseData::GetPropertyList(), m_BaseDatapropertyListObserverTags, m_DataNodePropertyListObserverTags, and m_Nodes.

Referenced by QmitkDataStorageComboBoxWithSelectNone::RemoveNode(), and RemoveNode().

◆ Reset()

void QmitkDataStorageComboBox::Reset ( void )

protectedvirtual

Reset function whenever data storage or predicate changes.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

Definition at line 373 of file QmitkDataStorageComboBox.cpp.

References AddNode(), mitk::WeakPointer< T >::IsExpired(), mitk::WeakPointer< T >::Lock(), m_DataStorage, m_Nodes, m_Predicate, and RemoveNode().

Referenced by QmitkDataStorageComboBoxWithSelectNone::Reset(), SetDataStorage(), and SetPredicate().

◆ SetAutoSelectNewItems()

void QmitkDataStorageComboBox::SetAutoSelectNewItems ( bool autoSelectNewItems )

virtual

Sets AutoSelectNewItems flag. If set to true new Nodes will be automatically selected. Default is false.

Definition at line 219 of file QmitkDataStorageComboBox.cpp.

References m_AutoSelectNewNodes.

◆ SetDataStorage()

void QmitkDataStorageComboBox::SetDataStorage ( mitk::DataStorage * dataStorage )

Set the DataStorage this ComboBox should listen to.

If DataStorage is 0 nothing will be shown. If DataStorage is reset the combobox will be reset.

Definition at line 116 of file QmitkDataStorageComboBox.cpp.

References AddNode(), mitk::WeakPointer< T >::IsExpired(), mitk::WeakPointer< T >::Lock(), m_DataStorage, RemoveNode(), and Reset().

Referenced by QmitkToolReferenceDataSelectionBox::Initialize(), and QmitkDataStorageComboBox().

◆ SetNode() [1/2]

void QmitkDataStorageComboBox::SetNode	(	int	index,
		const mitk::DataNode *	dataNode
	)

virtual

Set a dataNode in the ComboBox at the specified index (if the index exists). Internally the method just calls RemoveNode(unsigned int)

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

Definition at line 198 of file QmitkDataStorageComboBox.cpp.

References mitk::DataNode::GetName(), HasIndex(), InsertNode(), and m_Nodes.

Referenced by SetNode().

◆ SetNode() [2/2]

void QmitkDataStorageComboBox::SetNode	(	const mitk::DataNode *	dataNode,
		const mitk::DataNode *	otherDataNode
	)

virtual

Replaces a dataNode in the combobox by an otherDataNode. Internally the method just calls SetNode(unsigned int, mitk::DataNode*)

Definition at line 214 of file QmitkDataStorageComboBox.cpp.

References Find(), and SetNode().

◆ SetPredicate()

void QmitkDataStorageComboBox::SetPredicate ( const mitk::NodePredicateBase * predicate )

Set the predicate for this ComboBox. (QmitkDataStorageComboBox is now owner of the predicate)

If predicate is nullptr all nodes will be selected. If predicate changes the whole combobox will be reset.

Definition at line 156 of file QmitkDataStorageComboBox.cpp.

References m_Predicate, and Reset().

Referenced by QmitkToolReferenceDataSelectionBox::UpdateDataDisplay().

◆ SetSelectedNode

void QmitkDataStorageComboBox::SetSelectedNode ( const mitk::DataNode::Pointer & node )

slot

Slot for signal when user wants to set a node as current selected node.

Definition at line 255 of file QmitkDataStorageComboBox.cpp.

References Find(), and MITK_INFO.

◆ UpdateComboBoxText()

void QmitkDataStorageComboBox::UpdateComboBoxText ( const mitk::PropertyList * propertyList )

protectedvirtual

Definition at line 440 of file QmitkDataStorageComboBox.cpp.

References Find(), mitk::BaseData::GetPropertyList(), and m_Nodes.

Referenced by OnPropertyListChanged().

Member Data Documentation

◆ m_AutoSelectNewNodes

bool QmitkDataStorageComboBox::m_AutoSelectNewNodes

protected

If set to "true" new Nodes will be automatically selected.

Definition at line 222 of file QmitkDataStorageComboBox.h.

Referenced by GetAutoSelectNewItems(), InsertNode(), and SetAutoSelectNewItems().

◆ m_BaseDatapropertyListObserverTags

std::vector<long> QmitkDataStorageComboBox::m_BaseDatapropertyListObserverTags

protected

Holds the tags of the base data property observers.

Definition at line 213 of file QmitkDataStorageComboBox.h.

Referenced by InsertNode(), and RemoveNodeAndPropertyLists().

◆ m_BlockEvents

bool QmitkDataStorageComboBox::m_BlockEvents

protected

Event function guard. Each function which is called by an event mechanism first checks if this is true in order to avoid endless loops.

Definition at line 218 of file QmitkDataStorageComboBox.h.

Referenced by AddNode(), OnPropertyListChanged(), and RemoveNode().

◆ m_DataNodePropertyListObserverTags

std::vector<long> QmitkDataStorageComboBox::m_DataNodePropertyListObserverTags

protected

Holds the tags of the data node property observers.

Definition at line 208 of file QmitkDataStorageComboBox.h.

Referenced by InsertNode(), and RemoveNodeAndPropertyLists().

◆ m_DataStorage

mitk::WeakPointer<mitk::DataStorage> QmitkDataStorageComboBox::m_DataStorage

protected

Pointer to the DataStorage from which the nodes are selected (remember: in BlueBerry there might be more than one DataStorage).

Definition at line 192 of file QmitkDataStorageComboBox.h.

Referenced by GetDataStorage(), Reset(), SetDataStorage(), and ~QmitkDataStorageComboBox().

◆ m_Nodes

std::vector<mitk::DataNode *> QmitkDataStorageComboBox::m_Nodes

protected

Holds all selected Nodes. Don't hold smart pointer as we are in a GUI class.

Definition at line 203 of file QmitkDataStorageComboBox.h.

Referenced by Find(), GetNode(), QmitkDataStorageComboBoxWithSelectNone::GetNode(), GetNodes(), QmitkDataStorageComboBoxWithSelectNone::HasIndex(), HasIndex(), InsertNode(), RemoveNodeAndPropertyLists(), Reset(), QmitkDataStorageComboBoxWithSelectNone::SetNode(), SetNode(), UpdateComboBoxText(), and ~QmitkDataStorageComboBox().

◆ m_Predicate

mitk::NodePredicateBase::ConstPointer QmitkDataStorageComboBox::m_Predicate

protected

Holds the predicate that is responsible for the dataNode selection of this ComboBox. If the predicate is 0, every dataNode will be selected.

Definition at line 198 of file QmitkDataStorageComboBox.h.

Referenced by GetPredicate(), InsertNode(), Reset(), and SetPredicate().

The documentation for this class was generated from the following files:

Public Slots

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ QmitkDataStorageComboBox() [1/2]

◆ QmitkDataStorageComboBox() [2/2]

◆ ~QmitkDataStorageComboBox()

Member Function Documentation

◆ AddNode()

◆ Find()

◆ GetAutoSelectNewItems()

◆ GetDataStorage()

◆ GetNode()

◆ GetNodes()

◆ GetPredicate()

◆ GetSelectedNode()

◆ HasIndex()

◆ Init()

◆ InsertNode()

◆ OnCurrentIndexChanged

◆ OnPropertyListChanged()

◆ OnSelectionChanged

◆ RemoveNode() [1/2]

◆ RemoveNode() [2/2]

◆ RemoveNodeAndPropertyLists()

◆ Reset()

◆ SetAutoSelectNewItems()

◆ SetDataStorage()

◆ SetNode() [1/2]

◆ SetNode() [2/2]

◆ SetPredicate()

◆ SetSelectedNode

◆ UpdateComboBoxText()

Member Data Documentation

◆ m_AutoSelectNewNodes

◆ m_BaseDatapropertyListObserverTags

◆ m_BlockEvents

◆ m_DataNodePropertyListObserverTags

◆ m_DataStorage

◆ m_Nodes

◆ m_Predicate
