QmitkAnyAdapter Struct Reference

Abstract adapter interface for converting Qt widget values to us::Any. More...

#include <QmitkFileReaderWriterOptionsWidget.h>

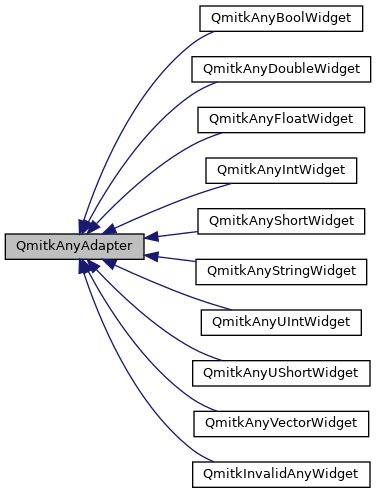

Inheritance diagram for QmitkAnyAdapter:

Public Member Functions
	QmitkAnyAdapter (const std::string &name)
	Constructs the adapter with the given option name. More...
virtual	~QmitkAnyAdapter ()
virtual us::Any	GetAny () const =0
	Returns the current widget value as a us::Any. More...
std::string	GetName () const
	Returns the option name associated with this adapter. More...

Detailed Description

Abstract adapter interface for converting Qt widget values to us::Any.

Each adapter associates a named option with a Qt widget and provides a GetAny() method that returns the widget's current value as a us::Any.

See also

QmitkFileReaderWriterOptionsWidget

Definition at line 34 of file QmitkFileReaderWriterOptionsWidget.h.

Constructor & Destructor Documentation

QmitkAnyAdapter()

QmitkAnyAdapter::QmitkAnyAdapter ( const std::string &  name )

inline

Constructs the adapter with the given option name.

Parameters

[in]

name

The option name.

Definition at line 40 of file QmitkFileReaderWriterOptionsWidget.h.

~QmitkAnyAdapter()

virtual QmitkAnyAdapter::~QmitkAnyAdapter ( )

inlinevirtual

Definition at line 41 of file QmitkFileReaderWriterOptionsWidget.h.

Member Function Documentation

GetAny()

virtual us::Any QmitkAnyAdapter::GetAny ( ) const

pure virtual

Returns the current widget value as a us::Any.

Returns

The value wrapped in us::Any.

Implemented in QmitkInvalidAnyWidget, QmitkAnyDoubleWidget, QmitkAnyFloatWidget, QmitkAnyUIntWidget, QmitkAnyIntWidget, QmitkAnyUShortWidget, QmitkAnyShortWidget, QmitkAnyBoolWidget, QmitkAnyVectorWidget, and QmitkAnyStringWidget.

GetName()

std::string QmitkAnyAdapter::GetName ( ) const

inline

Returns the option name associated with this adapter.

Returns

The option name.

Definition at line 53 of file QmitkFileReaderWriterOptionsWidget.h.

---

The documentation for this struct was generated from the following file:

• QmitkFileReaderWriterOptionsWidget.h
