Abstract base class for cost functions used by ShortestPathImageFilter. More...

#include <itkShortestPathCostFunction.h>

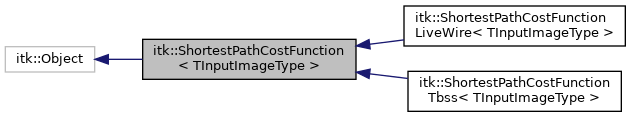

Inheritance diagram for itk::ShortestPathCostFunction< TInputImageType >:

[legend]

Collaboration diagram for itk::ShortestPathCostFunction< TInputImageType >:

Public Types
typedef ShortestPathCostFunction	Self

typedef Object	Superclass

typedef SmartPointer< Self >	Pointer

typedef SmartPointer< const Self >	ConstPointer

typedef ShapedNeighborhoodIterator< TInputImageType >	ShapedNeighborhoodIteratorType

typedef TInputImageType	ImageType

typedef TInputImageType::Pointer	ImagePointer

typedef TInputImageType::ConstPointer	ImageConstPointer

typedef TInputImageType::PixelType	PixelType

typedef TInputImageType::IndexType	IndexType

Public Member Functions
virtual const char *	GetClassName () const

virtual void	SetImage (const TInputImageType *_arg)
	Set the input image on which costs are computed. More...

virtual double	GetCost (IndexType p1, IndexType p2)=0
	Calculate the cost of transitioning from pixel p1 to pixel p2. More...

virtual double	GetMinCost ()=0
	Return the minimal possible cost for any transition. More...

virtual void	Initialize ()=0
	Initialize the cost function. More...

void	SetStartIndex (const IndexType &index)
	Set the starting index of the path. More...

void	SetEndIndex (const IndexType &index)
	Set the ending index of the path. More...

Protected Member Functions
	ShortestPathCostFunction ()

	~ShortestPathCostFunction () override

void	PrintSelf (std::ostream &os, Indent indent) const override

Protected Attributes
ImageConstPointer	m_Image
	The input image used for cost computation. More...

IndexType	m_StartIndex

IndexType	m_EndIndex
	Start and end indices defining the path endpoints. More...

Detailed Description

template<class TInputImageType>
class itk::ShortestPathCostFunction< TInputImageType >

Abstract base class for cost functions used by ShortestPathImageFilter.

This pure virtual class defines the interface for cost functions that compute the transition cost between two neighboring pixels in an image. Subclasses must implement GetCost(), GetMinCost(), and Initialize() to provide application-specific cost metrics (e.g., gradient-based costs for LiveWire segmentation, or TBSS-based costs for tract definition).

The cost function operates on images of type TInputImageType and is used by ShortestPathImageFilter to find the cheapest path between a start and end index.

Template Parameters

TInputImageType The ITK image type used as input. Must provide PixelType and IndexType typedefs.

See also: ShortestPathImageFilter; ShortestPathCostFunctionLiveWire; ShortestPathCostFunctionTbss

Definition at line 42 of file itkShortestPathCostFunction.h.

Member Typedef Documentation

◆ ConstPointer

template<class TInputImageType >

typedef SmartPointer<const Self> itk::ShortestPathCostFunction< TInputImageType >::ConstPointer

Definition at line 49 of file itkShortestPathCostFunction.h.

◆ ImageConstPointer

template<class TInputImageType >

typedef TInputImageType::ConstPointer itk::ShortestPathCostFunction< TInputImageType >::ImageConstPointer

Definition at line 60 of file itkShortestPathCostFunction.h.

◆ ImagePointer

template<class TInputImageType >

typedef TInputImageType::Pointer itk::ShortestPathCostFunction< TInputImageType >::ImagePointer

Definition at line 59 of file itkShortestPathCostFunction.h.

◆ ImageType

template<class TInputImageType >

typedef TInputImageType itk::ShortestPathCostFunction< TInputImageType >::ImageType

Type definition for the input image.

Definition at line 56 of file itkShortestPathCostFunction.h.

◆ IndexType

template<class TInputImageType >

typedef TInputImageType::IndexType itk::ShortestPathCostFunction< TInputImageType >::IndexType

Definition at line 62 of file itkShortestPathCostFunction.h.

◆ PixelType

template<class TInputImageType >

typedef TInputImageType::PixelType itk::ShortestPathCostFunction< TInputImageType >::PixelType

Definition at line 61 of file itkShortestPathCostFunction.h.

◆ Pointer

template<class TInputImageType >

typedef SmartPointer<Self> itk::ShortestPathCostFunction< TInputImageType >::Pointer

Definition at line 48 of file itkShortestPathCostFunction.h.

◆ Self

template<class TInputImageType >

typedef ShortestPathCostFunction itk::ShortestPathCostFunction< TInputImageType >::Self

Standard class typedefs.

Definition at line 46 of file itkShortestPathCostFunction.h.

◆ ShapedNeighborhoodIteratorType

template<class TInputImageType >

typedef ShapedNeighborhoodIterator<TInputImageType> itk::ShortestPathCostFunction< TInputImageType >::ShapedNeighborhoodIteratorType

Definition at line 50 of file itkShortestPathCostFunction.h.

◆ Superclass

template<class TInputImageType >

typedef Object itk::ShortestPathCostFunction< TInputImageType >::Superclass

Definition at line 47 of file itkShortestPathCostFunction.h.

Constructor & Destructor Documentation

◆ ShortestPathCostFunction()

template<class TInputImageType >

itk::ShortestPathCostFunction< TInputImageType >::ShortestPathCostFunction ( )

inlineprotected

Definition at line 111 of file itkShortestPathCostFunction.h.

◆ ~ShortestPathCostFunction()

template<class TInputImageType >

itk::ShortestPathCostFunction< TInputImageType >::~ShortestPathCostFunction ( )

inlineoverrideprotected

Definition at line 112 of file itkShortestPathCostFunction.h.

Member Function Documentation

◆ GetClassName()

template<class TInputImageType >

virtual const char* itk::ShortestPathCostFunction< TInputImageType >::GetClassName ( ) const

virtual

Run-time type information (and related methods).

Reimplemented in itk::ShortestPathCostFunctionTbss< TInputImageType >, and itk::ShortestPathCostFunctionLiveWire< TInputImageType >.

◆ GetCost()

template<class TInputImageType >

virtual double itk::ShortestPathCostFunction< TInputImageType >::GetCost	(	IndexType	p1,
		IndexType	p2
	)

pure virtual

Calculate the cost of transitioning from pixel p1 to pixel p2.

Parameters

[in]	p1	The index of the source pixel.
[in]	p2	The index of the destination pixel (a neighbor of p1).

Returns: The cost of moving from p1 to p2. Lower values indicate cheaper transitions.

Implemented in itk::ShortestPathCostFunctionTbss< TInputImageType >, and itk::ShortestPathCostFunctionLiveWire< TInputImageType >.

◆ GetMinCost()

template<class TInputImageType >

virtual double itk::ShortestPathCostFunction< TInputImageType >::GetMinCost ( )

pure virtual

Return the minimal possible cost for any transition.

This lower bound is required by the A* search heuristic. If the return value is 0, the algorithm degrades to Dijkstra's algorithm.

Returns: The minimum possible transition cost.

Implemented in itk::ShortestPathCostFunctionTbss< TInputImageType >, and itk::ShortestPathCostFunctionLiveWire< TInputImageType >.

◆ Initialize()

template<class TInputImageType >

virtual void itk::ShortestPathCostFunction< TInputImageType >::Initialize ( )

pure virtual

Initialize the cost function.

Called before the shortest path search begins. Subclasses should perform any required precomputation (e.g., computing gradient images).

Precondition: The input image must have been set via SetImage().

Implemented in itk::ShortestPathCostFunctionTbss< TInputImageType >, and itk::ShortestPathCostFunctionLiveWire< TInputImageType >.

◆ PrintSelf()

template<class TInputImageType >

void itk::ShortestPathCostFunction< TInputImageType >::PrintSelf	(	std::ostream &	os,
		Indent	indent
	)		const

overrideprotected

◆ SetEndIndex()

template<class TInputImageType >

void itk::ShortestPathCostFunction< TInputImageType >::SetEndIndex ( const IndexType & index )

Set the ending index of the path.

Parameters

[in] index The image index where the path ends.

◆ SetImage()

template<class TInputImageType >

virtual void itk::ShortestPathCostFunction< TInputImageType >::SetImage ( const TInputImageType * _arg )

virtual

Set the input image on which costs are computed.

Reimplemented in itk::ShortestPathCostFunctionLiveWire< TInputImageType >.

◆ SetStartIndex()

template<class TInputImageType >

void itk::ShortestPathCostFunction< TInputImageType >::SetStartIndex ( const IndexType & index )

Set the starting index of the path.

Parameters

[in] index The image index where the path begins.

Member Data Documentation

◆ m_EndIndex

template<class TInputImageType >

IndexType itk::ShortestPathCostFunction< TInputImageType >::m_EndIndex

protected

Start and end indices defining the path endpoints.

Definition at line 115 of file itkShortestPathCostFunction.h.

◆ m_Image

template<class TInputImageType >

ImageConstPointer itk::ShortestPathCostFunction< TInputImageType >::m_Image

protected

The input image used for cost computation.

Definition at line 114 of file itkShortestPathCostFunction.h.

◆ m_StartIndex

template<class TInputImageType >

IndexType itk::ShortestPathCostFunction< TInputImageType >::m_StartIndex

protected

Definition at line 115 of file itkShortestPathCostFunction.h.

The documentation for this class was generated from the following file:

itkShortestPathCostFunction.h
