itk::ImageToPathFilter< TInputImage, TOutputPath > Class Template Reference

Base class for filters that take an image as input and produce an path as output. More...

#include <itkImageToPathFilter.h>

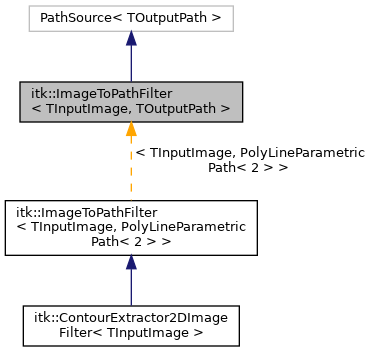

Inheritance diagram for itk::ImageToPathFilter< TInputImage, TOutputPath >:

Collaboration diagram for itk::ImageToPathFilter< TInputImage, TOutputPath >:

Public Types
typedef ImageToPathFilter	Self
typedef PathSource< TOutputPath >	Superclass
typedef SmartPointer< Self >	Pointer
typedef SmartPointer< const Self >	ConstPointer
typedef TInputImage	InputImageType
typedef InputImageType::Pointer	InputImagePointer
typedef InputImageType::ConstPointer	InputImageConstPointer
typedef InputImageType::RegionType	InputImageRegionType
typedef InputImageType::PixelType	InputImagePixelType

Public Member Functions
virtual const char *	GetClassName () const
	itkStaticConstMacro (InputImageDimension, unsigned int, TInputImage::ImageDimension)
virtual void	SetInput (const InputImageType *image)
virtual void	SetInput (unsigned int, const TInputImage *image)
	Set the image input at a specific index. More...
const InputImageType *	GetInput (void)
	Get the first image input. More...
const InputImageType *	GetInput (unsigned int idx)
	Get the image input at a specific index. More...

Protected Member Functions
	ImageToPathFilter ()
	~ImageToPathFilter () override
void	PrintSelf (std::ostream &os, Indent indent) const override

Detailed Description

template<class TInputImage, class TOutputPath>
class itk::ImageToPathFilter< TInputImage, TOutputPath >

Base class for filters that take an image as input and produce an path as output.

ImageToPathFilter is the base class for all process objects that output path data and require image data as input. Specifically, this class defines the SetInput() method for defining the input to a filter.

Definition at line 34 of file itkImageToPathFilter.h.

Member Typedef Documentation

ConstPointer

template<class TInputImage , class TOutputPath >

typedef SmartPointer<const Self> itk::ImageToPathFilter< TInputImage, TOutputPath >::ConstPointer

Definition at line 41 of file itkImageToPathFilter.h.

InputImageConstPointer

template<class TInputImage , class TOutputPath >

typedef InputImageType::ConstPointer itk::ImageToPathFilter< TInputImage, TOutputPath >::InputImageConstPointer

Definition at line 49 of file itkImageToPathFilter.h.

InputImagePixelType

template<class TInputImage , class TOutputPath >

typedef InputImageType::PixelType itk::ImageToPathFilter< TInputImage, TOutputPath >::InputImagePixelType

Definition at line 51 of file itkImageToPathFilter.h.

InputImagePointer

template<class TInputImage , class TOutputPath >

typedef InputImageType::Pointer itk::ImageToPathFilter< TInputImage, TOutputPath >::InputImagePointer

Definition at line 48 of file itkImageToPathFilter.h.

InputImageRegionType

template<class TInputImage , class TOutputPath >

typedef InputImageType::RegionType itk::ImageToPathFilter< TInputImage, TOutputPath >::InputImageRegionType

Definition at line 50 of file itkImageToPathFilter.h.

InputImageType

template<class TInputImage , class TOutputPath >

typedef TInputImage itk::ImageToPathFilter< TInputImage, TOutputPath >::InputImageType

Some convenient typedefs.

Definition at line 47 of file itkImageToPathFilter.h.

Pointer

template<class TInputImage , class TOutputPath >

typedef SmartPointer<Self> itk::ImageToPathFilter< TInputImage, TOutputPath >::Pointer

Definition at line 40 of file itkImageToPathFilter.h.

Self

template<class TInputImage , class TOutputPath >

typedef ImageToPathFilter itk::ImageToPathFilter< TInputImage, TOutputPath >::Self

Standard class typedefs.

Definition at line 38 of file itkImageToPathFilter.h.

Superclass

template<class TInputImage , class TOutputPath >

typedef PathSource<TOutputPath> itk::ImageToPathFilter< TInputImage, TOutputPath >::Superclass

Definition at line 39 of file itkImageToPathFilter.h.

Constructor & Destructor Documentation

ImageToPathFilter()

template<class TInputImage , class TOutputPath >

itk::ImageToPathFilter< TInputImage, TOutputPath >::ImageToPathFilter ( )

protected

~ImageToPathFilter()

template<class TInputImage , class TOutputPath >

itk::ImageToPathFilter< TInputImage, TOutputPath >::~ImageToPathFilter ( )

overrideprotected

Member Function Documentation

GetClassName()

template<class TInputImage , class TOutputPath >

virtual const char* itk::ImageToPathFilter< TInputImage, TOutputPath >::GetClassName ( ) const

virtual

Run-time type information (and related methods).

Reimplemented in itk::ContourExtractor2DImageFilter< TInputImage >.

GetInput() [1/2]

template<class TInputImage , class TOutputPath >

const InputImageType* itk::ImageToPathFilter< TInputImage, TOutputPath >::GetInput

(

unsigned int

idx

)

Get the image input at a specific index.

GetInput() [2/2]

template<class TInputImage , class TOutputPath >

const InputImageType* itk::ImageToPathFilter< TInputImage, TOutputPath >::GetInput

(

void

)

Get the first image input.

itkStaticConstMacro()

template<class TInputImage , class TOutputPath >

itk::ImageToPathFilter< TInputImage, TOutputPath >::itkStaticConstMacro	(	InputImageDimension	,
		unsigned int	,
		TInputImage::ImageDimension
	)

ImageDimension constants

PrintSelf()

template<class TInputImage , class TOutputPath >

void itk::ImageToPathFilter< TInputImage, TOutputPath >::PrintSelf ( std::ostream &  os, Indent  indent  ) const

overrideprotected

SetInput() [1/2]

template<class TInputImage , class TOutputPath >

virtual void itk::ImageToPathFilter< TInputImage, TOutputPath >::SetInput ( const InputImageType *  image )

virtual

SetInput() [2/2]

template<class TInputImage , class TOutputPath >

virtual void itk::ImageToPathFilter< TInputImage, TOutputPath >::SetInput ( unsigned int  , const TInputImage *  image  )

virtual

Set the image input at a specific index.

---

The documentation for this class was generated from the following file:

• itkImageToPathFilter.h
