Iterates over an image using a variable image function, which threshold can be varied during the iteration process. More...

#include <itkAdaptiveThresholdIterator.h>

Inheritance diagram for itk::AdaptiveThresholdIterator< TImage, TFunction >:

[legend]

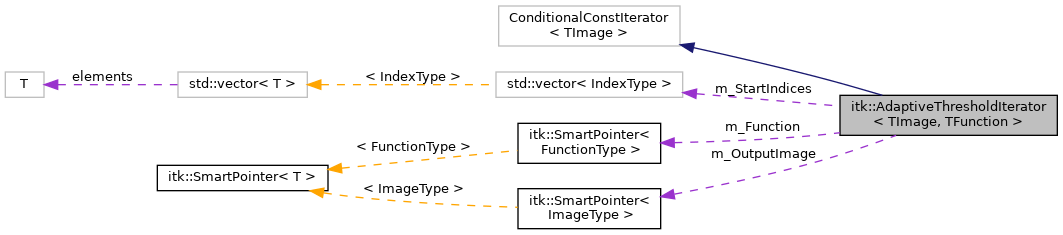

Collaboration diagram for itk::AdaptiveThresholdIterator< TImage, TFunction >:

[legend]

Public Types
typedef AdaptiveThresholdIterator	Self

typedef ConditionalConstIterator< TImage >	Superclass

typedef TImage	ImageType

typedef TImage	TTempImage

typedef TFunction	FunctionType

typedef TFunction::InputType	FunctionInputType

typedef TImage::SizeType	SizeType

typedef TImage::RegionType	RegionType

typedef TImage::IndexType	IndexType

typedef TImage::InternalPixelType	InternalPixelType

typedef TImage::PixelType	PixelType

typedef std::queue< IndexType >	IndexQueueType

typedef std::map< unsigned int, IndexQueueType >	QueueMapType

Public Member Functions
	itkStaticConstMacro (NDimensions, unsigned int, TImage::ImageDimension)

	AdaptiveThresholdIterator (ImageType imagePtr, FunctionType fnPtr, IndexType startIndex)

	AdaptiveThresholdIterator (ImageType imagePtr, FunctionType fnPtr, std::vector< IndexType > &startIndex)

	AdaptiveThresholdIterator (ImageType imagePtr, FunctionType fnPtr)

	~AdaptiveThresholdIterator () override
	Default Destructor. More...

void	InitializeIterator ()
	Initialize the iterator, called from constructor. More...

void	DoExtendedFloodStep ()
	Advance the iterator by one step of the extended flood fill. More...

void	SetExpansionDirection (bool upwards)
	Set the expansion direction for adaptive thresholding. More...

void	InitRegionGrowingState ()
	Initialize the region growing state machine. More...

void	SetMinTH (int min)
	Set the minimum threshold value. More...

void	SetMaxTH (int max)
	Set the maximum threshold value. More...

int	GetSeedPointValue (void)
	Get the pixel value at the seed point. More...

void	SetFineDetectionMode (bool fine=false)

const IndexType	GetIndex () override

const PixelType	Get (void) const override
	Get the pixel value at the current iterator position. More...

void	Set (const PixelType &value)
	Set the pixel value at the current iterator position. More...

void	GoToBegin ()
	Reset the iterator to the beginning. More...

bool	IsAtEnd () const override
	Check whether the iterator has reached the end of the region. More...

void	operator++ () override
	Walk forward one index by performing an extended flood step. More...

virtual SmartPointer< FunctionType >	GetFunction () const
	Get the function used for threshold evaluation. More...

Self &	operator= (const Self &it)

bool	IsPixelIncluded (const IndexType &index) const override
	Compute whether the pixel at the given index should be included in the flood fill. More...

int	GetLeakagePoint (void)
	Get the detected leakage point in the region growing state space. More...

Static Public Member Functions
static int	CalculateInitializeValue (int lower, int upper)
	Calculate the initialization value for the output image based on threshold range. More...

Public Attributes
TTempImage::Pointer	tempPtr

Protected Member Functions
void	ExpandThresholdUpwards ()
	Expand the threshold range upwards by one step. More...

void	ExpandThresholdDownwards ()
	Expand the threshold range downwards by one step. More...

void	IncrementRegionGrowingState ()
	Increment the region growing state counter. More...

int	EstimateDistance (IndexType)
	Estimate the distance (in expansion steps) of a voxel from the current state. More...

unsigned int	CalculateMaxRGS ()
	Calculate the maximum number of region growing expansion steps. More...

Protected Attributes
SmartPointer< ImageType >	m_OutputImage
	Pointer to the output image to which the result shall be written. More...

SmartPointer< FunctionType >	m_Function

std::vector< IndexType >	m_StartIndices

ImageType::PointType	m_ImageOrigin

ImageType::SpacingType	m_ImageSpacing

RegionType	m_ImageRegion

bool	m_UpwardsExpansion

int	m_InitializeValue

Detailed Description

template<class TImage, class TFunction>
class itk::AdaptiveThresholdIterator< TImage, TFunction >

Iterates over an image using a variable image function, which threshold can be varied during the iteration process.

Definition at line 34 of file itkAdaptiveThresholdIterator.h.

Member Typedef Documentation

◆ FunctionInputType

template<class TImage , class TFunction >

typedef TFunction::InputType itk::AdaptiveThresholdIterator< TImage, TFunction >::FunctionInputType

Type of vector used to store location info in the spatial function

Definition at line 54 of file itkAdaptiveThresholdIterator.h.

◆ FunctionType

template<class TImage , class TFunction >

typedef TFunction itk::AdaptiveThresholdIterator< TImage, TFunction >::FunctionType

Type of function

Definition at line 51 of file itkAdaptiveThresholdIterator.h.

◆ ImageType

template<class TImage , class TFunction >

typedef TImage itk::AdaptiveThresholdIterator< TImage, TFunction >::ImageType

Definition at line 42 of file itkAdaptiveThresholdIterator.h.

◆ IndexQueueType

template<class TImage , class TFunction >

typedef std::queue<IndexType> itk::AdaptiveThresholdIterator< TImage, TFunction >::IndexQueueType

Queue containing indices representing a voxel position

Definition at line 71 of file itkAdaptiveThresholdIterator.h.

◆ IndexType

template<class TImage , class TFunction >

typedef TImage::IndexType itk::AdaptiveThresholdIterator< TImage, TFunction >::IndexType

Definition at line 62 of file itkAdaptiveThresholdIterator.h.

◆ InternalPixelType

template<class TImage , class TFunction >

typedef TImage::InternalPixelType itk::AdaptiveThresholdIterator< TImage, TFunction >::InternalPixelType

Internal Pixel Type

Definition at line 65 of file itkAdaptiveThresholdIterator.h.

◆ PixelType

template<class TImage , class TFunction >

typedef TImage::PixelType itk::AdaptiveThresholdIterator< TImage, TFunction >::PixelType

External Pixel Type

Definition at line 68 of file itkAdaptiveThresholdIterator.h.

◆ QueueMapType

template<class TImage , class TFunction >

typedef std::map<unsigned int, IndexQueueType> itk::AdaptiveThresholdIterator< TImage, TFunction >::QueueMapType

Map used to generate the output result

Definition at line 74 of file itkAdaptiveThresholdIterator.h.

◆ RegionType

template<class TImage , class TFunction >

typedef TImage::RegionType itk::AdaptiveThresholdIterator< TImage, TFunction >::RegionType

Region typedef support

Definition at line 60 of file itkAdaptiveThresholdIterator.h.

◆ Self

template<class TImage , class TFunction >

typedef AdaptiveThresholdIterator itk::AdaptiveThresholdIterator< TImage, TFunction >::Self

Standard class typedefs.

Definition at line 38 of file itkAdaptiveThresholdIterator.h.

◆ SizeType

template<class TImage , class TFunction >

typedef TImage::SizeType itk::AdaptiveThresholdIterator< TImage, TFunction >::SizeType

Size typedef support.

Definition at line 57 of file itkAdaptiveThresholdIterator.h.

◆ Superclass

template<class TImage , class TFunction >

typedef ConditionalConstIterator<TImage> itk::AdaptiveThresholdIterator< TImage, TFunction >::Superclass

Definition at line 40 of file itkAdaptiveThresholdIterator.h.

◆ TTempImage

template<class TImage , class TFunction >

typedef TImage itk::AdaptiveThresholdIterator< TImage, TFunction >::TTempImage

Definition at line 45 of file itkAdaptiveThresholdIterator.h.

Constructor & Destructor Documentation

◆ AdaptiveThresholdIterator() [1/3]

template<class TImage , class TFunction >

itk::AdaptiveThresholdIterator< TImage, TFunction >::AdaptiveThresholdIterator	(	ImageType *	imagePtr,
		FunctionType *	fnPtr,
		IndexType	startIndex
	)

Constructor establishes an iterator to walk a particular image and a particular region of that image. This version of the constructor uses an explicit seed pixel for the flood fill, the "startIndex"

◆ AdaptiveThresholdIterator() [2/3]

template<class TImage , class TFunction >

itk::AdaptiveThresholdIterator< TImage, TFunction >::AdaptiveThresholdIterator	(	ImageType *	imagePtr,
		FunctionType *	fnPtr,
		std::vector< IndexType > &	startIndex
	)

Constructor establishes an iterator to walk a particular image and a particular region of that image. This version of the constructor uses an explicit list of seed pixels for the flood fill, the "startIndex"

◆ AdaptiveThresholdIterator() [3/3]

template<class TImage , class TFunction >

itk::AdaptiveThresholdIterator< TImage, TFunction >::AdaptiveThresholdIterator	(	ImageType *	imagePtr,
		FunctionType *	fnPtr
	)

Constructor establishes an iterator to walk a particular image and a particular region of that image. This version of the constructor should be used when the seed pixel is unknown

◆ ~AdaptiveThresholdIterator()

template<class TImage , class TFunction >

itk::AdaptiveThresholdIterator< TImage, TFunction >::~AdaptiveThresholdIterator ( )

inlineoverride

Default Destructor.

Definition at line 98 of file itkAdaptiveThresholdIterator.h.

Member Function Documentation

◆ CalculateInitializeValue()

template<class TImage , class TFunction >

static int itk::AdaptiveThresholdIterator< TImage, TFunction >::CalculateInitializeValue	(	int	lower,
		int	upper
	)

inlinestatic

Calculate the initialization value for the output image based on threshold range.

Parameters

lower	The lower threshold.
upper	The upper threshold.

Returns: The initialization value.

Definition at line 194 of file itkAdaptiveThresholdIterator.h.

◆ CalculateMaxRGS()

template<class TImage , class TFunction >

unsigned int itk::AdaptiveThresholdIterator< TImage, TFunction >::CalculateMaxRGS ( )

protected

Calculate the maximum number of region growing expansion steps.

◆ DoExtendedFloodStep()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::DoExtendedFloodStep ( )

Advance the iterator by one step of the extended flood fill.

◆ EstimateDistance()

template<class TImage , class TFunction >

int itk::AdaptiveThresholdIterator< TImage, TFunction >::EstimateDistance ( IndexType )

protected

Estimate the distance (in expansion steps) of a voxel from the current state.

◆ ExpandThresholdDownwards()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::ExpandThresholdDownwards ( )

protected

Expand the threshold range downwards by one step.

◆ ExpandThresholdUpwards()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::ExpandThresholdUpwards ( )

protected

Expand the threshold range upwards by one step.

◆ Get()

template<class TImage , class TFunction >

const PixelType itk::AdaptiveThresholdIterator< TImage, TFunction >::Get ( void ) const

inlineoverride

Get the pixel value at the current iterator position.

Definition at line 144 of file itkAdaptiveThresholdIterator.h.

◆ GetFunction()

template<class TImage , class TFunction >

virtual SmartPointer<FunctionType> itk::AdaptiveThresholdIterator< TImage, TFunction >::GetFunction ( ) const

inlinevirtual

Get the function used for threshold evaluation.

Definition at line 167 of file itkAdaptiveThresholdIterator.h.

◆ GetIndex()

template<class TImage , class TFunction >

const IndexType itk::AdaptiveThresholdIterator< TImage, TFunction >::GetIndex ( )

inlineoverride

Get the index. This provides a read only reference to the index. This causes the index to be calculated from pointer arithmetic and is therefore an expensive operation.

See also: SetIndex

Definition at line 138 of file itkAdaptiveThresholdIterator.h.

◆ GetLeakagePoint()

template<class TImage , class TFunction >

int itk::AdaptiveThresholdIterator< TImage, TFunction >::GetLeakagePoint ( void )

inline

Get the detected leakage point in the region growing state space.

Definition at line 197 of file itkAdaptiveThresholdIterator.h.

◆ GetSeedPointValue()

template<class TImage , class TFunction >

int itk::AdaptiveThresholdIterator< TImage, TFunction >::GetSeedPointValue ( void )

Get the pixel value at the seed point.

◆ GoToBegin()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::GoToBegin ( )

Reset the iterator to the beginning.

◆ IncrementRegionGrowingState()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::IncrementRegionGrowingState ( )

protected

Increment the region growing state counter.

◆ InitializeIterator()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::InitializeIterator ( )

Initialize the iterator, called from constructor.

◆ InitRegionGrowingState()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::InitRegionGrowingState ( )

Initialize the region growing state machine.

◆ IsAtEnd()

template<class TImage , class TFunction >

bool itk::AdaptiveThresholdIterator< TImage, TFunction >::IsAtEnd ( ) const

inlineoverride

Check whether the iterator has reached the end of the region.

Definition at line 161 of file itkAdaptiveThresholdIterator.h.

◆ IsPixelIncluded()

template<class TImage , class TFunction >

bool itk::AdaptiveThresholdIterator< TImage, TFunction >::IsPixelIncluded ( const IndexType & index ) const

override

Compute whether the pixel at the given index should be included in the flood fill.

◆ itkStaticConstMacro()

template<class TImage , class TFunction >

itk::AdaptiveThresholdIterator< TImage, TFunction >::itkStaticConstMacro	(	NDimensions	,
		unsigned int	,
		TImage::ImageDimension
	)

Dimension of the image the iterator walks. This constant is needed so that functions that are templated over image iterator type (as opposed to being templated over pixel type and dimension) can have compile time access to the dimension of the image that the iterator walks.

◆ operator++()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::operator++ ( )

inlineoverride

Walk forward one index by performing an extended flood step.

Definition at line 164 of file itkAdaptiveThresholdIterator.h.

◆ operator=()

template<class TImage , class TFunction >

Self& itk::AdaptiveThresholdIterator< TImage, TFunction >::operator= ( const Self & it )

inline

operator= is provided to make sure the handle to the image is properly reference counted.

Definition at line 170 of file itkAdaptiveThresholdIterator.h.

References itk::AdaptiveThresholdIterator< TImage, TFunction >::m_InitializeValue.

◆ Set()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::Set ( const PixelType & value )

inline

Set the pixel value at the current iterator position.

Definition at line 151 of file itkAdaptiveThresholdIterator.h.

◆ SetExpansionDirection()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::SetExpansionDirection ( bool upwards )

Set the expansion direction for adaptive thresholding.

Parameters

upwards If true, threshold expands upwards; otherwise downwards.

◆ SetFineDetectionMode()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::SetFineDetectionMode ( bool fine = false )

inline

switch between fine and raw leakage detection

Definition at line 128 of file itkAdaptiveThresholdIterator.h.

◆ SetMaxTH()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::SetMaxTH ( int max )

Set the maximum threshold value.

Parameters

max	The maximum threshold.

◆ SetMinTH()

template<class TImage , class TFunction >

void itk::AdaptiveThresholdIterator< TImage, TFunction >::SetMinTH ( int min )

Set the minimum threshold value.

Parameters

min	The minimum threshold.

Member Data Documentation

◆ m_Function

template<class TImage , class TFunction >

SmartPointer<FunctionType> itk::AdaptiveThresholdIterator< TImage, TFunction >::m_Function

protected

Definition at line 202 of file itkAdaptiveThresholdIterator.h.

◆ m_ImageOrigin

template<class TImage , class TFunction >

ImageType::PointType itk::AdaptiveThresholdIterator< TImage, TFunction >::m_ImageOrigin

protected

The origin of the source image

Definition at line 208 of file itkAdaptiveThresholdIterator.h.

◆ m_ImageRegion

template<class TImage , class TFunction >

RegionType itk::AdaptiveThresholdIterator< TImage, TFunction >::m_ImageRegion

protected

Region of the source image

Definition at line 214 of file itkAdaptiveThresholdIterator.h.

◆ m_ImageSpacing

template<class TImage , class TFunction >

ImageType::SpacingType itk::AdaptiveThresholdIterator< TImage, TFunction >::m_ImageSpacing

protected

The spacing of the source image

Definition at line 211 of file itkAdaptiveThresholdIterator.h.

◆ m_InitializeValue

template<class TImage , class TFunction >

int itk::AdaptiveThresholdIterator< TImage, TFunction >::m_InitializeValue

protected

Definition at line 218 of file itkAdaptiveThresholdIterator.h.

Referenced by itk::AdaptiveThresholdIterator< TImage, TFunction >::operator=().

◆ m_OutputImage

template<class TImage , class TFunction >

SmartPointer<ImageType> itk::AdaptiveThresholdIterator< TImage, TFunction >::m_OutputImage

protected

Pointer to the output image to which the result shall be written.

Definition at line 200 of file itkAdaptiveThresholdIterator.h.

◆ m_StartIndices

template<class TImage , class TFunction >

std::vector<IndexType> itk::AdaptiveThresholdIterator< TImage, TFunction >::m_StartIndices

protected

A list of locations to start the recursive fill

Definition at line 205 of file itkAdaptiveThresholdIterator.h.

◆ m_UpwardsExpansion

template<class TImage , class TFunction >

bool itk::AdaptiveThresholdIterator< TImage, TFunction >::m_UpwardsExpansion

protected

Definition at line 216 of file itkAdaptiveThresholdIterator.h.

◆ tempPtr

template<class TImage , class TFunction >

TTempImage::Pointer itk::AdaptiveThresholdIterator< TImage, TFunction >::tempPtr

Definition at line 47 of file itkAdaptiveThresholdIterator.h.

The documentation for this class was generated from the following file:

itkAdaptiveThresholdIterator.h

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

template<class TImage, class TFunction> class itk::AdaptiveThresholdIterator< TImage, TFunction >

Member Typedef Documentation

◆ FunctionInputType

◆ FunctionType

◆ ImageType

◆ IndexQueueType

◆ IndexType

◆ InternalPixelType

◆ PixelType

◆ QueueMapType

◆ RegionType

◆ Self

◆ SizeType

◆ Superclass

◆ TTempImage

Constructor & Destructor Documentation

◆ AdaptiveThresholdIterator() [1/3]

◆ AdaptiveThresholdIterator() [2/3]

◆ AdaptiveThresholdIterator() [3/3]

◆ ~AdaptiveThresholdIterator()

Member Function Documentation

◆ CalculateInitializeValue()

◆ CalculateMaxRGS()

◆ DoExtendedFloodStep()

◆ EstimateDistance()

◆ ExpandThresholdDownwards()

◆ ExpandThresholdUpwards()

◆ Get()

◆ GetFunction()

◆ GetIndex()

◆ GetLeakagePoint()

◆ GetSeedPointValue()

◆ GoToBegin()

◆ IncrementRegionGrowingState()

◆ InitializeIterator()

◆ InitRegionGrowingState()

◆ IsAtEnd()

◆ IsPixelIncluded()

◆ itkStaticConstMacro()

◆ operator++()

◆ operator=()

◆ Set()

◆ SetExpansionDirection()

◆ SetFineDetectionMode()

◆ SetMaxTH()

◆ SetMinTH()

Member Data Documentation

◆ m_Function

◆ m_ImageOrigin

◆ m_ImageRegion

◆ m_ImageSpacing

◆ m_InitializeValue

◆ m_OutputImage

◆ m_StartIndices

◆ m_UpwardsExpansion

◆ tempPtr

template<class TImage, class TFunction>
class itk::AdaptiveThresholdIterator< TImage, TFunction >
