Displays 3-channel video data as the background layer of vtkRenderWindows. More...

#include <QmitkVideoBackground.h>

Inheritance diagram for QmitkVideoBackground:

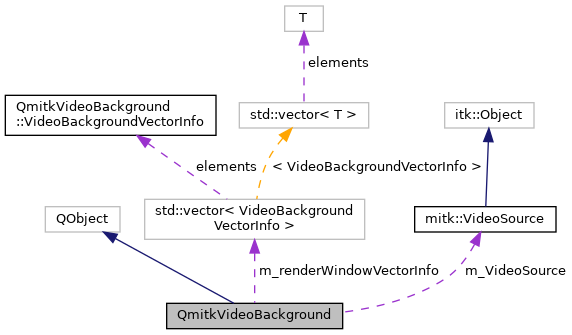

Collaboration diagram for QmitkVideoBackground:

[legend]

Classes
struct	VideoBackgroundVectorInfo

Public Slots
void	UpdateVideo ()
	Fetch a new video frame and update all registered render windows. More...

Signals
void	NewFrameAvailable (mitk::VideoSource *videoSource)
	Emitted after all render windows have been updated with a new frame. More...

void	EndOfVideoSourceReached (mitk::VideoSource *videoSource)
	Emitted when the video source reaches the end of its stream. More...

Public Member Functions
	QmitkVideoBackground (QObject *parent=nullptr)
	Construct a video background with no video source. More...

	QmitkVideoBackground (mitk::VideoSource *v, int TimerDelay=25)
	Construct a video background with the given video source. More...

	~QmitkVideoBackground () override
	Destructor. Disables all video backgrounds. More...

void	AddRenderWindow (vtkRenderWindow *renderWindow)
	Add a render window in which the video is displayed. More...

void	RemoveRenderWindow (vtkRenderWindow *renderWindow)
	Remove a render window and disable video background in it. More...

bool	IsRenderWindowIncluded (vtkRenderWindow *renderWindow)
	Check whether a render window is currently registered. More...

void	SetTimerDelay (int ms)
	Set the video refresh interval. More...

void	Enable ()
	Enable video background visualization and start the update timer. More...

void	Disable ()
	Disable video background visualization and stop the update timer. More...

bool	IsEnabled ()
	Check whether the video background is currently enabled. More...

mitk::VideoSource *	GetVideoSource ()
	Get the attached video source. More...

int	GetTimerDelay ()
	Get the current timer delay. More...

void	Pause ()
	Pause the video playback by stopping the update timer. More...

void	Resume ()
	Resume the video playback by restarting the update timer. More...

void	SetVideoSource (mitk::VideoSource *videoSource)
	Set a new video source. More...

void	OnVideoSourceDelete (const itk::Object *caller, const itk::EventObject &event)
	ITK observer callback for video source deletion events. More...

Static Public Member Functions
static void	OnRenderWindowDelete (vtkObject object, unsigned long eid, void clientdata, void *)
	Static VTK callback for render window deletion events. More...

Protected Types
typedef std::vector< VideoBackgroundVectorInfo >	RenderWindowVectorInfoType

Protected Member Functions
void	RemoveRenderWindow (vtkRenderWindow *renderWindow, bool removeObserver)

void	ResetVideoBackground ()

void	Modified ()

Protected Attributes
RenderWindowVectorInfoType	m_renderWindowVectorInfo

QTimer *	m_QTimer

mitk::VideoSource *	m_VideoSource

unsigned long	m_VideoSourceObserverTag

Detailed Description

Displays 3-channel video data as the background layer of vtkRenderWindows.

The video frames are provided by a mitk::VideoSource via GetVideoTexture(). A QTimer periodically fetches frames and updates all registered render windows.

Note: The texture data is not copied; the caller must ensure the pointer returned by GetVideoTexture() remains valid. Image dimensions must be set correctly on the video source before enabling the background.

See also: mitk::VideoSource

Definition at line 45 of file QmitkVideoBackground.h.

Member Typedef Documentation

◆ RenderWindowVectorInfoType

typedef std::vector<VideoBackgroundVectorInfo> QmitkVideoBackground::RenderWindowVectorInfoType

protected

the class has to store a list of renderwindows

Definition at line 208 of file QmitkVideoBackground.h.

Constructor & Destructor Documentation

◆ QmitkVideoBackground() [1/2]

QmitkVideoBackground::QmitkVideoBackground ( QObject * parent = nullptr )

explicit

Construct a video background with no video source.

You must call SetVideoSource() and AddRenderWindow() before enabling.

Parameters

[in] parent The parent QObject.

◆ QmitkVideoBackground() [2/2]

QmitkVideoBackground::QmitkVideoBackground	(	mitk::VideoSource *	v,
		int	TimerDelay = `25`
	)

explicit

Construct a video background with the given video source.

No parent is set; call setParent() or delete manually. You must call AddRenderWindow() before enabling.

Parameters

[in]	v	The video source providing frames.
[in]	TimerDelay	Refresh interval in milliseconds (default 25 ms = 40 Hz).

◆ ~QmitkVideoBackground()

QmitkVideoBackground::~QmitkVideoBackground ( )

override

Destructor. Disables all video backgrounds.

Member Function Documentation

◆ AddRenderWindow()

void QmitkVideoBackground::AddRenderWindow ( vtkRenderWindow * renderWindow )

Add a render window in which the video is displayed.

Must be called before Enable(). If the render window was previously added, it will be re-inserted. If the video source has no image width yet, FetchFrame() will be called to obtain the first frame dimensions.

Parameters

[in] renderWindow The VTK render window to show video in.

◆ Disable()

void QmitkVideoBackground::Disable ( )

Disable video background visualization and stop the update timer.

◆ Enable()

void QmitkVideoBackground::Enable ( )

Enable video background visualization and start the update timer.

Precondition: A video source and at least one render window must be set.

◆ EndOfVideoSourceReached

void QmitkVideoBackground::EndOfVideoSourceReached ( mitk::VideoSource * videoSource )

signal

Emitted when the video source reaches the end of its stream.

Parameters

[in] videoSource The video source that ended.

◆ GetTimerDelay()

int QmitkVideoBackground::GetTimerDelay ( )

Get the current timer delay.

Returns: The timer interval in milliseconds.

◆ GetVideoSource()

mitk::VideoSource* QmitkVideoBackground::GetVideoSource ( )

Get the attached video source.

Returns: Pointer to the mitk::VideoSource, or nullptr.

◆ IsEnabled()

bool QmitkVideoBackground::IsEnabled ( )

Check whether the video background is currently enabled.

Returns: True if the update timer is running.

◆ IsRenderWindowIncluded()

bool QmitkVideoBackground::IsRenderWindowIncluded ( vtkRenderWindow * renderWindow )

Check whether a render window is currently registered.

Parameters

[in] renderWindow The VTK render window to check.

Returns: True if the render window is registered.

◆ Modified()

void QmitkVideoBackground::Modified ( )

protected

inits all renderwindows with default values, called before video rendering is started

◆ NewFrameAvailable

void QmitkVideoBackground::NewFrameAvailable ( mitk::VideoSource * videoSource )

signal

Emitted after all render windows have been updated with a new frame.

Parameters

[in] videoSource The video source that provided the frame.

◆ OnRenderWindowDelete()

static void QmitkVideoBackground::OnRenderWindowDelete	(	vtkObject *	object,
		unsigned long	eid,
		void *	clientdata,
		void *
	)

static

Static VTK callback for render window deletion events.

Parameters

[in]	object	The deleted VTK render window.
[in]	eid	The event ID.
[in]	clientdata	Pointer to this QmitkVideoBackground instance.

◆ OnVideoSourceDelete()

void QmitkVideoBackground::OnVideoSourceDelete	(	const itk::Object *	caller,
		const itk::EventObject &	event
	)

ITK observer callback for video source deletion events.

Parameters

[in]	caller	The deleted video source.
[in]	event	The ITK event object.

◆ Pause()

void QmitkVideoBackground::Pause ( )

Pause the video playback by stopping the update timer.

◆ RemoveRenderWindow() [1/2]

void QmitkVideoBackground::RemoveRenderWindow ( vtkRenderWindow * renderWindow )

Remove a render window and disable video background in it.

Parameters

[in] renderWindow The VTK render window to remove.

◆ RemoveRenderWindow() [2/2]

void QmitkVideoBackground::RemoveRenderWindow	(	vtkRenderWindow *	renderWindow,
		bool	removeObserver
	)

protected

removes the renderwindow and also removes the observer if the flag is set

◆ ResetVideoBackground()

void QmitkVideoBackground::ResetVideoBackground ( )

protected

reset all video backgrounds

◆ Resume()

void QmitkVideoBackground::Resume ( )

Resume the video playback by restarting the update timer.

◆ SetTimerDelay()

void QmitkVideoBackground::SetTimerDelay ( int ms )

Set the video refresh interval.

Parameters

[in] ms Timer interval in milliseconds (default 25).

◆ SetVideoSource()

void QmitkVideoBackground::SetVideoSource ( mitk::VideoSource * videoSource )

Set a new video source.

If a previous source was set, its observer is removed. If the background was enabled, it will be stopped.

Parameters

[in] videoSource The new video source, or nullptr to clear.

◆ UpdateVideo

void QmitkVideoBackground::UpdateVideo ( )

slot

Fetch a new video frame and update all registered render windows.

Member Data Documentation

◆ m_QTimer

QTimer* QmitkVideoBackground::m_QTimer

protected

calls updatevideo repeateadly for framegrabbing

Definition at line 219 of file QmitkVideoBackground.h.

◆ m_renderWindowVectorInfo

RenderWindowVectorInfoType QmitkVideoBackground::m_renderWindowVectorInfo

protected

a list of renderwindows and associated renderers and actors and imageimporters

Definition at line 214 of file QmitkVideoBackground.h.

◆ m_VideoSource

mitk::VideoSource* QmitkVideoBackground::m_VideoSource

protected

must implement GetVideoTexture() correctly (must return an OpenGL texture)

Definition at line 224 of file QmitkVideoBackground.h.

◆ m_VideoSourceObserverTag

unsigned long QmitkVideoBackground::m_VideoSourceObserverTag

protected

the observer tag for the video source

Definition at line 229 of file QmitkVideoBackground.h.

The documentation for this class was generated from the following file:

QmitkVideoBackground.h
