Widget for viewing and editing the barrier constraints of a SimpleBarrierConstraintChecker. More...

#include <QmitkSimpleBarrierManagerWidget.h>

Inheritance diagram for QmitkSimpleBarrierManagerWidget:

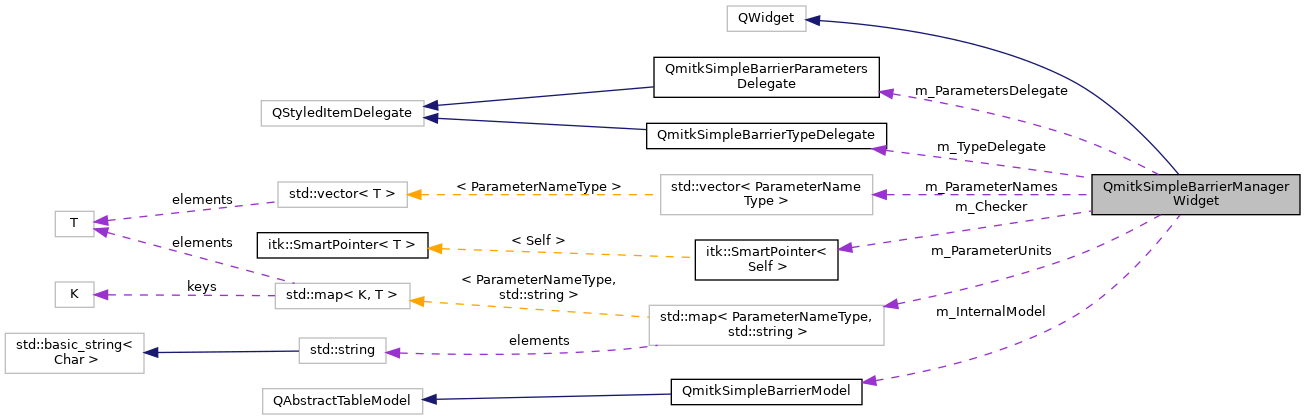

Collaboration diagram for QmitkSimpleBarrierManagerWidget:

[legend]

Public Slots
void	setChecker (mitk::SimpleBarrierConstraintChecker *pChecker, const mitk::ModelTraitsInterface::ParameterNamesType &names, const mitk::ModelTraitsInterface::ParamterUnitMapType &units)
	Sets the constraint checker and parameter metadata to manage. More...

Signals
void	ConstraintChanged (mitk::SimpleBarrierConstraintChecker::Constraint constraint)
	Emitted when a constraint is changed. More...

Public Member Functions
	QmitkSimpleBarrierManagerWidget (QWidget *parent=nullptr)
	Constructs a QmitkSimpleBarrierManagerWidget. More...

	~QmitkSimpleBarrierManagerWidget () override
	Destructor. Deletes the internal model and delegates. More...

Protected Slots
void	OnShowContextMenuIsoSet (const QPoint &pos)
	Shows a context menu with options to add or delete constraints. More...

void	OnAddConstraint (bool checked)
	Adds a new default constraint to the checker. More...

void	OnDelConstraint (bool checked)
	Deletes the currently selected constraint from the checker. More...

Protected Member Functions
void	update ()
	Updates the widget according to its current settings. More...

Protected Attributes
mitk::SimpleBarrierConstraintChecker::Pointer	m_Checker

mitk::ModelTraitsInterface::ParameterNamesType	m_ParameterNames

mitk::ModelTraitsInterface::ParamterUnitMapType	m_ParameterUnits

QmitkSimpleBarrierModel *	m_InternalModel

QmitkSimpleBarrierTypeDelegate *	m_TypeDelegate

QmitkSimpleBarrierParametersDelegate *	m_ParametersDelegate

bool	m_InternalUpdate

std::unique_ptr< Ui::QmitkSimpleBarrierManagerWidget >	m_Controls

Detailed Description

Widget for viewing and editing the barrier constraints of a SimpleBarrierConstraintChecker.

This widget presents the constraints of a mitk::SimpleBarrierConstraintChecker in a table view. Users can add and remove constraints via buttons or a context menu. Each constraint row shows the affected parameters, constraint type (upper/lower), barrier value, and penalty zone width. Editing is handled through dedicated delegates for parameter selection and type selection.

See also: QmitkSimpleBarrierModel; QmitkSimpleBarrierTypeDelegate; QmitkSimpleBarrierParametersDelegate; mitk::SimpleBarrierConstraintChecker

Definition at line 48 of file QmitkSimpleBarrierManagerWidget.h.

Constructor & Destructor Documentation

◆ QmitkSimpleBarrierManagerWidget()

QmitkSimpleBarrierManagerWidget::QmitkSimpleBarrierManagerWidget ( QWidget * parent = nullptr )

Constructs a QmitkSimpleBarrierManagerWidget.

Parameters

[in] parent Optional parent widget.

◆ ~QmitkSimpleBarrierManagerWidget()

QmitkSimpleBarrierManagerWidget::~QmitkSimpleBarrierManagerWidget ( )

override

Destructor. Deletes the internal model and delegates.

Member Function Documentation

◆ ConstraintChanged

void QmitkSimpleBarrierManagerWidget::ConstraintChanged ( mitk::SimpleBarrierConstraintChecker::Constraint constraint )

signal

Emitted when a constraint is changed.

Parameters

[in] constraint The modified constraint.

◆ OnAddConstraint

void QmitkSimpleBarrierManagerWidget::OnAddConstraint ( bool checked )

protectedslot

Adds a new default constraint to the checker.

Parameters

[in] checked The checked state of the triggering action (unused).

◆ OnDelConstraint

void QmitkSimpleBarrierManagerWidget::OnDelConstraint ( bool checked )

protectedslot

Deletes the currently selected constraint from the checker.

If no index is selected, attempts to delete the constraint at position (1,1).

Parameters

[in] checked The checked state of the triggering action (unused).

◆ OnShowContextMenuIsoSet

void QmitkSimpleBarrierManagerWidget::OnShowContextMenuIsoSet ( const QPoint & pos )

protectedslot

Shows a context menu with options to add or delete constraints.

Parameters

[in] pos The position in widget coordinates where the menu was requested.

◆ setChecker

void QmitkSimpleBarrierManagerWidget::setChecker	(	mitk::SimpleBarrierConstraintChecker *	pChecker,
		const mitk::ModelTraitsInterface::ParameterNamesType &	names,
		const mitk::ModelTraitsInterface::ParamterUnitMapType &	units
	)

slot

Sets the constraint checker and parameter metadata to manage.

Configures the internal model with the provided checker, parameter names, and units. The modified flag is reset.

Parameters

[in]	pChecker	Pointer to the SimpleBarrierConstraintChecker to manage. If nullptr, a new empty checker is created internally.
[in]	names	List of all parameter names. The index corresponds to the parameter index in the fitting model.
[in]	units	Map of parameter names to their unit strings.
