QmitkLevelWindowPresetDefinitionDialog Class Reference

Dialog for defining and managing level/window presets. More...

#include <QmitkLevelWindowPresetDefinitionDialog.h>

Inheritance diagram for QmitkLevelWindowPresetDefinitionDialog:

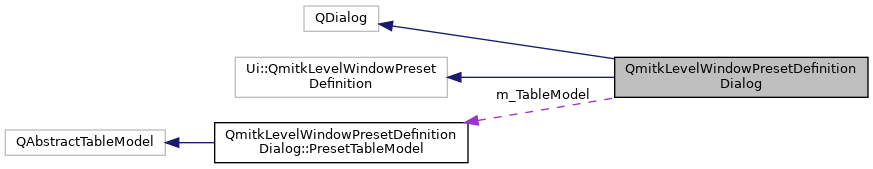

Collaboration diagram for QmitkLevelWindowPresetDefinitionDialog:

Classes
class	PresetTableModel

Public Member Functions
	QmitkLevelWindowPresetDefinitionDialog (QWidget *parent=nullptr, Qt::WindowFlags f={})
	Construct the preset definition dialog. More...
	~QmitkLevelWindowPresetDefinitionDialog () override
void	setPresets (std::map< std::string, double > &level, std::map< std::string, double > &window, QString initLevel, QString initWindow)
	Initialize the dialog with existing presets and default values. More...
std::map< std::string, double >	getLevelPresets ()
	Get the edited level presets. More...
std::map< std::string, double >	getWindowPresets ()
	Get the edited window presets. More...

Protected Slots
void	addPreset ()
void	removePreset ()
void	changePreset ()
void	ListViewSelectionChanged (const QItemSelection &, const QItemSelection &)
void	sortPresets (int index)

Protected Member Functions
void	resizeEvent (QResizeEvent *event) override
void	showEvent (QShowEvent *event) override
void	resizeColumns ()

Protected Attributes
std::unique_ptr< Ui::QmitkLevelWindowPresetDefinition >	m_Controls
PresetTableModel *	m_TableModel
QSortFilterProxyModel	m_SortModel

Detailed Description

Dialog for defining and managing level/window presets.

Provides a table-based UI for adding, removing, and editing named level/window presets. Presets can be sorted by name, level, or window value.

See also

QmitkLevelWindowWidgetContextMenu, QmitkLevelWindowRangeChangeDialog

Definition at line 38 of file QmitkLevelWindowPresetDefinitionDialog.h.

Constructor & Destructor Documentation

QmitkLevelWindowPresetDefinitionDialog()

QmitkLevelWindowPresetDefinitionDialog::QmitkLevelWindowPresetDefinitionDialog	(	QWidget *	parent = nullptr,
		Qt::WindowFlags	f = {}
	)

Construct the preset definition dialog.

Parameters

[in]	parent	Parent widget.
[in]	f	Window flags.

~QmitkLevelWindowPresetDefinitionDialog()

QmitkLevelWindowPresetDefinitionDialog::~QmitkLevelWindowPresetDefinitionDialog ( )

override

Member Function Documentation

addPreset

void QmitkLevelWindowPresetDefinitionDialog::addPreset ( )

protectedslot

changePreset

void QmitkLevelWindowPresetDefinitionDialog::changePreset ( )

protectedslot

getLevelPresets()

std::map<std::string, double> QmitkLevelWindowPresetDefinitionDialog::getLevelPresets

(

)

Get the edited level presets.

Returns

Map of preset names to level values.

getWindowPresets()

std::map<std::string, double> QmitkLevelWindowPresetDefinitionDialog::getWindowPresets

(

)

Get the edited window presets.

Returns

Map of preset names to window values.

ListViewSelectionChanged

void QmitkLevelWindowPresetDefinitionDialog::ListViewSelectionChanged ( const QItemSelection &  , const QItemSelection &    )

protectedslot

removePreset

void QmitkLevelWindowPresetDefinitionDialog::removePreset ( )

protectedslot

resizeColumns()

void QmitkLevelWindowPresetDefinitionDialog::resizeColumns ( )

protected

resizeEvent()

void QmitkLevelWindowPresetDefinitionDialog::resizeEvent ( QResizeEvent *  event )

overrideprotected

setPresets()

void QmitkLevelWindowPresetDefinitionDialog::setPresets	(	std::map< std::string, double > &	level,
		std::map< std::string, double > &	window,
		QString	initLevel,
		QString	initWindow
	)

Initialize the dialog with existing presets and default values.

Parameters

[in]	level	Map of preset names to level values.
[in]	window	Map of preset names to window values.
[in]	initLevel	Default level value shown in the input field.
[in]	initWindow	Default window value shown in the input field.

showEvent()

void QmitkLevelWindowPresetDefinitionDialog::showEvent ( QShowEvent *  event )

overrideprotected

sortPresets

void QmitkLevelWindowPresetDefinitionDialog::sortPresets ( int  index )

protectedslot

Member Data Documentation

m_Controls

std::unique_ptr<Ui::QmitkLevelWindowPresetDefinition> QmitkLevelWindowPresetDefinitionDialog::m_Controls

protected

Definition at line 123 of file QmitkLevelWindowPresetDefinitionDialog.h.

m_SortModel

QSortFilterProxyModel QmitkLevelWindowPresetDefinitionDialog::m_SortModel

protected

Definition at line 125 of file QmitkLevelWindowPresetDefinitionDialog.h.

m_TableModel

PresetTableModel* QmitkLevelWindowPresetDefinitionDialog::m_TableModel

protected

Definition at line 124 of file QmitkLevelWindowPresetDefinitionDialog.h.

---

The documentation for this class was generated from the following file:

• QmitkLevelWindowPresetDefinitionDialog.h
