QmitkDataStorageFilterProxyModel Class Reference

A QSortFilterProxyModel that hides data nodes matching one or more predicates. More...

#include <QmitkDataStorageFilterProxyModel.h>

Inheritance diagram for QmitkDataStorageFilterProxyModel:

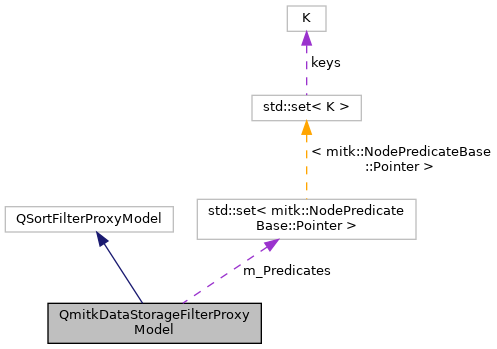

Collaboration diagram for QmitkDataStorageFilterProxyModel:

Public Member Functions
	QmitkDataStorageFilterProxyModel (QObject *parent=nullptr)
	Constructs the filter proxy model. More...
	~QmitkDataStorageFilterProxyModel () override
void	AddFilterPredicate (mitk::NodePredicateBase::Pointer pred)
	Adds a filter predicate. Nodes matching this predicate will be hidden. More...
bool	RemoveFilterPredicate (mitk::NodePredicateBase::Pointer pred)
	Removes a filter predicate from the filter list. More...
bool	HasFilterPredicate (mitk::NodePredicateBase::Pointer pred)
	Checks whether a predicate is currently in the filter list. More...

Protected Types
typedef std::set< mitk::NodePredicateBase::Pointer >	FilterPredicatesCollection

Protected Member Functions
bool	filterAcceptsRow (int source_row, const QModelIndex &source_parent) const override

Protected Attributes
FilterPredicatesCollection	m_Predicates

Detailed Description

A QSortFilterProxyModel that hides data nodes matching one or more predicates.

This proxy model filters rows from a source model (typically a DataStorage-backed model) by evaluating a set of mitk::NodePredicateBase instances. If any predicate returns true for a given data node, the corresponding row is hidden.

See also

QmitkAbstractDataStorageModel

QmitkDataStorageTreeModel

Definition at line 36 of file QmitkDataStorageFilterProxyModel.h.

Member Typedef Documentation

FilterPredicatesCollection

typedef std::set<mitk::NodePredicateBase::Pointer> QmitkDataStorageFilterProxyModel::FilterPredicatesCollection

protected

Definition at line 72 of file QmitkDataStorageFilterProxyModel.h.

Constructor & Destructor Documentation

QmitkDataStorageFilterProxyModel()

QmitkDataStorageFilterProxyModel::QmitkDataStorageFilterProxyModel

(

QObject *

parent = nullptr

)

Constructs the filter proxy model.

Parameters

[in]

parent

Optional parent QObject.

~QmitkDataStorageFilterProxyModel()

QmitkDataStorageFilterProxyModel::~QmitkDataStorageFilterProxyModel ( )

override

Member Function Documentation

AddFilterPredicate()

void QmitkDataStorageFilterProxyModel::AddFilterPredicate

(

mitk::NodePredicateBase::Pointer

pred

)

Adds a filter predicate. Nodes matching this predicate will be hidden.

Parameters

[in]

pred

The predicate to add.

filterAcceptsRow()

bool QmitkDataStorageFilterProxyModel::filterAcceptsRow ( int  source_row, const QModelIndex &  source_parent  ) const

overrideprotected

HasFilterPredicate()

bool QmitkDataStorageFilterProxyModel::HasFilterPredicate

(

mitk::NodePredicateBase::Pointer

pred

)

Checks whether a predicate is currently in the filter list.

Parameters

[in]

pred

The predicate to check for.

Returns

True if the predicate is present, false otherwise.

RemoveFilterPredicate()

bool QmitkDataStorageFilterProxyModel::RemoveFilterPredicate

(

mitk::NodePredicateBase::Pointer

pred

)

Removes a filter predicate from the filter list.

Parameters

[in]

pred

The predicate to remove.

Returns

True if the predicate was found and removed, false otherwise.

Member Data Documentation

m_Predicates

FilterPredicatesCollection QmitkDataStorageFilterProxyModel::m_Predicates

protected

Definition at line 73 of file QmitkDataStorageFilterProxyModel.h.

---

The documentation for this class was generated from the following file:

• QmitkDataStorageFilterProxyModel.h
