Virtual interface and base class for all Time-of-Flight device factories. The basic interface is in the base class: IToFDeviceFactory. This AbstractToFDeviceFactory implements some generic function which are useful for every device and not specific. More...

#include <mitkAbstractToFDeviceFactory.h>

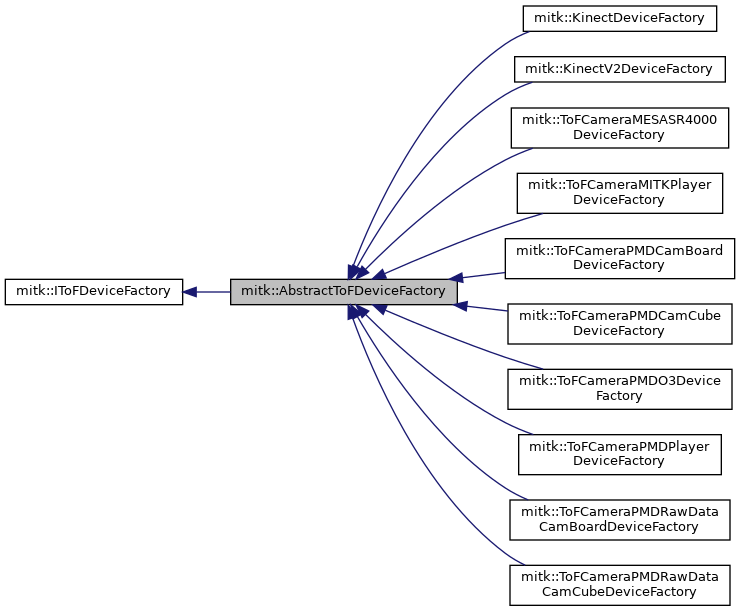

Inheritance diagram for mitk::AbstractToFDeviceFactory:

[legend]

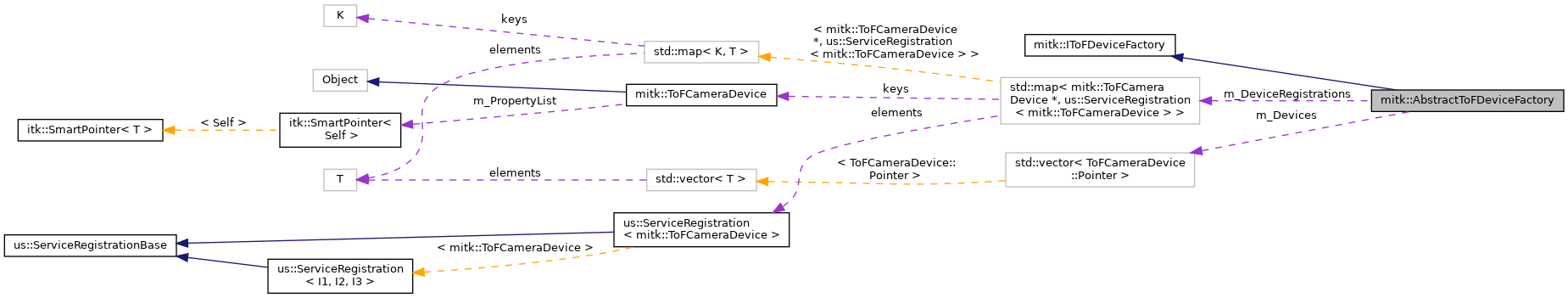

Collaboration diagram for mitk::AbstractToFDeviceFactory:

[legend]

Public Member Functions
ToFCameraDevice::Pointer	ConnectToFDevice ()
	ConnectToFDevice Use this method to connect a device. More...

void	DisconnectToFDevice (const ToFCameraDevice::Pointer &device)
	DisconnectToFDevice Use this method to disconnect a device. More...

vcl_size_t	GetNumberOfDevices ()
	GetNumberOfDevices Get the number of devices produced by this factory. This function will return the number of registered devices to account for created and disconnected devices. More...

std::string	GetCurrentDeviceName () override
	GetCurrentDeviceName Get the human readable name of the current device. A factory can produce many device and give ordered names for each device (e.g. number them like Device_1, Device_2, etc.). More...

Public Member Functions inherited from mitk::IToFDeviceFactory
virtual	~IToFDeviceFactory ()

virtual std::string	GetFactoryName ()=0
	GetFactoryName Get the human readable name of the factory. More...

virtual std::string	GetDeviceNamePrefix ()=0

virtual ToFCameraDevice::Pointer	CreateToFCameraDevice ()=0
	CreateToFCameraDevice Create a new device of the respective factory. E.g. a "KinectFactory" creates a KinectDevice. More...

Protected Member Functions
CameraIntrinsics::Pointer	GetCameraIntrinsics ()
	Returns the CameraIntrinsics for the cameras created by this factory. More...

virtual us::ModuleResource	GetIntrinsicsResource ()
	Returns the ModuleResource that contains a xml definition of the CameraIntrinsics. More...

Protected Attributes
std::vector< ToFCameraDevice::Pointer >	m_Devices
	m_Devices A list (vector) containing all connected devices of the respective factory. More...

std::map< ToFCameraDevice *, us::ServiceRegistration< ToFCameraDevice > >	m_DeviceRegistrations
	m_DeviceRegistrations A map containing all the pairs of device registration numbers and devices. More...

Detailed Description

Virtual interface and base class for all Time-of-Flight device factories. The basic interface is in the base class: IToFDeviceFactory. This AbstractToFDeviceFactory implements some generic function which are useful for every device and not specific.

Definition at line 32 of file mitkAbstractToFDeviceFactory.h.

Member Function Documentation

◆ ConnectToFDevice()

mitk::ToFCameraDevice::Pointer mitk::AbstractToFDeviceFactory::ConnectToFDevice ( )

ConnectToFDevice Use this method to connect a device.

Returns: A ToFCameraDevice.

Definition at line 24 of file mitkAbstractToFDeviceFactory.cpp.

References mitk::IToFDeviceFactory::CreateToFCameraDevice(), GetCameraIntrinsics(), GetCurrentDeviceName(), us::GetModuleContext(), m_DeviceRegistrations, m_Devices, and mitk::CameraIntrinsicsProperty::New().

◆ DisconnectToFDevice()

void mitk::AbstractToFDeviceFactory::DisconnectToFDevice ( const ToFCameraDevice::Pointer & device )

DisconnectToFDevice Use this method to disconnect a device.

Parameters

device The device you want to disconnect.

Definition at line 38 of file mitkAbstractToFDeviceFactory.cpp.

References m_DeviceRegistrations, and m_Devices.

◆ GetCameraIntrinsics()

mitk::CameraIntrinsics::Pointer mitk::AbstractToFDeviceFactory::GetCameraIntrinsics ( )

protected

Returns the CameraIntrinsics for the cameras created by this factory.

This Method calls the virtual method GetIntrinsicsResource() to retrieve the necessary data. Override getIntrinsicsResource in your subclasses, also see the documentation of GetIntrinsicsResource

Definition at line 54 of file mitkAbstractToFDeviceFactory.cpp.

References GetIntrinsicsResource(), us::ModuleResource::GetName(), us::ModuleResource::IsValid(), MITK_WARN, and mitk::CameraIntrinsics::New().

Referenced by ConnectToFDevice().

◆ GetCurrentDeviceName()

std::string mitk::AbstractToFDeviceFactory::GetCurrentDeviceName ( )

inlineoverridevirtual

GetCurrentDeviceName Get the human readable name of the current device. A factory can produce many device and give ordered names for each device (e.g. number them like Device_1, Device_2, etc.).

Returns: The human readable name of the current device as string.

Implements mitk::IToFDeviceFactory.

Definition at line 56 of file mitkAbstractToFDeviceFactory.h.

Referenced by ConnectToFDevice().

◆ GetIntrinsicsResource()

us::ModuleResource mitk::AbstractToFDeviceFactory::GetIntrinsicsResource ( )

protectedvirtual

Returns the ModuleResource that contains a xml definition of the CameraIntrinsics.

The default implementation returns a default calibration. In subclasses, you can override this method to return a different xml resource. See this implementation for an example.

Definition at line 77 of file mitkAbstractToFDeviceFactory.cpp.

References ModuleContext::GetModule(), us::GetModuleContext(), us::Module::GetResource(), and MITK_WARN.

Referenced by GetCameraIntrinsics().

◆ GetNumberOfDevices()

vcl_size_t mitk::AbstractToFDeviceFactory::GetNumberOfDevices ( )

GetNumberOfDevices Get the number of devices produced by this factory. This function will return the number of registered devices to account for created and disconnected devices.
