QmitkDataManagerPreferencePage Struct Reference

#include <QmitkDataManagerPreferencePage.h>

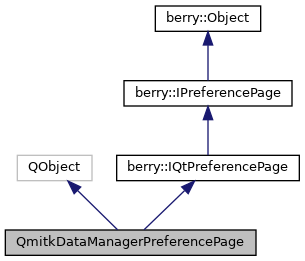

Inheritance diagram for QmitkDataManagerPreferencePage:

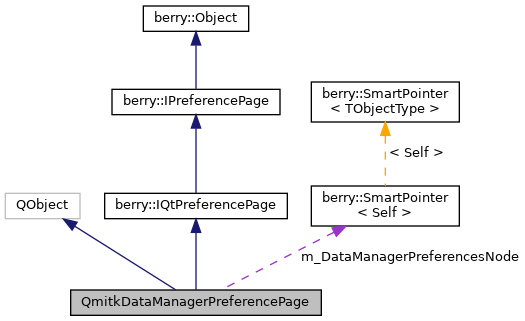

Collaboration diagram for QmitkDataManagerPreferencePage:

Public Member Functions
	QmitkDataManagerPreferencePage ()
void	Init (berry::IWorkbench::Pointer workbench) override
void	CreateQtControl (QWidget *widget) override
QWidget *	GetQtControl () const override
bool	PerformOk () override
void	PerformCancel () override
void	Update () override
Public Member Functions inherited from berry::IQtPreferencePage
	berryObjectMacro (berry::IQtPreferencePage)
Public Member Functions inherited from berry::IPreferencePage
	berryObjectMacro (berry::IPreferencePage)
	~IPreferencePage () override
Public Member Functions inherited from berry::Object
virtual QString	GetClassName () const
virtual Reflection::TypeInfo	GetTypeInfo () const
virtual QList< Reflection::TypeInfo >	GetSuperclasses () const
virtual void	Delete ()
QDebug	Print (QDebug os, Indent Indent=0) const
virtual QString	ToString () const
virtual uint	HashCode () const
virtual bool	operator< (const Object *) const
void	Register () const
void	UnRegister (bool del=true) const
int	GetReferenceCount () const
void	SetReferenceCount (int)
void	AddDestroyListener (const MessageAbstractDelegate<> &delegate) const
void	RemoveDestroyListener (const MessageAbstractDelegate<> &delegate) const
virtual bool	operator== (const Object *) const

Protected Attributes
QWidget *	m_MainControl
QCheckBox *	m_EnableSingleEditing
QCheckBox *	m_PlaceNewNodesOnTop
QCheckBox *	m_ShowHelperObjects
QCheckBox *	m_ShowNodesContainingNoData
QCheckBox *	m_UseSurfaceDecimation
QCheckBox *	m_AllowParentChange
berry::IPreferences::Pointer	m_DataManagerPreferencesNode
Protected Attributes inherited from berry::Object
QAtomicInt	m_ReferenceCount
QMutex	m_ReferenceCountLock

Additional Inherited Members
Public Types inherited from berry::Object
typedef Object	Self
typedef berry::SmartPointer< Self >	Pointer
typedef berry::SmartPointer< const Self >	ConstPointer
typedef berry::WeakPointer< Self >	WeakPtr
typedef berry::WeakPointer< const Self >	ConstWeakPtr
Static Public Member Functions inherited from berry::Object
static const char *	GetStaticClassName ()
static Reflection::TypeInfo	GetStaticTypeInfo ()
static QList< Reflection::TypeInfo >	GetStaticSuperclasses ()
Protected Member Functions inherited from berry::IQtPreferencePage
void	CreateControl (void *parent) override
void *	GetControl () const override
Protected Member Functions inherited from berry::Object
	Object ()
virtual	~Object ()
virtual QDebug	PrintSelf (QDebug os, Indent indent) const
virtual QDebug	PrintHeader (QDebug os, Indent indent) const
virtual QDebug	PrintTrailer (QDebug os, Indent indent) const

Detailed Description

Definition at line 24 of file QmitkDataManagerPreferencePage.h.

Constructor & Destructor Documentation

QmitkDataManagerPreferencePage()

QmitkDataManagerPreferencePage::QmitkDataManagerPreferencePage

(

)

Definition at line 24 of file QmitkDataManagerPreferencePage.cpp.

Member Function Documentation

CreateQtControl()

void QmitkDataManagerPreferencePage::CreateQtControl ( QWidget *  widget )

overridevirtual

Implements berry::IQtPreferencePage.

Definition at line 35 of file QmitkDataManagerPreferencePage.cpp.

References berry::Platform::GetPreferencesService(), berry::IPreferencesService::GetSystemPreferences(), m_AllowParentChange, m_DataManagerPreferencesNode, m_EnableSingleEditing, m_MainControl, m_PlaceNewNodesOnTop, m_ShowHelperObjects, m_ShowNodesContainingNoData, m_UseSurfaceDecimation, Update(), and QmitkDataManagerView::VIEW_ID.

GetQtControl()

QWidget * QmitkDataManagerPreferencePage::GetQtControl ( ) const

overridevirtual

Implements berry::IQtPreferencePage.

Definition at line 62 of file QmitkDataManagerPreferencePage.cpp.

References m_MainControl.

Init()

void QmitkDataManagerPreferencePage::Init ( berry::IWorkbench::Pointer  workbench )

overridevirtual

Initializes this preference page for the given workbench.

This method is called automatically as the preference page is being created and initialized. Clients must not call this method.

Parameters

workbench

the workbench

Implements berry::IPreferencePage.

Definition at line 30 of file QmitkDataManagerPreferencePage.cpp.

PerformCancel()

void QmitkDataManagerPreferencePage::PerformCancel ( )

overridevirtual

See also

IPreferencePage::PerformCancel()

Implements berry::IPreferencePage.

Definition at line 79 of file QmitkDataManagerPreferencePage.cpp.

PerformOk()

bool QmitkDataManagerPreferencePage::PerformOk ( )

overridevirtual

See also

IPreferencePage::PerformOk()

Implements berry::IPreferencePage.

Definition at line 67 of file QmitkDataManagerPreferencePage.cpp.

References m_AllowParentChange, m_DataManagerPreferencesNode, m_EnableSingleEditing, m_PlaceNewNodesOnTop, m_ShowHelperObjects, m_ShowNodesContainingNoData, and m_UseSurfaceDecimation.

Update()

void QmitkDataManagerPreferencePage::Update ( )

overridevirtual

See also

IPreferencePage::Update()

Implements berry::IPreferencePage.

Definition at line 84 of file QmitkDataManagerPreferencePage.cpp.

References m_AllowParentChange, m_DataManagerPreferencesNode, m_EnableSingleEditing, m_PlaceNewNodesOnTop, m_ShowHelperObjects, m_ShowNodesContainingNoData, and m_UseSurfaceDecimation.

Referenced by CreateQtControl().

Member Data Documentation

m_AllowParentChange

QCheckBox* QmitkDataManagerPreferencePage::m_AllowParentChange

protected

Definition at line 60 of file QmitkDataManagerPreferencePage.h.

Referenced by CreateQtControl(), PerformOk(), and Update().

m_DataManagerPreferencesNode

berry::IPreferences::Pointer QmitkDataManagerPreferencePage::m_DataManagerPreferencesNode

protected

Definition at line 61 of file QmitkDataManagerPreferencePage.h.

Referenced by CreateQtControl(), PerformOk(), and Update().

m_EnableSingleEditing

QCheckBox* QmitkDataManagerPreferencePage::m_EnableSingleEditing

protected

Definition at line 55 of file QmitkDataManagerPreferencePage.h.

Referenced by CreateQtControl(), PerformOk(), and Update().

m_MainControl

QWidget* QmitkDataManagerPreferencePage::m_MainControl

protected

Definition at line 54 of file QmitkDataManagerPreferencePage.h.

Referenced by CreateQtControl(), and GetQtControl().

m_PlaceNewNodesOnTop

QCheckBox* QmitkDataManagerPreferencePage::m_PlaceNewNodesOnTop

protected

Definition at line 56 of file QmitkDataManagerPreferencePage.h.

Referenced by CreateQtControl(), PerformOk(), and Update().

m_ShowHelperObjects

QCheckBox* QmitkDataManagerPreferencePage::m_ShowHelperObjects

protected

Definition at line 57 of file QmitkDataManagerPreferencePage.h.

Referenced by CreateQtControl(), PerformOk(), and Update().

m_ShowNodesContainingNoData

QCheckBox* QmitkDataManagerPreferencePage::m_ShowNodesContainingNoData

protected

Definition at line 58 of file QmitkDataManagerPreferencePage.h.

Referenced by CreateQtControl(), PerformOk(), and Update().

m_UseSurfaceDecimation

QCheckBox* QmitkDataManagerPreferencePage::m_UseSurfaceDecimation

protected

Definition at line 59 of file QmitkDataManagerPreferencePage.h.

Referenced by CreateQtControl(), PerformOk(), and Update().

---

The documentation for this struct was generated from the following files:

• QmitkDataManagerPreferencePage.h
• QmitkDataManagerPreferencePage.cpp
