vtkGLMapperProp Class Reference

The vtkGLMapperProp class is a VtkProp, wrapping a GLMapper. More...

#include <vtkGLMapperProp.h>

Inheritance diagram for vtkGLMapperProp:

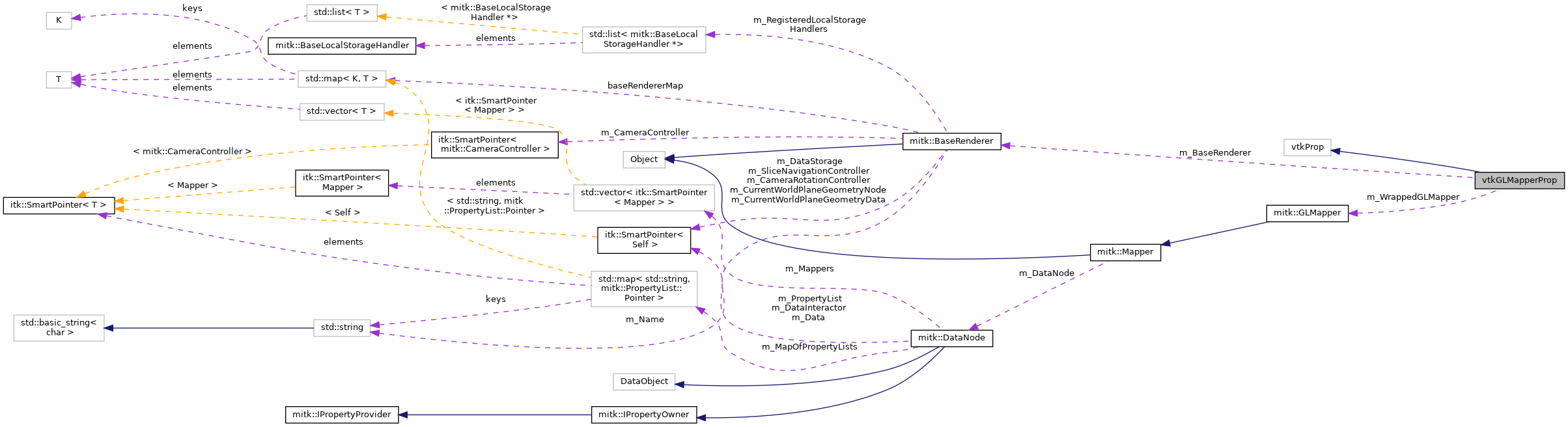

Collaboration diagram for vtkGLMapperProp:

Public Member Functions
	vtkTypeMacro (vtkGLMapperProp, vtkProp)
int	RenderOverlay (vtkViewport *viewport) override
	RenderOverlay Calls the render method of the actor and renders it. More...
int	RenderVolumetricGeometry (vtkViewport *) override
int	RenderTranslucentPolygonalGeometry (vtkViewport *) override
int	RenderOpaqueGeometry (vtkViewport *) override
const mitk::GLMapper *	GetWrappedGLMapper () const
void	SetWrappedGLMapper (mitk::GLMapper *glMapper)
void	SetBaseRenderer (mitk::BaseRenderer *baseRenderer)

Static Public Member Functions
static vtkGLMapperProp *	New ()

Protected Member Functions
	vtkGLMapperProp ()
	~vtkGLMapperProp () override

Protected Attributes
mitk::GLMapper *	m_WrappedGLMapper
mitk::BaseRenderer *	m_BaseRenderer

Detailed Description

The vtkGLMapperProp class is a VtkProp, wrapping a GLMapper.

Definition at line 25 of file vtkGLMapperProp.h.

Constructor & Destructor Documentation

vtkGLMapperProp()

vtkGLMapperProp::vtkGLMapperProp ( )

protected

Definition at line 19 of file vtkGLMapperProp.cpp.

~vtkGLMapperProp()

vtkGLMapperProp::~vtkGLMapperProp ( )

overrideprotected

Definition at line 23 of file vtkGLMapperProp.cpp.

Member Function Documentation

GetWrappedGLMapper()

const mitk::GLMapper * vtkGLMapperProp::GetWrappedGLMapper

(

)

const

Definition at line 51 of file vtkGLMapperProp.cpp.

References m_WrappedGLMapper.

New()

static vtkGLMapperProp* vtkGLMapperProp::New ( )

static

RenderOpaqueGeometry()

int vtkGLMapperProp::RenderOpaqueGeometry ( vtkViewport *  )

override

Definition at line 27 of file vtkGLMapperProp.cpp.

References m_BaseRenderer, m_WrappedGLMapper, mitk::GLMapper::MitkRender(), and mitk::VtkPropRenderer::Opaque.

RenderOverlay()

int vtkGLMapperProp::RenderOverlay ( vtkViewport *  viewport )

override

RenderOverlay Calls the render method of the actor and renders it.

Parameters

viewport

viewport of the renderwindow.

Returns

Definition at line 46 of file vtkGLMapperProp.cpp.

RenderTranslucentPolygonalGeometry()

int vtkGLMapperProp::RenderTranslucentPolygonalGeometry ( vtkViewport *  )

override

Definition at line 36 of file vtkGLMapperProp.cpp.

RenderVolumetricGeometry()

int vtkGLMapperProp::RenderVolumetricGeometry ( vtkViewport *  )

override

Definition at line 41 of file vtkGLMapperProp.cpp.

SetBaseRenderer()

void vtkGLMapperProp::SetBaseRenderer

(

mitk::BaseRenderer *

baseRenderer

)

Definition at line 61 of file vtkGLMapperProp.cpp.

References m_BaseRenderer.

SetWrappedGLMapper()

void vtkGLMapperProp::SetWrappedGLMapper

(

mitk::GLMapper *

glMapper

)

Definition at line 56 of file vtkGLMapperProp.cpp.

References m_WrappedGLMapper.

vtkTypeMacro()

vtkGLMapperProp::vtkTypeMacro	(	vtkGLMapperProp	,
		vtkProp
	)

Member Data Documentation

m_BaseRenderer

mitk::BaseRenderer* vtkGLMapperProp::m_BaseRenderer

protected

Definition at line 51 of file vtkGLMapperProp.h.

Referenced by RenderOpaqueGeometry(), and SetBaseRenderer().

m_WrappedGLMapper

mitk::GLMapper* vtkGLMapperProp::m_WrappedGLMapper

protected

Definition at line 50 of file vtkGLMapperProp.h.

Referenced by GetWrappedGLMapper(), RenderOpaqueGeometry(), and SetWrappedGLMapper().

---

The documentation for this class was generated from the following files:

• vtkGLMapperProp.h
• vtkGLMapperProp.cpp
