mitk::RotationOperation Class Reference

Operation, that holds everything necessary for an rotation operation on mitk::BaseData. More...

#include <mitkRotationOperation.h>

Inheritance diagram for mitk::RotationOperation:

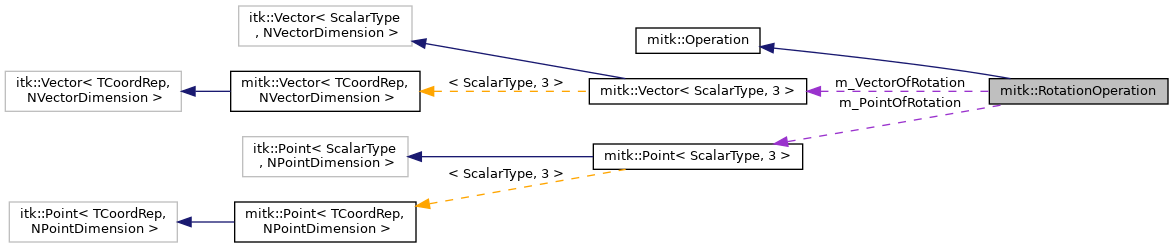

Collaboration diagram for mitk::RotationOperation:

Public Member Functions
	RotationOperation (OperationType operationType, Point3D pointOfRotation, Vector3D vectorOfRotation, ScalarType angleOfRotation)
	RotationOperation constructor to create the operation. More...
	~RotationOperation (void) override
virtual ScalarType	GetAngleOfRotation ()
	GetAngleOfRotation getter for rotation angle. More...
virtual const Point3D	GetCenterOfRotation ()
	GetCenterOfRotation getter for the anchor point of rotation. More...
virtual const Vector3D	GetVectorOfRotation ()
	GetVectorOfRotation getter for the rotation axis. More...
Public Member Functions inherited from mitk::Operation
virtual std::vector< std::string >	GetClassHierarchy () const
	itkTypeMacroNoParent (Operation) Operation(OperationType operationType)
virtual	~Operation ()
OperationType	GetOperationType ()

Protected Attributes
ScalarType	m_AngleOfRotation
Point3D	m_PointOfRotation
Vector3D	m_VectorOfRotation
Protected Attributes inherited from mitk::Operation
OperationType	m_OperationType

Additional Inherited Members
Public Types inherited from mitk::Operation
typedef Operation	Self
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
Static Public Member Functions inherited from mitk::Operation
static const char *	GetStaticNameOfClass ()

Detailed Description

Operation, that holds everything necessary for an rotation operation on mitk::BaseData.

Definition at line 25 of file mitkRotationOperation.h.

Constructor & Destructor Documentation

RotationOperation()

mitk::RotationOperation::RotationOperation	(	OperationType	operationType,
		Point3D	pointOfRotation,
		Vector3D	vectorOfRotation,
		ScalarType	angleOfRotation
	)

RotationOperation constructor to create the operation.

Parameters

operationType	this has to be set to OpROTATE.
pointOfRotation	Anchor point for rotation.
vectorOfRotation	Axis for rotation.
angleOfRotation	Angle for rotation in degree.

Definition at line 15 of file mitkRotationOperation.cpp.

~RotationOperation()

mitk::RotationOperation::~RotationOperation ( void  )

override

Definition at line 26 of file mitkRotationOperation.cpp.

Member Function Documentation

GetAngleOfRotation()

mitk::ScalarType mitk::RotationOperation::GetAngleOfRotation ( )

virtual

GetAngleOfRotation getter for rotation angle.

Returns

Angle in degree.

Definition at line 30 of file mitkRotationOperation.cpp.

References m_AngleOfRotation.

GetCenterOfRotation()

const mitk::Point3D mitk::RotationOperation::GetCenterOfRotation ( )

virtual

GetCenterOfRotation getter for the anchor point of rotation.

Returns

The anchor point to rotate the base data around.

Definition at line 35 of file mitkRotationOperation.cpp.

References m_PointOfRotation.

GetVectorOfRotation()

const mitk::Vector3D mitk::RotationOperation::GetVectorOfRotation ( )

virtual

GetVectorOfRotation getter for the rotation axis.

Returns

Rotation axis as vector.

Definition at line 39 of file mitkRotationOperation.cpp.

References m_VectorOfRotation.

Member Data Documentation

m_AngleOfRotation

ScalarType mitk::RotationOperation::m_AngleOfRotation

protected

Definition at line 60 of file mitkRotationOperation.h.

Referenced by GetAngleOfRotation().

m_PointOfRotation

Point3D mitk::RotationOperation::m_PointOfRotation

protected

Definition at line 61 of file mitkRotationOperation.h.

Referenced by GetCenterOfRotation().

m_VectorOfRotation

Vector3D mitk::RotationOperation::m_VectorOfRotation

protected

Definition at line 62 of file mitkRotationOperation.h.

Referenced by GetVectorOfRotation().

---

The documentation for this class was generated from the following files:

• mitkRotationOperation.h
• mitkRotationOperation.cpp
