Defines the rendering style of control points for PlanarFigure objects. More...

#include <mitkPlanarFigureControlPointStyleProperty.h>

Inheritance diagram for mitk::PlanarFigureControlPointStyleProperty:

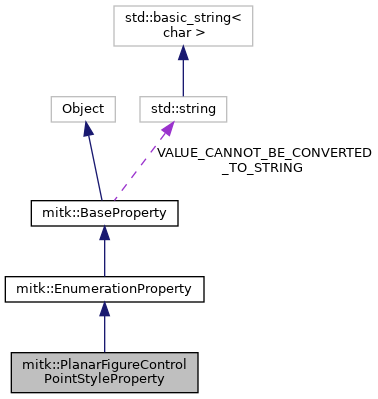

Collaboration diagram for mitk::PlanarFigureControlPointStyleProperty:

[legend]

Public Types
enum	Shape { Square, Circle }

Public Types inherited from mitk::EnumerationProperty
typedef EnumerationProperty	Self

typedef BaseProperty	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef unsigned int	IdType

typedef std::map< IdType, std::string >	EnumIdsContainerType

typedef std::map< std::string, IdType >	EnumStringsContainerType

typedef EnumIdsContainerType::const_iterator	EnumConstIterator

Public Types inherited from mitk::BaseProperty
typedef BaseProperty	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
	mitkClassMacro (PlanarFigureControlPointStyleProperty, EnumerationProperty)

Pointer	Clone () const

	mitkNewMacro1Param (PlanarFigureControlPointStyleProperty, const IdType &)

	mitkNewMacro1Param (PlanarFigureControlPointStyleProperty, const std::string &)

virtual Shape	GetShape ()

virtual void	SetShape (Shape)

Public Member Functions inherited from mitk::EnumerationProperty
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

virtual bool	SetValue (const std::string &name)

virtual bool	SetValue (const IdType &id)

virtual IdType	GetValueAsId () const

std::string	GetValueAsString () const override

virtual void	Clear ()

virtual EnumIdsContainerType::size_type	Size () const

virtual EnumConstIterator	Begin () const

virtual EnumConstIterator	End () const

virtual std::string	GetEnumString (const IdType &id) const

virtual IdType	GetEnumId (const std::string &name) const

virtual bool	IsValidEnumerationValue (const IdType &id) const

virtual bool	IsValidEnumerationValue (const std::string &name) const

const EnumIdsContainerType &	GetEnumIds () const

const EnumStringsContainerType &	GetEnumStrings () const

EnumIdsContainerType &	GetEnumIds ()

EnumStringsContainerType &	GetEnumStrings ()

EnumerationProperty &	operator= (const EnumerationProperty &)=delete

Public Member Functions inherited from mitk::BaseProperty
Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Subclasses must implement IsEqual(const BaseProperty&) to support comparison. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::EnumerationProperty
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::BaseProperty
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	PlanarFigureControlPointStyleProperty ()

	PlanarFigureControlPointStyleProperty (const IdType &value)

	PlanarFigureControlPointStyleProperty (const std::string &value)

bool	AddEnum (const std::string &name, const IdType &id) override

virtual void	AddEnumTypes ()

Protected Member Functions inherited from mitk::EnumerationProperty
	EnumerationProperty ()

	EnumerationProperty (const EnumerationProperty &)

bool	IsEqual (const BaseProperty &property) const override

bool	Assign (const BaseProperty &property) override

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value if a property which can not be returned as string. More...

Detailed Description

Defines the rendering style of control points for PlanarFigure objects.

See also: mitk::PlanarFigureMapper2D

Used by PlanarFigureMapper2D to determine which of several control point shapes to use. Currently this is basically the choice between squares and circles. If more options are implemented, this class should be enhanced.

After construction, the default shape is a square.

Definition at line 34 of file mitkPlanarFigureControlPointStyleProperty.h.
