Superclass for all OpenCL based filter. More...

#include <mitkOclFilter.h>

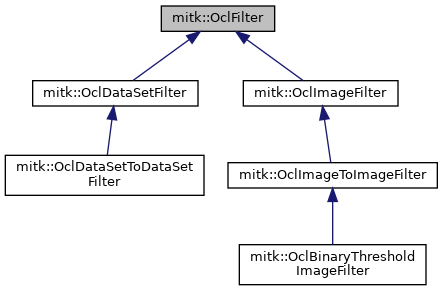

Inheritance diagram for mitk::OclFilter:

[legend]

Collaboration diagram for mitk::OclFilter:

Public Member Functions
void	AddSourceFile (const char *filename)
	Add a source file from the resource files to the OpenCL shader file list. Multiple files can be added to the list. More...

void	SetCompilerFlags (const char *flags)
	Set specific compilerflags to compile the CL source. Default is set to nullptr; example: "-cl-fast-relaxed-math -cl-mad-enable -cl-strict-aliasing". More...

virtual bool	IsInitialized ()
	Returns true if the initialization was successfull. More...

virtual unsigned long	GetDeviceMemory ()
	Returns the amount of global memory of the used device in bytes. More...

virtual	~OclFilter ()
	Destructor. More...

Protected Types
typedef std::vector< const char * >	CStringList

typedef std::vector< vcl_size_t >	ClSizeList

Protected Member Functions
	OclFilter ()
	Constructor. More...

	OclFilter (const char *filename)
	Constructor ( overloaded ) More...

void	SetWorkingSize (unsigned int locx, unsigned int dimx, unsigned int locy=1, unsigned int dimy=1, unsigned int locz=1, unsigned int dimz=1)
	Set the working size for the following OpenCL kernel call. More...

bool	ExecuteKernel (cl_kernel kernel, unsigned int workSizeDim)
	Execute the given kernel on the OpenCL Index-Space defined by the local and global work sizes. More...

bool	ExecuteKernelChunks (cl_kernel kernel, unsigned int workSizeDim, vcl_size_t *chunksDim)
	Execute the given kernel on the OpenCL Index-Space defined by the local and global work sizes, but divide it into chunks of dimension chunksDim. More...

bool	ExecuteKernelChunksInBatches (cl_kernel kernel, unsigned int workSizeDim, vcl_size_t *chunksDim, vcl_size_t batchSize, int waitTimems)
	Execute the given kernel on the OpenCL Index-Space defined by the local and global work sizes, but divide it into chunks of dimension chunksDim and wait between batches of batchSize chunks a time of waitTimems milliseconds. More...

bool	Initialize ()
	Initialize all necessary parts of the filter. More...

void	CompileSource ()
	Compile the program source. More...

void	SetSourcePreambel (const char *preambel)
	Add some source code on the beginning of the loaded source. More...

virtual us::Module *	GetModule ()=0
	Get the Module of the filter. Needs to be implemented by every subclass. The filter will load the OpenCL sourcefiles from this module context. More...

void	LoadSourceFiles (CStringList &SourceCodeList, ClSizeList &SourceCodeSizeList)
	Helper functions that load sourcefiles from the module context in the Initialize function. More...

Protected Attributes
const char *	m_ClCompilerFlags
	String that contains the compiler flags. More...

cl_program	m_ClProgram
	The compiled OpenCL program. More...

cl_command_queue	m_CommandQue
	Command queue for the filter. More...

std::string	m_FilterID
	Unique ID of the filter, needs to be specified in the constructor of the derived class. More...

const char *	m_Preambel
	source preambel for e.g. #define commands to be inserted into the OpenCL source More...

CStringList	m_ClFiles
	List of sourcefiles that will be compiled for this filter. More...

bool	m_Initialized
	status of the filter More...

vcl_size_t	m_LocalWorkSize [3]
	The local work size fo the filter. More...

vcl_size_t	m_GlobalWorkSize [3]
	The global work size of the filter. More...

Detailed Description

Superclass for all OpenCL based filter.

This class takes care of loading and compiling the external GPU program code.

Definition at line 33 of file mitkOclFilter.h.

Member Typedef Documentation

◆ ClSizeList

typedef std::vector<vcl_size_t> mitk::OclFilter::ClSizeList

protected

Definition at line 68 of file mitkOclFilter.h.

◆ CStringList

typedef std::vector<const char*> mitk::OclFilter::CStringList

protected

Definition at line 67 of file mitkOclFilter.h.

Constructor & Destructor Documentation

◆ ~OclFilter()

mitk::OclFilter::~OclFilter ( )

virtual

Destructor.

Definition at line 56 of file mitkOclFilter.cpp.

References us::GetModuleContext(), ModuleContext::GetService(), ModuleContext::GetServiceReference(), m_ClProgram, m_FilterID, MITK_DEBUG, and OclResourceService::RemoveProgram().

◆ OclFilter() [1/2]

mitk::OclFilter::OclFilter ( )

protected

Constructor.

Definition at line 35 of file mitkOclFilter.cpp.

◆ OclFilter() [2/2]

mitk::OclFilter::OclFilter ( const char * filename )

protected

Constructor ( overloaded )

Definition at line 45 of file mitkOclFilter.cpp.

References m_ClFiles.

Member Function Documentation

◆ AddSourceFile()

void mitk::OclFilter::AddSourceFile ( const char * filename )

Add a source file from the resource files to the OpenCL shader file list. Multiple files can be added to the list.

Parameters

name	of the file in the resource system

Definition at line 330 of file mitkOclFilter.cpp.

References m_ClFiles.

Referenced by mitk::OclBinaryThresholdImageFilter::OclBinaryThresholdImageFilter().

◆ CompileSource()

void mitk::OclFilter::CompileSource ( )

protected

Compile the program source.

Parameters

preambel e.g. defines for the shader code

Definition at line 243 of file mitkOclFilter.cpp.

References CHECK_OCL_ERR, OclResourceService::GetContext(), us::GetModuleContext(), ModuleContext::GetService(), ModuleContext::GetServiceReference(), LoadSourceFiles(), m_ClCompilerFlags, m_ClFiles, m_ClProgram, m_FilterID, m_Initialized, MITK_DEBUG, MITK_ERROR, oclLogBinary(), and oclLogBuildInfo().

Referenced by Initialize().

◆ ExecuteKernel()

bool mitk::OclFilter::ExecuteKernel	(	cl_kernel	kernel,
		unsigned int	workSizeDim
	)

protected

Execute the given kernel on the OpenCL Index-Space defined by the local and global work sizes.

Definition at line 71 of file mitkOclFilter.cpp.

References CHECK_OCL_ERR, m_CommandQue, m_GlobalWorkSize, and m_LocalWorkSize.

Referenced by mitk::OclBinaryThresholdImageFilter::Execute().

◆ ExecuteKernelChunks()

bool mitk::OclFilter::ExecuteKernelChunks	(	cl_kernel	kernel,
		unsigned int	workSizeDim,
		vcl_size_t *	chunksDim
	)

protected

Execute the given kernel on the OpenCL Index-Space defined by the local and global work sizes, but divide it into chunks of dimension chunksDim.

Definition at line 83 of file mitkOclFilter.cpp.

References CHECK_OCL_ERR, m_CommandQue, m_GlobalWorkSize, m_LocalWorkSize, and offset.

◆ ExecuteKernelChunksInBatches()

bool mitk::OclFilter::ExecuteKernelChunksInBatches	(	cl_kernel	kernel,
		unsigned int	workSizeDim,
		vcl_size_t *	chunksDim,
		vcl_size_t	batchSize,
		int	waitTimems
	)

protected

Execute the given kernel on the OpenCL Index-Space defined by the local and global work sizes, but divide it into chunks of dimension chunksDim and wait between batches of batchSize chunks a time of waitTimems milliseconds.

Definition at line 119 of file mitkOclFilter.cpp.

References CHECK_OCL_ERR, m_CommandQue, m_GlobalWorkSize, m_LocalWorkSize, and offset.

◆ GetDeviceMemory()

unsigned long mitk::OclFilter::GetDeviceMemory ( )

virtual

Returns the amount of global memory of the used device in bytes.

Definition at line 346 of file mitkOclFilter.cpp.

References OclResourceService::GetCurrentDevice(), us::GetModuleContext(), ModuleContext::GetService(), ModuleContext::GetServiceReference(), and oclGetGlobalMemSize().

◆ GetModule()

virtual us::Module* mitk::OclFilter::GetModule ( )

protectedpure virtual

Get the Module of the filter. Needs to be implemented by every subclass. The filter will load the OpenCL sourcefiles from this module context.

Implemented in mitk::OclBinaryThresholdImageFilter.

Referenced by LoadSourceFiles().

◆ Initialize()

bool mitk::OclFilter::Initialize ( )

protected

Initialize all necessary parts of the filter.

The Initialize() method creates the command queue and the m_clProgram. The program is either compiled from the given source or taken from the OclResourceManager if the program was compiled already.

Definition at line 180 of file mitkOclFilter.cpp.

References CHECK_OCL_ERR, CompileSource(), us::GetModuleContext(), ModuleContext::GetService(), ModuleContext::GetServiceReference(), m_ClFiles, m_ClProgram, m_CommandQue, m_FilterID, m_Initialized, MITK_ERROR, and MITK_INFO.

Referenced by mitk::OclBinaryThresholdImageFilter::Initialize().

◆ IsInitialized()

bool mitk::OclFilter::IsInitialized ( )

virtual

Returns true if the initialization was successfull.

Definition at line 341 of file mitkOclFilter.cpp.

References m_Initialized.

Referenced by mitk::OclBinaryThresholdImageFilter::Initialize().

◆ LoadSourceFiles()

void mitk::OclFilter::LoadSourceFiles	(	CStringList &	SourceCodeList,
		ClSizeList &	SourceCodeSizeList
	)

protected

Helper functions that load sourcefiles from the module context in the Initialize function.

Parameters

SourceCodeList holds the sourcecode for every file as string, the SourceCodeSizeList holst the size of every file in bytes.

Definition at line 212 of file mitkOclFilter.cpp.

References GetModule(), us::ModuleResource::GetName(), us::Module::GetResource(), us::ModuleResource::IsValid(), m_ClFiles, m_Preambel, MITK_DEBUG, and MITK_WARN.

Referenced by CompileSource().

◆ SetCompilerFlags()

void mitk::OclFilter::SetCompilerFlags ( const char * flags )

Set specific compilerflags to compile the CL source. Default is set to nullptr; example: "-cl-fast-relaxed-math -cl-mad-enable -cl-strict-aliasing".

Parameters

flags to the modulefolder that contains the gpuSource

Definition at line 335 of file mitkOclFilter.cpp.

References m_ClCompilerFlags.

◆ SetSourcePreambel()

void mitk::OclFilter::SetSourcePreambel ( const char * preambel )

protected

Add some source code on the beginning of the loaded source.

In this way, some preprocessor flags for the CL compiler can at the beginning of the filter

Parameters

preambel Source preambel for e.g. #define commands to be inserted into the OpenCL source

Definition at line 325 of file mitkOclFilter.cpp.

References m_Preambel.

◆ SetWorkingSize()

void mitk::OclFilter::SetWorkingSize	(	unsigned int	locx,
		unsigned int	dimx,
		unsigned int	locy = `1`,
		unsigned int	dimy = `1`,
		unsigned int	locz = `1`,
		unsigned int	dimz = `1`
	)

protected

Set the working size for the following OpenCL kernel call.

Definition at line 305 of file mitkOclFilter.cpp.

References iDivUp(), m_GlobalWorkSize, and m_LocalWorkSize.

Referenced by mitk::OclDataSetToDataSetFilter::InitExec(), mitk::OclImageToImageFilter::InitExec(), and mitk::OclDataSetToDataSetFilter::InitExecNoInput().

Member Data Documentation

◆ m_ClCompilerFlags

const char* mitk::OclFilter::m_ClCompilerFlags

protected

String that contains the compiler flags.

Definition at line 77 of file mitkOclFilter.h.

Referenced by CompileSource(), and SetCompilerFlags().

◆ m_ClFiles

CStringList mitk::OclFilter::m_ClFiles

protected

List of sourcefiles that will be compiled for this filter.

Definition at line 92 of file mitkOclFilter.h.

Referenced by AddSourceFile(), CompileSource(), Initialize(), LoadSourceFiles(), and OclFilter().

◆ m_ClProgram

cl_program mitk::OclFilter::m_ClProgram

protected

The compiled OpenCL program.

Definition at line 80 of file mitkOclFilter.h.

Referenced by CompileSource(), mitk::OclBinaryThresholdImageFilter::Initialize(), Initialize(), and ~OclFilter().

◆ m_CommandQue

cl_command_queue mitk::OclFilter::m_CommandQue

protected

Command queue for the filter.

Definition at line 83 of file mitkOclFilter.h.

Referenced by ExecuteKernel(), ExecuteKernelChunks(), ExecuteKernelChunksInBatches(), mitk::OclImageToImageFilter::GetOutput(), mitk::OclDataSetToDataSetFilter::GetOutput(), mitk::OclDataSetToDataSetFilter::InitExec(), mitk::OclImageToImageFilter::InitExec(), and Initialize().

◆ m_FilterID

std::string mitk::OclFilter::m_FilterID

protected

Unique ID of the filter, needs to be specified in the constructor of the derived class.

Definition at line 86 of file mitkOclFilter.h.

Referenced by CompileSource(), Initialize(), mitk::OclBinaryThresholdImageFilter::OclBinaryThresholdImageFilter(), and ~OclFilter().

◆ m_GlobalWorkSize

vcl_size_t mitk::OclFilter::m_GlobalWorkSize[3]

protected

The global work size of the filter.

Definition at line 101 of file mitkOclFilter.h.

Referenced by ExecuteKernel(), ExecuteKernelChunks(), ExecuteKernelChunksInBatches(), and SetWorkingSize().

◆ m_Initialized

bool mitk::OclFilter::m_Initialized

protected

status of the filter

Definition at line 95 of file mitkOclFilter.h.

Referenced by CompileSource(), Initialize(), and IsInitialized().

◆ m_LocalWorkSize

vcl_size_t mitk::OclFilter::m_LocalWorkSize[3]

protected

The local work size fo the filter.

Definition at line 98 of file mitkOclFilter.h.

Referenced by ExecuteKernel(), ExecuteKernelChunks(), ExecuteKernelChunksInBatches(), and SetWorkingSize().

◆ m_Preambel

const char* mitk::OclFilter::m_Preambel

protected

source preambel for e.g. #define commands to be inserted into the OpenCL source

Definition at line 89 of file mitkOclFilter.h.

Referenced by LoadSourceFiles(), and SetSourcePreambel().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ClSizeList

◆ CStringList

Constructor & Destructor Documentation

◆ ~OclFilter()

◆ OclFilter() [1/2]

◆ OclFilter() [2/2]

Member Function Documentation

◆ AddSourceFile()

◆ CompileSource()

◆ ExecuteKernel()

◆ ExecuteKernelChunks()

◆ ExecuteKernelChunksInBatches()

◆ GetDeviceMemory()

◆ GetModule()

◆ Initialize()

◆ IsInitialized()

◆ LoadSourceFiles()

◆ SetCompilerFlags()

◆ SetSourcePreambel()

◆ SetWorkingSize()

Member Data Documentation

◆ m_ClCompilerFlags

◆ m_ClFiles

◆ m_ClProgram

◆ m_CommandQue

◆ m_FilterID

◆ m_GlobalWorkSize

◆ m_Initialized

◆ m_LocalWorkSize

◆ m_Preambel
