mitk::NumericTwoTissueCompartmentModel Class Reference

#include <mitkNumericTwoTissueCompartmentModel.h>

Inheritance diagram for mitk::NumericTwoTissueCompartmentModel:
Inheritance graph
[legend]

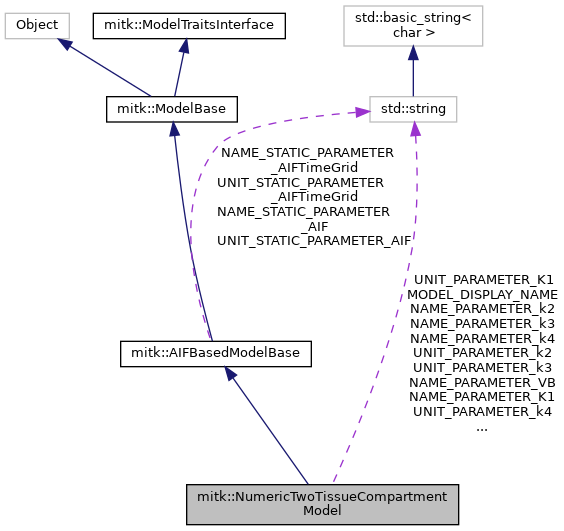

Collaboration diagram for mitk::NumericTwoTissueCompartmentModel:
Collaboration graph
[legend]

Public Types

typedef NumericTwoTissueCompartmentModel Self

typedef AIFBasedModelBase Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer

typedef std::vector< double > state_type

- Public Types inherited from mitk::AIFBasedModelBase
typedef AIFBasedModelBase Self

typedef ModelBase Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer

typedef itk::Array< double > AterialInputFunctionType

- Public Types inherited from mitk::ModelBase
typedef ModelBase Self

typedef itk::Object Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer

typedef ModelTraitsInterface::ModelResultType ModelResultType

typedef ModelTraitsInterface::ParameterValueType ParameterValueType

typedef ModelTraitsInterface::ParametersType ParametersType

typedef itk::Array< double > TimeGridType

typedef ModelTraitsInterface::ParameterNameType ParameterNameType

typedef ModelTraitsInterface::ParameterNamesType ParameterNamesType

typedef ModelTraitsInterface::ParametersSizeType ParametersSizeType

typedef ModelTraitsInterface::DerivedParameterNamesType DerivedParameterNamesType

typedef ModelTraitsInterface::DerivedParametersSizeType DerivedParametersSizeType

typedef double StaticParameterValueType

typedef std::vector< StaticParameterValueType > StaticParameterValuesType

typedef std::map< ParameterNameType, StaticParameterValuesType > StaticParameterMapType

typedef double DerivedParameterValueType

typedef std::map< ParameterNameType, DerivedParameterValueType > DerivedParameterMapType

- Public Types inherited from mitk::ModelTraitsInterface
typedef itk::Array< double > ModelResultType

using ParameterValueType = double

typedef itk::Array< ParameterValueType > ParametersType

typedef std::string ParameterNameType

typedef std::vector< ParameterNameType > ParameterNamesType

typedef ParametersType::SizeValueType ParametersSizeType

typedef ParameterNamesType DerivedParameterNamesType

typedef ParametersSizeType DerivedParametersSizeType

typedef std::map< ParameterNameType, double > ParamterScaleMapType

typedef std::map< ParameterNameType, std::string > ParamterUnitMapType

typedef std::map< ParameterNameType, double > DerivedParamterScaleMapType

typedef std::map< ParameterNameType, std::string > DerivedParamterUnitMapType

typedef std::string FunctionStringType

typedef std::string ModellClassIDType


Public Member Functions

Pointer Clone () const

virtual const char * GetClassName () const

std::string GetModelDisplayName () const override

std::string GetModelType () const override

ParameterNamesType GetParameterNames () const override

ParametersSizeType GetNumberOfParameters () const override

ParamterUnitMapType GetParameterUnits () const override

- Public Member Functions inherited from mitk::AIFBasedModelBase
virtual const AterialInputFunctionType & GetAterialInputFunctionValues ()

virtual const TimeGridType & GetAterialInputFunctionTimeGrid ()

virtual void SetAterialInputFunctionValues (AterialInputFunctionType _arg)

virtual void SetAterialInputFunctionTimeGrid (TimeGridType _arg)

std::string GetXAxisName () const override

std::string GetXAxisUnit () const override

std::string GetYAxisName () const override

std::string GetYAxisUnit () const override

const TimeGridType & GetCurrentAterialInputFunctionTimeGrid () const

const AterialInputFunctionType GetAterialInputFunction (TimeGridType currentTimeGrid) const

ParameterNamesType GetStaticParameterNames () const override

ParametersSizeType GetNumberOfStaticParameters () const override

ParamterUnitMapType GetStaticParameterUnits () const override

- Public Member Functions inherited from mitk::ModelBase
ParamterScaleMapType GetParameterScales () const override

DerivedParamterScaleMapType GetDerivedParameterScales () const override

DerivedParamterUnitMapType GetDerivedParameterUnits () const override

FunctionStringType GetFunctionString () const override

ModellClassIDType GetClassID () const override

std::string GetXName () const override

DerivedParameterNamesType GetDerivedParameterNames () const override

DerivedParametersSizeType GetNumberOfDerivedParameters () const override

void SetStaticParameters (const StaticParameterMapType &parameters, bool allParameters=true)

StaticParameterMapType GetStaticParameters () const

DerivedParameterMapType GetDerivedParameters (const ParametersType &parameters) const

virtual void SetTimeGrid (const TimeGridType &grid)

virtual const TimeGridType & GetTimeGrid ()

ModelResultType GetSignal (const ParametersType &parameters) const


Static Public Member Functions

static Pointer New ()


Static Public Attributes

static const std::string MODEL_DISPLAY_NAME

static const std::string NAME_PARAMETER_K1

static const std::string NAME_PARAMETER_k2

static const std::string NAME_PARAMETER_k3

static const std::string NAME_PARAMETER_k4

static const std::string NAME_PARAMETER_VB

static const std::string UNIT_PARAMETER_K1

static const std::string UNIT_PARAMETER_k2

static const std::string UNIT_PARAMETER_k3

static const std::string UNIT_PARAMETER_k4

static const std::string UNIT_PARAMETER_VB

static const unsigned int POSITION_PARAMETER_K1

static const unsigned int POSITION_PARAMETER_k2

static const unsigned int POSITION_PARAMETER_k3

static const unsigned int POSITION_PARAMETER_k4

static const unsigned int POSITION_PARAMETER_VB

static const unsigned int NUMBER_OF_PARAMETERS

- Static Public Attributes inherited from mitk::AIFBasedModelBase
static const std::string NAME_STATIC_PARAMETER_AIF

static const std::string NAME_STATIC_PARAMETER_AIFTimeGrid

static const std::string UNIT_STATIC_PARAMETER_AIF

static const std::string UNIT_STATIC_PARAMETER_AIFTimeGrid


Protected Member Functions

 NumericTwoTissueCompartmentModel ()

 ~NumericTwoTissueCompartmentModel () override

itk::LightObject::Pointer InternalClone () const override

ModelResultType ComputeModelfunction (const ParametersType &parameters) const override

void PrintSelf (std::ostream &os, ::itk::Indent indent) const override

- Protected Member Functions inherited from mitk::AIFBasedModelBase
 AIFBasedModelBase ()

 ~AIFBasedModelBase () override

bool ValidateModel (std::string &error) const override

void PrintSelf (std::ostream &os, ::itk::Indent indent) const override

void SetStaticParameter (const ParameterNameType &name, const StaticParameterValuesType &values) override

StaticParameterValuesType GetStaticParameterValue (const ParameterNameType &name) const override

- Protected Member Functions inherited from mitk::ModelBase
virtual DerivedParameterMapType ComputeDerivedParameters (const ParametersType &parameters) const

 ModelBase ()

 ~ModelBase () override

void PrintSelf (std::ostream &os, ::itk::Indent indent) const override

- Protected Member Functions inherited from mitk::ModelTraitsInterface
 ModelTraitsInterface ()

virtual ~ModelTraitsInterface ()


Additional Inherited Members

- Protected Attributes inherited from mitk::AIFBasedModelBase
TimeGridType m_AterialInputFunctionTimeGrid

AterialInputFunctionType m_AterialInputFunctionValues

- Protected Attributes inherited from mitk::ModelBase
TimeGridType m_TimeGrid


Detailed Description

Definition at line 22 of file mitkNumericTwoTissueCompartmentModel.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer< const Self > mitk::NumericTwoTissueCompartmentModel::ConstPointer

Definition at line 29 of file mitkNumericTwoTissueCompartmentModel.h.

◆ Pointer

typedef itk::SmartPointer< Self > mitk::NumericTwoTissueCompartmentModel::Pointer

Definition at line 28 of file mitkNumericTwoTissueCompartmentModel.h.

◆ Self

typedef NumericTwoTissueCompartmentModel mitk::NumericTwoTissueCompartmentModel::Self

Definition at line 26 of file mitkNumericTwoTissueCompartmentModel.h.

◆ state_type

typedef std::vector<double> mitk::NumericTwoTissueCompartmentModel::state_type

Definition at line 36 of file mitkNumericTwoTissueCompartmentModel.h.

◆ Superclass

typedef AIFBasedModelBase mitk::NumericTwoTissueCompartmentModel::Superclass

Definition at line 27 of file mitkNumericTwoTissueCompartmentModel.h.

Constructor & Destructor Documentation

◆ NumericTwoTissueCompartmentModel()

mitk::NumericTwoTissueCompartmentModel::NumericTwoTissueCompartmentModel ( )
protected

Definition at line 55 of file mitkNumericTwoTissueCompartmentModel.cpp.

◆ ~NumericTwoTissueCompartmentModel()

mitk::NumericTwoTissueCompartmentModel::~NumericTwoTissueCompartmentModel ( )
overrideprotected

Definition at line 60 of file mitkNumericTwoTissueCompartmentModel.cpp.

Member Function Documentation

◆ Clone()

Pointer mitk::NumericTwoTissueCompartmentModel::Clone ( ) const

◆ ComputeModelfunction()

mitk::NumericTwoTissueCompartmentModel::ModelResultType mitk::NumericTwoTissueCompartmentModel::ComputeModelfunction ( const ParametersType &  parameters) const
overrideprotectedvirtual

Boost::numeric::odeint works with type std::vector<double> thus, aif and grid are converted to ModelParameters( of type std::vector)

Initialize class TwpTissueCompartmentModelDifferentialEquations defining the differential equations. AIF and Grid must be set so that at step t the aterial Concentration Ca(t) can be interpolated from AIF

Results of odeeint x[0] and x[1]

Stepsize. Should be adapted by stepper (runge_kutta_cash_karp54)

perform Step t -> t+dt to calculate approximate value x(t+dt)

transfom result of Differential equations back to itk::Array and interpolate to m_TimeGrid (they are calculated on a different grid defined by stepsize of odeint)

Implements mitk::ModelBase.

Definition at line 101 of file mitkNumericTwoTissueCompartmentModel.cpp.

References mitk::convertArrayToParameter(), mitk::convertParameterToArray(), mitk::AIFBasedModelBase::GetAterialInputFunction(), mitk::TwoTissueCompartmentModelDifferentialEquations::initialize(), mitk::InterpolateSignalToNewTimeGrid(), mitk::ModelBase::m_TimeGrid, POSITION_PARAMETER_K1, POSITION_PARAMETER_k2, POSITION_PARAMETER_k3, POSITION_PARAMETER_k4, POSITION_PARAMETER_VB, mitk::TwoTissueCompartmentModelDifferentialEquations::setAIF(), and mitk::TwoTissueCompartmentModelDifferentialEquations::setAIFTimeGrid().

◆ GetClassName()

virtual const char* mitk::NumericTwoTissueCompartmentModel::GetClassName ( ) const
virtual

Run-time type information (and related methods).

Reimplemented from mitk::AIFBasedModelBase.

◆ GetModelDisplayName()

std::string mitk::NumericTwoTissueCompartmentModel::GetModelDisplayName ( ) const
overridevirtual

Default implementation returns GetClassID as display name.

Reimplemented from mitk::ModelBase.

Definition at line 45 of file mitkNumericTwoTissueCompartmentModel.cpp.

References MODEL_DISPLAY_NAME.

◆ GetModelType()

std::string mitk::NumericTwoTissueCompartmentModel::GetModelType ( ) const
overridevirtual

Default implementation returns "Unkown" as model type.

Reimplemented from mitk::ModelBase.

Definition at line 50 of file mitkNumericTwoTissueCompartmentModel.cpp.

◆ GetNumberOfParameters()

mitk::NumericTwoTissueCompartmentModel::ParametersSizeType mitk::NumericTwoTissueCompartmentModel::GetNumberOfParameters ( ) const
overridevirtual

Returns the number of parameters that must be defined when using the model to compute the signal (GetSignal()).

Implements mitk::ModelTraitsInterface.

Definition at line 80 of file mitkNumericTwoTissueCompartmentModel.cpp.

References NUMBER_OF_PARAMETERS.

◆ GetParameterNames()

mitk::NumericTwoTissueCompartmentModel::ParameterNamesType mitk::NumericTwoTissueCompartmentModel::GetParameterNames ( ) const
overridevirtual

Returns the names of parameters that must be defined when using the model to compute the signal (GetSignal()).

Implements mitk::ModelTraitsInterface.

Definition at line 66 of file mitkNumericTwoTissueCompartmentModel.cpp.

References NAME_PARAMETER_K1, NAME_PARAMETER_k2, NAME_PARAMETER_k3, NAME_PARAMETER_k4, and NAME_PARAMETER_VB.

◆ GetParameterUnits()

mitk::NumericTwoTissueCompartmentModel::ParamterUnitMapType mitk::NumericTwoTissueCompartmentModel::GetParameterUnits ( ) const
overridevirtual

Default implementation returns no unit string ("") for every defined parameter.

Reimplemented from mitk::ModelBase.

Definition at line 86 of file mitkNumericTwoTissueCompartmentModel.cpp.

References NAME_PARAMETER_K1, NAME_PARAMETER_k2, NAME_PARAMETER_k3, NAME_PARAMETER_k4, NAME_PARAMETER_VB, UNIT_PARAMETER_K1, UNIT_PARAMETER_k2, UNIT_PARAMETER_k3, UNIT_PARAMETER_k4, and UNIT_PARAMETER_VB.

◆ InternalClone()

itk::LightObject::Pointer mitk::NumericTwoTissueCompartmentModel::InternalClone ( ) const
overrideprotected

Actual implementation of the clone method. This method should be reimplemeted in subclasses to clone the extra required parameters.

Definition at line 198 of file mitkNumericTwoTissueCompartmentModel.cpp.

References mitk::ModelBase::m_TimeGrid, and New().

◆ New()

static Pointer mitk::NumericTwoTissueCompartmentModel::New ( )
static

Method for creation through the object factory.

Referenced by InternalClone().

◆ PrintSelf()

void mitk::NumericTwoTissueCompartmentModel::PrintSelf ( std::ostream &  os,
::itk::Indent  indent
) const
overrideprotected

Definition at line 207 of file mitkNumericTwoTissueCompartmentModel.cpp.

References mitk::AIFBasedModelBase::PrintSelf().

Member Data Documentation

◆ MODEL_DISPLAY_NAME

const std::string mitk::NumericTwoTissueCompartmentModel::MODEL_DISPLAY_NAME
static

Model Specifications

Definition at line 42 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetModelDisplayName().

◆ NAME_PARAMETER_K1

const std::string mitk::NumericTwoTissueCompartmentModel::NAME_PARAMETER_K1
static

Definition at line 44 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterNames(), and GetParameterUnits().

◆ NAME_PARAMETER_k2

const std::string mitk::NumericTwoTissueCompartmentModel::NAME_PARAMETER_k2
static

Definition at line 45 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterNames(), and GetParameterUnits().

◆ NAME_PARAMETER_k3

const std::string mitk::NumericTwoTissueCompartmentModel::NAME_PARAMETER_k3
static

Definition at line 46 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterNames(), and GetParameterUnits().

◆ NAME_PARAMETER_k4

const std::string mitk::NumericTwoTissueCompartmentModel::NAME_PARAMETER_k4
static

Definition at line 47 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterNames(), and GetParameterUnits().

◆ NAME_PARAMETER_VB

const std::string mitk::NumericTwoTissueCompartmentModel::NAME_PARAMETER_VB
static

Definition at line 48 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterNames(), and GetParameterUnits().

◆ NUMBER_OF_PARAMETERS

const unsigned int mitk::NumericTwoTissueCompartmentModel::NUMBER_OF_PARAMETERS
static

Definition at line 62 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetNumberOfParameters().

◆ POSITION_PARAMETER_K1

const unsigned int mitk::NumericTwoTissueCompartmentModel::POSITION_PARAMETER_K1
static

Definition at line 56 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by ComputeModelfunction(), and mitk::NumericTwoTissueCompartmentModelParameterizer::GetDefaultInitialParameterization().

◆ POSITION_PARAMETER_k2

const unsigned int mitk::NumericTwoTissueCompartmentModel::POSITION_PARAMETER_k2
static

Definition at line 57 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by ComputeModelfunction(), and mitk::NumericTwoTissueCompartmentModelParameterizer::GetDefaultInitialParameterization().

◆ POSITION_PARAMETER_k3

const unsigned int mitk::NumericTwoTissueCompartmentModel::POSITION_PARAMETER_k3
static

Definition at line 58 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by ComputeModelfunction(), and mitk::NumericTwoTissueCompartmentModelParameterizer::GetDefaultInitialParameterization().

◆ POSITION_PARAMETER_k4

const unsigned int mitk::NumericTwoTissueCompartmentModel::POSITION_PARAMETER_k4
static

Definition at line 59 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by ComputeModelfunction(), and mitk::NumericTwoTissueCompartmentModelParameterizer::GetDefaultInitialParameterization().

◆ POSITION_PARAMETER_VB

const unsigned int mitk::NumericTwoTissueCompartmentModel::POSITION_PARAMETER_VB
static

Definition at line 60 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by ComputeModelfunction(), and mitk::NumericTwoTissueCompartmentModelParameterizer::GetDefaultInitialParameterization().

◆ UNIT_PARAMETER_K1

const std::string mitk::NumericTwoTissueCompartmentModel::UNIT_PARAMETER_K1
static

Definition at line 50 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterUnits().

◆ UNIT_PARAMETER_k2

const std::string mitk::NumericTwoTissueCompartmentModel::UNIT_PARAMETER_k2
static

Definition at line 51 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterUnits().

◆ UNIT_PARAMETER_k3

const std::string mitk::NumericTwoTissueCompartmentModel::UNIT_PARAMETER_k3
static

Definition at line 52 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterUnits().

◆ UNIT_PARAMETER_k4

const std::string mitk::NumericTwoTissueCompartmentModel::UNIT_PARAMETER_k4
static

Definition at line 53 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterUnits().

◆ UNIT_PARAMETER_VB

const std::string mitk::NumericTwoTissueCompartmentModel::UNIT_PARAMETER_VB
static

Definition at line 54 of file mitkNumericTwoTissueCompartmentModel.h.

Referenced by GetParameterUnits().

The documentation for this class was generated from the following files:
