mitk::InternalEvent Class Reference

Class to create events from within the application to signal about internal events. More...

#include <mitkInternalEvent.h>

Inheritance diagram for mitk::InternalEvent:
Inheritance graph
[legend]

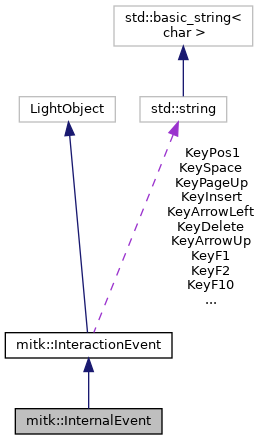

Collaboration diagram for mitk::InternalEvent:
Collaboration graph
[legend]

Public Types

typedef InternalEvent Self

typedef InteractionEvent Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer

- Public Types inherited from mitk::InteractionEvent
enum  MouseButtons { NoButton, LeftMouseButton, RightMouseButton, MiddleMouseButton }

enum  ModifierKeys { NoKey, ShiftKey, ControlKey, AltKey }

typedef InteractionEvent Self

typedef itk::LightObject Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer


Public Member Functions

virtual std::vector< std::string > GetClassHierarchy () const override

virtual const char * GetClassName () const

std::string GetSignalName () const

DataInteractor * GetTargetInteractor () const

bool IsSuperClassOf (const InteractionEvent::Pointer &baseClass) const override

- Public Member Functions inherited from mitk::InteractionEvent
void SetSender (BaseRenderer *sender)

BaseRenderer * GetSender () const


Static Public Member Functions

static const char * GetStaticNameOfClass ()

static Pointer New (BaseRenderer *_arga, DataInteractor *_argb, const std::string &_argc)

- Static Public Member Functions inherited from mitk::InteractionEvent
static const char * GetStaticNameOfClass ()

static Pointer New (BaseRenderer *_arg)


Protected Member Functions

 InternalEvent (BaseRenderer *, DataInteractor *destInteractor, const std::string &signalName)

 ~InternalEvent () override

bool IsEqual (const InteractionEvent &) const override

- Protected Member Functions inherited from mitk::InteractionEvent
 InteractionEvent (BaseRenderer *)

 ~InteractionEvent () override


Additional Inherited Members

- Static Public Attributes inherited from mitk::InteractionEvent
static const std::string KeyEsc

static const std::string KeyEnter

static const std::string KeyReturn

static const std::string KeyDelete

static const std::string KeyArrowUp

static const std::string KeyArrowDown

static const std::string KeyArrowLeft

static const std::string KeyArrowRight

static const std::string KeyF1

static const std::string KeyF2

static const std::string KeyF3

static const std::string KeyF4

static const std::string KeyF5

static const std::string KeyF6

static const std::string KeyF7

static const std::string KeyF8

static const std::string KeyF9

static const std::string KeyF10

static const std::string KeyF11

static const std::string KeyF12

static const std::string KeyPos1

static const std::string KeyEnd

static const std::string KeyInsert

static const std::string KeyPageUp

static const std::string KeyPageDown

static const std::string KeySpace


Detailed Description

Class to create events from within the application to signal about internal events.

These events can target a specific DataInteractor, if this DataInteractor is specified in the constructor; else this parameter is set to nullptr and the event is treated as a regular event.

Definition at line 34 of file mitkInternalEvent.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::InternalEvent::ConstPointer

Definition at line 37 of file mitkInternalEvent.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::InternalEvent::Pointer

Definition at line 37 of file mitkInternalEvent.h.

◆ Self

typedef InternalEvent mitk::InternalEvent::Self

Definition at line 37 of file mitkInternalEvent.h.

◆ Superclass

typedef InteractionEvent mitk::InternalEvent::Superclass

Definition at line 37 of file mitkInternalEvent.h.

Constructor & Destructor Documentation

◆ InternalEvent()

mitk::InternalEvent::InternalEvent ( mitk::BaseRenderer *  baseRenderer,
DataInteractor *  destInteractor,
const std::string &  signalName
)
protected

Definition at line 16 of file mitkInternalEvent.cpp.

◆ ~InternalEvent()

mitk::InternalEvent::~InternalEvent ( )
overrideprotected

Definition at line 29 of file mitkInternalEvent.cpp.

Member Function Documentation

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::InternalEvent::GetClassHierarchy ( ) const
inlineoverridevirtual

Reimplemented from mitk::InteractionEvent.

Definition at line 37 of file mitkInternalEvent.h.

◆ GetClassName()

virtual const char* mitk::InternalEvent::GetClassName ( ) const
virtual

Reimplemented from mitk::InteractionEvent.

◆ GetSignalName()

std::string mitk::InternalEvent::GetSignalName ( ) const

Definition at line 33 of file mitkInternalEvent.cpp.

Referenced by mitk::EventConfig::GetMappedEvent(), and mitk::Dispatcher::QueueEvent().

◆ GetStaticNameOfClass()

static const char* mitk::InternalEvent::GetStaticNameOfClass ( )
inlinestatic

Definition at line 37 of file mitkInternalEvent.h.

◆ GetTargetInteractor()

mitk::DataInteractor * mitk::InternalEvent::GetTargetInteractor ( ) const

Definition at line 38 of file mitkInternalEvent.cpp.

Referenced by mitk::Dispatcher::QueueEvent().

◆ IsEqual()

bool mitk::InternalEvent::IsEqual ( const InteractionEvent &  interactionEvent) const
overrideprotectedvirtual

Reimplemented from mitk::InteractionEvent.

Definition at line 23 of file mitkInternalEvent.cpp.

References mitk::InteractionEvent::IsEqual().

◆ IsSuperClassOf()

bool mitk::InternalEvent::IsSuperClassOf ( const InteractionEvent::Pointer &  baseClass) const
overridevirtual

This class implements an up cast to check if the provided baseClass object is derived from this class. This function is used to support polymorphism on state machine pattern (XML) level.

Reimplemented from mitk::InteractionEvent.

Definition at line 43 of file mitkInternalEvent.cpp.

◆ New()

static Pointer mitk::InternalEvent::New ( BaseRenderer *  _arga,
DataInteractor *  _argb,
const std::string &  _argc
)
inlinestatic

Definition at line 38 of file mitkInternalEvent.h.

Referenced by mitk::PointSetDataInteractor::Abort(), mitk::PointSetDataInteractor::AddPoint(), mitk::ExampleInteractor::ConnectActionsAndFunctions(), mitk::EventFactory::CreateEvent(), mitk::PointSetDataInteractor::IsClosedContour(), QmitkRenderWindow::leaveEvent(), mitk::PlanarFigureInteractor::RemoveSelectedPoint(), and mitk::GizmoInteractor::SetManipulatedObjectNode().

The documentation for this class was generated from the following files:
