Medical Imaging Interaction Toolkit  2018.4.99-389bf124
Medical Imaging Interaction Toolkit
Public Types | Public Member Functions | Static Public Member Functions | Protected Member Functions | List of all members
mitk::InteractionKeyEvent Class Reference
MITK Modules » Core » Interaction and Undo Classes » Interaction Classes

Handles key events. Takes a std::string for pressed key or special key description, mitk::ModifierKeys for modifiers More...

#include <mitkInteractionKeyEvent.h>

Inheritance diagram for mitk::InteractionKeyEvent:
Inheritance graph
[legend]

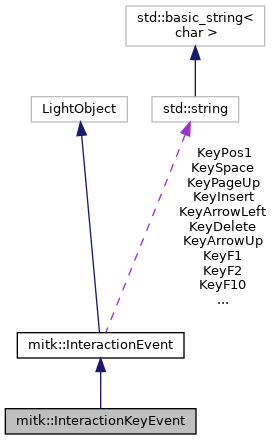

Collaboration diagram for mitk::InteractionKeyEvent:
Collaboration graph
[legend]

Public Types

typedef InteractionKeyEvent Self

typedef InteractionEvent Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer

- Public Types inherited from mitk::InteractionEvent
enum  MouseButtons { NoButton, LeftMouseButton, RightMouseButton, MiddleMouseButton }

enum  ModifierKeys { NoKey, ShiftKey, ControlKey, AltKey }

typedef InteractionEvent Self

typedef itk::LightObject Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer


Public Member Functions

virtual std::vector< std::string > GetClassHierarchy () const override

virtual const char * GetClassName () const

bool IsSuperClassOf (const InteractionEvent::Pointer &baseClass) const override

ModifierKeys GetModifiers () const

std::string GetKey () const

- Public Member Functions inherited from mitk::InteractionEvent
void SetSender (BaseRenderer *sender)

BaseRenderer * GetSender () const


Static Public Member Functions

static const char * GetStaticNameOfClass ()

static Pointer New (BaseRenderer *_arga, const std::string &_argb, ModifierKeys _argc)

- Static Public Member Functions inherited from mitk::InteractionEvent
static const char * GetStaticNameOfClass ()

static Pointer New (BaseRenderer *_arg)


Protected Member Functions

 InteractionKeyEvent (BaseRenderer *, const std::string &key, ModifierKeys modifiers)

 ~InteractionKeyEvent () override

bool IsEqual (const InteractionEvent &) const override

- Protected Member Functions inherited from mitk::InteractionEvent
 InteractionEvent (BaseRenderer *)

 ~InteractionEvent () override


Additional Inherited Members

- Static Public Attributes inherited from mitk::InteractionEvent
static const std::string KeyEsc

static const std::string KeyEnter

static const std::string KeyReturn

static const std::string KeyDelete

static const std::string KeyArrowUp

static const std::string KeyArrowDown

static const std::string KeyArrowLeft

static const std::string KeyArrowRight

static const std::string KeyF1

static const std::string KeyF2

static const std::string KeyF3

static const std::string KeyF4

static const std::string KeyF5

static const std::string KeyF6

static const std::string KeyF7

static const std::string KeyF8

static const std::string KeyF9

static const std::string KeyF10

static const std::string KeyF11

static const std::string KeyF12

static const std::string KeyPos1

static const std::string KeyEnd

static const std::string KeyInsert

static const std::string KeyPageUp

static const std::string KeyPageDown

static const std::string KeySpace


Detailed Description

Handles key events. Takes a std::string for pressed key or special key description, mitk::ModifierKeys for modifiers

Definition at line 39 of file mitkInteractionKeyEvent.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::InteractionKeyEvent::ConstPointer

Definition at line 42 of file mitkInteractionKeyEvent.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::InteractionKeyEvent::Pointer

Definition at line 42 of file mitkInteractionKeyEvent.h.

◆ Self

typedef InteractionKeyEvent mitk::InteractionKeyEvent::Self

Definition at line 42 of file mitkInteractionKeyEvent.h.

◆ Superclass

typedef InteractionEvent mitk::InteractionKeyEvent::Superclass

Definition at line 42 of file mitkInteractionKeyEvent.h.

Constructor & Destructor Documentation

◆ InteractionKeyEvent()

mitk::InteractionKeyEvent::InteractionKeyEvent ( mitk::BaseRenderer *  baseRenderer,
const std::string &  key,
ModifierKeys  modifiers = ControlKey
)
protected

Definition at line 15 of file mitkInteractionKeyEvent.cpp.

◆ ~InteractionKeyEvent()

mitk::InteractionKeyEvent::~InteractionKeyEvent ( )
overrideprotected

Definition at line 32 of file mitkInteractionKeyEvent.cpp.

Member Function Documentation

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::InteractionKeyEvent::GetClassHierarchy ( ) const
inlineoverridevirtual

Reimplemented from mitk::InteractionEvent.

Definition at line 42 of file mitkInteractionKeyEvent.h.

◆ GetClassName()

virtual const char* mitk::InteractionKeyEvent::GetClassName ( ) const
virtual

Reimplemented from mitk::InteractionEvent.

◆ GetKey()

std::string mitk::InteractionKeyEvent::GetKey ( ) const

Definition at line 27 of file mitkInteractionKeyEvent.cpp.

Referenced by IsEqual().

◆ GetModifiers()

mitk::InteractionEvent::ModifierKeys mitk::InteractionKeyEvent::GetModifiers ( ) const

Definition at line 22 of file mitkInteractionKeyEvent.cpp.

Referenced by IsEqual().

◆ GetStaticNameOfClass()

static const char* mitk::InteractionKeyEvent::GetStaticNameOfClass ( )
inlinestatic

Definition at line 42 of file mitkInteractionKeyEvent.h.

◆ IsEqual()

bool mitk::InteractionKeyEvent::IsEqual ( const InteractionEvent &  interactionEvent) const
overrideprotectedvirtual

Reimplemented from mitk::InteractionEvent.

Definition at line 36 of file mitkInteractionKeyEvent.cpp.

References GetKey(), GetModifiers(), and mitk::InteractionEvent::IsEqual().

◆ IsSuperClassOf()

bool mitk::InteractionKeyEvent::IsSuperClassOf ( const InteractionEvent::Pointer &  baseClass) const
overridevirtual

This class implements an up cast to check if the provided baseClass object is derived from this class. This function is used to support polymorphism on state machine pattern (XML) level.

Reimplemented from mitk::InteractionEvent.

Definition at line 43 of file mitkInteractionKeyEvent.cpp.

◆ New()

static Pointer mitk::InteractionKeyEvent::New ( BaseRenderer *  _arga,
const std::string &  _argb,
ModifierKeys  _argc
)
inlinestatic

Definition at line 43 of file mitkInteractionKeyEvent.h.

Referenced by mitk::VtkEventAdapter::AdaptInteractionKeyEvent(), mitk::EventFactory::CreateEvent(), QmitkRenderWindow::keyPressEvent(), and mitkEventConfigTest().

The documentation for this class was generated from the following files:
