#include <mitkGenericIDRelationRule.h>

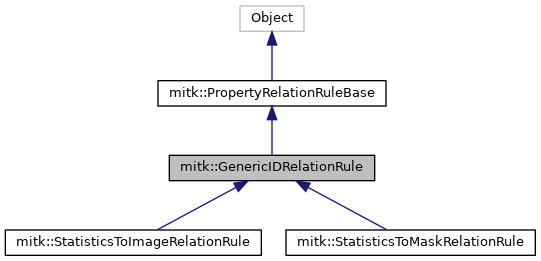

Inheritance diagram for mitk::GenericIDRelationRule:

Collaboration diagram for mitk::GenericIDRelationRule:

Public Types
typedef GenericIDRelationRule	Self

typedef PropertyRelationRuleBase	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

using	RuleIDType = PropertyRelationRuleBase::RuleIDType

using	RelationUIDType = PropertyRelationRuleBase::RelationUIDType

using	RelationUIDVectorType = PropertyRelationRuleBase::RelationUIDVectorType

Public Types inherited from mitk::PropertyRelationRuleBase
enum	RelationType { RelationType::None, RelationType::Implicit_Data, RelationType::Connected_Data, RelationType::Connected_ID }

typedef PropertyRelationRuleBase	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

using	RuleIDType = std::string

using	RelationUIDType = Identifiable::UIDType

using	RelationUIDVectorType = std::vector< RelationUIDType >

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

RuleIDType	GetRuleID () const override

bool	IsAbstract () const override

std::string	GetDisplayName () const override

std::string	GetSourceRoleName () const override

std::string	GetDestinationRoleName () const override

RelationUIDType	Connect (IPropertyOwner source, const IPropertyProvider destination) const

Public Member Functions inherited from mitk::PropertyRelationRuleBase
Pointer	Clone () const

	itkCreateAnotherMacro (Self)

virtual bool	IsSourceCandidate (const IPropertyProvider *owner) const

virtual bool	IsDestinationCandidate (const IPropertyProvider *owner) const

bool	IsSource (const IPropertyProvider *owner) const

RelationType	HasRelation (const IPropertyProvider source, const IPropertyProvider destination) const

RelationUIDVectorType	GetExistingRelations (const IPropertyProvider *source) const

RelationUIDVectorType	GetRelationUIDs (const IPropertyProvider source, const IPropertyProvider destination) const

RelationUIDType	GetRelationUID (const IPropertyProvider source, const IPropertyProvider destination) const

NodePredicateBase::ConstPointer	GetSourceCandidateIndicator () const

NodePredicateBase::ConstPointer	GetDestinationCandidateIndicator () const

NodePredicateBase::ConstPointer	GetConnectedSourcesDetector () const

NodePredicateBase::ConstPointer	GetSourcesDetector (const IPropertyProvider *destination, RelationType minimalRelation=RelationType::Implicit_Data) const

NodePredicateBase::ConstPointer	GetDestinationsDetector (const IPropertyProvider *source, RelationType minimalRelation=RelationType::Implicit_Data) const

NodePredicateBase::ConstPointer	GetDestinationDetector (const IPropertyProvider *source, RelationUIDType relationUID) const

void	Disconnect (IPropertyOwner source, const IPropertyProvider destination) const

void	Disconnect (IPropertyOwner *source, RelationUIDType relationUID) const

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New (const RuleIDType &_arg)

static Pointer	New (const RuleIDType &_arga, const std::string &_argb)

static Pointer	New (const RuleIDType &_arga, const std::string &_argb, const std::string &_argc, const std::string &_argd)

Static Public Member Functions inherited from mitk::PropertyRelationRuleBase
static const char *	GetStaticNameOfClass ()

static PropertyKeyPath	GetRootKeyPath ()

Protected Types
using	InstanceIDType = PropertyRelationRuleBase::InstanceIDType

using	InstanceIDVectorType = PropertyRelationRuleBase::InstanceIDVectorType

Protected Types inherited from mitk::PropertyRelationRuleBase
using	InstanceIDType = std::string

using	InstanceIDVectorType = std::vector< InstanceIDType >

Protected Member Functions
	GenericIDRelationRule (const RuleIDType &ruleIDTag)

	GenericIDRelationRule (const RuleIDType &ruleIDTag, const std::string &displayName)

	GenericIDRelationRule (const RuleIDType &ruleIDTag, const std::string &displayName, const std::string &sourceRole, const std::string &destinationRole)

	~GenericIDRelationRule () override=default

InstanceIDVectorType	GetInstanceID_datalayer (const IPropertyProvider source, const IPropertyProvider destination) const override

bool	HasImplicitDataRelation (const IPropertyProvider source, const IPropertyProvider destination) const override

void	Connect_datalayer (IPropertyOwner source, const IPropertyProvider destination, const InstanceIDType &instanceID) const override

void	Disconnect_datalayer (IPropertyOwner *source, const InstanceIDType &instanceID) const override

bool	IsSupportedRuleID (const RuleIDType &ruleID) const override

itk::LightObject::Pointer	InternalClone () const override

Protected Member Functions inherited from mitk::PropertyRelationRuleBase
	PropertyRelationRuleBase ()=default

	~PropertyRelationRuleBase () override=default

InstanceIDVectorType	GetInstanceID_IDLayer (const IPropertyProvider source, const IPropertyProvider destination) const

RelationUIDType	GetRelationUIDByInstanceID (const IPropertyProvider *source, const InstanceIDType &instanceID) const

InstanceIDType	GetInstanceIDByRelationUID (const IPropertyProvider *source, const RelationUIDType &relationUID) const

RelationUIDType	Connect (IPropertyOwner source, const IPropertyProvider destination) const

std::string	GetRIIPropertyRegEx (const std::string propName="", const InstanceIDType &instanceID="") const

RuleIDType	GetRuleIDByInstanceID (const IPropertyProvider *source, const InstanceIDType &instanceID) const

itk::LightObject::Pointer	InternalClone () const override

Additional Inherited Members
Static Protected Member Functions inherited from mitk::PropertyRelationRuleBase
static InstanceIDType	NULL_INSTANCE_ID ()

static InstanceIDType	GetInstanceIDByPropertyName (const std::string propName)

static std::vector< std::string >	GetPropertyKeys (const mitk::IPropertyProvider *owner)

Detailed Description

This rule class can be used for relations that are only defined on the ID-layer and where no connection on the Data-layer can be defined or deduced. So it can be used for all ID based relations between PropertyProviders that also implement the interface identifiable. In order to be able to use this class for different relation types based on ID, the ruleIDTag is used. It must be specified when creating a rule instance. The ruleIDTag will be used as suffix for the rule ID of the instance and therefore allows to create specific and distinguishable rules instances based on this class. One may also specify the display name and the role names of the instance. If not speficied the default values are used (display name: "<ruleIDTag> relation", source role name: "source of <ruleIDTag> relation", destination role name: "destination <ruleIDTag> of relation")

Definition at line 32 of file mitkGenericIDRelationRule.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::GenericIDRelationRule::ConstPointer

Definition at line 35 of file mitkGenericIDRelationRule.h.

◆ InstanceIDType

using mitk::GenericIDRelationRule::InstanceIDType = PropertyRelationRuleBase::InstanceIDType

protected

Definition at line 72 of file mitkGenericIDRelationRule.h.

◆ InstanceIDVectorType

using mitk::GenericIDRelationRule::InstanceIDVectorType = PropertyRelationRuleBase::InstanceIDVectorType

protected

Definition at line 73 of file mitkGenericIDRelationRule.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::GenericIDRelationRule::Pointer

Definition at line 35 of file mitkGenericIDRelationRule.h.

◆ RelationUIDType

using mitk::GenericIDRelationRule::RelationUIDType = PropertyRelationRuleBase::RelationUIDType

Definition at line 42 of file mitkGenericIDRelationRule.h.

◆ RelationUIDVectorType

using mitk::GenericIDRelationRule::RelationUIDVectorType = PropertyRelationRuleBase::RelationUIDVectorType

Definition at line 43 of file mitkGenericIDRelationRule.h.

◆ RuleIDType

using mitk::GenericIDRelationRule::RuleIDType = PropertyRelationRuleBase::RuleIDType

Definition at line 41 of file mitkGenericIDRelationRule.h.

◆ Self

typedef GenericIDRelationRule mitk::GenericIDRelationRule::Self

Definition at line 35 of file mitkGenericIDRelationRule.h.

◆ Superclass

typedef PropertyRelationRuleBase mitk::GenericIDRelationRule::Superclass

Definition at line 35 of file mitkGenericIDRelationRule.h.

Constructor & Destructor Documentation

◆ GenericIDRelationRule() [1/3]

mitk::GenericIDRelationRule::GenericIDRelationRule ( const RuleIDType & ruleIDTag )

protected

Definition at line 50 of file mitkGenericIDRelationRule.cpp.

◆ GenericIDRelationRule() [2/3]

mitk::GenericIDRelationRule::GenericIDRelationRule	(	const RuleIDType &	ruleIDTag,
		const std::string &	displayName
	)

protected

Definition at line 53 of file mitkGenericIDRelationRule.cpp.

◆ GenericIDRelationRule() [3/3]

mitk::GenericIDRelationRule::GenericIDRelationRule	(	const RuleIDType &	ruleIDTag,
		const std::string &	displayName,
		const std::string &	sourceRole,
		const std::string &	destinationRole
	)

protected

Definition at line 57 of file mitkGenericIDRelationRule.cpp.

◆ ~GenericIDRelationRule()

mitk::GenericIDRelationRule::~GenericIDRelationRule ( )

overrideprotecteddefault

Member Function Documentation

◆ Clone()

Pointer mitk::GenericIDRelationRule::Clone ( ) const

◆ Connect()

mitk::GenericIDRelationRule::RelationUIDType mitk::GenericIDRelationRule::Connect	(	IPropertyOwner *	source,
		const IPropertyProvider *	destination
	)		const

Pass through to base implementation of PropertyRelationRuleBase. See PropertyRelationRuleBase::connect documentation for more information.

Definition at line 45 of file mitkGenericIDRelationRule.cpp.

References mitk::PropertyRelationRuleBase::Connect().

◆ Connect_datalayer()

void mitk::GenericIDRelationRule::Connect_datalayer	(	IPropertyOwner *	source,
		const IPropertyProvider *	destination,
		const InstanceIDType &	instanceID
	)		const

overrideprotectedvirtual

Is called by Connect() to ensure that source has correctly set properties to resemble the relation on the data layer. This means that the method should set the properties that describe and encode the relation on the data layer (data-layer-specific relation properties). If the passed instance are already connected, the old settings should be overwritten. Connect() will ensure that source and destination are valid pointers.

Parameters

instanceID is the ID for the relation instance that should be connected. Existance of the relation instance is ensured.

Precondition: source must be a valid instance.; destination must be a valid instance.

Implements mitk::PropertyRelationRuleBase.

Definition at line 77 of file mitkGenericIDRelationRule.cpp.

◆ Disconnect_datalayer()

void mitk::GenericIDRelationRule::Disconnect_datalayer	(	IPropertyOwner *	source,
		const InstanceIDType &	instanceID
	)		const

overrideprotectedvirtual

This method is called by Disconnect() to remove all properties of the relation from the source that are set by Connect_datalayer().

Remarks: All RII-properties of this relation will removed by Disconnect() after this method call. If the relationUID is not part of the source. Nothing will be changed. Disconnect() ensures that source is a valid pointer if called.; Disconnect() ensures that sourece is valid and only invokes if instance exists.

Implements mitk::PropertyRelationRuleBase.

Definition at line 83 of file mitkGenericIDRelationRule.cpp.

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::GenericIDRelationRule::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::PropertyRelationRuleBase.

Definition at line 35 of file mitkGenericIDRelationRule.h.

◆ GetClassName()

virtual const char* mitk::GenericIDRelationRule::GetClassName ( ) const

virtual

Reimplemented from mitk::PropertyRelationRuleBase.

◆ GetDestinationRoleName()

std::string mitk::GenericIDRelationRule::GetDestinationRoleName ( ) const

overridevirtual

Returns a human readable string that can be used to describe the role of a destination in context of the rule instance.

Implements mitk::PropertyRelationRuleBase.

Definition at line 40 of file mitkGenericIDRelationRule.cpp.

◆ GetDisplayName()

std::string mitk::GenericIDRelationRule::GetDisplayName ( ) const

overridevirtual

Returns a human readable string that can be used to describe the rule. Does not need to be unique.

Implements mitk::PropertyRelationRuleBase.

Definition at line 30 of file mitkGenericIDRelationRule.cpp.

◆ GetInstanceID_datalayer()

mitk::GenericIDRelationRule::InstanceIDVectorType mitk::GenericIDRelationRule::GetInstanceID_datalayer	(	const IPropertyProvider *	source,
		const IPropertyProvider *	destination
	)		const

overrideprotectedvirtual

Is called if a instance ID cannot be deduced on the ID-layer. Implement this method to check which existing relation(s) as Connected_Data exists between both passed instances. If the passed instances have no explicit relation of type Connected_Data, an empty vector will be returned.

Remarks: Per definition of property relation rules only 0 or 1 instance should be found for one provider pair and rule. But the data layer may be ambiguous and there for muliple relation instances of the rule instance could match. The implementation of this function should report all relation instances. The calling function will take care of this violation.

Precondition: source must be a pointer to a valid IPropertyProvider instance.; destination must be a pointer to a valid IPropertyProvider instance.

Implements mitk::PropertyRelationRuleBase.

Definition at line 63 of file mitkGenericIDRelationRule.cpp.

◆ GetRuleID()

mitk::GenericIDRelationRule::RuleIDType mitk::GenericIDRelationRule::GetRuleID ( ) const

overridevirtual

Returns an ID string that identifies the rule class

Implements mitk::PropertyRelationRuleBase.

Definition at line 25 of file mitkGenericIDRelationRule.cpp.

Referenced by IsSupportedRuleID().

◆ GetSourceRoleName()

std::string mitk::GenericIDRelationRule::GetSourceRoleName ( ) const

overridevirtual

Returns a human readable string that can be used to describe the role of a source in context of the rule instance.

Implements mitk::PropertyRelationRuleBase.

Definition at line 35 of file mitkGenericIDRelationRule.cpp.

◆ GetStaticNameOfClass()

static const char* mitk::GenericIDRelationRule::GetStaticNameOfClass ( )

inlinestatic

Definition at line 35 of file mitkGenericIDRelationRule.h.

◆ HasImplicitDataRelation()

bool mitk::GenericIDRelationRule::HasImplicitDataRelation	(	const IPropertyProvider *	source,
		const IPropertyProvider *	destination
	)		const

overrideprotectedvirtual

Is called by HasRelation() if no relation of type Connected_ID (GetInstanceID_IDLayer()) or Connected_Data (GetInstanceID_datalayer()) is evident. Implement this method to deduce if the passed instances have a relation of type Implicit_Data.

Precondition: source must be a pointer to a valid IPropertyProvider instance.; destination must be a pointer to a valid IPropertyProvider instance.

Implements mitk::PropertyRelationRuleBase.

Definition at line 70 of file mitkGenericIDRelationRule.cpp.

◆ InternalClone()

itk::LightObject::Pointer mitk::GenericIDRelationRule::InternalClone ( ) const

overrideprotected

Definition at line 87 of file mitkGenericIDRelationRule.cpp.

References New().

◆ IsAbstract()

bool mitk::GenericIDRelationRule::IsAbstract ( ) const

overridevirtual

Returns if the instance is a abstract rule (true). Default implementation is true. Overwrite and reimplement if another behavior is needed.

Reimplemented from mitk::PropertyRelationRuleBase.

Definition at line 15 of file mitkGenericIDRelationRule.cpp.

Referenced by IsSupportedRuleID().

◆ IsSupportedRuleID()

bool mitk::GenericIDRelationRule::IsSupportedRuleID ( const RuleIDType & ruleID ) const

overrideprotectedvirtual

Returns if the passed rule ID is supported/relevant for the rule. Either because it is the very ID of the rule (default implementation) or because it is an abstract rule which also supports the rule ID.

Returns: true: If the rule ID can handle the rule ID. false: the rule does not support the rule ID.

Reimplemented from mitk::PropertyRelationRuleBase.

Definition at line 20 of file mitkGenericIDRelationRule.cpp.

References GetRuleID(), and IsAbstract().

◆ New() [1/3]

static Pointer mitk::GenericIDRelationRule::New ( const RuleIDType & _arg )

inlinestatic

Definition at line 37 of file mitkGenericIDRelationRule.h.

Referenced by InternalClone().

◆ New() [2/3]

static Pointer mitk::GenericIDRelationRule::New	(	const RuleIDType &	_arga,
		const std::string &	_argb
	)

inlinestatic

Definition at line 38 of file mitkGenericIDRelationRule.h.

◆ New() [3/3]

static Pointer mitk::GenericIDRelationRule::New	(	const RuleIDType &	_arga,
		const std::string &	_argb,
		const std::string &	_argc,
		const std::string &	_argd
	)

inlinestatic

Definition at line 39 of file mitkGenericIDRelationRule.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ InstanceIDType

◆ InstanceIDVectorType

◆ Pointer

◆ RelationUIDType

◆ RelationUIDVectorType

◆ RuleIDType

◆ Self

◆ Superclass

Constructor & Destructor Documentation

◆ GenericIDRelationRule() [1/3]

◆ GenericIDRelationRule() [2/3]

◆ GenericIDRelationRule() [3/3]

◆ ~GenericIDRelationRule()

Member Function Documentation

◆ Clone()

◆ Connect()

◆ Connect_datalayer()

◆ Disconnect_datalayer()

◆ GetClassHierarchy()

◆ GetClassName()

◆ GetDestinationRoleName()

◆ GetDisplayName()

◆ GetInstanceID_datalayer()

◆ GetRuleID()

◆ GetSourceRoleName()

◆ GetStaticNameOfClass()

◆ HasImplicitDataRelation()

◆ InternalClone()

◆ IsAbstract()

◆ IsSupportedRuleID()

◆ New() [1/3]

◆ New() [2/3]

◆ New() [3/3]
