mitk::DICOMSortCriterion Class Reference

A tag based sorting criterion for use in DICOMTagBasedSorter. More...

#include <mitkDICOMSortCriterion.h>

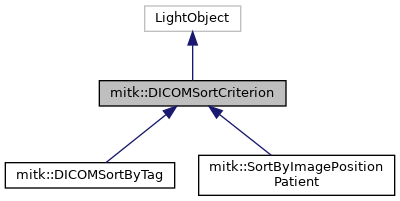

Inheritance diagram for mitk::DICOMSortCriterion:

Collaboration diagram for mitk::DICOMSortCriterion:

Public Member Functions
	mitkClassMacroItkParent (DICOMSortCriterion, itk::LightObject)
DICOMTagList	GetAllTagsOfInterest () const
	Tags used for comparison (includes seconary criteria). More...
virtual DICOMTagList	GetTagsOfInterest () const =0
	Tags used for comparison. More...
virtual bool	IsLeftBeforeRight (const mitk::DICOMDatasetAccess *left, const mitk::DICOMDatasetAccess *right) const =0
	Answer the sorting question. More...
virtual double	NumericDistance (const mitk::DICOMDatasetAccess *from, const mitk::DICOMDatasetAccess *to) const =0
	Calculate a distance between two datasets. This ansers the question of consecutive datasets. More...
DICOMSortCriterion::ConstPointer	GetSecondaryCriterion () const
	The fallback criterion. More...
virtual void	Print (std::ostream &os) const =0
	brief describe this class in given stream. More...
virtual bool	operator== (const DICOMSortCriterion &other) const =0

Protected Member Functions
	DICOMSortCriterion (DICOMSortCriterion::Pointer secondaryCriterion)
	~DICOMSortCriterion () override
bool	NextLevelIsLeftBeforeRight (const mitk::DICOMDatasetAccess *left, const mitk::DICOMDatasetAccess *right) const
	DICOMSortCriterion (const DICOMSortCriterion &other)
DICOMSortCriterion &	operator= (const DICOMSortCriterion &other)

Protected Attributes
DICOMSortCriterion::Pointer	m_SecondaryCriterion

Detailed Description

A tag based sorting criterion for use in DICOMTagBasedSorter.

This class is used within std::sort (see DICOMTagBasedSorter::Sort()) and has to answer a simple question by implementing IsLeftBeforeRight(). Each time IsLeftBeforeRight() is called, the method should return whether the left dataset should be sorted before the right dataset.

Because there are identical tags values quite oftenly, a DICOMSortCriterion will always hold a secondary DICOMSortCriterion. In cases of equal tag values, the decision is refered to the secondary criterion.

Definition at line 37 of file mitkDICOMSortCriterion.h.

Constructor & Destructor Documentation

DICOMSortCriterion() [1/2]

mitk::DICOMSortCriterion::DICOMSortCriterion ( DICOMSortCriterion::Pointer  secondaryCriterion )

protected

Definition at line 16 of file mitkDICOMSortCriterion.cpp.

References ~DICOMSortCriterion().

Referenced by ~DICOMSortCriterion().

~DICOMSortCriterion()

mitk::DICOMSortCriterion::~DICOMSortCriterion ( )

overrideprotected

Definition at line 23 of file mitkDICOMSortCriterion.cpp.

References DICOMSortCriterion().

Referenced by DICOMSortCriterion().

DICOMSortCriterion() [2/2]

mitk::DICOMSortCriterion::DICOMSortCriterion ( const DICOMSortCriterion &  other )

explicitprotected

Definition at line 28 of file mitkDICOMSortCriterion.cpp.

References operator=().

Member Function Documentation

GetAllTagsOfInterest()

mitk::DICOMTagList mitk::DICOMSortCriterion::GetAllTagsOfInterest

(

)

const

Tags used for comparison (includes seconary criteria).

Definition at line 54 of file mitkDICOMSortCriterion.cpp.

References GetTagsOfInterest(), m_SecondaryCriterion, and NextLevelIsLeftBeforeRight().

Referenced by GetSecondaryCriterion().

GetSecondaryCriterion()

mitk::DICOMSortCriterion::ConstPointer mitk::DICOMSortCriterion::GetSecondaryCriterion

(

)

const

The fallback criterion.

Definition at line 47 of file mitkDICOMSortCriterion.cpp.

References GetAllTagsOfInterest(), and m_SecondaryCriterion.

Referenced by operator=().

GetTagsOfInterest()

virtual DICOMTagList mitk::DICOMSortCriterion::GetTagsOfInterest ( ) const

pure virtual

Tags used for comparison.

Implemented in mitk::DICOMSortByTag, and mitk::SortByImagePositionPatient.

Referenced by GetAllTagsOfInterest().

IsLeftBeforeRight()

virtual bool mitk::DICOMSortCriterion::IsLeftBeforeRight ( const mitk::DICOMDatasetAccess *  left, const mitk::DICOMDatasetAccess *  right  ) const

pure virtual

Answer the sorting question.

Implemented in mitk::DICOMSortByTag, and mitk::SortByImagePositionPatient.

mitkClassMacroItkParent()

mitk::DICOMSortCriterion::mitkClassMacroItkParent	(	DICOMSortCriterion	,
		itk::LightObject
	)

NextLevelIsLeftBeforeRight()

bool mitk::DICOMSortCriterion::NextLevelIsLeftBeforeRight ( const mitk::DICOMDatasetAccess *  left, const mitk::DICOMDatasetAccess *  right  ) const

protected

Definition at line 72 of file mitkDICOMSortCriterion.cpp.

References m_SecondaryCriterion.

Referenced by GetAllTagsOfInterest(), mitk::SortByImagePositionPatient::IsLeftBeforeRight(), mitk::DICOMSortByTag::NumericCompare(), and mitk::DICOMSortByTag::StringCompare().

NumericDistance()

virtual double mitk::DICOMSortCriterion::NumericDistance ( const mitk::DICOMDatasetAccess *  from, const mitk::DICOMDatasetAccess *  to  ) const

pure virtual

Calculate a distance between two datasets. This ansers the question of consecutive datasets.

Implemented in mitk::DICOMSortByTag, and mitk::SortByImagePositionPatient.

operator=()

mitk::DICOMSortCriterion & mitk::DICOMSortCriterion::operator= ( const DICOMSortCriterion &  other )

protected

Definition at line 36 of file mitkDICOMSortCriterion.cpp.

References GetSecondaryCriterion(), and m_SecondaryCriterion.

Referenced by DICOMSortCriterion(), mitk::SortByImagePositionPatient::operator=(), and mitk::DICOMSortByTag::operator=().

operator==()

virtual bool mitk::DICOMSortCriterion::operator== ( const DICOMSortCriterion &  other ) const

pure virtual

Implemented in mitk::DICOMSortByTag, and mitk::SortByImagePositionPatient.

Print()

virtual void mitk::DICOMSortCriterion::Print ( std::ostream &  os ) const

pure virtual

brief describe this class in given stream.

Implemented in mitk::DICOMSortByTag, and mitk::SortByImagePositionPatient.

Member Data Documentation

m_SecondaryCriterion

DICOMSortCriterion::Pointer mitk::DICOMSortCriterion::m_SecondaryCriterion

protected

Definition at line 73 of file mitkDICOMSortCriterion.h.

Referenced by GetAllTagsOfInterest(), GetSecondaryCriterion(), NextLevelIsLeftBeforeRight(), operator=(), and mitk::DICOMSortByTag::operator==().

---

The documentation for this class was generated from the following files:

• mitkDICOMSortCriterion.h
• mitkDICOMSortCriterion.cpp
