mitk::DICOMGDCMImageFrameInfo Class Reference

The dataset access implementation for DICOMITKSeriesGDCMReader, based on GDCM. More...

#include <mitkDICOMGDCMImageFrameInfo.h>

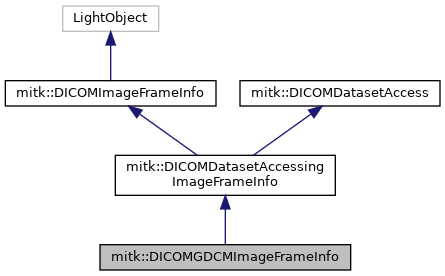

Inheritance diagram for mitk::DICOMGDCMImageFrameInfo:

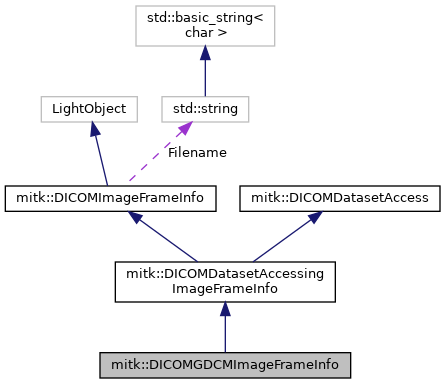

Collaboration diagram for mitk::DICOMGDCMImageFrameInfo:

Public Member Functions
	mitkClassMacro (DICOMGDCMImageFrameInfo, DICOMDatasetAccessingImageFrameInfo)
	mitkNewMacro1Param (DICOMGDCMImageFrameInfo, const std::string &)
	mitkNewMacro2Param (DICOMGDCMImageFrameInfo, const std::string &, unsigned int)
	mitkNewMacro1Param (DICOMGDCMImageFrameInfo, const DICOMImageFrameInfo::Pointer &)
	mitkNewMacro2Param (DICOMGDCMImageFrameInfo, const DICOMImageFrameInfo::Pointer &, gdcm::Scanner::TagToValue const &)
	~DICOMGDCMImageFrameInfo () override
DICOMDatasetFinding	GetTagValueAsString (const DICOMTag &) const override
	Return a DICOMDatasetFinding instance of the tag. The return containes (if valid) the raw value of the tag as a string. More...
FindingsListType	GetTagValueAsString (const DICOMTagPath &path) const override
	Return a list of DICOMDatasetFindings of the passed tag path. The return containes (if valid) the raw value of the tag as a string. More...
std::string	GetFilenameIfAvailable () const override
	Return a filename if possible. If DICOM is not read from file but from somewhere else (network, database), we might not have files. More...
Public Member Functions inherited from mitk::DICOMDatasetAccessingImageFrameInfo
	mitkClassMacro (DICOMDatasetAccessingImageFrameInfo, DICOMImageFrameInfo)
Public Member Functions inherited from mitk::DICOMImageFrameInfo
	mitkClassMacroItkParent (DICOMImageFrameInfo, itk::LightObject)
	mitkNewMacro1Param (DICOMImageFrameInfo, const std::string &)
	mitkNewMacro2Param (DICOMImageFrameInfo, const std::string &, unsigned int)
bool	operator== (const DICOMImageFrameInfo &other) const
Public Member Functions inherited from mitk::DICOMDatasetAccess
virtual	~DICOMDatasetAccess ()

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::DICOMImageFrameInfo
static Pointer	New ()

Protected Member Functions
	DICOMGDCMImageFrameInfo (const DICOMImageFrameInfo::Pointer &frameinfo)
	DICOMGDCMImageFrameInfo (const DICOMImageFrameInfo::Pointer &frameinfo, gdcm::Scanner::TagToValue const &tagToValueMapping)
	DICOMGDCMImageFrameInfo (const std::string &filename="", unsigned int frameNo=0)
Protected Member Functions inherited from mitk::DICOMDatasetAccessingImageFrameInfo
	DICOMDatasetAccessingImageFrameInfo (const std::string &filename="", unsigned int frameNo=0)
	~DICOMDatasetAccessingImageFrameInfo () override
Protected Member Functions inherited from mitk::DICOMImageFrameInfo
	DICOMImageFrameInfo (const std::string &filename="", unsigned int frameNo=0)

Protected Attributes
const gdcm::Scanner::TagToValue	m_TagForValue

Additional Inherited Members
Public Types inherited from mitk::DICOMDatasetAccess
typedef std::list< DICOMDatasetFinding >	FindingsListType
Public Attributes inherited from mitk::DICOMImageFrameInfo
const std::string	Filename
	absolute filename More...
const unsigned int	FrameNo
	frame number, starting with 0 More...

Detailed Description

The dataset access implementation for DICOMITKSeriesGDCMReader, based on GDCM.

This class combines a DICOMImageFrameInfo object with the scanning results from gdcm::Scanner. The scanning results will be used to implement the tag access methods of DICOMDatasetAccess.

Definition at line 30 of file mitkDICOMGDCMImageFrameInfo.h.

Constructor & Destructor Documentation

~DICOMGDCMImageFrameInfo()

mitk::DICOMGDCMImageFrameInfo::~DICOMGDCMImageFrameInfo ( )

override

Definition at line 37 of file mitkDICOMGDCMImageFrameInfo.cpp.

References GetTagValueAsString().

Referenced by DICOMGDCMImageFrameInfo().

DICOMGDCMImageFrameInfo() [1/3]

mitk::DICOMGDCMImageFrameInfo::DICOMGDCMImageFrameInfo ( const DICOMImageFrameInfo::Pointer &  frameinfo )

explicitprotected

Definition at line 23 of file mitkDICOMGDCMImageFrameInfo.cpp.

Referenced by DICOMGDCMImageFrameInfo().

DICOMGDCMImageFrameInfo() [2/3]

mitk::DICOMGDCMImageFrameInfo::DICOMGDCMImageFrameInfo ( const DICOMImageFrameInfo::Pointer &  frameinfo, gdcm::Scanner::TagToValue const &  tagToValueMapping  )

protected

Definition at line 30 of file mitkDICOMGDCMImageFrameInfo.cpp.

References ~DICOMGDCMImageFrameInfo().

DICOMGDCMImageFrameInfo() [3/3]

mitk::DICOMGDCMImageFrameInfo::DICOMGDCMImageFrameInfo ( const std::string &  filename = "", unsigned int  frameNo = 0  )

protected

Definition at line 16 of file mitkDICOMGDCMImageFrameInfo.cpp.

References DICOMGDCMImageFrameInfo().

Member Function Documentation

GetFilenameIfAvailable()

std::string mitk::DICOMGDCMImageFrameInfo::GetFilenameIfAvailable ( ) const

overridevirtual

Return a filename if possible. If DICOM is not read from file but from somewhere else (network, database), we might not have files.

Implements mitk::DICOMDatasetAccess.

Definition at line 106 of file mitkDICOMGDCMImageFrameInfo.cpp.

References mitk::DICOMImageFrameInfo::Filename.

Referenced by GetTagValueAsString().

GetTagValueAsString() [1/2]

mitk::DICOMDatasetFinding mitk::DICOMGDCMImageFrameInfo::GetTagValueAsString ( const DICOMTag &  tag ) const

overridevirtual

Return a DICOMDatasetFinding instance of the tag. The return containes (if valid) the raw value of the tag as a string.

Parameters

tag	Tag which value should be retreived.

Implements mitk::DICOMDatasetAccess.

Definition at line 43 of file mitkDICOMGDCMImageFrameInfo.cpp.

References mitk::DICOMTag::GetElement(), mitk::DICOMTag::GetGroup(), mitk::DICOMDatasetFinding::isValid, m_TagForValue, and mitk::DICOMDatasetFinding::value.

Referenced by GetTagValueAsString(), and ~DICOMGDCMImageFrameInfo().

GetTagValueAsString() [2/2]

mitk::DICOMDatasetAccess::FindingsListType mitk::DICOMGDCMImageFrameInfo::GetTagValueAsString ( const DICOMTagPath &  path ) const

overridevirtual

Return a list of DICOMDatasetFindings of the passed tag path. The return containes (if valid) the raw value of the tag as a string.

Parameters

path	Tag path which value should be retreived.

Implements mitk::DICOMDatasetAccess.

Definition at line 94 of file mitkDICOMGDCMImageFrameInfo.cpp.

References GetFilenameIfAvailable(), mitk::DICOMTagPath::GetFirstNode(), GetTagValueAsString(), mitk::DICOMTagPath::IsExplicit(), mitk::DICOMTagPath::Size(), and mitk::DICOMTagPath::NodeInfo::tag.

mitkClassMacro()

mitk::DICOMGDCMImageFrameInfo::mitkClassMacro	(	DICOMGDCMImageFrameInfo	,
		DICOMDatasetAccessingImageFrameInfo
	)

mitkNewMacro1Param() [1/2]

mitk::DICOMGDCMImageFrameInfo::mitkNewMacro1Param	(	DICOMGDCMImageFrameInfo	,
		const std::string &
	)

mitkNewMacro1Param() [2/2]

mitk::DICOMGDCMImageFrameInfo::mitkNewMacro1Param	(	DICOMGDCMImageFrameInfo	,
		const DICOMImageFrameInfo::Pointer &
	)

mitkNewMacro2Param() [1/2]

mitk::DICOMGDCMImageFrameInfo::mitkNewMacro2Param	(	DICOMGDCMImageFrameInfo	,
		const std::string &	,
		unsigned	int
	)

mitkNewMacro2Param() [2/2]

mitk::DICOMGDCMImageFrameInfo::mitkNewMacro2Param	(	DICOMGDCMImageFrameInfo	,
		const DICOMImageFrameInfo::Pointer &	,
		gdcm::Scanner::TagToValue const &
	)

New()

static Pointer mitk::DICOMGDCMImageFrameInfo::New ( )

static

Referenced by mitk::DICOMGDCMTagCache::InitCache().

Member Data Documentation

m_TagForValue

const gdcm::Scanner::TagToValue mitk::DICOMGDCMImageFrameInfo::m_TagForValue

protected

Definition at line 54 of file mitkDICOMGDCMImageFrameInfo.h.

Referenced by GetTagValueAsString().

---

The documentation for this class was generated from the following files:

• mitkDICOMGDCMImageFrameInfo.h
• mitkDICOMGDCMImageFrameInfo.cpp
