The sorting/splitting building-block of DICOMITKSeriesGDCMReader. More...
#include <mitkDICOMDatasetSorter.h>
Public Member Functions | |
| mitkClassMacroItkParent (DICOMDatasetSorter, itk::LightObject) | |
| virtual DICOMTagList | GetTagsOfInterest ()=0 |
| Return the tags of interest (to facilitate scanning) More... | |
| void | SetInput (DICOMDatasetList filenames) |
| Input for sorting. More... | |
| const DICOMDatasetList & | GetInput () const |
| Input for sorting. More... | |
| virtual void | Sort ()=0 |
| Sort input datasets into one or multiple outputs. More... | |
| unsigned int | GetNumberOfOutputs () const |
| Output of the sorting process. More... | |
| const DICOMDatasetList & | GetOutput (unsigned int index) const |
| Output of the sorting process. More... | |
| DICOMDatasetList & | GetOutput (unsigned int index) |
| Output of the sorting process. More... | |
| virtual void | PrintConfiguration (std::ostream &os, const std::string &indent="") const =0 |
| Print configuration details into stream. More... | |
| virtual bool | operator== (const DICOMDatasetSorter &other) const =0 |
Protected Member Functions | |
| DICOMDatasetSorter () | |
| ~DICOMDatasetSorter () override | |
| DICOMDatasetSorter (const DICOMDatasetSorter &other) | |
| DICOMDatasetSorter & | operator= (const DICOMDatasetSorter &other) |
| void | ClearOutputs () |
| void | SetNumberOfOutputs (unsigned int numberOfOutputs) |
| void | SetOutput (unsigned int index, const DICOMDatasetList &output) |
Detailed Description
The sorting/splitting building-block of DICOMITKSeriesGDCMReader.
This class describes the interface of the sorting/splitting process described as part of DICOMITKSeriesGDCMReader::AnalyzeInputFiles() (see Loading strategy).
The prodecure is simple:
- take a list of input datasets (DICOMDatasetAccess)
- sort them (to be defined by sub-classes, based on specific tags)
- return the sorting result as outputs (the single input might be distributed into multiple outputs)

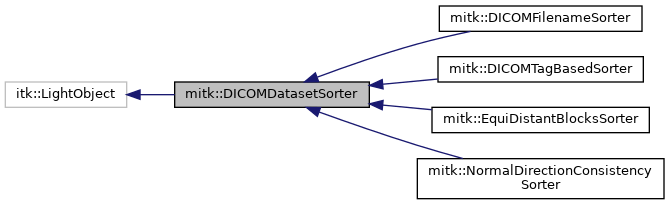

The simplest and most generic form of sorting is implemented in sub-class DICOMTagBasedSorter.
Definition at line 40 of file mitkDICOMDatasetSorter.h.
Constructor & Destructor Documentation
◆ DICOMDatasetSorter() [1/2]
|
protected |
Definition at line 16 of file mitkDICOMDatasetSorter.cpp.
References ~DICOMDatasetSorter().
Referenced by ~DICOMDatasetSorter().
◆ ~DICOMDatasetSorter()
|
overrideprotected |
Definition at line 22 of file mitkDICOMDatasetSorter.cpp.
References DICOMDatasetSorter().
Referenced by DICOMDatasetSorter().
◆ DICOMDatasetSorter() [2/2]
|
protected |
Definition at line 27 of file mitkDICOMDatasetSorter.cpp.
References operator=().
Member Function Documentation
◆ ClearOutputs()
|
protected |
Definition at line 68 of file mitkDICOMDatasetSorter.cpp.
References SetNumberOfOutputs().
Referenced by GetNumberOfOutputs().
◆ GetInput()
| const mitk::DICOMDatasetList & mitk::DICOMDatasetSorter::GetInput | ( | void | ) | const |
Input for sorting.
Definition at line 54 of file mitkDICOMDatasetSorter.cpp.
References GetNumberOfOutputs().
Referenced by SetInput(), mitk::DICOMFilenameSorter::Sort(), mitk::NormalDirectionConsistencySorter::Sort(), mitk::EquiDistantBlocksSorter::Sort(), and mitk::DICOMTagBasedSorter::SplitInputGroups().
◆ GetNumberOfOutputs()
| unsigned int mitk::DICOMDatasetSorter::GetNumberOfOutputs | ( | ) | const |
Output of the sorting process.
Definition at line 61 of file mitkDICOMDatasetSorter.cpp.
References ClearOutputs().
Referenced by GetInput().
◆ GetOutput() [1/2]
| const mitk::DICOMDatasetList & mitk::DICOMDatasetSorter::GetOutput | ( | unsigned int | index | ) | const |
Output of the sorting process.
Definition at line 98 of file mitkDICOMDatasetSorter.cpp.
Referenced by SetOutput().
◆ GetOutput() [2/2]
| mitk::DICOMDatasetList & mitk::DICOMDatasetSorter::GetOutput | ( | unsigned int | index | ) |
Output of the sorting process.
Definition at line 105 of file mitkDICOMDatasetSorter.cpp.
◆ GetTagsOfInterest()
|
pure virtual |
Return the tags of interest (to facilitate scanning)
Implemented in mitk::DICOMTagBasedSorter, mitk::EquiDistantBlocksSorter, mitk::NormalDirectionConsistencySorter, and mitk::DICOMFilenameSorter.
◆ mitkClassMacroItkParent()
| mitk::DICOMDatasetSorter::mitkClassMacroItkParent | ( | DICOMDatasetSorter | , |
| itk::LightObject | |||
| ) |
◆ operator=()
|
protected |
Definition at line 35 of file mitkDICOMDatasetSorter.cpp.
References SetInput().
Referenced by DICOMDatasetSorter(), mitk::DICOMFilenameSorter::operator=(), mitk::NormalDirectionConsistencySorter::operator=(), mitk::DICOMTagBasedSorter::operator=(), and mitk::EquiDistantBlocksSorter::operator=().
◆ operator==()
|
pure virtual |
◆ PrintConfiguration()
|
pure virtual |
Print configuration details into stream.
Implemented in mitk::DICOMTagBasedSorter, mitk::EquiDistantBlocksSorter, mitk::NormalDirectionConsistencySorter, and mitk::DICOMFilenameSorter.
◆ SetInput()
| void mitk::DICOMDatasetSorter::SetInput | ( | DICOMDatasetList | filenames | ) |
Input for sorting.
Definition at line 47 of file mitkDICOMDatasetSorter.cpp.
References GetInput().
Referenced by operator=().
◆ SetNumberOfOutputs()
|
protected |
Definition at line 75 of file mitkDICOMDatasetSorter.cpp.
References SetOutput().
Referenced by ClearOutputs(), mitk::DICOMFilenameSorter::Sort(), mitk::NormalDirectionConsistencySorter::Sort(), mitk::EquiDistantBlocksSorter::Sort(), and mitk::DICOMTagBasedSorter::Sort().
◆ SetOutput()
|
protected |
Definition at line 82 of file mitkDICOMDatasetSorter.cpp.
References GetOutput().
Referenced by SetNumberOfOutputs(), mitk::DICOMFilenameSorter::Sort(), mitk::NormalDirectionConsistencySorter::Sort(), mitk::EquiDistantBlocksSorter::Sort(), and mitk::DICOMTagBasedSorter::Sort().
◆ Sort()
|
pure virtual |
Sort input datasets into one or multiple outputs.
Implemented in mitk::DICOMTagBasedSorter, mitk::EquiDistantBlocksSorter, mitk::NormalDirectionConsistencySorter, and mitk::DICOMFilenameSorter.
The documentation for this class was generated from the following files:
