Property for annotations. More...

#include <mitkAnnotationProperty.h>

Inheritance diagram for mitk::AnnotationProperty:

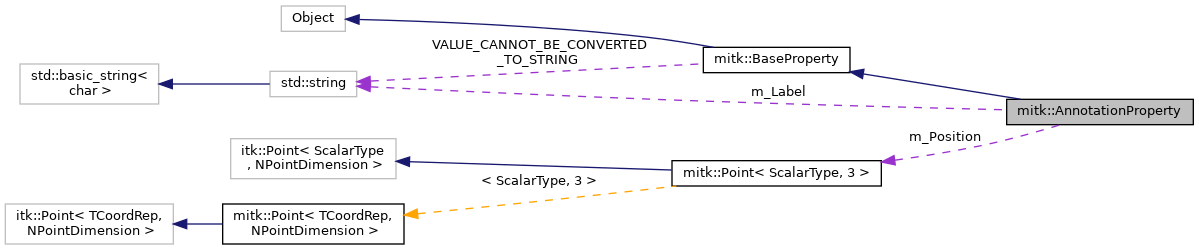

Collaboration diagram for mitk::AnnotationProperty:

[legend]

Public Types
typedef AnnotationProperty	Self

typedef BaseProperty	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::string	ValueType

Public Types inherited from mitk::BaseProperty
typedef BaseProperty	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

virtual const char *	GetLabel () const

virtual void	SetLabel (const char *_arg)

const Point3D &	GetPosition () const

void	SetPosition (const Point3D &position)

std::string	GetValueAsString () const override

virtual BaseProperty &	operator= (const BaseProperty &other)

Public Member Functions inherited from mitk::BaseProperty
Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Subclasses must implement IsEqual(const BaseProperty&) to support comparison. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

static Pointer	New (const char *_arga, const Point3D &_argb)

static Pointer	New (const std::string &_arga, const Point3D &_argb)

static Pointer	New (const char *_arga, ScalarType _argb, ScalarType _argc, ScalarType _argd)

static Pointer	New (const std::string &_arga, ScalarType _argb, ScalarType _argc, ScalarType _argd)

Static Public Member Functions inherited from mitk::BaseProperty
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	AnnotationProperty ()

	AnnotationProperty (const char *label, const Point3D &position)

	AnnotationProperty (const std::string &label, const Point3D &position)

	AnnotationProperty (const char *label, ScalarType x, ScalarType y, ScalarType z)

	AnnotationProperty (const std::string &label, ScalarType x, ScalarType y, ScalarType z)

	AnnotationProperty (const AnnotationProperty &other)

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Protected Attributes
std::string	m_Label

Point3D	m_Position

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value if a property which can not be returned as string. More...

Detailed Description

Property for annotations.

Definition at line 30 of file mitkAnnotationProperty.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> mitk::AnnotationProperty::ConstPointer

Definition at line 33 of file mitkAnnotationProperty.h.

◆ Pointer

typedef itk::SmartPointer<Self> mitk::AnnotationProperty::Pointer

Definition at line 33 of file mitkAnnotationProperty.h.

◆ Self

typedef AnnotationProperty mitk::AnnotationProperty::Self

Definition at line 33 of file mitkAnnotationProperty.h.

◆ Superclass

typedef BaseProperty mitk::AnnotationProperty::Superclass

Definition at line 33 of file mitkAnnotationProperty.h.

◆ ValueType

typedef std::string mitk::AnnotationProperty::ValueType

Definition at line 33 of file mitkAnnotationProperty.h.

Constructor & Destructor Documentation

◆ AnnotationProperty() [1/6]

mitk::AnnotationProperty::AnnotationProperty ( )

protected

Definition at line 15 of file mitkAnnotationProperty.cpp.

◆ AnnotationProperty() [2/6]

mitk::AnnotationProperty::AnnotationProperty	(	const char *	label,
		const Point3D &	position
	)

protected

Definition at line 19 of file mitkAnnotationProperty.cpp.

References m_Label.

◆ AnnotationProperty() [3/6]

mitk::AnnotationProperty::AnnotationProperty	(	const std::string &	label,
		const Point3D &	position
	)

protected

Definition at line 28 of file mitkAnnotationProperty.cpp.

◆ AnnotationProperty() [4/6]

mitk::AnnotationProperty::AnnotationProperty	(	const char *	label,
		ScalarType	x,
		ScalarType	y,
		ScalarType	z
	)

protected

Definition at line 33 of file mitkAnnotationProperty.cpp.

References m_Label, and m_Position.

◆ AnnotationProperty() [5/6]

mitk::AnnotationProperty::AnnotationProperty	(	const std::string &	label,
		ScalarType	x,
		ScalarType	y,
		ScalarType	z
	)

protected

Definition at line 45 of file mitkAnnotationProperty.cpp.

References m_Position.

◆ AnnotationProperty() [6/6]

mitk::AnnotationProperty::AnnotationProperty ( const AnnotationProperty & other )

protected

Definition at line 53 of file mitkAnnotationProperty.cpp.

Member Function Documentation

◆ Clone()

Pointer mitk::AnnotationProperty::Clone ( ) const

◆ GetClassHierarchy()

virtual std::vector<std::string> mitk::AnnotationProperty::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::BaseProperty.

Definition at line 33 of file mitkAnnotationProperty.h.

◆ GetClassName()

virtual const char* mitk::AnnotationProperty::GetClassName ( ) const

virtual

Reimplemented from mitk::BaseProperty.

◆ GetLabel()

virtual const char* mitk::AnnotationProperty::GetLabel ( ) const

virtual

Referenced by GetValueAsString().

◆ GetPosition()

const mitk::Point3D & mitk::AnnotationProperty::GetPosition ( ) const

Definition at line 58 of file mitkAnnotationProperty.cpp.

References m_Position.

Referenced by GetValueAsString().

◆ GetStaticNameOfClass()

static const char* mitk::AnnotationProperty::GetStaticNameOfClass ( )

inlinestatic

Definition at line 33 of file mitkAnnotationProperty.h.

◆ GetValueAsString()

std::string mitk::AnnotationProperty::GetValueAsString ( ) const

overridevirtual

Reimplemented from mitk::BaseProperty.

Definition at line 85 of file mitkAnnotationProperty.cpp.

References GetLabel(), and GetPosition().

◆ New() [1/5]

static Pointer mitk::AnnotationProperty::New ( )

static

Referenced by mitkPropertySerializationTest().

◆ New() [2/5]

static Pointer mitk::AnnotationProperty::New	(	const char *	_arga,
		const Point3D &	_argb
	)

inlinestatic

Definition at line 40 of file mitkAnnotationProperty.h.

◆ New() [3/5]

static Pointer mitk::AnnotationProperty::New	(	const std::string &	_arga,
		const Point3D &	_argb
	)

inlinestatic

Definition at line 41 of file mitkAnnotationProperty.h.

◆ New() [4/5]

static Pointer mitk::AnnotationProperty::New	(	const char *	_arga,
		ScalarType	_argb,
		ScalarType	_argc,
		ScalarType	_argd
	)

inlinestatic

Definition at line 42 of file mitkAnnotationProperty.h.

◆ New() [5/5]

static Pointer mitk::AnnotationProperty::New	(	const std::string &	_arga,
		ScalarType	_argb,
		ScalarType	_argc,
		ScalarType	_argd
	)

inlinestatic

Definition at line 43 of file mitkAnnotationProperty.h.

◆ operator=()

virtual BaseProperty& mitk::AnnotationProperty::operator= ( const BaseProperty & other )

inlinevirtual

Definition at line 52 of file mitkAnnotationProperty.h.

◆ SetLabel()

virtual void mitk::AnnotationProperty::SetLabel ( const char * _arg )

virtual

◆ SetPosition()

void mitk::AnnotationProperty::SetPosition ( const Point3D & position )

Definition at line 63 of file mitkAnnotationProperty.cpp.

References m_Label, and m_Position.

Member Data Documentation

◆ m_Label

std::string mitk::AnnotationProperty::m_Label

protected

Definition at line 56 of file mitkAnnotationProperty.h.

Referenced by AnnotationProperty(), and SetPosition().

◆ m_Position

Point3D mitk::AnnotationProperty::m_Position

protected

Definition at line 57 of file mitkAnnotationProperty.h.

Referenced by AnnotationProperty(), GetPosition(), and SetPosition().

The documentation for this class was generated from the following files:
