mbilog::TextBackendBase Class Reference

This class is an abstract superclass for logging text backends. It adds string formatting methods to the backend interface BackendBase. Accordingly backends that inherit from this class can be registered in the mbi logging mechanism. More...

#include <mbilogTextBackendBase.h>

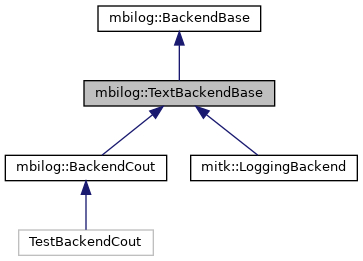

Inheritance diagram for mbilog::TextBackendBase:

Collaboration diagram for mbilog::TextBackendBase:

Public Member Functions
	~TextBackendBase () override
void	ProcessMessage (const mbilog::LogMessage &logMessage) override=0
	This method is called by the mbi logging mechanism if the object is registered in the mbi logging mechanism and a logging message is emitted. More...
Public Member Functions inherited from mbilog::BackendBase
virtual	~BackendBase ()
virtual OutputType	GetOutputType () const =0

Protected Member Functions
void	FormatSmart (const LogMessage &l, int threadID=0)
	Method formats the given LogMessage in the smart/short format and writes it to std::cout. More...
void	FormatFull (const LogMessage &l, int threadID=0)
	Method formats the given LogMessage in the full/long format and writes it to std::cout. More...
void	FormatSmart (std::ostream &out, const LogMessage &l, int threadID=0)
	Method formats the given LogMessage in the smart/short format and writes it to the given std::ostream. More...
void	FormatFull (std::ostream &out, const LogMessage &l, int threadID=0)
	Method formats the given LogMessage in the full/long format and writes it to the given std::ostream. More...
void	AppendTimeStamp (std::ostream &out)
	Writes the system time to the given stream. More...
void	FormatSmartWindows (const mbilog::LogMessage &l, int)
	Special variant of method FormatSmart which uses colored messages (only for windows). More...

Detailed Description

This class is an abstract superclass for logging text backends. It adds string formatting methods to the backend interface BackendBase. Accordingly backends that inherit from this class can be registered in the mbi logging mechanism.

Documentation

Definition at line 28 of file mbilogTextBackendBase.h.

Constructor & Destructor Documentation

~TextBackendBase()

mbilog::TextBackendBase::~TextBackendBase ( )

override

Definition at line 28 of file mbilogTextBackendBase.cpp.

References compare(), mbilog::LogMessage::filePath, and mbilog::replace.

Member Function Documentation

AppendTimeStamp()

void mbilog::TextBackendBase::AppendTimeStamp ( std::ostream &  out )

protected

Writes the system time to the given stream.

Definition at line 398 of file mbilogTextBackendBase.cpp.

References mbilog::LogMessage::category, mbilog::Debug, mbilog::Error, mbilog::Fatal, FormatSmartWindows(), g_init, mbilog::Info, mbilog::LogMessage::level, mbilog::LogMessage::message, and mbilog::Warn.

Referenced by FormatFull(), and FormatSmart().

FormatFull() [1/2]

void mbilog::TextBackendBase::FormatFull ( const LogMessage &  l, int  threadID = 0  )

protected

Method formats the given LogMessage in the full/long format and writes it to std::cout.

Parameters

threadID

Can be set to the threadID where the logging message was emitted. Is 0 by default.

Definition at line 393 of file mbilogTextBackendBase.cpp.

Referenced by mitk::LoggingBackend::ProcessMessage(), and mbilog::BackendCout::ProcessMessage().

FormatFull() [2/2]

void mbilog::TextBackendBase::FormatFull ( std::ostream &  out, const LogMessage &  l, int  threadID = 0  )

protected

Method formats the given LogMessage in the full/long format and writes it to the given std::ostream.

Parameters

threadID

Can be set to the threadID where the logging message was emitted. Is 0 by default.

Definition at line 331 of file mbilogTextBackendBase.cpp.

References AppendTimeStamp(), mbilog::LogMessage::category, mbilog::Debug, mbilog::Error, mbilog::Fatal, mbilog::LogMessage::filePath, mbilog::LogMessage::functionName, mbilog::Info, mbilog::LogMessage::level, mbilog::LogMessage::lineNumber, mbilog::LogMessage::message, mbilog::LogMessage::moduleName, and mbilog::Warn.

FormatSmart() [1/2]

void mbilog::TextBackendBase::FormatSmart ( const LogMessage &  l, int  threadID = 0  )

protected

Method formats the given LogMessage in the smart/short format and writes it to std::cout.

Parameters

threadID

Can be set to the threadID where the logging message was emitted. Is 0 by default.

Definition at line 384 of file mbilogTextBackendBase.cpp.

References FormatSmartWindows().

Referenced by mitk::LoggingBackend::ProcessMessage(), and mbilog::BackendCout::ProcessMessage().

FormatSmart() [2/2]

void mbilog::TextBackendBase::FormatSmart ( std::ostream &  out, const LogMessage &  l, int  threadID = 0  )

protected

Method formats the given LogMessage in the smart/short format and writes it to the given std::ostream.

Parameters

threadID

Can be set to the threadID where the logging message was emitted. Is 0 by default.

Definition at line 251 of file mbilogTextBackendBase.cpp.

References AppendTimeStamp(), mbilog::LogMessage::category, mbilog::Debug, mbilog::Error, mbilog::Fatal, g_init, mbilog::Info, mbilog::LogMessage::level, mbilog::LogMessage::message, and mbilog::Warn.

FormatSmartWindows()

void mbilog::TextBackendBase::FormatSmartWindows ( const mbilog::LogMessage &  l, int    )

protected

Special variant of method FormatSmart which uses colored messages (only for windows).

Referenced by AppendTimeStamp(), and FormatSmart().

ProcessMessage()

void mbilog::TextBackendBase::ProcessMessage ( const mbilog::LogMessage &  logMessage )

overridepure virtual

This method is called by the mbi logging mechanism if the object is registered in the mbi logging mechanism and a logging message is emitted.

Parameters

logMessage

Logging message which was emitted.

Implements mbilog::BackendBase.

Implemented in mbilog::BackendCout, and mitk::LoggingBackend.

---

The documentation for this class was generated from the following files:

• mbilogTextBackendBase.h
• mbilogTextBackendBase.cpp
