#include <QmitkToFVisualisationSettingsWidget.h>

Inheritance diagram for QmitkToFVisualisationSettingsWidget:

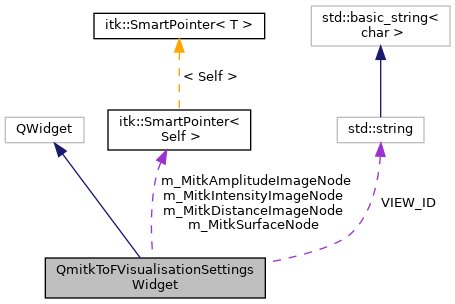

Collaboration diagram for QmitkToFVisualisationSettingsWidget:

[legend]

Public Member Functions
	QmitkToFVisualisationSettingsWidget (QWidget *p=nullptr, Qt::WindowFlags f1=nullptr)

	~QmitkToFVisualisationSettingsWidget () override

virtual void	CreateQtPartControl (QWidget *parent)

virtual void	CreateConnections ()

void	Initialize (mitk::DataNode distanceImageNode=nullptr, mitk::DataNode amplitudeImageNode=nullptr, mitk::DataNode intensityImageNode=nullptr, mitk::DataNode surfaceNode=nullptr)
	initialize the widget with the images to be shown More...

vtkColorTransferFunction *	GetWidget1ColorTransferFunction ()
	Access the color transfer function of widget 1 (distance image) More...

vtkColorTransferFunction *	GetWidget2ColorTransferFunction ()
	Access the color transfer function of widget 2 (distance image) More...

vtkColorTransferFunction *	GetWidget3ColorTransferFunction ()
	Access the color transfer function of widget 3 (distance image) More...

vtkColorTransferFunction *	GetSelectedColorTransferFunction ()
	Access the color transfer of the currently selected widget. More...

int	GetSelectedImageIndex ()
	Return the index of the selected image: 0 = Distance, 1 = Amplitude, 2 = Intensity. More...

Static Public Attributes
static const std::string	VIEW_ID

Protected Slots
void	OnShowAdvancedOptionsCheckboxChecked (bool checked)

void	OnSetXValueColor ()

void	OnResetSlider ()
	Slot invoking a reset of the RangeSlider to the minimal and maximal values of the according image. More...

void	OnSpanChanged (int lower, int upper)
	Slot called when the range span has changed. More...

void	OnTransferFunctionReset ()
	Resets the transfer function according to the currently selected widget / image. More...

void	OnWidgetSelected (int index)
	Updates the GUI according to the widget / image selection. More...

void	OnRangeSliderMaxChanged ()
	Slot called when the line edit of the maximal value of the range slider has changed. Leads to an update of the range slider. More...

void	OnRangeSliderMinChanged ()
	Slot called when the line edit of the minimal value of the range slider has changed. Leads to an update of the range slider. More...

void	OnTransferFunctionTypeSelected (int index)
	Sets the TransferFunctionType members according to the selection of the widget and the transfer type. More...

Protected Member Functions
void	UpdateCanvas ()
	Invokes an update of the ColorTransferFunctionCanvas. Called when the ColorTransferFunction has changed. More...

void	UpdateRanges ()
	Resets the ColorTransferFunctionCanvas according to the lower and upper value of the RangeSlider. More...

Protected Attributes
Ui::QmitkToFVisualisationSettingsWidgetControls *	m_Controls

int	m_RangeSliderMin
	Minimal value of the transfer function range. Initialized to the minimal value of the corresponding image. More...

int	m_RangeSliderMax
	Maximal value of the transfer function range. Initialized to the maximal value of the corresponding image. More...

mitk::DataNode::Pointer	m_MitkDistanceImageNode
	DataNode holding the range image of the ToF camera as set by Initialize() More...

mitk::DataNode::Pointer	m_MitkAmplitudeImageNode
	DataNode holding the amplitude image of the ToF camera as set by Initialize() More...

mitk::DataNode::Pointer	m_MitkIntensityImageNode
	DataNode holding the intensity image of the ToF camera as set by Initialize() More...

mitk::DataNode::Pointer	m_MitkSurfaceNode
	DataNode holding the surface. More...

vtkColorTransferFunction *	m_Widget1ColorTransferFunction
	vtkColorTransferFunction of widget 1 (distance) that can be used to define a TransferFunctionProperty More...

vtkColorTransferFunction *	m_Widget2ColorTransferFunction
	vtkColorTransferFunction of widget 2 (amplitude) that can be used to define a TransferFunctionProperty More...

vtkColorTransferFunction *	m_Widget3ColorTransferFunction
	vtkColorTransferFunction of widget 3 (intensity) that can be used to define a TransferFunctionProperty More...

int	m_Widget1TransferFunctionType
	member holding the type of the transfer function applied to the image shown in widget 1 (distance image): 0 = gray scale, 1 = color More...

int	m_Widget2TransferFunctionType
	member holding the type of the transfer function applied to the image shown in widget 2 (amplitude image): 0 = gray scale, 1 = color More...

int	m_Widget3TransferFunctionType
	member holding the type of the transfer function applied to the image shown in widget 3 (intensity image): 0 = gray scale, 1 = color More...

Detailed Description

Documentation: Widget controlling the visualization of Time-of-Flight image data. A color transfer function can be configured for a given distance, amplitude and intensity image. The pre-configured vtkColorTransferFunctions can be accessed as an output of the widget.

Definition at line 34 of file QmitkToFVisualisationSettingsWidget.h.

Constructor & Destructor Documentation

◆ QmitkToFVisualisationSettingsWidget()

QmitkToFVisualisationSettingsWidget::QmitkToFVisualisationSettingsWidget	(	QWidget *	p = `nullptr`,
		Qt::WindowFlags	f1 = `nullptr`
	)

Definition at line 26 of file QmitkToFVisualisationSettingsWidget.cpp.

References CreateQtPartControl().

◆ ~QmitkToFVisualisationSettingsWidget()

QmitkToFVisualisationSettingsWidget::~QmitkToFVisualisationSettingsWidget ( )

override

Definition at line 43 of file QmitkToFVisualisationSettingsWidget.cpp.

Member Function Documentation

◆ CreateConnections()

void QmitkToFVisualisationSettingsWidget::CreateConnections ( )

virtual

Definition at line 58 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, OnRangeSliderMaxChanged(), OnRangeSliderMinChanged(), OnResetSlider(), OnSetXValueColor(), OnShowAdvancedOptionsCheckboxChecked(), OnSpanChanged(), OnTransferFunctionReset(), OnTransferFunctionTypeSelected(), and OnWidgetSelected().

Referenced by CreateQtPartControl().

◆ CreateQtPartControl()

void QmitkToFVisualisationSettingsWidget::CreateQtPartControl ( QWidget * parent )

virtual

Definition at line 47 of file QmitkToFVisualisationSettingsWidget.cpp.

References CreateConnections(), and m_Controls.

Referenced by QmitkToFVisualisationSettingsWidget().

◆ GetSelectedColorTransferFunction()

vtkColorTransferFunction * QmitkToFVisualisationSettingsWidget::GetSelectedColorTransferFunction ( )

Access the color transfer of the currently selected widget.

Returns: vtkColorTransferFunction that can be used to define a TransferFunctionProperty

Definition at line 391 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, m_Widget1ColorTransferFunction, m_Widget2ColorTransferFunction, and m_Widget3ColorTransferFunction.

Referenced by UpdateCanvas(), and UpdateRanges().

◆ GetSelectedImageIndex()

int QmitkToFVisualisationSettingsWidget::GetSelectedImageIndex ( )

Return the index of the selected image: 0 = Distance, 1 = Amplitude, 2 = Intensity.

Definition at line 412 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls.

◆ GetWidget1ColorTransferFunction()

vtkColorTransferFunction * QmitkToFVisualisationSettingsWidget::GetWidget1ColorTransferFunction ( )

Access the color transfer function of widget 1 (distance image)

Returns: vtkColorTransferFunction that can be used to define a TransferFunctionProperty

Definition at line 376 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Widget1ColorTransferFunction.

◆ GetWidget2ColorTransferFunction()

vtkColorTransferFunction * QmitkToFVisualisationSettingsWidget::GetWidget2ColorTransferFunction ( )

Access the color transfer function of widget 2 (distance image)

Returns: vtkColorTransferFunction that can be used to define a TransferFunctionProperty

Definition at line 381 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Widget2ColorTransferFunction.

◆ GetWidget3ColorTransferFunction()

vtkColorTransferFunction * QmitkToFVisualisationSettingsWidget::GetWidget3ColorTransferFunction ( )

Access the color transfer function of widget 3 (distance image)

Returns: vtkColorTransferFunction that can be used to define a TransferFunctionProperty

Definition at line 386 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Widget3ColorTransferFunction.

◆ Initialize()

void QmitkToFVisualisationSettingsWidget::Initialize	(	mitk::DataNode *	distanceImageNode = `nullptr`,
		mitk::DataNode *	amplitudeImageNode = `nullptr`,
		mitk::DataNode *	intensityImageNode = `nullptr`,
		mitk::DataNode *	surfaceNode = `nullptr`
	)

initialize the widget with the images to be shown

Parameters

distanceImageNode	image holding the range image of a ToF camera
amplitudeImageNode	image holding the amplitude image of a ToF camera
intensityImageNode	image holding the intensity image of a ToF camera

Definition at line 137 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, m_MitkAmplitudeImageNode, m_MitkDistanceImageNode, m_MitkIntensityImageNode, m_MitkSurfaceNode, m_Widget1ColorTransferFunction, m_Widget1TransferFunctionType, m_Widget2ColorTransferFunction, m_Widget2TransferFunctionType, m_Widget3ColorTransferFunction, and m_Widget3TransferFunctionType.

◆ OnRangeSliderMaxChanged

void QmitkToFVisualisationSettingsWidget::OnRangeSliderMaxChanged ( )

protectedslot

Slot called when the line edit of the maximal value of the range slider has changed. Leads to an update of the range slider.

Definition at line 88 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, and UpdateRanges().

Referenced by CreateConnections().

◆ OnRangeSliderMinChanged

void QmitkToFVisualisationSettingsWidget::OnRangeSliderMinChanged ( )

protectedslot

Slot called when the line edit of the minimal value of the range slider has changed. Leads to an update of the range slider.

Definition at line 95 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, and UpdateRanges().

Referenced by CreateConnections().

◆ OnResetSlider

void QmitkToFVisualisationSettingsWidget::OnResetSlider ( )

protectedslot

Slot invoking a reset of the RangeSlider to the minimal and maximal values of the according image.

Definition at line 108 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, m_RangeSliderMax, m_RangeSliderMin, and UpdateRanges().

Referenced by CreateConnections().

◆ OnSetXValueColor

void QmitkToFVisualisationSettingsWidget::OnSetXValueColor ( )

protectedslot

Definition at line 82 of file QmitkToFVisualisationSettingsWidget.cpp.

References mitk::RenderingManager::GetInstance(), m_Controls, and mitk::RenderingManager::RequestUpdateAll().

Referenced by CreateConnections().

◆ OnShowAdvancedOptionsCheckboxChecked

void QmitkToFVisualisationSettingsWidget::OnShowAdvancedOptionsCheckboxChecked ( bool checked )

protectedslot

Definition at line 212 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls.

Referenced by CreateConnections().

◆ OnSpanChanged

void QmitkToFVisualisationSettingsWidget::OnSpanChanged	(	int	lower,
		int	upper
	)

protectedslot

Slot called when the range span has changed.

Definition at line 102 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, and UpdateRanges().

Referenced by CreateConnections().

◆ OnTransferFunctionReset

void QmitkToFVisualisationSettingsWidget::OnTransferFunctionReset ( )

protectedslot

Resets the transfer function according to the currently selected widget / image.

Definition at line 358 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, m_RangeSliderMax, m_RangeSliderMin, and UpdateRanges().

Referenced by CreateConnections().

◆ OnTransferFunctionTypeSelected

void QmitkToFVisualisationSettingsWidget::OnTransferFunctionTypeSelected ( int index )

protectedslot

Sets the TransferFunctionType members according to the selection of the widget and the transfer type.

Definition at line 190 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, m_Widget1TransferFunctionType, m_Widget2TransferFunctionType, and m_Widget3TransferFunctionType.

Referenced by CreateConnections().

◆ OnWidgetSelected

void QmitkToFVisualisationSettingsWidget::OnWidgetSelected ( int index )

protectedslot

Updates the GUI according to the widget / image selection.

Definition at line 220 of file QmitkToFVisualisationSettingsWidget.cpp.

References m_Controls, m_MitkAmplitudeImageNode, m_MitkDistanceImageNode, m_MitkIntensityImageNode, m_RangeSliderMax, m_RangeSliderMin, m_Widget1ColorTransferFunction, m_Widget1TransferFunctionType, m_Widget2ColorTransferFunction, m_Widget2TransferFunctionType, m_Widget3ColorTransferFunction, m_Widget3TransferFunctionType, max(), min(), MITK_INFO, mitk::TransferFunctionProperty::New(), mitk::TransferFunction::New(), and UpdateRanges().

Referenced by CreateConnections().

◆ UpdateCanvas()

void QmitkToFVisualisationSettingsWidget::UpdateCanvas ( )

protected

Invokes an update of the ColorTransferFunctionCanvas. Called when the ColorTransferFunction has changed.

Definition at line 183 of file QmitkToFVisualisationSettingsWidget.cpp.

References GetSelectedColorTransferFunction(), m_Controls, and UpdateRanges().

◆ UpdateRanges()

void QmitkToFVisualisationSettingsWidget::UpdateRanges ( )

protected

Resets the ColorTransferFunctionCanvas according to the lower and upper value of the RangeSlider.

Definition at line 117 of file QmitkToFVisualisationSettingsWidget.cpp.

References GetSelectedColorTransferFunction(), m_Controls, m_MitkSurfaceNode, mitk::TransferFunctionProperty::New(), and mitk::TransferFunction::New().

Referenced by OnRangeSliderMaxChanged(), OnRangeSliderMinChanged(), OnResetSlider(), OnSpanChanged(), OnTransferFunctionReset(), OnWidgetSelected(), and UpdateCanvas().

Member Data Documentation

◆ m_Controls

Ui::QmitkToFVisualisationSettingsWidgetControls* QmitkToFVisualisationSettingsWidget::m_Controls

protected

Definition at line 129 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by CreateConnections(), CreateQtPartControl(), GetSelectedColorTransferFunction(), GetSelectedImageIndex(), Initialize(), OnRangeSliderMaxChanged(), OnRangeSliderMinChanged(), OnResetSlider(), OnSetXValueColor(), OnShowAdvancedOptionsCheckboxChecked(), OnSpanChanged(), OnTransferFunctionReset(), OnTransferFunctionTypeSelected(), OnWidgetSelected(), UpdateCanvas(), and UpdateRanges().

◆ m_MitkAmplitudeImageNode

mitk::DataNode::Pointer QmitkToFVisualisationSettingsWidget::m_MitkAmplitudeImageNode

protected

DataNode holding the amplitude image of the ToF camera as set by Initialize()

Definition at line 135 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by Initialize(), and OnWidgetSelected().

◆ m_MitkDistanceImageNode

mitk::DataNode::Pointer QmitkToFVisualisationSettingsWidget::m_MitkDistanceImageNode

protected

DataNode holding the range image of the ToF camera as set by Initialize()

Definition at line 134 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by Initialize(), and OnWidgetSelected().

◆ m_MitkIntensityImageNode

mitk::DataNode::Pointer QmitkToFVisualisationSettingsWidget::m_MitkIntensityImageNode

protected

DataNode holding the intensity image of the ToF camera as set by Initialize()

Definition at line 136 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by Initialize(), and OnWidgetSelected().

◆ m_MitkSurfaceNode

mitk::DataNode::Pointer QmitkToFVisualisationSettingsWidget::m_MitkSurfaceNode

protected

DataNode holding the surface.

Definition at line 137 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by Initialize(), and UpdateRanges().

◆ m_RangeSliderMax

int QmitkToFVisualisationSettingsWidget::m_RangeSliderMax

protected

Maximal value of the transfer function range. Initialized to the maximal value of the corresponding image.

Definition at line 132 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by OnResetSlider(), OnTransferFunctionReset(), and OnWidgetSelected().

◆ m_RangeSliderMin

int QmitkToFVisualisationSettingsWidget::m_RangeSliderMin

protected

Minimal value of the transfer function range. Initialized to the minimal value of the corresponding image.

Definition at line 131 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by OnResetSlider(), OnTransferFunctionReset(), and OnWidgetSelected().

◆ m_Widget1ColorTransferFunction

vtkColorTransferFunction* QmitkToFVisualisationSettingsWidget::m_Widget1ColorTransferFunction

protected

vtkColorTransferFunction of widget 1 (distance) that can be used to define a TransferFunctionProperty

Definition at line 139 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by GetSelectedColorTransferFunction(), GetWidget1ColorTransferFunction(), Initialize(), and OnWidgetSelected().

◆ m_Widget1TransferFunctionType

int QmitkToFVisualisationSettingsWidget::m_Widget1TransferFunctionType

protected

member holding the type of the transfer function applied to the image shown in widget 1 (distance image): 0 = gray scale, 1 = color

Definition at line 143 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by Initialize(), OnTransferFunctionTypeSelected(), and OnWidgetSelected().

◆ m_Widget2ColorTransferFunction

vtkColorTransferFunction* QmitkToFVisualisationSettingsWidget::m_Widget2ColorTransferFunction

protected

vtkColorTransferFunction of widget 2 (amplitude) that can be used to define a TransferFunctionProperty

Definition at line 140 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by GetSelectedColorTransferFunction(), GetWidget2ColorTransferFunction(), Initialize(), and OnWidgetSelected().

◆ m_Widget2TransferFunctionType

int QmitkToFVisualisationSettingsWidget::m_Widget2TransferFunctionType

protected

member holding the type of the transfer function applied to the image shown in widget 2 (amplitude image): 0 = gray scale, 1 = color

Definition at line 144 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by Initialize(), OnTransferFunctionTypeSelected(), and OnWidgetSelected().

◆ m_Widget3ColorTransferFunction

vtkColorTransferFunction* QmitkToFVisualisationSettingsWidget::m_Widget3ColorTransferFunction

protected

vtkColorTransferFunction of widget 3 (intensity) that can be used to define a TransferFunctionProperty

Definition at line 141 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by GetSelectedColorTransferFunction(), GetWidget3ColorTransferFunction(), Initialize(), and OnWidgetSelected().

◆ m_Widget3TransferFunctionType

int QmitkToFVisualisationSettingsWidget::m_Widget3TransferFunctionType

protected

member holding the type of the transfer function applied to the image shown in widget 3 (intensity image): 0 = gray scale, 1 = color

Definition at line 145 of file QmitkToFVisualisationSettingsWidget.h.

Referenced by Initialize(), OnTransferFunctionTypeSelected(), and OnWidgetSelected().

◆ VIEW_ID

const std::string QmitkToFVisualisationSettingsWidget::VIEW_ID

static

Definition at line 42 of file QmitkToFVisualisationSettingsWidget.h.

The documentation for this class was generated from the following files:
