#include <QmitkSliderNavigatorWidget.h>

Inheritance diagram for QmitkSliderNavigatorWidget:

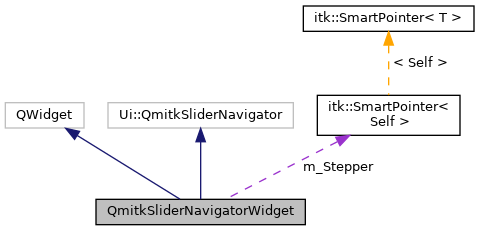

Collaboration diagram for QmitkSliderNavigatorWidget:

Public Slots
void	Refetch ()
	Updates the slider with the recent changes applied to the navigator. More...

void	SetStepper (mitk::Stepper *stepper)

void	ShowLabels (bool show)

void	ShowLabelUnit (bool show)
	En-/disables displaying of the unit label (range will be displayed without unit if enabled). More...

void	SetPos (int val)

void	SetInverseDirection (bool inverseDirection)

void	SetInvertedControls (bool invertedControls)

Public Member Functions
	QmitkSliderNavigatorWidget (QWidget *parent=nullptr, Qt::WindowFlags f=nullptr)

QString	GetLabelUnit ()

QString	ClippedValueToString (float value)
	Converts the passed value to a QString representation. More...

QString	GetMinValueLabel ()
	Returns range-minimum (displayed as label left of slider if enabled) More...

QString	GetMaxValueLabel ()

int	GetPos ()

bool	GetInverseDirection () const

bool	GetInvertedControls () const

Protected Slots
void	slider_valueChanged (double)

void	SetLabelValues (float min, float max)
	Set range minimum and maximum (displayed as labels left and right of slider if enabled) More...

void	SetLabelValuesValid (bool minValid, bool maxValid)

void	SetLabelUnit (const char *unit)
	Set range unit (e.g. mm or ms) which will be displayed below range labels if enabled. More...

void	SetLabels ()
	Configure slider with labels according to range and unit settings. More...

void	spinBox_valueChanged (double)

Protected Attributes
bool	m_HasLabelUnit

bool	m_MaxValueValid

bool	m_MinValueValid

QString	m_LabelUnit

mitk::Stepper::Pointer	m_Stepper

bool	m_InRefetch

bool	m_HasLabels

float	m_MinValue

float	m_MaxValue

bool	m_InverseDirection

bool	m_InvertedControls

Detailed Description

Definition at line 24 of file QmitkSliderNavigatorWidget.h.

Constructor & Destructor Documentation

◆ QmitkSliderNavigatorWidget()

QmitkSliderNavigatorWidget::QmitkSliderNavigatorWidget	(	QWidget *	parent = `nullptr`,
		Qt::WindowFlags	f = `nullptr`
	)

Definition at line 15 of file QmitkSliderNavigatorWidget.cpp.

References m_HasLabels, m_HasLabelUnit, m_InRefetch, m_InverseDirection, m_InvertedControls, SetLabelValuesValid(), ShowLabels(), slider_valueChanged(), and spinBox_valueChanged().

Member Function Documentation

◆ ClippedValueToString()

QString QmitkSliderNavigatorWidget::ClippedValueToString ( float value )

Converts the passed value to a QString representation.

If the value exceeds a certain maximum, "INF" (for "infinity") is displayed instead.

Definition at line 180 of file QmitkSliderNavigatorWidget.cpp.

Referenced by GetMaxValueLabel(), and GetMinValueLabel().

◆ GetInverseDirection()

bool QmitkSliderNavigatorWidget::GetInverseDirection ( ) const

Definition at line 278 of file QmitkSliderNavigatorWidget.cpp.

References m_InverseDirection.

◆ GetInvertedControls()

bool QmitkSliderNavigatorWidget::GetInvertedControls ( ) const

Definition at line 292 of file QmitkSliderNavigatorWidget.cpp.

References m_InvertedControls.

◆ GetLabelUnit()

QString QmitkSliderNavigatorWidget::GetLabelUnit ( )

Definition at line 175 of file QmitkSliderNavigatorWidget.cpp.

References m_LabelUnit.

Referenced by SetLabels().

◆ GetMaxValueLabel()

QString QmitkSliderNavigatorWidget::GetMaxValueLabel ( )

Definition at line 208 of file QmitkSliderNavigatorWidget.cpp.

References ClippedValueToString(), m_MaxValue, and m_MaxValueValid.

Referenced by SetLabels().

◆ GetMinValueLabel()

QString QmitkSliderNavigatorWidget::GetMinValueLabel ( )

Returns range-minimum (displayed as label left of slider if enabled)

Definition at line 196 of file QmitkSliderNavigatorWidget.cpp.

References ClippedValueToString(), m_MinValue, and m_MinValueValid.

Referenced by SetLabels().

◆ GetPos()

int QmitkSliderNavigatorWidget::GetPos ( )

Definition at line 265 of file QmitkSliderNavigatorWidget.cpp.

References m_Stepper.

◆ Refetch

void QmitkSliderNavigatorWidget::Refetch ( )

slot

Updates the slider with the recent changes applied to the navigator.

Intended to be called via event mechanism, e.g. if the connected mitk::Stepper is modified.

Definition at line 51 of file QmitkSliderNavigatorWidget.cpp.

References m_HasLabels, m_InRefetch, m_InverseDirection, m_Stepper, SetLabels(), SetLabelUnit(), SetLabelValues(), and SetLabelValuesValid().

Referenced by SetInverseDirection(), slider_valueChanged(), and spinBox_valueChanged().

◆ SetInverseDirection

void QmitkSliderNavigatorWidget::SetInverseDirection ( bool inverseDirection )

slot

Definition at line 283 of file QmitkSliderNavigatorWidget.cpp.

References m_InverseDirection, and Refetch().

◆ SetInvertedControls

void QmitkSliderNavigatorWidget::SetInvertedControls ( bool invertedControls )

slot

Definition at line 297 of file QmitkSliderNavigatorWidget.cpp.

References m_InvertedControls.

◆ SetLabels

void QmitkSliderNavigatorWidget::SetLabels ( )

protectedslot

Configure slider with labels according to range and unit settings.

Definition at line 220 of file QmitkSliderNavigatorWidget.cpp.

References GetLabelUnit(), GetMaxValueLabel(), GetMinValueLabel(), m_HasLabelUnit, m_MaxValueValid, m_MinValueValid, and m_Stepper.

Referenced by Refetch().

◆ SetLabelUnit

void QmitkSliderNavigatorWidget::SetLabelUnit ( const char * unit )

protectedslot

Set range unit (e.g. mm or ms) which will be displayed below range labels if enabled.

Definition at line 170 of file QmitkSliderNavigatorWidget.cpp.

References m_LabelUnit.

Referenced by Refetch().

◆ SetLabelValues

void QmitkSliderNavigatorWidget::SetLabelValues	(	float	min,
		float	max
	)

protectedslot

Set range minimum and maximum (displayed as labels left and right of slider if enabled)

Definition at line 158 of file QmitkSliderNavigatorWidget.cpp.

References m_MaxValue, m_MinValue, max(), and min().

Referenced by Refetch().

◆ SetLabelValuesValid

void QmitkSliderNavigatorWidget::SetLabelValuesValid	(	bool	minValid,
		bool	maxValid
	)

protectedslot

Definition at line 164 of file QmitkSliderNavigatorWidget.cpp.

References m_MaxValueValid, and m_MinValueValid.

Referenced by QmitkSliderNavigatorWidget(), and Refetch().

◆ SetPos

void QmitkSliderNavigatorWidget::SetPos ( int val )

slot

Definition at line 270 of file QmitkSliderNavigatorWidget.cpp.

References m_InRefetch, and m_Stepper.

◆ SetStepper

void QmitkSliderNavigatorWidget::SetStepper ( mitk::Stepper * stepper )

slot

Definition at line 122 of file QmitkSliderNavigatorWidget.cpp.

References m_InRefetch, and m_Stepper.

◆ ShowLabels

void QmitkSliderNavigatorWidget::ShowLabels ( bool show )

slot

Definition at line 148 of file QmitkSliderNavigatorWidget.cpp.

References m_HasLabels.

Referenced by QmitkSliderNavigatorWidget().

◆ ShowLabelUnit

void QmitkSliderNavigatorWidget::ShowLabelUnit ( bool show )

slot

En-/disables displaying of the unit label (range will be displayed without unit if enabled).

Definition at line 153 of file QmitkSliderNavigatorWidget.cpp.

References m_HasLabelUnit.

◆ slider_valueChanged

void QmitkSliderNavigatorWidget::slider_valueChanged ( double )

protectedslot

Definition at line 132 of file QmitkSliderNavigatorWidget.cpp.

References m_InRefetch, m_InverseDirection, m_Stepper, and Refetch().

Referenced by QmitkSliderNavigatorWidget().

◆ spinBox_valueChanged

void QmitkSliderNavigatorWidget::spinBox_valueChanged ( double )

protectedslot

Definition at line 249 of file QmitkSliderNavigatorWidget.cpp.

References m_InRefetch, m_InverseDirection, m_Stepper, and Refetch().

Referenced by QmitkSliderNavigatorWidget().

Member Data Documentation

◆ m_HasLabels

bool QmitkSliderNavigatorWidget::m_HasLabels

protected

Definition at line 113 of file QmitkSliderNavigatorWidget.h.

Referenced by QmitkSliderNavigatorWidget(), Refetch(), and ShowLabels().

◆ m_HasLabelUnit

bool QmitkSliderNavigatorWidget::m_HasLabelUnit

protected

Definition at line 107 of file QmitkSliderNavigatorWidget.h.

Referenced by QmitkSliderNavigatorWidget(), SetLabels(), and ShowLabelUnit().

◆ m_InRefetch

bool QmitkSliderNavigatorWidget::m_InRefetch

protected

Definition at line 112 of file QmitkSliderNavigatorWidget.h.

Referenced by QmitkSliderNavigatorWidget(), Refetch(), SetPos(), SetStepper(), slider_valueChanged(), and spinBox_valueChanged().

◆ m_InverseDirection

bool QmitkSliderNavigatorWidget::m_InverseDirection

protected

Definition at line 117 of file QmitkSliderNavigatorWidget.h.

Referenced by GetInverseDirection(), QmitkSliderNavigatorWidget(), Refetch(), SetInverseDirection(), slider_valueChanged(), and spinBox_valueChanged().

◆ m_InvertedControls

bool QmitkSliderNavigatorWidget::m_InvertedControls

protected

Definition at line 118 of file QmitkSliderNavigatorWidget.h.

Referenced by GetInvertedControls(), QmitkSliderNavigatorWidget(), and SetInvertedControls().

◆ m_LabelUnit

QString QmitkSliderNavigatorWidget::m_LabelUnit

protected

Definition at line 110 of file QmitkSliderNavigatorWidget.h.

Referenced by GetLabelUnit(), and SetLabelUnit().

◆ m_MaxValue

float QmitkSliderNavigatorWidget::m_MaxValue

protected

Definition at line 115 of file QmitkSliderNavigatorWidget.h.

Referenced by GetMaxValueLabel(), and SetLabelValues().

◆ m_MaxValueValid

bool QmitkSliderNavigatorWidget::m_MaxValueValid

protected

Definition at line 108 of file QmitkSliderNavigatorWidget.h.

Referenced by GetMaxValueLabel(), SetLabels(), and SetLabelValuesValid().

◆ m_MinValue

float QmitkSliderNavigatorWidget::m_MinValue

protected

Definition at line 114 of file QmitkSliderNavigatorWidget.h.

Referenced by GetMinValueLabel(), and SetLabelValues().

◆ m_MinValueValid

bool QmitkSliderNavigatorWidget::m_MinValueValid

protected

Definition at line 109 of file QmitkSliderNavigatorWidget.h.

Referenced by GetMinValueLabel(), SetLabels(), and SetLabelValuesValid().

◆ m_Stepper

mitk::Stepper::Pointer QmitkSliderNavigatorWidget::m_Stepper

protected

Definition at line 111 of file QmitkSliderNavigatorWidget.h.

Referenced by GetPos(), Refetch(), SetLabels(), SetPos(), SetStepper(), slider_valueChanged(), and spinBox_valueChanged().

The documentation for this class was generated from the following files:
